Post your TPS-based acceleration enrichments. - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



MEGAsquirt A place to collectively sort out this megasquirt gizmo

Reply



LinkBack Thread Tools
Old 02-29-2008, 03:53 AM   #1
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,371
Total Cats: 1,332
Default Post your TPS-based acceleration enrichments.

...because I'm a lazy ******* and mine still aren't perfect. Be sure to say what injector size you're running.
Savington is offline   Reply With Quote
Old 02-29-2008, 05:19 AM   #2
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

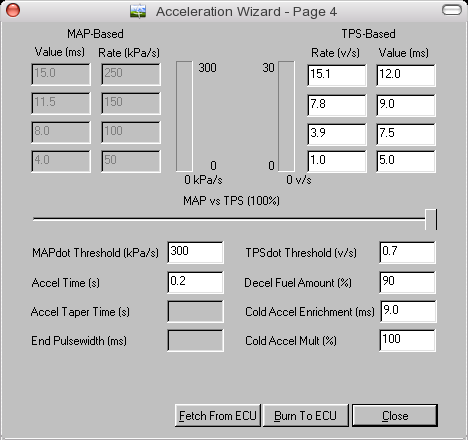

Here are mine, 1.8 NA, 270cc.

Jim
Attached Thumbnails
Post your TPS-based acceleration enrichments.-tps_accel.png
Reverant is online now   Reply With Quote
Old 03-02-2008, 03:11 PM   #3
Junior Member

Join Date: Jan 2007
Posts: 188
Total Cats: 0
Default

Come on everyone else, I'm lazy too and want to see yours
richard_ha is offline   Reply With Quote
Old 03-02-2008, 03:22 PM   #4
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Mine aren't really tuned but they feel good. I used the v/s for the 96/97 MSPNP and then cut down the m/s till it worked well enough. My threshold is too low as well.
99 w/550s
cjernigan is offline   Reply With Quote
Old 03-02-2008, 06:57 PM   #5
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

I still dont know how to tune AE enrichments. I dont know what the threshold is, i dont know what V/S is either. I did what Cjernigan did to get mine working. Id post a pic but the laptop is in the car.
Saml01 is offline   Reply With Quote
Old 03-02-2008, 07:01 PM   #6
Junior Member

Join Date: Jan 2007
Posts: 188
Total Cats: 0
Default

V/S is the changed in voltage per second.

I'm guessing the threshold is a limit so that when the accelerator is moved slower than the set rate of x volts a second no extra fuel is injected.
richard_ha is offline   Reply With Quote
Old 03-02-2008, 07:26 PM   #7
Senior Member
iTrader: (3)

Join Date: Feb 2006
Location: Centennial, CO
Posts: 672
Total Cats: 20
Default

Yes, this is one area of tuning that I am still in the dark about, even after reading the manual. If someone could break it down for me on what exactly to change and what each thing does, it would be greatly appreciated. I used the 94/95 PNP settings on my 97, they worked pretty well, only when is the engine cold where the engine hesitates a tad when I hit the throttle, but once warm, everything is great.
karter74 is offline   Reply With Quote
Old 03-02-2008, 08:11 PM   #8
Junior Member

Join Date: Jan 2007
Posts: 188
Total Cats: 0
Default

Has anyone managed to get the V/S to change more rapidly than about 4 volts? Even stamping on my accelerator it's hard to get it up to 7 or 8 volts/second.
richard_ha is offline   Reply With Quote
Old 03-02-2008, 08:27 PM   #9
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

^ i know what you are talking about. I actually had to tune the higher values in my AE table while driving. Just randomly hit the gas to very places in pedal travel and at a variety of RPM's. Then just moved all the values up or down 2 points. Really unspecific but it worked.
Saml01 is offline   Reply With Quote
Old 03-03-2008, 11:19 AM   #10
Junior Member

Join Date: Jan 2007
Posts: 188
Total Cats: 0
Default

I've just been for a drive and have this with my 320cc injectors....

Threshold = 1v/s

3.9v/s = 4.5ms
1.0v/s = 3.4ms

The others are all irrelevant as I cant get the throttle to move faster than 3.9v/s

These seem to work well for me
richard_ha is offline   Reply With Quote
Old 01-20-2011, 08:32 PM   #11
Senior Member
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

deja frigging vous guys

Do these settings affect how the sweep of the potentiomemtr shows up on the small vertical gage on the AE wizard screen ????

The VTPS is installed and I can see it move mechanically.

I go to the calibration screen and acquire the values with the throttle open and closed etc. Also swap one of the dashboard gages and it shows the full sweep of the potentiometer but when I go to the AE wizard screen the little vertical gage only shows part movement as does the logs ( ? )
poobs is offline   Reply With Quote
Old 01-20-2011, 08:45 PM   #12
I'm Miserable!

Join Date: Feb 2010
Posts: 584
Total Cats: 0
Default

It's also nice to be able to use different acceleration enrichment strategies in different RPM ranges. Not all boxes can do this though. It helps response.
sjmarcy is offline   Reply With Quote
Old 01-20-2011, 09:09 PM   #13
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I'd love to tell you but I can't since I just updated tuner studio to 0.999.9 and can't open any projects.
hustler is offline   Reply With Quote
Old 01-20-2011, 09:18 PM   #14
Senior Member
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

Quote:
Originally Posted by hustler View Post
I'd love to tell you but I can't since I just updated tuner studio to 0.999.9 and can't open any projects.
Thanks for the warning. I guess I won't be upgrading...
poobs is offline   Reply With Quote
Old 01-20-2011, 09:18 PM   #15
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by poobs View Post
Thanks for the warning. I guess I won't be upgrading...
yeah, I'll make another thread about that.

~580cc
hustler is offline   Reply With Quote
Old 01-20-2011, 09:33 PM   #16
Senior Member
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

Thanks for posting these.
Are these good for a 1.6 ?

My current settinga are :

Rate value
8 1.5

5.1 .8

2.9 .5

1 .2


TPS dot threshold .586

Decel Fuel amount 100

cold acceleration enrichment .3

Cold accel mult. 125%
poobs is offline   Reply With Quote
Old 01-21-2011, 04:55 PM   #17
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by sjmarcy View Post
It's also nice to be able to use different acceleration enrichment strategies in different RPM ranges. Not all boxes can do this though. It helps response.
We don't need them with MS, they can be tuned just fine with what we have. Now you can sugggest that we should ditch Ms and use M&M or McLaren EFI.
hustler is offline   Reply With Quote
Old 01-21-2011, 04:58 PM   #18
I'm Miserable!

Join Date: Feb 2010
Posts: 584
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
We don't need them with MS, they can be tuned just fine with what we have. Now you can sugggest that we should ditch Ms and use M&M or McLaren EFI.
Is the MS unable to tune acceleration enrichment per RPM besides other inputs?

What do you mean by just fine - have you compared to tunes that also utilize RPM as a factor?
sjmarcy is offline   Reply With Quote
Old 01-21-2011, 04:59 PM   #19
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

RPM and CLT temp actually.
Braineack is offline   Reply With Quote
Old 01-21-2011, 05:05 PM   #20
I'm Miserable!

Join Date: Feb 2010
Posts: 584
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
RPM and CLT temp actually.
So what's Hustler fuming about then?
sjmarcy is offline   Reply With Quote
