Ive tried to google, search, and look for pictures on the exact mounting point of the ground for the ECU on the 1999+ cars.

I did search and find grounding points for 1994-1997 cars though, and I know its supposed to be on the bottom right below the TB.

Is it above on the 1999 cars? I have some pictures of the wires that I THINK is the correct one, but I need some verification before I get around to fixing up the grounds of my MSI and a new LC-1 I have.

NOTE: I THINK, it might be the injector grounds now that I look at the color code, but where would the ECU ground point be?

Thanks in advance!




I know, I know... worm clamps FTL.



There are no more ground points...you have circled the one PCM ground point that are actually two separate sets of wires on the 1999-2000 cars.

The injectors are grounded by the PCM internally, there is no external "injector ground" in any Mazda.



Thanks for the quick reply.

Cool, gotcha on the wires I circled.

So should I ground it all off the stock ECU wiring harness? I have a "boomslang" harness, so it shouldn't be too much of a problem just splicing into the stock ECU ground point.



I am not familiar with MS, so hopefully someone can chime in on hooking up the boomslang harness.



Maybe I should ask a different question.

For those who are running parallel MS1/2 on their 99' cars, where are you grounding the MS and your LC-1? are you grounding it on a specific point on the block or anywhere on the block? Or are you guys splicing into the stock OEM ECU grounds that is also on the harness?

THen again, this question would be MS related wouldn't it? Blah.



Best thing is for this to be moved to the MS section.



If you are running parallel, you want the MS and the WBO2 to share the same ground potential as the primary ECU, to prevent offsets in analog signals caused by ground imbalance. This means connecting them to the same physical wires as the main ECU, which on a '99 would be the black/yellow wires at 3A & 3B.

[/thread]



Watch out for the WBO2 heater currents flowing through its ground wire. You wouldn't want them flowing through the ECU signal grounds.



In an ideal world, he will both run a pair of heavy ground wires direct from the MS's DB37 to a point on the head / IM and connect the MS & LC1 to the stock ECUs ground wires.



Great. Once I am done modifying my board for the new spark outputs (thanks Joe) and adding the inputs for the NB crank ad cam sensors for MSII (using Jason's Hex Schmitt Trigger circuits), I'm going to get around to doing it.



Take note the circuit to take the NB crank/cam signals uses flip flops too (I'm just making sure you're looking at the right circuit).



Flip flops? In not to electric savvy, I'm already having a tough time trying to understand some of the schematics.

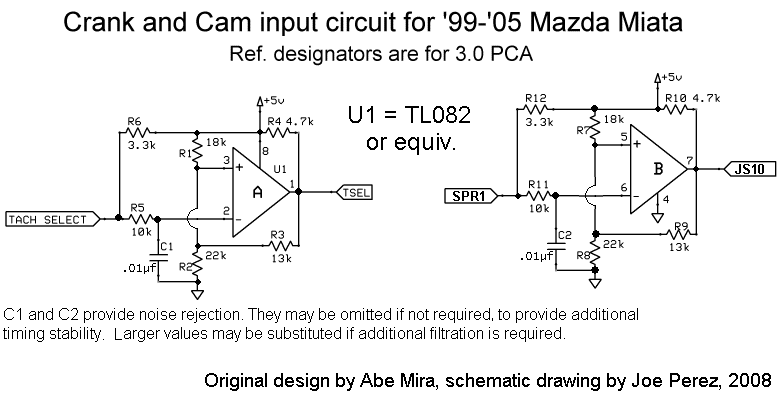

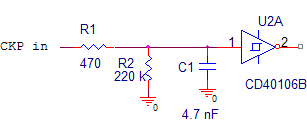

This is the circuit i will be following, it was posted from you under the NB crank/cam inputs. I am leaning towards this because the simplicity and lower parts count. I also reposted Abe's circuit as well.



Heavy, meaning a minimum gauge of at least 12 for the grounds?



Does the MSII accept the NB crank and cam pattern?



yep, it is able to decode the odd tooth wheel and cam sensor. It is selectable under one of the trigger inputs.

MS2-Extra Miata 99-00 Input Manual



Yeah. Both the scope trace and the input circuit schematic they show on the website is wrong (and I've had this conversation with 'em on the boards) but it does in fact work. There's a preset for the '99+ Miata right in the wheel decoder drop-down menu, so you don't even have to configure it manually like with the MS1 w/ NA.
