Default Rad fan settings DIYPNP- help please.

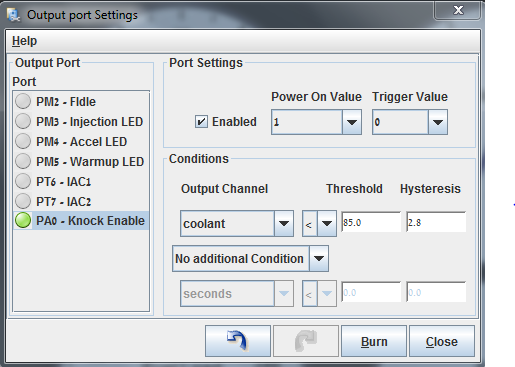

I use DIYPNP on my 97 miata, I need some help with the rad fan settings, can you guys give me a hand ?



Thank you
Attached Thumbnails
Rad fan settings DIYPNP- help please.-captureyot.png
elior77 is offline   Reply With Quote
Old 11-29-2012, 03:18 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,910
Total Cats: 1,793
Default

Did you wire PA0 to either Relay 1, 2, or 3 and then out to 1A?

If yes, then you need to make power on value 0, and trigger value 1. Then coolant > 85.

If no, how exactly did you wire 1A?
Braineack is offline   Reply With Quote
Old 11-29-2012, 03:24 PM   #3
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

This is what I did:

Attached Thumbnails
Rad fan settings DIYPNP- help please.-capturekbp.png
elior77 is offline   Reply With Quote
Old 12-14-2012, 04:14 AM   #4
Junior Member
iTrader: (1)

Join Date: May 2011
Location: South Jersey
Posts: 95
Total Cats: 3
Default

Quote:
Originally Posted by elior77 View Post
This is what I did:

Not sure if you got it fixed, but as shown above, you have it set to turn on below 85 deg.... Wich would turn it off as soon as its warmed up. Also if you're using *F as your units, then set that temp in *F as well.
tuckntruck is offline   Reply With Quote
Old 12-14-2012, 04:46 PM   #5
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by tuckntruck View Post
Not sure if you got it fixed, but as shown above, you have it set to turn on below 85 deg.... Wich would turn it off as soon as its warmed up. Also if you're using *F as your units, then set that temp in *F as well.
Actually he has it to turn on. Look at his trigger settings they are backwards 1 constant and if triggered it goes to 0. It's strange indeed.

Do this
Power on = 0 | Trigger = 1

Coolant > 175 | 2.0 hyseresis
Impuls is offline   Reply With Quote
Old 11-05-2014, 03:54 PM   #6
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

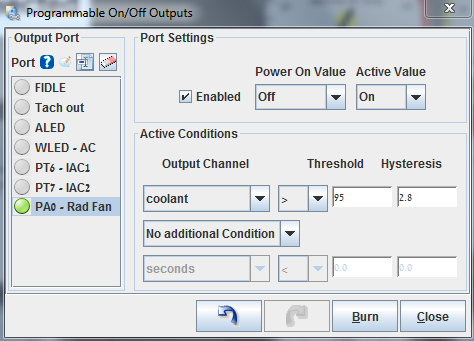

Current:



*Just closing up all my threads with the solutions I found.
Attached Thumbnails
Rad fan settings DIYPNP- help please.-capture.png
elior77 is offline   Reply With Quote
