Default Random Knock

Any ideas on why my knocksense is reporting a knock under unlikely knock conditions? These seem to happen sporadically but I cant seem to get rid of them.

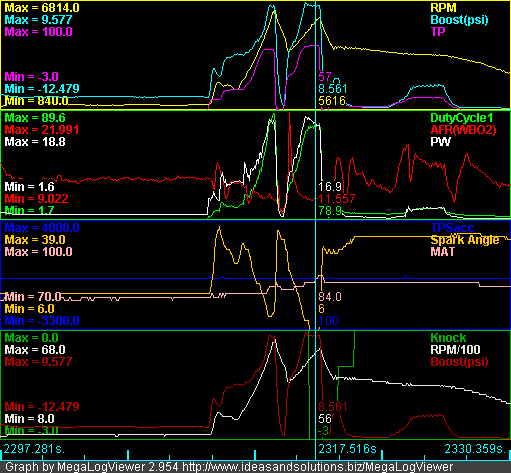

Heres a pic of such a knock event. (Knocks at 8.5psi, 11.4 AFR, 10* , 5200RPM)

Name:  knock-1.png
Views: 3
Size:  12.3 KB

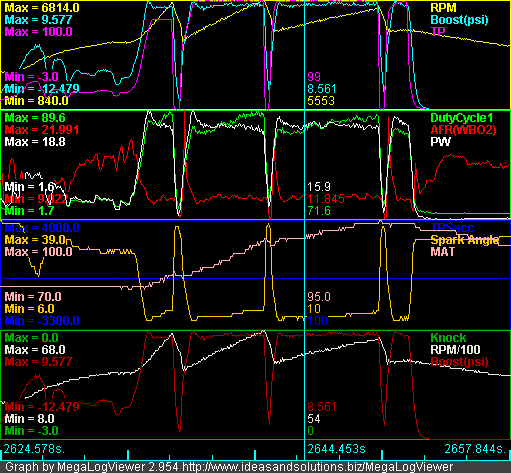

And like 1min later I try to recreate it. No Knock.

Name:  noknock.png
Views: 3
Size:  14.9 KB


My MSQ is attached.

BTW this is with meth being injected at > 4psi, and a 2.5" exhaust with no cat.

Any ideas/comments welcome!
Attached Files
File Type: msq 10psi.msq (33.7 KB, 49 views)
ssmith is offline   Reply With Quote
Old 08-19-2009, 03:06 AM   #2
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Well its obvius you have a false positive serius man 10 degrees of timming lol bump that thing up to 22 or so and it will feel better knock sensors are pretty damn inacurate, esp as loud as our motors are its better to build a set of det cans etc.
magnamx-5 is offline   Reply With Quote
Old 08-19-2009, 03:07 AM   #3
Elite Member
iTrader: (28)

Join Date: May 2008
Location: St. Augustine FL
Posts: 2,310
Total Cats: 2
Default

I thought Knock sense was like that, my impression is that it'll pick up weird noises all the time idk, I'm ignorant.....
p51hellfire is offline   Reply With Quote
Old 08-19-2009, 03:09 AM   #4
Junior Member
Thread Starter
iTrader: (10)

Join Date: May 2008
Location: Baldwin Park, CA
Posts: 151
Total Cats: 6
Default

Hmm, I'll have to check that out then. Its been pretty accurate so far, going off when I actually hear knock. Maybe I have it just a little too sensitive.
ssmith is offline   Reply With Quote
Old 08-19-2009, 03:15 AM   #5
Elite Member
iTrader: (28)

Join Date: May 2008
Location: St. Augustine FL
Posts: 2,310
Total Cats: 2
Default

if you wanna really check, make some det cans, hustler will be chiming in on that here real soon, ....
