rpm spike in MS - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members

MEGAsquirt A place to collectively sort out this megasquirt gizmo

LinkBack Thread Tools
Old 04-09-2009, 12:21 AM   #1
Senior Member
Thread Starter
iTrader: (6)
tyson87's Avatar
Join Date: Aug 2008
Location: West Palm Beach, FL
Posts: 1,023
Total Cats: 1
Default rpm spike in MS

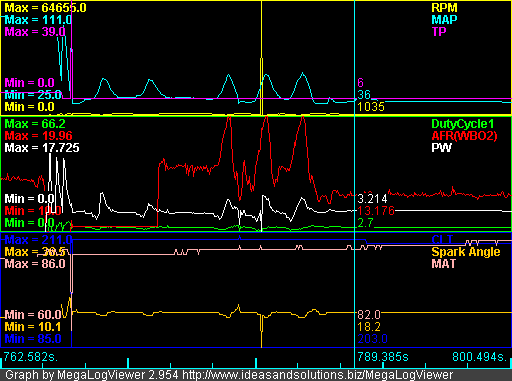

y did my rpms spike in my datalog???
obviously my engine didnt do this but my datalog recorded it some how
Attached Thumbnails
rpm spike in MS-graph.png
tyson87 is offline   Reply With Quote
Old 04-09-2009, 07:43 AM   #2
Junior Member
iTrader: (1)
Join Date: Apr 2008
Location: Bristol
Posts: 442
Total Cats: 0

It,s a problem that seems to be affecting more and more people using MS. Basically the MS doesn't like the miata CAS and the blip is just due to MS not being able to decode the CAS signal properly.

If it only happens occasionally then don't worry about it but if like Joe and myself its frequent and intolerable you may have to switch to a 36-1 trigger system.
Duckie_uk is offline   Reply With Quote
Old 04-09-2009, 09:06 AM   #3
Boost Pope
iTrader: (8)
Joe Perez's Avatar
Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915

Install a .1uf capacitor between JS8 and ground.

If it persists, you might run a new wire from the MS to the CAS, specifically using shielded cable (such as mic cable) with the shield grounded and the center pair carrying the two signals. I have a hunch that the noisy, high-current injector lines (which run in the same bundle) are partly to blame for this in some cars.

If it still persists, then yeah, a new CAS may be in your future. Or a crankwheel.
Joe Perez is offline   Reply With Quote
