Default Serial to Ethernet?

Hi everyone,

I thought my old laptop had a serial but alas it does not. I raided the IT department's old cables today and found a Serial to Ethernet adapter (I think previously used for a Cisco modem). No Serial>USB unfortunately.

Is there a way for me to make this work to load to and flash my DIYPNP?

Further, what diagnostics do people perform to make sure their DIYPNP is installed correctly when it is off the car?
chitty chitty bang bang is offline   Reply With Quote
Old 11-26-2013, 04:35 PM   #2
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

There is always a way, but in this case it is going to be a waste of time and energy.

Just get a USB to serial adapter. One that doesnt suck (i.e. has a good driver, based on FTDI, etc.)
Full_Tilt_Boogie is offline   Reply With Quote
Old 11-26-2013, 04:46 PM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2011
Posts: 114
Total Cats: 0
Default

Thanks Full Tilt, being cheap I don't really want to drop $30 at best buy for one of these and being impatient I don't want to wait for a well reviewed 12 one from newegg. If I am going the ordering route, I'd like to go all-out and purchase a Serial>Bluetooth adapter so that I can run MSDroid in the future.

Does anyone suggest one other than the one offered by EFI? I've seen the $14 RX7 mod but that requires both a laptop with serial or a serial>USB.
chitty chitty bang bang is offline   Reply With Quote
Old 11-26-2013, 04:57 PM   #4
Senior Member

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

Serial - bluetooth is not stable enough to load firmware. You can only use it to log and you'd still need the serial - usb adapter.
WestfieldMX5 is offline   Reply With Quote
Old 11-26-2013, 05:01 PM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2011
Posts: 114
Total Cats: 0
Default

Thanks Frank, I guess I will place the order for the cable then.

At one point I saw someone building Serial>USB Modules for sale, are there any options other than EFI?

What are basic diagnostics that can be performed while connected from DIYPNP to MSPNP after getting the cable?

I will recheck resistance of resistors and check against DIYPNP instruction images but I can't check proper function of ICs and Transistors.

ccbb
chitty chitty bang bang is offline   Reply With Quote
Old 11-26-2013, 05:02 PM   #6
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

It will be faster for you to wait for a good adapter from Newegg.

If you knew how to hack the ethernet to act as a USB device, you would be already doing it, not posting about it here. And since you are not already doing it, I can conclude that the task is far enough over your head that you wouldn't be able to get it done before a good adapter was delivered anyway.

Not trying to hate, just pointing out the obvious.
thenuge26 is offline   Reply With Quote
Old 11-26-2013, 05:10 PM   #7
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2011
Posts: 114
Total Cats: 0
Default

Steve, no offense taken. True, I don't know and it is over my head.

I'm definitely more protective of my wallet than I am my time (fun hobby and tracks closed) and am happy taking the long road as long as I learn something along the way. On the other hand I will likely be spending more time than necessary to just save a few dollars.
chitty chitty bang bang is offline   Reply With Quote
Old 11-26-2013, 06:53 PM   #8
Junior Member
iTrader: (3)

Join Date: Dec 2009
Posts: 163
Total Cats: -7
Default

if you do use a cheapie usb to serial you might consider running ubuntu linux, they support the chinese copies better then the windows drivers will.
foxyroadster is offline   Reply With Quote
Old 11-27-2013, 01:31 AM   #9
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2011
Posts: 114
Total Cats: 0
Default

Ok, I went down to B&H and picked this up. When I am done with the PNP I will flash it and see if it all works. Thanks all!

Trendnet TU-S9 USB to Serial Converter TU-S9 B&H Photo Video

As for the Bluetooth>Serial adapter, has anyone tried something similar to this:

RS232 Bluetooth Serial Adapter Communication Master Slave 2 Modes 5V Mini USB | eBay
chitty chitty bang bang is offline   Reply With Quote
Old 11-30-2013, 06:10 PM   #10
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2011
Posts: 114
Total Cats: 0
Default

For anyone looking for a serial USB, the Trendnet works very well
chitty chitty bang bang is offline   Reply With Quote
Old 11-30-2013, 06:56 PM   #11
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,926
Default

Quote:
Originally Posted by chitty chitty bang bang View Post
Ok, I went down to B&H and picked this up.
A fellow New Yorker, eh?
Joe Perez is offline   Reply With Quote
Old 11-30-2013, 07:28 PM   #12
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2011
Posts: 114
Total Cats: 0
Default

Hey yes sir. It is great to see a fellow NYCer let alone a super moderator. I'm a transplant from beantown. The Miata is sadly not in the city so I only have vacations and long weekends to work on it. Where are you set up?



Quote:
Originally Posted by Joe Perez View Post
A fellow New Yorker, eh?
chitty chitty bang bang is offline   Reply With Quote
Old 11-30-2013, 08:33 PM   #13
Junior Member

Join Date: Nov 2009
Location: Jax Fl
Posts: 469
Total Cats: 30
Default

If it's anything like the cisco cables I've seen, it's just a serial cable with a different end on it for talking with the modem. It most likely has no conversion properties but just serves a specialized purpose for network guys.

When it comes to USB to Serial converters I recommend using something with an FTDI chipset, but for the bluetooth I like to use these HC-05: Electronic Components | eBay. The HC-05 is quite small and capable of some decent baud rates, its also fairly easily configured to a variety of uses once you understand a few AT commands via a comm terminal.


http://www.ebay.com/itm/FT232RL-USB-...item4acccb4935
Tw34k is offline   Reply With Quote
Old 11-30-2013, 08:48 PM   #14
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2011
Posts: 114
Total Cats: 0
Default

Thanks Tweak. So to go from Serial to BT it needs to go from Serial > USB > BT? Is there a Serial to BT module you'd reccomend?
chitty chitty bang bang is offline   Reply With Quote
Old 11-30-2013, 09:11 PM   #15
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,926
Default

Quote:
Originally Posted by chitty chitty bang bang View Post
Thanks Tweak. So to go from Serial to BT it needs to go from Serial > USB > BT? Is there a Serial to BT module you'd reccomend?
Huh? No.

Disclaimer: everything that follows presupposes that you're interested only in Bluetooth.

On the PC end, forget serial. If you don't have Blutooth built into the laptop. USB-Bluetooth adapters are about $5: Sabrent BT-USBX Nano Bluetooth Wireless Adapter - USB 2.0, Bluetooth EDR, Built-in Link controller at TigerDirect.com


On the MS end, forget USB. You will go from serial directly to bluetooth: USB to Serial Cable - Checkout




Also, get the idea of RS-232 to Ethernet completely out of your head. No such thing exists. (Well, it does, but it's extremely specialized.) The blue cable with a DB-9 on one end and an RJ-45 on the other is for configuring Cisco Catalyst switches. It's pure RS-232, just with a non-standard connector on one end.




Sidebar: **** you, Cisco, for not spending the extra $3 to embed an FTDI USB slave port on your god-damned switches. This isn't ******* 1995, and laptops don't come with serial ports any more. It's really ******* inconvenient to make me bike all the way down to J&R from east 42nd because nobody in the whole friggin' office has a USB-232 adapter.
Joe Perez is offline   Reply With Quote
Old 12-01-2013, 02:43 AM   #16
Junior Member

Join Date: Nov 2009
Location: Jax Fl
Posts: 469
Total Cats: 30
Default

Quote:
Originally Posted by chitty chitty bang bang View Post
Thanks Tweak. So to go from Serial to BT it needs to go from Serial > USB > BT? Is there a Serial to BT module you'd reccomend?
The HC-05 is serial to BT, you will also need a usb BT dongle for your computer as previously mentioned. The other URL I linked is a basic FTDI USB to serial without the DB9 connector.

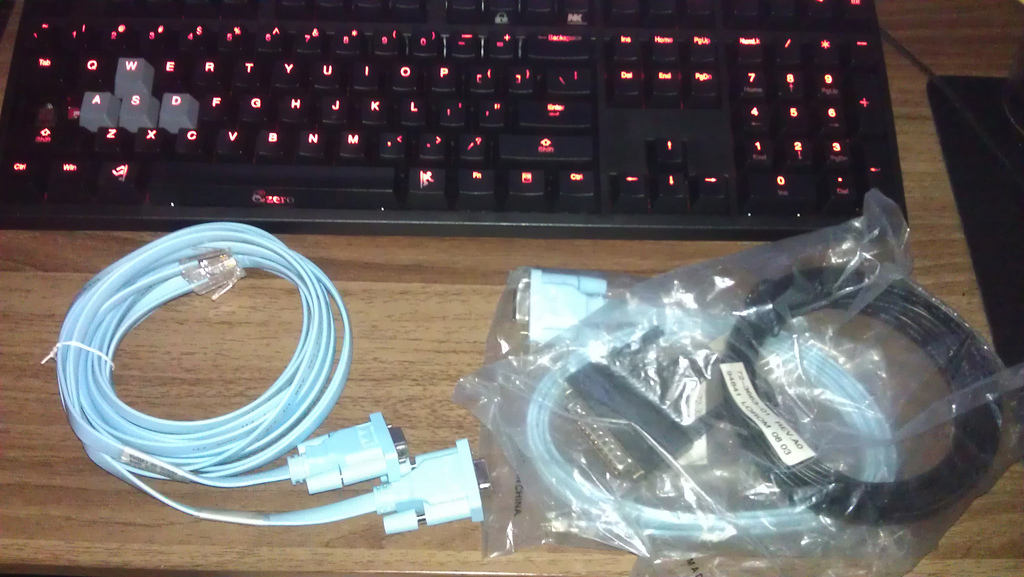

Edit: I just remembered I had a few of these cisco serial cables in a box outside along with a parallel one as well. Does the blue cable look familiar OP?

(sry for pic quality)
Attached Thumbnails
Serial to Ethernet?-11146595623_5ba298f086_b.jpg

Last edited by Tw34k; 12-01-2013 at 03:00 AM.
Tw34k is offline   Reply With Quote
Old 12-02-2013, 12:07 AM   #17
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2011
Posts: 114
Total Cats: 0
Default

Hey Tweak that is exactly what I have down to the color and flat ribbon!

Thanks about HC05, I was confused because the unit looked like a small usb key and the male pins looked like USB pins.

How do you connect the HC05 to serial? By looking at these:

http://www.exp-tech.de/service/datas...h-Products.pdf page 5, it looks like the left side of the circuit has serial-type keys.

Do I basically need a DB9 harness, and connect the Serial's TX to TX and RX to RX? (What pins does hte MS use to transmit and receive?) What pin on the MS DB15 is ground? same as this or is that arduino specific?

http://playground.arduino.cc/uploads...232_pinout.gif

The MS has 5v at pin 5 if the BT jumper is connected. Do I need to put an in-line resistor to drop the voltage? If so what size?
chitty chitty bang bang is offline   Reply With Quote
