Default squirtin your other vehicles?

ok, so who here is squirtin your other vehicles? you know, non miata related stuff. what vehicle, and what have you achieved with it?

I'm thinking of doing a piggy back set up on my bike hauler.(2k Chevy c3500 with 350 and 4l80e)

first because it gets **** mileage. about 12mpg especially with the ethanol loaded fuel around here and tends to get a little detonation when running it. regular (non ethanol) fuel gives me no problems and about 18 mpg, but is so hard to find legally any more. And the nearest track is a five hour drive that ain't gettin any shorter. fuel costs are starting to eat into my track day budget big time.

and second because I'd like to throw some boost at it with maybe a couple of t4s or maybe salvage something from the junk yard off of a cummins.

I'm thinking piggyback simply because of the trans. I'm not aware of any MS that is capable of running it yet. emissions isn't an issue here since it's a 1 ton, so I'm not really worried about some state mandated arbitrary specs. I'm familiar with the MS platform and how to tun it and can't justify two grand on software to reflash through the OBDII port. would be nice though to be able to use tunerstudio to reflash the factory ecu.
dynokiller90 is offline   Reply With Quote
Old 02-27-2011, 12:36 AM   #2
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

MPG is cutting into your track budget, so you're going to blow money on an MS and boost it? Hmmm...
kotomile is offline   Reply With Quote
Old 02-27-2011, 01:08 AM   #3
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

diy autotune sells a lt1 MS prebuilt they might have some insight on controlling a metric chevy tranny for my money im gonna just retrograde the tranny to controlls to there 700r4 roots much simpler.
magnamx-5 is offline   Reply With Quote
Old 02-27-2011, 02:36 PM   #4
Junior Member
Thread Starter

Join Date: Dec 2007
Posts: 159
Total Cats: 0
Default

Quote:
Originally Posted by kotomile View Post
MPG is cutting into your track budget, so you're going to blow money on an MS and boost it? Hmmm...
think in the long term son. the FI system chevy uses is archaic at best. basically it's a carb replacement(two injectors in a TB). I'm sure I can pick up the mileage by a good bit. it runs crazy rich at cruise. the boost is just for ****'s and giggles, but I can tell you my Miata gets much better mileage boosted than not. motorcycle track days are not cheap by any means. 500 bucks a day for tires, ten days or so a year plus track and fuel costs ads up. I think a few hundred and some labor for a Squirt would easily pay for its self in one season.


"diy autotune sells a lt1 MS prebuilt they might have some insight on controlling a metric chevy tranny for my money im gonna just retrograde the tranny to controlls to there 700r4 roots much simpler."

I breifly looked at that. Haven't had a chance to shoot an email off to Mat just yet. I'm just starting my research. Unfortunately I have the shitty TBI Vortec. doesn't seem to be much support for it, since it's not a popular performance platform. it's a good runner, but not in the same realm as the lt1.
dynokiller90 is offline   Reply With Quote
Old 02-27-2011, 04:20 PM   #5
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

I want to convert my 1950 ****** CJ-3A flathead 4 cylinder to fuel injection and use MS. Someday. Debating whether to do a multiport EFI or use throttle body FI from a chevy truck.
thirdgen is offline   Reply With Quote
Old 02-27-2011, 07:52 PM   #6
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

SBC is one of the most common MegaSquirted motors, and TBI is probably the most common SBC application. You might be able to lean the fuel out some, but the problem with TBI is that fuel isn't totally evenly distributed to all the cylinders. This results in a couple cylinders being leaner than the rest. So what you end up having to do is run most of the cylinders a tad rich to make sure that the leanest cylinders are ok.
If you're looking for the best economy improvement, you'd probably be best served converting to mulitport injection. To keep costs down, I think you could use an LT1 manifold, if you tweak it a bit to fit your distributor. Or there are aftermarket drop on manifolds like the Stealth Ram on DIYAutoTune.com Nova.

4L80E control is very possible, and there are several ways of doing it. If you're looking to build it yourself from a kit, you could go with a GPIO/MegaShift, or if you want something ready to go, you can load trans control code to a Microsquirt. Either will communicate over CAN with a MS2 or MS3.
Ben is offline   Reply With Quote
Old 02-27-2011, 08:49 PM   #7
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

I'm eventually going to put MS3x on my 69 charger. I think I can completely get rid of the distributor on the 440 by using a crank trigger and individual coil packs. There is a builder near me that will add fuel injection ports to each runner and make fuel rails if you already have a manifold for about $400. It will be sooooooooo nice not dealing with a carb.
miatauser884 is offline   Reply With Quote
Old 02-28-2011, 12:12 AM   #8
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

A buddy of mine runs an EMS-Pro on his 1967 Barracuda drag car. It's a stroked Hemi with multiport EFI. It's runs 9's all day.
thirdgen is offline   Reply With Quote
Old 02-28-2011, 12:18 AM   #9
Senior Member
iTrader: (2)

Join Date: Sep 2008
Location: ON
Posts: 523
Total Cats: 2
Default

Quote:
Originally Posted by thirdgen View Post
I want to convert my 1950 ****** CJ-3A flathead 4 cylinder to fuel injection and use MS. Someday. Debating whether to do a multiport EFI or use throttle body FI from a chevy truck.
My neighbour has a 60's AMC jeep with a carbed 350 4x4 drive train and was thinking of doing a mpi conversion.
inferno94 is offline   Reply With Quote
Old 02-28-2011, 12:42 AM   #10
Junior Member

Join Date: Aug 2005
Location: So Cal
Posts: 125
Total Cats: 0
Default

Mercedes 190E 2.3-16 Cosworth that originally ran Bosch K-Jetronic injection. Took out the entire Bosch system and converted to MS-II EDIS with ITB's
RdSnake is offline   Reply With Quote
Old 02-28-2011, 12:51 AM   #11
Junior Member
iTrader: (5)

Join Date: May 2009
Location: Gay Area, CA
Posts: 220
Total Cats: 6
Default

Go for it, you can lean & stabilize your mixture for now.

But like Ben said, large MPG & power gains won't happen without MPFI. The closest thing I did to this
was converting a '91 Civic (1.5L SOHC 2-injector) to OBD-I MPFI using Crome (4x240cc injectors). It was fun in a sub-ton chassis.

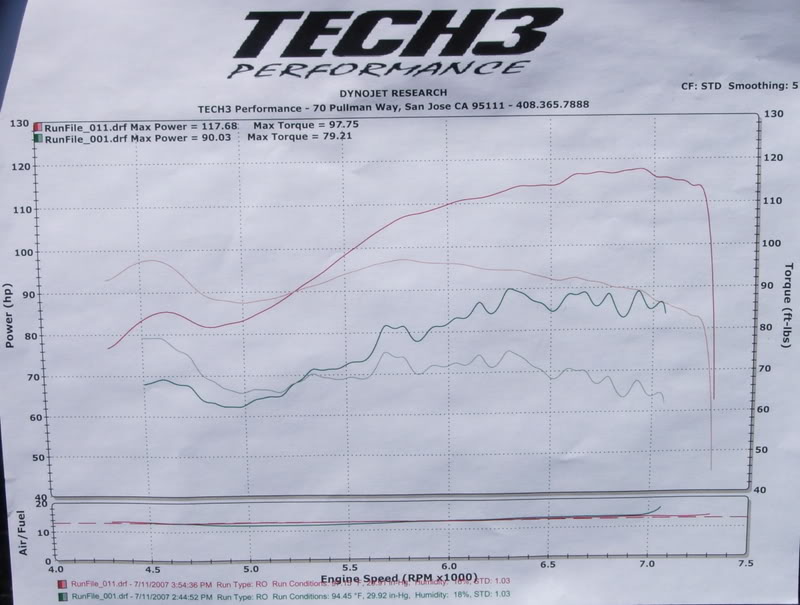

I gained 30% more power after 1 hour of WB02 tuning.

Name:  Dyno.jpg
Views: 2
Size:  71.9 KB

Last edited by Import Al; 02-28-2011 at 09:33 AM.
Import Al is offline   Reply With Quote
Old 03-01-2011, 12:35 AM   #12
Junior Member
Thread Starter

Join Date: Dec 2007
Posts: 159
Total Cats: 0
Default

this, is full of win. exactly what I was looking for. I definitely planned to go multi port. thanks that info landed me on all kinds of stuff. time for more research

Quote:
Originally Posted by Ben View Post
SBC is one of the most common MegaSquirted motors, and TBI is probably the most common SBC application. You might be able to lean the fuel out some, but the problem with TBI is that fuel isn't totally evenly distributed to all the cylinders. This results in a couple cylinders being leaner than the rest. So what you end up having to do is run most of the cylinders a tad rich to make sure that the leanest cylinders are ok.
If you're looking for the best economy improvement, you'd probably be best served converting to mulitport injection. To keep costs down, I think you could use an LT1 manifold, if you tweak it a bit to fit your distributor. Or there are aftermarket drop on manifolds like the Stealth Ram on DIYAutoTune.com Nova.

4L80E control is very possible, and there are several ways of doing it. If you're looking to build it yourself from a kit, you could go with a GPIO/MegaShift, or if you want something ready to go, you can load trans control code to a Microsquirt. Either will communicate over CAN with a MS2 or MS3.
dynokiller90 is offline   Reply With Quote
Old 03-01-2011, 09:05 PM   #13
Asx
Junior Member
iTrader: (1)

Join Date: Nov 2007
Location: Huntsville, AL
Posts: 78
Total Cats: 3
Default

My old RX-7 vert MS1 (briefly), RX-3 with 2nd gen N/A 13b MS1 (155ish hp stock motor with a half-crushed header runner), my dad's RX-7 with 2nd gen N/A 13b MS1, my brother's BMW 325is (very briefly) MS1, my brother's KA-T 240sx MS1.

My miata is the first one I tried MS2 on
Asx is offline   Reply With Quote
