Default Stalling when fan comes on

Hey guys.
I have a simple issue that I've been unable to fix.

I have a single beefy SPAL fan that draws 17ams. Whenever it comes on, the car comes awfully close to stalling. And if the lights are on, it can easily stall. I've tried everything, it seems, and the RPM still dips dangerously close. Closed loop doesn't seem to react fast enough to the RPM drop.

Details:
- Idle is at about 1000rpm
- Fan drains 17amp (which is a lot, it seems)
- When fan comes on, RPM drops as low as 500rpm
- NB throttle body in closed-loop idle control
- Configured 5% idle-up when fan comes on - doesn't seem to have an effect o RPM
- Configured idle advance to be 10* at low load. When the fan comes on, advance is increased all the way till 20* as the load increases
- When fan comes on, voltage drops from 13V to 11.6, but comes back to 13V (if the engine doesn't stall...)

log:
http://s95367906.onlinehome.us/photo....08.52_FAN.msl
Attached Files
File Type: msl 2013-06-25_19.08.52_FAN.msl (44.3 KB, 54 views)
soviet is offline   Reply With Quote
Old 06-26-2013, 12:33 AM   #2
Senior Member
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

I'm by no means an expert, but in closed loop control aren't the PID "I" settings what catch the rpm's during a sudden increase in electrical load? Perhaps increasing that setting will help?
dieselmiata is offline   Reply With Quote
Old 06-26-2013, 10:17 AM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

I bet you're still not using the voltage idle pwm compensation table and spark compensation table?

this is a 90-93 alt or 94-97?
Braineack is offline   Reply With Quote
Old 06-26-2013, 10:19 AM   #4
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Are you running the stock alternator? I thought I was running a 60amp alt when I was having a similar issue with a Spal fan and posted the issue up here. There's a load of ideas in that thread. Fortunately for me I was not running the 60amp alt, but the 45amp Miata alt and the upgrade fixed the problem. Seems that the alternator upgrade would be the simple route if it's applicable in your case. Retrofitting another larger mazda alt is a fairly simple job.
m2cupcar is offline   Reply With Quote
Old 06-26-2013, 10:22 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

45A?!

should be 60A for manual and 65A for auto 90-93.

then 65A manual and 70A for auto 94-97.


I wouldn't be surprised if mine is only putting out 45A, however. I idle at 13.8v, it drops to 12.5v if I have the headlights on, if I turn on the a/c is constantly drains at idle, and can drop below 11v to the point my accesories start turning off (radio, LC-1).

I want to either rewind the spare alt I have to 100A, or get an 70A FC RX7 Alt.
Braineack is offline   Reply With Quote
Old 06-26-2013, 11:38 AM   #6
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Hmmm. Maybe it was 60a and I swapped in a 626 80a. IIRC the KL V6 alt came at 100+ amps and will bolt in too.
m2cupcar is offline   Reply With Quote
Old 06-26-2013, 11:52 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

a v-notch as well?
Braineack is offline   Reply With Quote
Old 06-26-2013, 12:36 PM   #8
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

Quote:
Originally Posted by Braineack View Post
I bet you're still not using the voltage idle pwm compensation table and spark compensation table?

this is a 90-93 alt or 94-97?
stock 94-97 alt because I'm using a ribbed belt.
I was using the default idle pwm compensation table. After seeing the voltage drop, I made changed the curve to from like 1.5% to 6% @ low voltage.

hmm upgrading the alternator seems like a good idea. I don't trust mine anyways. RX7 alt bolts in as well, right?
soviet is offline   Reply With Quote
Old 06-26-2013, 01:00 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

yeah you can bolt in a FD alt. I'll post the comparison pics in a sec...grabbing lunch.
Braineack is offline   Reply With Quote
Old 06-26-2013, 01:10 PM   #10
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Check your AFRs when the RPMs dip. Your injector dead-time voltage compensation may be off.
JasonC SBB is offline   Reply With Quote
Old 06-26-2013, 01:11 PM   #11
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Bigger alternator won't solve your problem, because the dip is probably caused by the alternator loading the engine. If the alternator is too small, it won't load the engine as much as a bigger one when the electrical load kicks in.
JasonC SBB is offline   Reply With Quote
Old 06-26-2013, 01:21 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

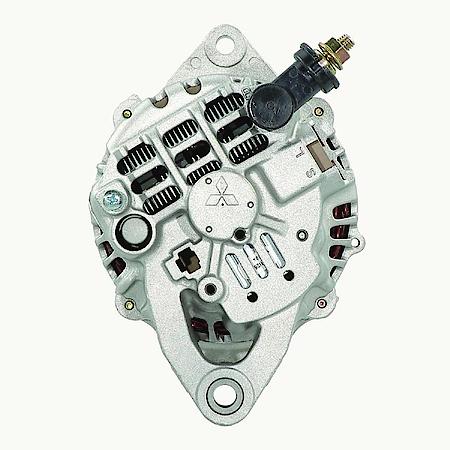

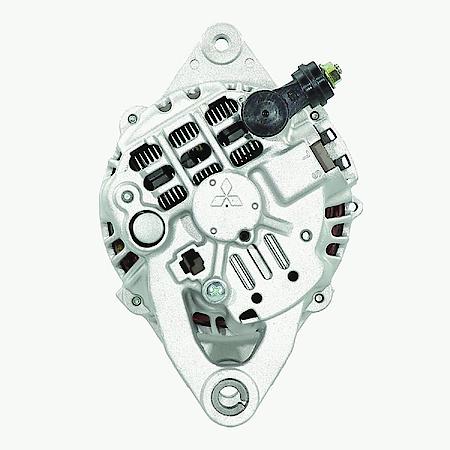

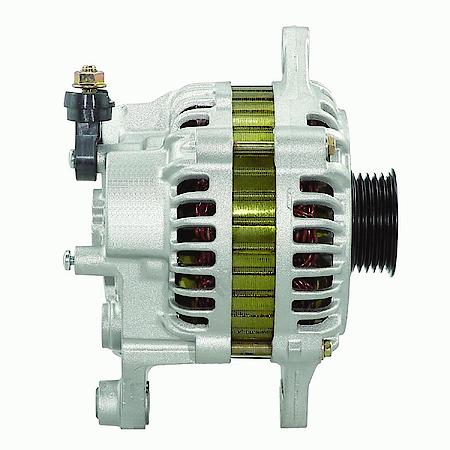

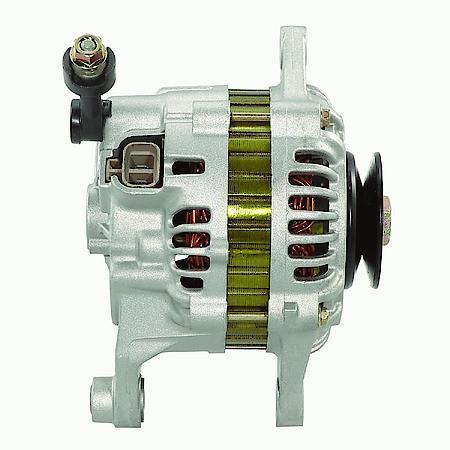

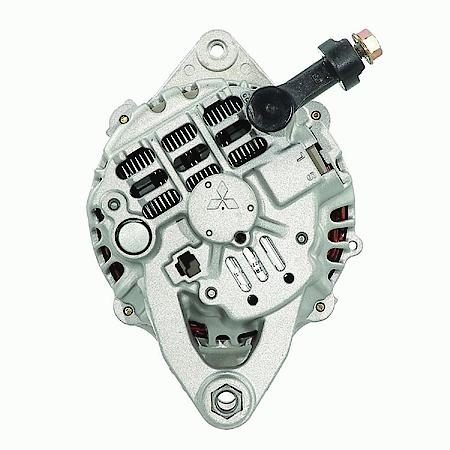

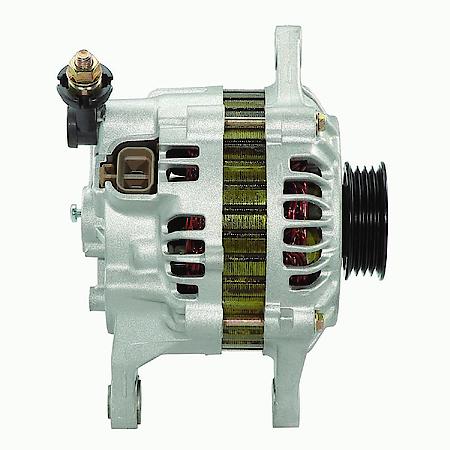

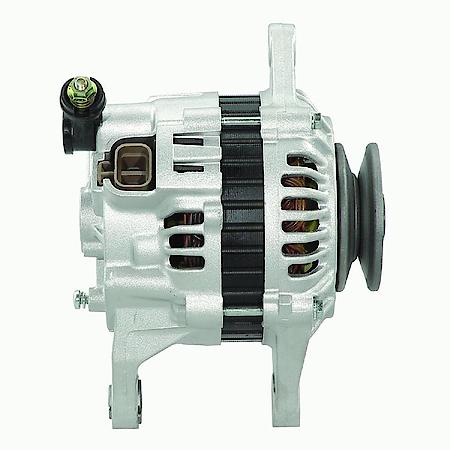

90-93 Alt:




1989 FC Turbo Alt:





94-97 Alt:





FD Alt:
Attached Thumbnails
Stalling when fan comes on-5844169_wrw_14943_alt1_larg.jpg   Stalling when fan comes on-5844169_wrw_14943_alt3_larg.jpg   Stalling when fan comes on-3111938_wrw_14639_alt2_larg.jpg   Stalling when fan comes on-3111938_wrw_14639_alt1_larg.jpg   Stalling when fan comes on-5841801_wrw_14243_alt1_larg.jpg

Stalling when fan comes on-5841801_wrw_14243_alt2_larg.jpg   Stalling when fan comes on-5842174_wrw_14451_alt2_larg.jpg
Braineack is offline   Reply With Quote
Old 06-26-2013, 04:18 PM   #13
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

Quote:
Originally Posted by JasonC SBB View Post
Check your AFRs when the RPMs dip. Your injector dead-time voltage compensation may be off.
That's the only part of my tune that's dead-on thanks to the dead time tables Injector Dynamics provides.

Quote:
Originally Posted by JasonC SBB View Post
Bigger alternator won't solve your problem, because the dip is probably caused by the alternator loading the engine. If the alternator is too small, it won't load the engine as much as a bigger one when the electrical load kicks in.
I do think the alternator is dying, anyways - so it's due for replacement.

Chances of me finding an FD at a junkyard are slim, so looks like I'll be going for a 626/MX-6/MX-3/Probe alternator - they are 80/90A depending on engine displacement.
soviet is offline   Reply With Quote
Old 06-26-2013, 04:47 PM   #14
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by soviet View Post
That's the only part of my tune that's dead-on thanks to the dead time tables Injector Dynamics provides.
That assumes that the injector driver clamp voltage in the circuit they used is the same as yours.
JasonC SBB is offline   Reply With Quote
Old 06-26-2013, 04:56 PM   #15
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

Quote:
Originally Posted by JasonC SBB View Post
That assumes that the injector driver clamp voltage in the circuit they used is the same as yours.
what?
Attached Thumbnails

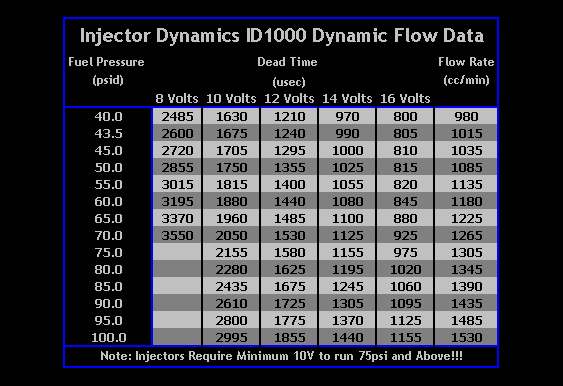

Stalling when fan comes on-id1000sumdata.gif
soviet is offline   Reply With Quote
Old 06-26-2013, 09:09 PM   #16
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

An injector drive circuit clamps the "flyback" voltage (which all switched inductive loads show) of an injector at turn-off. The voltage to which the circuit clamps, changes the effective dead-time. The diagram you pasted, shows dead time vs. battery voltage, and fuel pressure. The flyback clamp voltage is not shown.

IIRC ID used a Motec ECU to generate their plots. If you could find out from them or Motec what said clamp voltage is, then you could compare it to the MS, which IIRC is 55 or 60V.
JasonC SBB is offline   Reply With Quote
Old 06-26-2013, 09:16 PM   #17
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

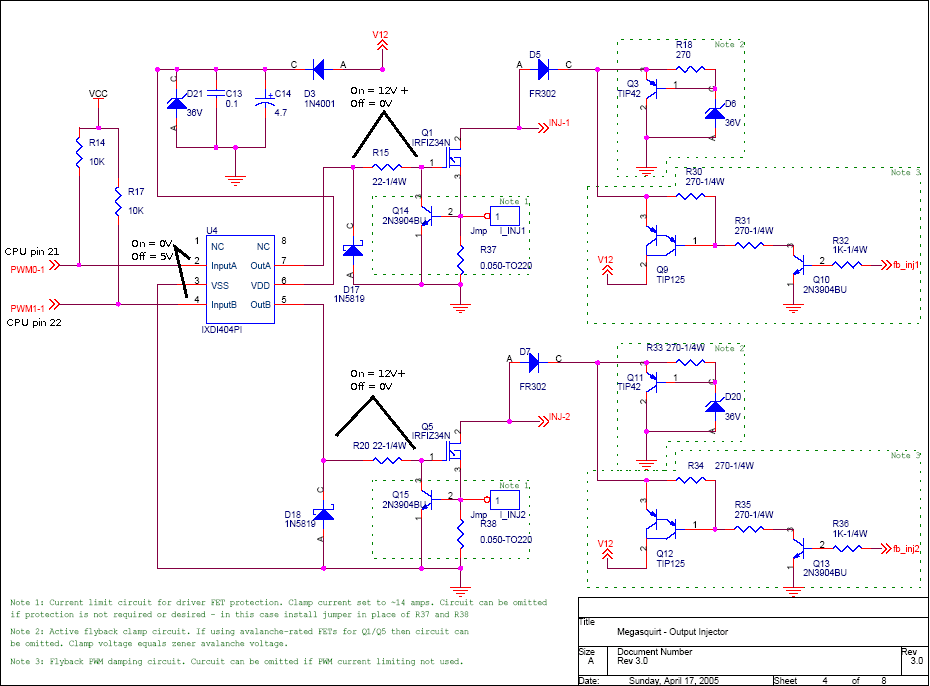

In this schematic it's 60V or 36 V depending on Q3 and D6 et al aer used.

Attached Thumbnails
Stalling when fan comes on-v3pcb_injectorcircuit.gif
JasonC SBB is offline   Reply With Quote
Old 07-02-2013, 12:03 AM   #18
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

Turned out to be the battery. Swapped out the 2 year old Bosch for my massive jeep battery, and everything is great. Bosch battery has a 36 month warranty so I should be able to replace it for free. This one appears to have a bad cell - it charges fully but then discharges on its own (e.g. disconnected completely)
soviet is offline   Reply With Quote
Old 07-02-2013, 01:29 AM   #19
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Oh the battery fixed it eh? Nice. When i had this problem it turned out that Travis fucked up on the injector dead times by 10x... instead of 1.5ms he put .15ms.. yeah that caused major problems especially during cranking and idling.
triple88a is offline   Reply With Quote
Old 07-02-2013, 01:18 PM   #20
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

Quote:
Originally Posted by triple88a View Post
Oh the battery fixed it eh? Nice. When i had this problem it turned out that Travis fucked up on the injector dead times by 10x... instead of 1.5ms he put .15ms.. yeah that caused major problems especially during cranking and idling.
It still dips but a very, very small amount. The dip might be more pronounced once I go back to a miata-sized battery.
soviet is offline   Reply With Quote
