Default Strange Boost control / AFR problem

Dear MS friends,

I got a very strange but not very nice problem.

When I switch on my EBC (I put a switch inside the line to the boost control solenoid) at 5000 rpm my AFR is going bonkers...

- My setup 1.6l MX-5 NB 99, Garrett GT2560R, 460CC RX-7 injectors, GM boost control solenoid, MS3+MS3X

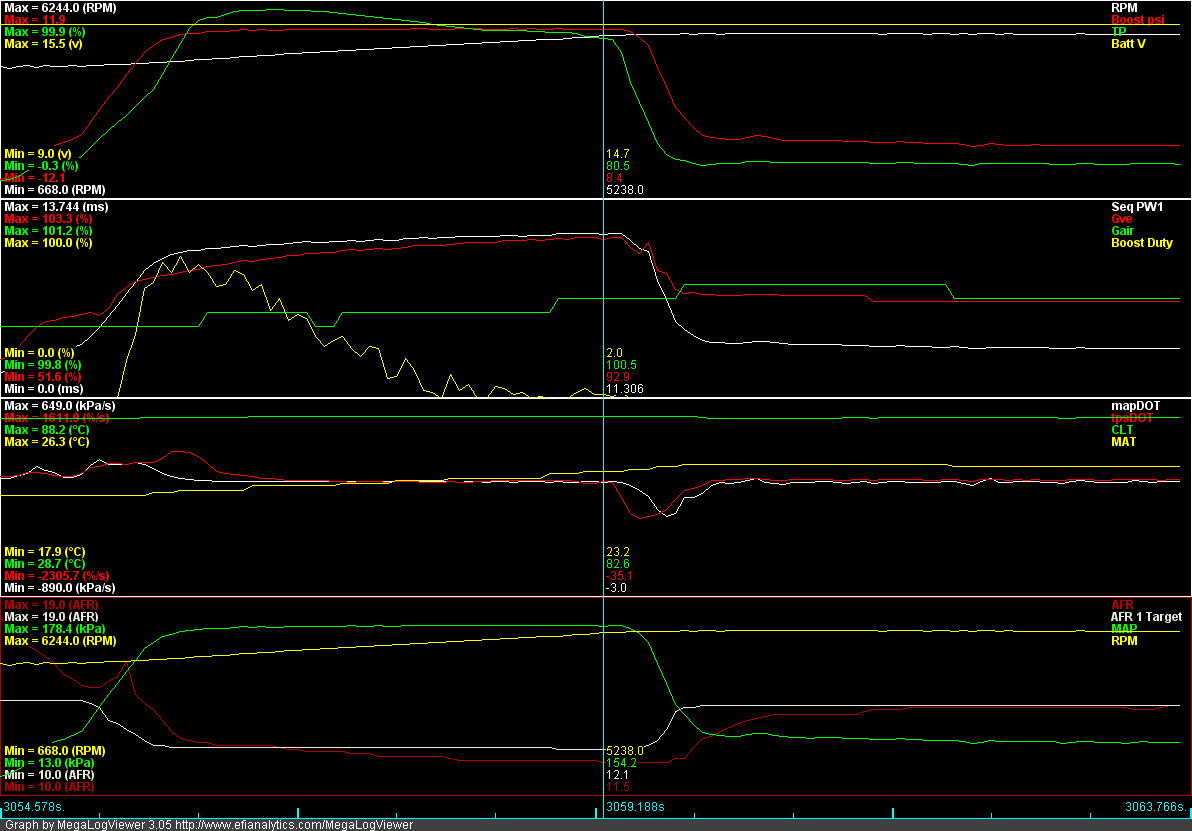

Here is a screenshot of a run with wastegate boost control:



AFR are very steady and go rather a tad rich at the end (VEanalyze live is running - so next time it's going to hit the target nicely)
kPa is at ~155

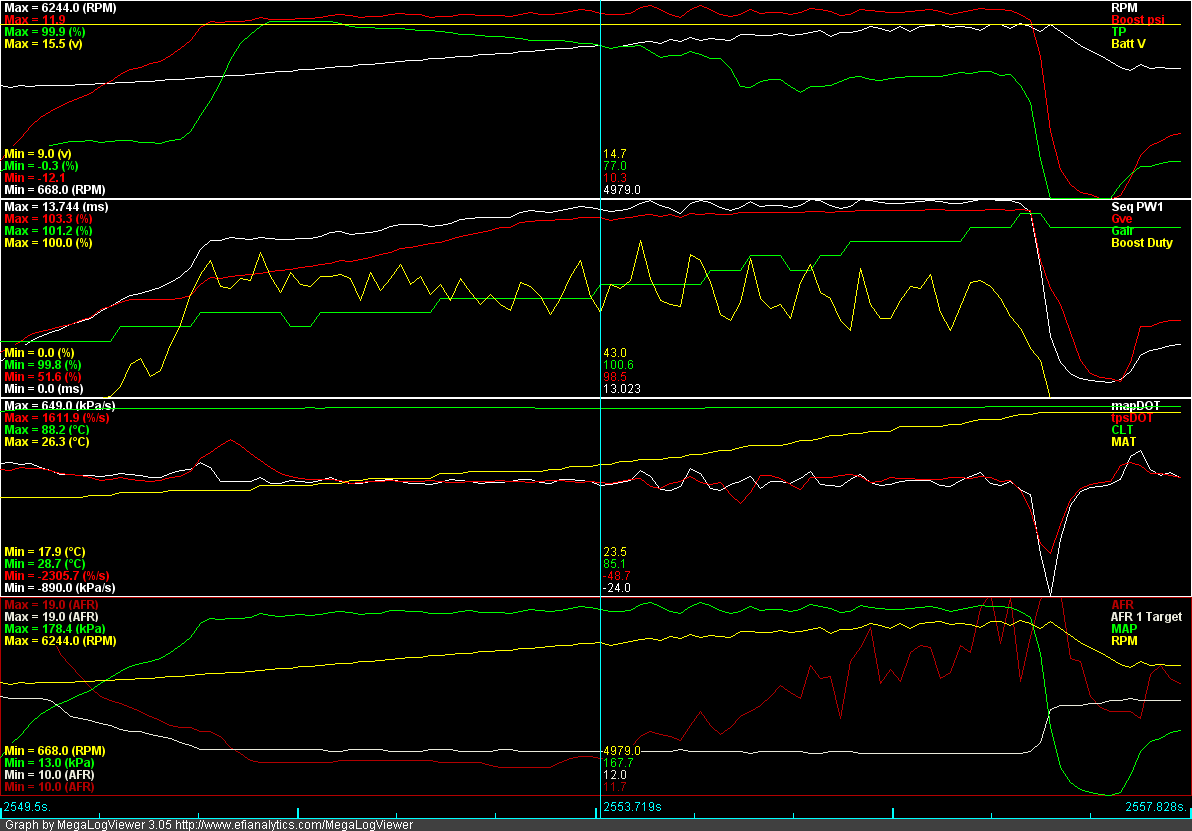

Here is a screenshot with EBC working.



At 5000 rpm the AFRs go crazy (worse, they go crazy lean - you can notice the stumble) - VEanalyze is also running, same log
kPa is ~170

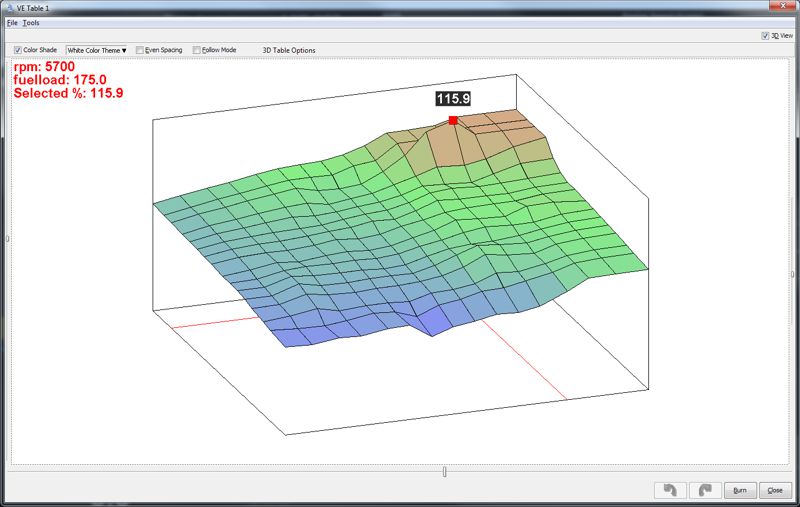

This is the VEtable that VEanalyze gives me


I attach my actual MSQ, the log is ~11MB so it's too big to attach...

MSQ


- Could it be something EBC related (I have installed a Diode at the solenoid to keep voltage feedbacks out)

- May my fuel be dying and just don't give enough juice at that spot (though this was working with the DIYPNP last year no problem)

- injector timing?

-What else could it be?

Thanks for your help...!
Attached Thumbnails
Strange Boost control / AFR problem-vetable_afrproblem.jpg
Zaphod is offline   Reply With Quote
Old 05-26-2012, 12:23 AM   #2
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

It would be useful to log your injector duty cycle.

Note that the AFR is going up at the same time that your MAT is climbing. The MAT climb seems to also be driving Gair. I'm guessing that you are seeing some coupling there and Gair is leaning you out too much.
hornetball is offline   Reply With Quote
Old 05-26-2012, 03:45 AM   #3
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

I will take a look at that, I never had problems with it. MAT correction factor is at 50% and I am adding ~4% every 15deg. The correction seems so big in the log, because of the small change, only about 6deg.

@all
I had the problem, that I lost sync at ~5k rpm when I build the new Ms3+mS3x due toa wrong set poti at the MS3X. Could there be another poti be causing my problem?
Zaphod is offline   Reply With Quote
Old 05-26-2012, 10:31 AM   #4
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Looks like secondary ignition grief to me (spark blow out).
The lean spikes are signs of misfire. Check plugs, coils, wiring, etc.
Ben is offline   Reply With Quote
Old 05-26-2012, 11:10 AM   #5
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

I am going to check all this.

BTW with the Toyota COPs should I set the ignition to "Wasted spark" or to Wasted COP" ?

Greets
Zaphod is offline   Reply With Quote
Old 05-26-2012, 12:34 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

depends how wired. wasted spark if still in wasted mode, wasted cop if wired for seq but you still want to fire them in pairs for some odd reason.

iirc.
Braineack is offline   Reply With Quote
Old 05-27-2012, 08:30 AM   #7
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Quote:
Originally Posted by Braineack View Post
depends how wired. wasted spark if still in wasted mode, wasted cop if wired for seq but you still want to fire them in pairs for some odd reason.

iirc.
So wasted spark is correct for me...

I checked the COPs and spark plugs today. Color of the plugs looks perfect.

One more thought - I did build my MS3 according to Franks instructions as a PNP unit with the connector inside the MS3 case. Could the wire size for my ignition outputs be too small?
What kind of size would you be sufficient? (Problem here is, that the holes in the MS3X board after removing the DB37 connector are not very big...).

Thanks

Last edited by Zaphod; 05-29-2012 at 03:35 AM.
Zaphod is offline   Reply With Quote
Old 05-30-2012, 11:26 AM   #8
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Today I took apart my MS3 to have a look - because yesterday I thought about the MS3 daughtercard pin I broke during my build (I resoldered it then) - The pin was still tight and nice. (It was pin 40 (FB1 - fb_inj1) ) and I am using the MS3X injector outputs, so it wouldn't have mattered anyway.

But I realized that my R56 was not correctly set (reading 0.85V between R54 and pin3 of U7) - I set it to 2.5V now. Could that have caused my problems...?
Zaphod is offline   Reply With Quote
Old 05-30-2012, 11:27 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

that could cause sync issues, yeah.


otherwise the wire size for the spark outputs shouldn't matter, think about how small the traces are.
Braineack is offline   Reply With Quote
Old 05-30-2012, 02:17 PM   #10
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Didn't help. Fitted the Walbro 250 fuelpump today, will seetomorrow if this helped...

I still have the feeling that it has something to do with the MS EBC because all isfine, when I run wastegate pressure.
Zaphod is offline   Reply With Quote
Old 05-30-2012, 02:44 PM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

I dont see how. your settings are very close to mine.


try copying you injection timing table from the 100Kpa row and apply it to all the boosted rows?

or it could be your include AFRTarget under general setting > load parameters. I dont use that...cant remember off hte topic of my head how that calculation works, but iirc it causes pretty high valued VE% numbers in boost.

http://msextra.com/forums/viewtopic.php?f=122&t=44819
Braineack is offline   Reply With Quote
Old 05-30-2012, 03:12 PM   #12
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

I'm still going with ignition grief. Plus or coils.
Ben is offline   Reply With Quote
Old 06-02-2012, 12:53 PM   #13
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

http://www.msextra.com/forums/viewtopic.php?t=45125

Could this be related to my problem?
Zaphod is offline   Reply With Quote
Old 06-02-2012, 12:57 PM   #14
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

No, this only affects engines with distributors.
Reverant is offline   Reply With Quote
Old 06-02-2012, 01:00 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

did you trying removing "include AFRTarget"???
Braineack is offline   Reply With Quote
Old 06-02-2012, 01:37 PM   #16
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

I have the include AFR running since years with MS2 and the DIYPNP...
Zaphod is offline   Reply With Quote
Old 06-02-2012, 01:50 PM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

oh okay, nevermind. its something most people dont use.
Braineack is offline   Reply With Quote
Old 06-04-2012, 02:29 AM   #18
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

As it is bloody raining outside and I can't go to check if my new walbro pump helped - I'd like to do some theory with you guys..

Before I swapped in my MS3/MS3X in the car I changed my injector dead times (460CC high-imp, RX-7 injectors) from the setting I got via testing (different squirts per cycle - until I got the same AFR) which was 1.185ms to the setting that Techsalvager implied and got through his MAF setup, which is 0.75ms.

What would happen if lets say the setting is at 0.75ms but the real dead time is 1.185ms... Would that have effects that could cause problems like mine? I see that the wrong dead time can have ill effects at low rpm/idle etc. but at high rpm?

Thanks for your input...
Zaphod is offline   Reply With Quote
Old 06-04-2012, 10:04 AM   #19
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

No, you would "tune around" that with the VE table.

Still going with ignition.
Ben is offline   Reply With Quote
Old 06-04-2012, 10:43 AM   #20
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Quote:
Originally Posted by Ben View Post
Still going with ignition.
Dang! I did really check everything ignition related...

O.K. it's dry outside, so I will get my lazy *** up and see if the new fuelpump brought any change...
Zaphod is offline   Reply With Quote
