Old 06-04-2012, 01:40 PM   #21
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default Not an ignition problem...

So I think I did the ultimate test, if it is ignition system related...

I swapped in my DIYPNP and did a run with the EBC:

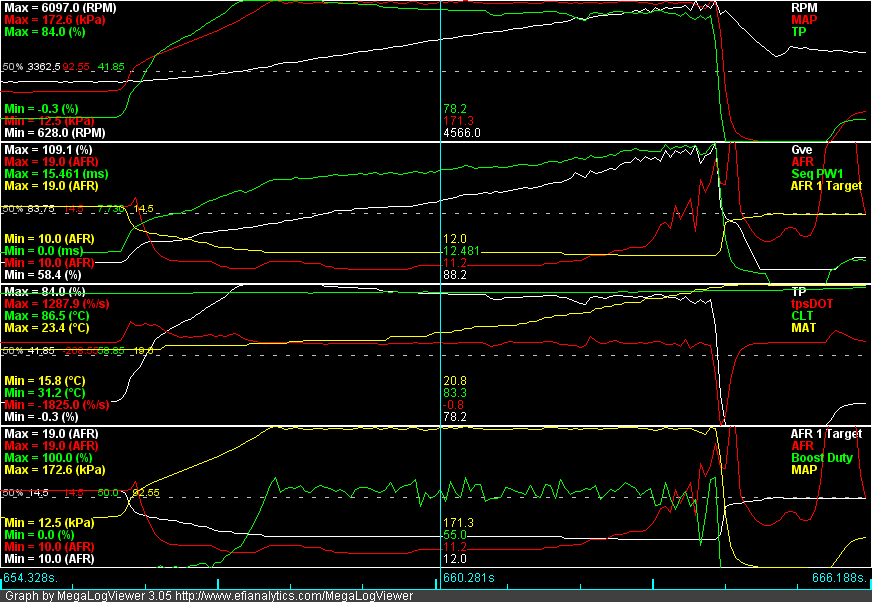

Screenshot of the run with the MS3/MS3X



Ends at 5800 rpm with a hell of AFRs...

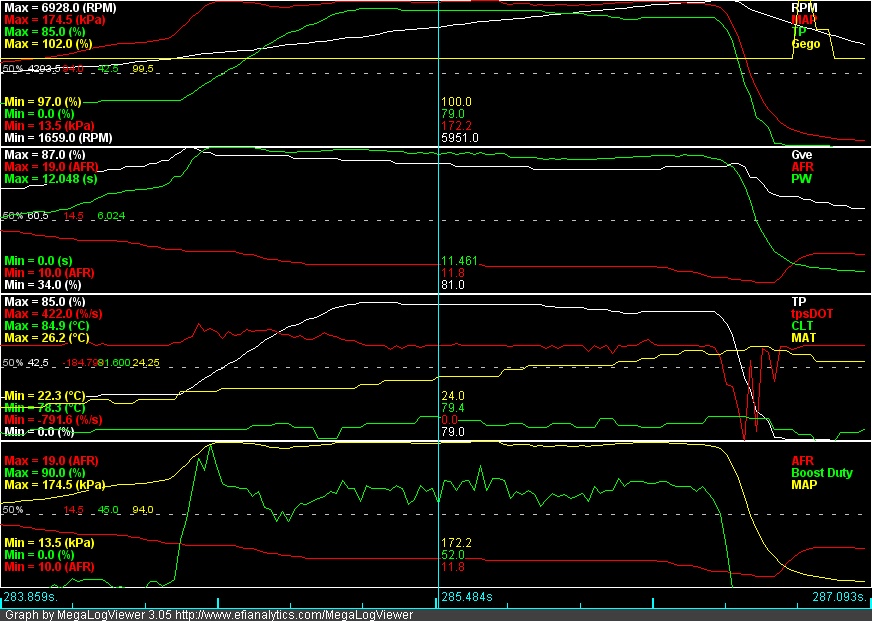

Screenshot with the DIYPNP only some minutes later,



Perfectly clean up to 6800 rpm with no AFR problems whatsoever...

Now what could cause this inside the MS3...?
Attached Thumbnails
Strange Boost control / AFR problem-boost_ebc_diypnp.jpg
Zaphod is offline   Reply With Quote
Old 06-04-2012, 01:56 PM   #22
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

What do you see on the MaxiGauge, re: AFR?

Do you have an MBC to try with the MS3?
Reverant is offline   Reply With Quote
Old 06-04-2012, 02:14 PM   #23
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Quote:
Originally Posted by Reverant View Post
What do you see on the MaxiGauge, re: AFR?
Same as in TunerStudio... Getting really lean, AFR going to 16 and higher (for a splitt second...and I let go off the gas, because I need my engine.

Quote:
Originally Posted by Reverant View Post
Do you have an MBC to try with the MS3?
No, unfortunatly not...
Zaphod is offline   Reply With Quote
Old 06-04-2012, 02:23 PM   #24
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Get a cheap one then.
Reverant is offline   Reply With Quote
Old 06-04-2012, 02:36 PM   #25
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Would you please explain, what this would be helping me? I know that the EBC with the diypnp works settings are the same...
Zaphod is offline   Reply With Quote
Old 06-04-2012, 02:45 PM   #26
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

I can't tell from the logs, but do you hit the same amount of boost with the MS3 with and without the EBC when the problem occurs?
Reverant is offline   Reply With Quote
Old 06-04-2012, 02:51 PM   #27
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

With the MS3 I can run wastegate pressure at ~145kPa without a single glitch, the MS3 and DIYPNP EBC runs are both equally at 170kPa - DIYPNP up to 6.8k rpm at AFRs~11.3, the MS3 starts to go strange at ~ 4.5-5 k rpm...
Zaphod is offline   Reply With Quote
Old 06-04-2012, 03:50 PM   #28
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Use an MBC with the MS3 to reach 170kPa without actually flowing current through the EBC and the MS3X - this will tell quite a story.
Reverant is offline   Reply With Quote
Old 06-04-2012, 03:52 PM   #29
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

im running 205kPa with the MS running boost control, but not through the expander card. It's possible it needs the same flyback mod as the idle and vvt outputs do.
Braineack is offline   Reply With Quote
Old 06-04-2012, 04:08 PM   #30
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

I have a flyback diode added directly at the solenoid connector - shouldn't this be enough?
Zaphod is offline   Reply With Quote
Old 06-04-2012, 04:10 PM   #31
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

yeah it should. n/m then.
Braineack is offline   Reply With Quote
Old 06-04-2012, 04:23 PM   #32
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

I might build the boost control circuit at the mainboard, what is the easiest way to do this...?
Zaphod is offline   Reply With Quote
Old 06-05-2012, 03:39 AM   #33
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

As the problem very clearly sits inside my MS3 I went and had a look at the connections to the MS3 / MS3X. I might have found a culprit...

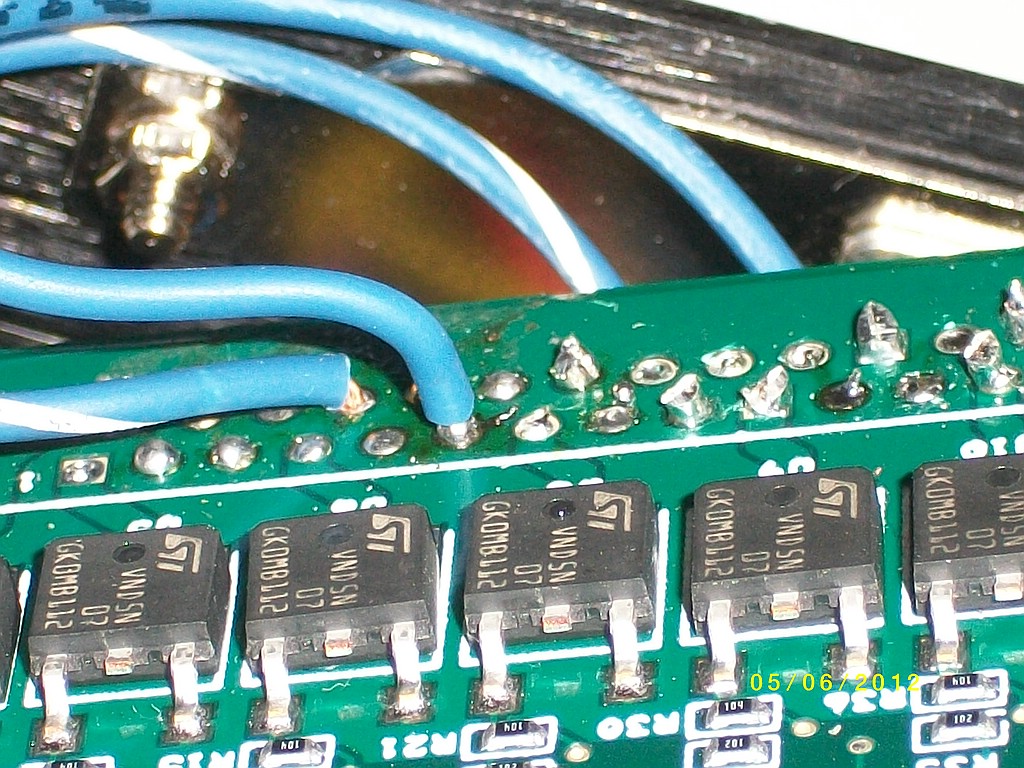

That is the connection of the MS3X to the boost control - you can see a little splice of wire going very near to the next pad - it might even have touched.

I went and resoldered some funky looking wires - we'll see if this brings us somewhere... (I will try to test at the jimstim...)

Attached Thumbnails
Strange Boost control / AFR problem-ms3x_01.jpg
Zaphod is offline   Reply With Quote
Old 06-05-2012, 03:20 PM   #34
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default injector dead times again...

So it was not the solder-points or the little splice of wire...

I did another test today:

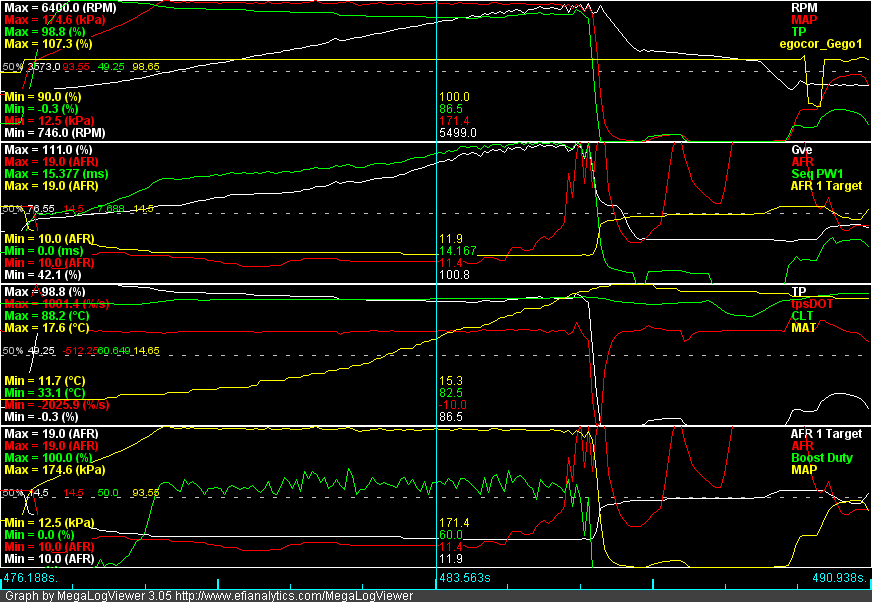

With my actual MSQ I get the same thing again:


See how the AFRs go deadly lean after 5800rpm, although the GVe goes higher and higher, also the AFRs start to fluctuate and at 6k rpm the AFRs start to go completely shaky... (VEtable going from 100 at 500 rpm up to 110 at 6000 rpm)

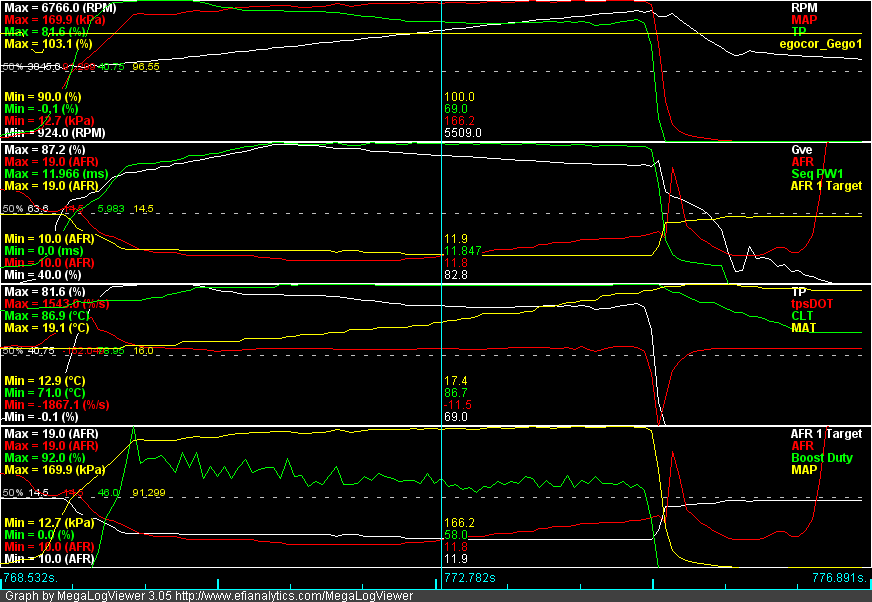

Now I tried another test with the deadtime set to 1.185 - my previous setting at the DIYPNP



See how the AFRs just start to lean out only a little when at the same time the GVe drops quite a bit due to my old VEtable... no rpm fluctuations, no AFR fluctuations up to ~6.3k rpm where I stopped because the AFRs got a little too lean due to my VEtable going down from 85 to 80.

I also noticed that my dutycycle with the 0.75ms deatime goes up to 77.5% at ~6.200 rpm, where the dutycycle with the 1.185ms deatime is only ~60%.

Gonna have to take another run tomorrow with a changed VEtable and the 1.185ms setting for deadtime. (I did a VEanalyze with the Megalogviewer and my log for this deadtime and the VE was brought up to ~86.5 at the leaner getting spot ~6k rpm/170 kPa, which seems about right)

Edit: Just had a look - both runs were 3rd gear..

Thoughts?

Last edited by Zaphod; 06-05-2012 at 03:40 PM.
Zaphod is offline   Reply With Quote
Old 06-07-2012, 11:47 AM   #35
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Injector dead times also ruled out in the equation...

I don't know any further anymore...

I am going with one more test with injection timing all set to 370 which should equal the DIYPNP setting I had with -350.

Apart from that my next steps would be to try a different MS3X output to drive the boost control or building the boost control circuit to the mainboard.

@Brain (and the others of course) what Diode should be used for the boost control (I used a 1N4001 I had from my builds... - must this be a 1N4002?)
I have the diode directly at my solenoids connector - when I add the diode add the DB15 on my MS3 (where my boost control line goes out) can I connect it to any +12V source? (I have a +12V going to the ZT-2 WB also at the DB15...)
Zaphod is offline   Reply With Quote
Old 06-07-2012, 11:51 AM   #36
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

any direct 12v source, nothing behind the diodes and caps on the circuit for the 5vregulator.

and yes n4001.
Braineack is offline   Reply With Quote
Old 06-07-2012, 12:10 PM   #37
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

which other output on the MS3X would you recommend for testing purposes for the boost control?
Zaphod is offline   Reply With Quote
Old 06-07-2012, 12:13 PM   #38
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

nitrous 1, nitrous 2, or vvt
Braineack is offline   Reply With Quote
Old 06-08-2012, 04:21 AM   #39
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Still trying to wrap my head around the problem - I stumbled over this picture:



As I did my wiring according to Frank's instructions - my MS3X has NONE of the ground connections to engine ground. (pins 2/3/8/12/17) Could this have anything to do with my problem?
Zaphod is offline   Reply With Quote
Old 06-08-2012, 04:48 AM   #40
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Oh boy. Definitely the grounds.
Reverant is offline   Reply With Quote
