Does the fuel pump prime when cranking or should it prime before ignition is even turned?
psyber_0ptix is offline   Reply With Quote
Old 04-07-2014, 10:38 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Did you jump the fuel pump in the afm connector ?
Braineack is offline   Reply With Quote
Old 04-07-2014, 11:13 PM   #3
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,707
Total Cats: 319
Default

Hey Scott, no I didn't (didn't know I had to since MS1 was working). It primes testing from diagnostic connector. How do I do this?

I don't have fuel or spark it turns out

edit: I'm going to have to give up for the night. Composite logger isn't showing anything.

Last edited by psyber_0ptix; 04-08-2014 at 12:23 AM.
psyber_0ptix is offline   Reply With Quote
Old 04-08-2014, 08:23 AM   #4
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,707
Total Cats: 319
Default

Is it a matter of grounding the red wire 2O?
psyber_0ptix is offline   Reply With Quote
Old 04-08-2014, 08:48 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

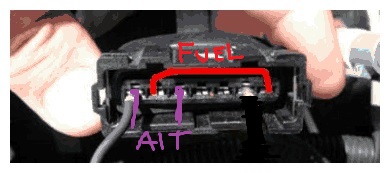

Braineack is offline   Reply With Quote
Old 04-08-2014, 09:07 AM   #6
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,707
Total Cats: 319
Default

I no longer have the original AFM connector, just a bundle of sealed cable ends.

:(
psyber_0ptix is offline   Reply With Quote
Old 04-08-2014, 09:11 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default



ground 2O.
Braineack is offline   Reply With Quote
Old 04-08-2014, 09:20 AM   #8
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,707
Total Cats: 319
Default

Thanks!!

Would I be able to ground 2-o from the ECU and use the wire to drive the EBC?

2-0 is red on the second ECU connector?
psyber_0ptix is offline   Reply With Quote
Old 04-08-2014, 09:28 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

sorry, that advice was wrong (too early to think).

You need to connect the RED wire on the AFM connector bundle to the Fuel Pump Relay wire (Lt Green) on the same bundle. The MS is the ground.

It sends the ground out to 2O, and that goes back to the FP relay, which sends 12v to the pump once grounded.

I'll check on the color code for the FP Relay.


not sure where the EBC comes into play here...
Braineack is offline   Reply With Quote
Old 04-08-2014, 09:31 AM   #10
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,707
Total Cats: 319
Default

Ok, I greatly appreciate it.






re: EBC
I'm trying to find wires I can piggy back to the ecu to run the power/ground for the EBC.

I can grab power from white w/red on the diagnostic port, but would there be any free wires from AFM leading back to the ECU that I can reassign to the boost controller on MS3?

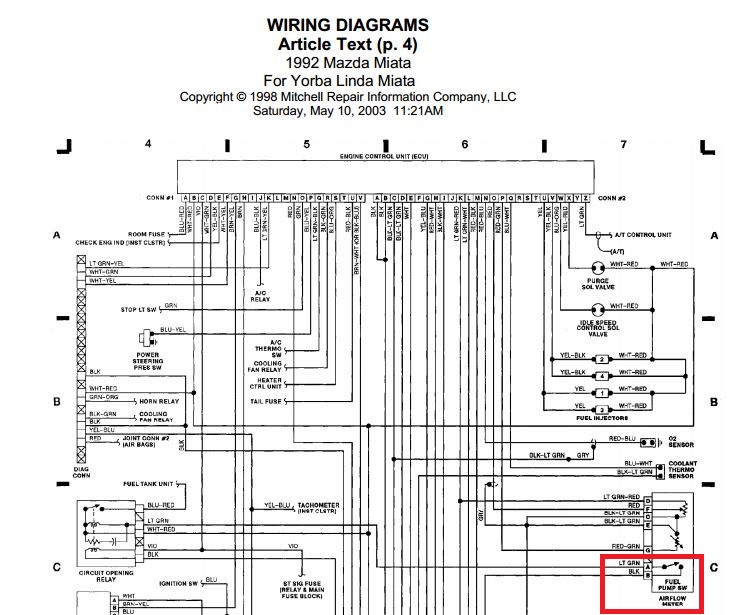

Attached Thumbnails
Switched from MSPNP1 to BrainMS3 and fuel pump no longer primes-capture.jpg
psyber_0ptix is offline   Reply With Quote
Old 04-08-2014, 09:35 AM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Yes, you can send it to 2K (Lt Green/Red). You can power it from the blue power connector by the driver headlight.
Braineack is offline   Reply With Quote
Old 04-08-2014, 09:40 AM   #12
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,707
Total Cats: 319
Default



Ok, so:

EBC
reassign 2k (Lt Green/Red)to MS3 as EBC (-)
Tap Diagnostic Connector (White/red) as EBC (+)

Fuel Pump
Connect 2o (red) to supply ground to light green which are both on the AFM wiring

seem about right?
psyber_0ptix is offline   Reply With Quote
Old 04-08-2014, 10:21 AM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

yes.
Braineack is offline   Reply With Quote
Old 04-08-2014, 10:22 AM   #14
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,707
Total Cats: 319
Default

<3
psyber_0ptix is offline   Reply With Quote
Old 04-08-2014, 10:23 AM   #15
Junior Member

Join Date: Sep 2012
Location: Cranston, RI
Posts: 276
Total Cats: 10
Default

I just want to chime in and say thanks Braineak for the quick responses! I'm helping out psyber with the turbo build at my house.

Now we just need to solve the no spark issue
Leach0789 is offline   Reply With Quote
