Default Tach output for 2000 NB

For some reason I never got the tach output working with my old build. Thought I'd get that sorted now the car is back up.

So I remember it being different than the NAs, but I can't remember how, so can anyone point me to the right thread? I tried searching around for the past bit and can't find anything.

Thanks
coastertrav is offline   Reply With Quote
Old 07-26-2011, 02:08 PM   #2
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,323
Total Cats: 1,920
Default

The dashboard tach on an NB is fed by the ECU, similar to a '95.5 or later NA.

On an '00, it's a green / orange wire at position 2K of the ECU. Set up a circuit in the MS to give it a 0-12v squarewave with one pulse per ignition event.
Joe Perez is offline   Reply With Quote
Old 07-26-2011, 02:39 PM   #3
Senior Member
Thread Starter

Join Date: Jun 2006
Location: Orlando FL - UCF
Posts: 688
Total Cats: 1
Default

So a two channel optoisolator fed from the ignition signals on the MS passing 12V through a 10K resistor, or thereabouts?
coastertrav is offline   Reply With Quote
Old 07-26-2011, 02:48 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

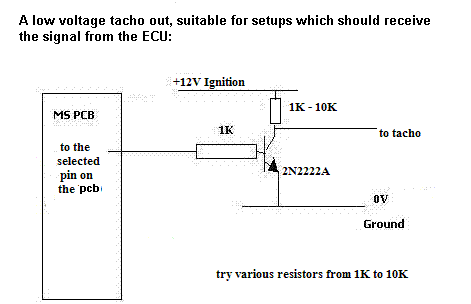

you just need one pn2222 transistor a 10K and a 1K resistor.

Attached Thumbnails
Tach output for 2000 NB-lowvtacho.gif
Braineack is offline   Reply With Quote
Old 07-26-2011, 02:54 PM   #5
Senior Member
Thread Starter

Join Date: Jun 2006
Location: Orlando FL - UCF
Posts: 688
Total Cats: 1
Default

Dang, duh.

Thanks, I'll get in there tonight and get that gauge finally working. You know I just lived with it for 6 months before the car went down that I didn't work...

Appreciate it guys.
