Old 03-04-2008, 08:51 PM   #21
Junior Member

Join Date: Jan 2007
Posts: 188
Total Cats: 0
Default

Right, well look at this photo...


3 and 2 fire at exactly the same time so it makes no difference which way round they are, same with 1 and 4.

How have you go them wired at the moment?
richard_ha is offline   Reply With Quote
Old 03-04-2008, 08:53 PM   #22
Junior Member

Join Date: Jan 2007
Posts: 188
Total Cats: 0
Default

I suggest wiring them as in the photo, if that doesnt work, then move 3 and 2 to the coil pack number 1 and 4, and 1 and 4 to coil pack for 2 and 3.

My guess is that you have them split at the momnt
richard_ha is offline   Reply With Quote
Old 03-04-2008, 08:56 PM   #23
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

^^^^ That's not the problem his video shows 1&4 and 2&3 are going to a coilpack, and he has them hooked up correctly.

I can't open your MSQ I have the wrong version of Megatune. Post a screen shot of Megatune, or just tell me what the columns are on the top.
patsmx5 is offline   Reply With Quote
Old 03-04-2008, 08:57 PM   #24
Elite Member
Thread Starter
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

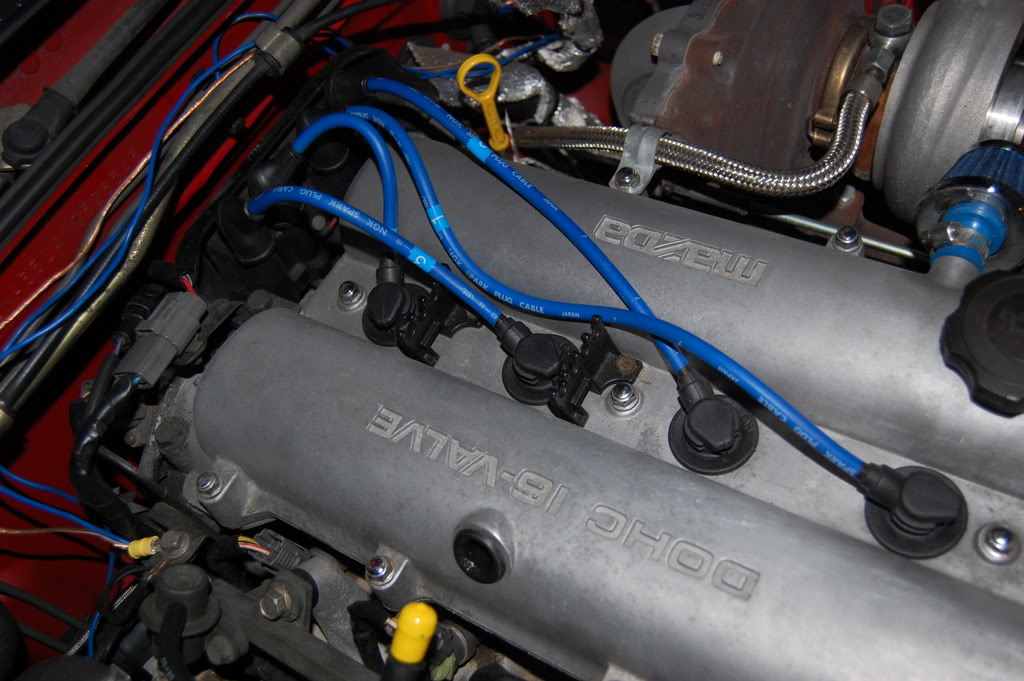

Name:  DSC_0388.jpg
Views: 0
Size:  141.1 KB
Bryce is offline   Reply With Quote
Old 03-04-2008, 08:59 PM   #25
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

****, that's wrong man. When I said switch the plugs, I meant switch the plug that goes to the coilpack, as in the one from the wiring harness. Yea, just put the front and rear cylinders on a coilpack, the middle ones on another.
patsmx5 is offline   Reply With Quote
Old 03-04-2008, 09:02 PM   #26
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Your video in post 9 shows cylinders 1&4 going to the passengers side coilpack, but the pic above shows it wrong.
patsmx5 is offline   Reply With Quote
Old 03-04-2008, 09:03 PM   #27
Elite Member
Thread Starter
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Quote:
Originally Posted by patsmx5 View Post
****, that's wrong man. When I said switch the plugs, I meant switch the plug that goes to the coilpack, as in the one from the wiring harness. Yea, just put the front and rear cylinders on a coilpack, the middle ones on another.
It doesn't run like that.

Cranking PWs need more adjusting?
Bryce is offline   Reply With Quote
Old 03-04-2008, 09:06 PM   #28
Junior Member

Join Date: Jan 2007
Posts: 188
Total Cats: 0
Default

Do as I said! It will be fine
at the moment you are only running on two cylinders.
richard_ha is offline   Reply With Quote
Old 03-04-2008, 09:07 PM   #29
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

I'm assuming it's running on 2 cylinders the way you have the wires hooked up in the pic above? Just hook the outer cylinders to a coilpack, the inner ones to a coilpack. If it backfires, spits, and sputters, switch the plugs that go from the wiring harness to the coilpacks.
patsmx5 is offline   Reply With Quote
Old 03-04-2008, 09:12 PM   #30
Elite Member
Thread Starter
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Quote:
Originally Posted by patsmx5 View Post
I'm assuming it's running on 2 cylinders the way you have the wires hooked up in the pic above? Just hook the outer cylinders to a coilpack, the inner ones to a coilpack. If it backfires, spits, and sputters, switch the plugs that go from the wiring harness to the coilpacks.
I did as you said. Now I don't see 2 plugs going to the coil packs so I just swapped the plugs wires on 1 coil pack with the wires on the other coil pack. It's idling better than ever now but I think it's still missing in 1 cylinder. I'm going to check all the spark plugs now.
Bryce is offline   Reply With Quote
Old 03-04-2008, 09:39 PM   #31
Elite Member
Thread Starter
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Nevermind. It's still running on 2 cylinders, just doing so smoother than before.
Bryce is offline   Reply With Quote
Old 03-04-2008, 09:47 PM   #32
Junior Member

Join Date: Jan 2007
Posts: 188
Total Cats: 0
Default

Which two is it running on? Have you got 1 and 4 going to the same coil pack?
richard_ha is offline   Reply With Quote
Old 03-04-2008, 09:51 PM   #33
Elite Member
Thread Starter
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Running on 2 and 4. Yes 1 and 4 are going to the passenger coil pack.
Bryce is offline   Reply With Quote
Old 03-04-2008, 10:02 PM   #34
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

You probably burned up a coilpack from pulling off #1 while it was running. Try switching the witching the wires on one coilpack to another and see if it begins running on cylinders 1 and 3 and not running on 2 and 4.
patsmx5 is offline   Reply With Quote
Old 03-04-2008, 10:05 PM   #35
Elite Member
Thread Starter
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

That just doesn't seem logical. In order for a coil pack to be burn out, it would have to be running on only cylinders 1 and 4 or 2 and 3. Is it possible to burn out a single output on a coil?
Bryce is offline   Reply With Quote
Old 03-04-2008, 10:08 PM   #36
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Just so you know, you have 2 coilpacks. One fires cylinders 1&4 simultaneously and the other fires 2&3 simultaneously. You can burn up one and then it will only run on two cylinders.
patsmx5 is offline   Reply With Quote
Old 03-04-2008, 10:10 PM   #37
Elite Member
Thread Starter
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Yeah that's why I was stating the above logic.

Coils must be good. I plugged the stock ecu back in and it wouldn't start. I swapped the plugs on the coils and it started right up, running on all cylinders.
Bryce is offline   Reply With Quote
Old 03-04-2008, 10:25 PM   #38
Junior Member

Join Date: Jan 2007
Posts: 188
Total Cats: 0
Default

Swap 1 and 4 round and 2 and 3 round.

Does it now run on 1 and 3? or Still 2 and 4?
richard_ha is offline   Reply With Quote
Old 03-04-2008, 10:36 PM   #39
Elite Member
Thread Starter
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Swapped em and I'm still running only on 2 and 4.
Bryce is offline   Reply With Quote
Old 03-04-2008, 10:42 PM   #40
Junior Member

Join Date: Jan 2007
Posts: 188
Total Cats: 0
Default

Thats pretty conclusive that its either the HT leads or the plugs in 1 and 3.
richard_ha is offline   Reply With Quote
