Default Toyota cop conflicting ports

I finished my Toyota COP installation this morning, and it fired up perfect the first time. No conflicts, no issues whatsoever. I idled her for about 10 minutes and then shut her down. When I went to start her back up about 10 minutes later, I saw this.



I have no idea why this happened. Now, as soon as I turn the key to the accessory position, the fans kick on. I'm running the fans on.






Any ideas? I didn't let out any magic smoke, and it ran beautifully until I shut her down the first time.
Attached Thumbnails

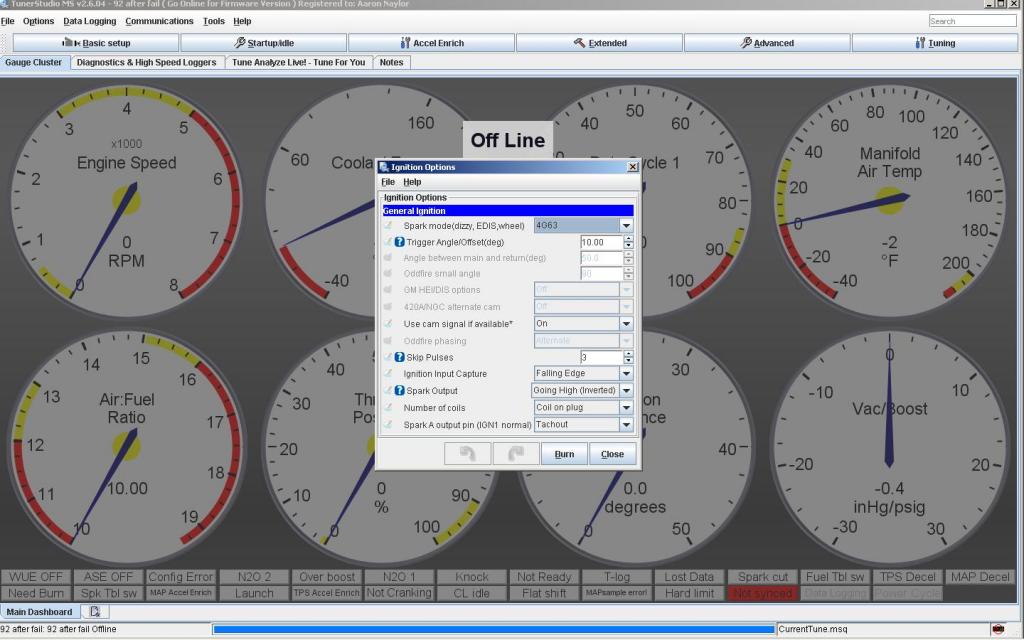

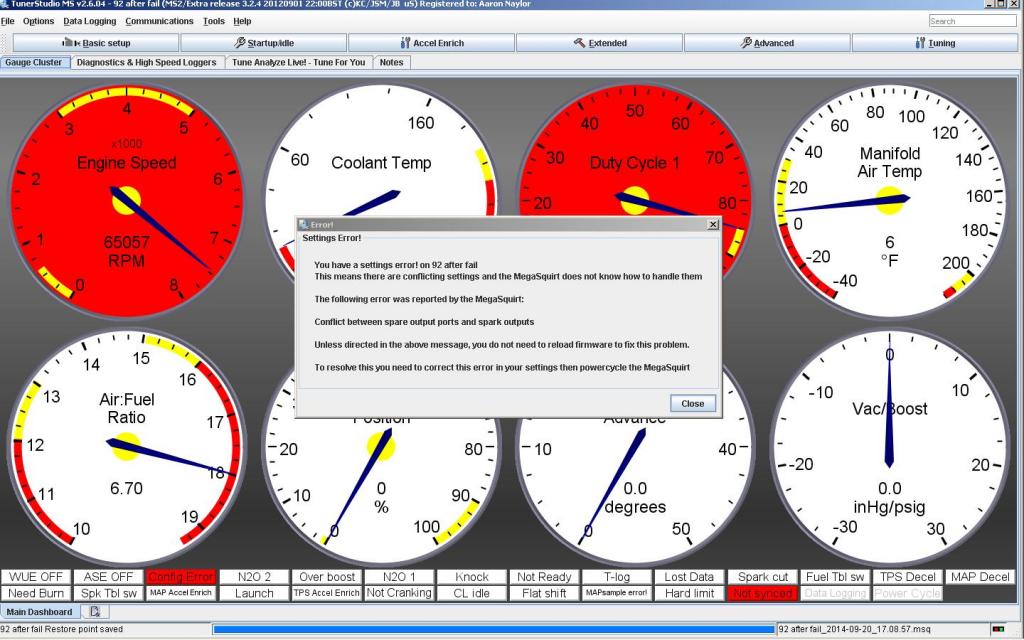

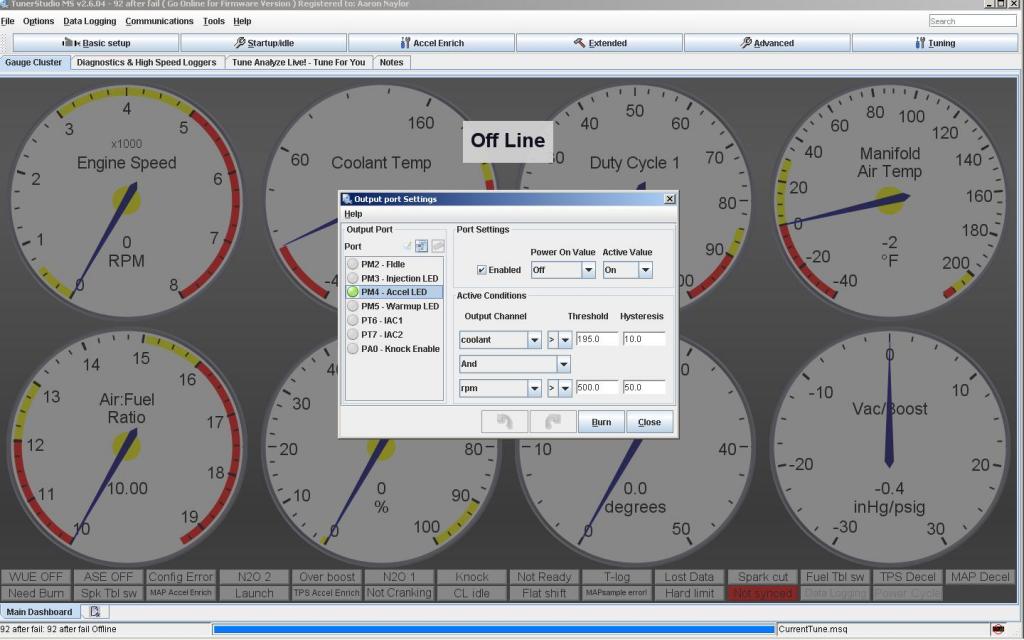

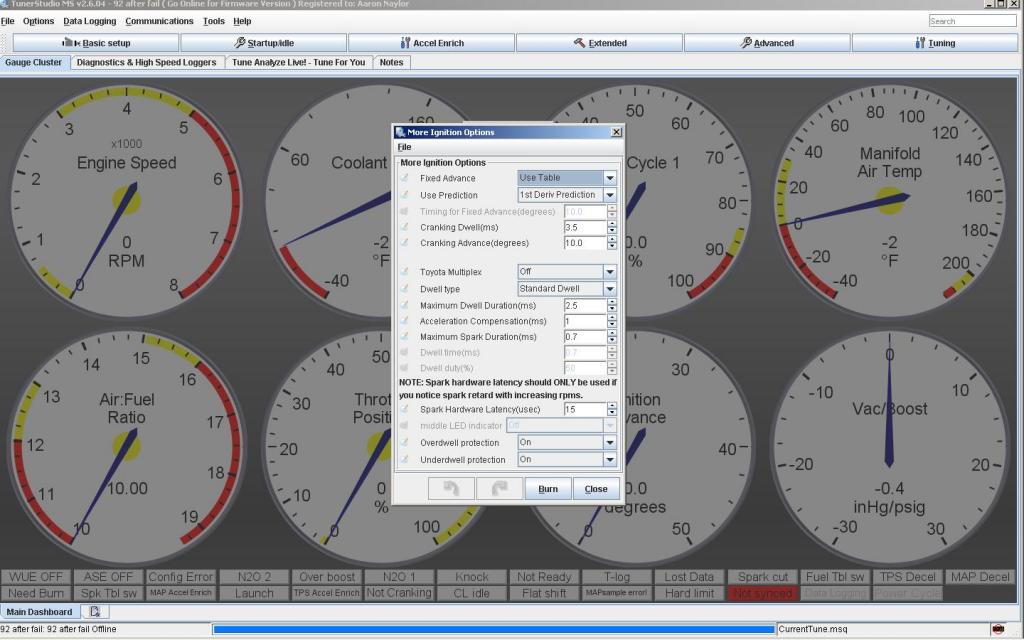

Toyota cop conflicting ports-sparkerror_zps8155952b.jpg   Toyota cop conflicting ports-fanoutput_zpse1e94c97.jpg   Toyota cop conflicting ports-spark2_zps1a833dab.jpg   Toyota cop conflicting ports-spark1_zpsbc6b294a.jpg
dieselmiata is offline   Reply With Quote
Old 09-21-2014, 03:16 PM   #2
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Sequential COPs? If so, you may not have enough outputs to do that, depending on whether you have A/C, EBC, etc.
Reverant is offline   Reply With Quote
Old 09-21-2014, 03:19 PM   #3
Senior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

Wired for batch, base on this:https://www.miataturbo.net/useful-sa...writeup-12704/

No A/C, no EBC.

The strange thing to me is that it fired right up the first time, almost like I hadn't changed out anything at all.
dieselmiata is offline   Reply With Quote
Old 09-21-2014, 03:38 PM   #4
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Wired for batch but selected "Coil on plugs"? That won't work. Select wasted spark instead.
Reverant is offline   Reply With Quote
Old 09-21-2014, 03:58 PM   #5
Senior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default




Christ.

I don't recall changing that, but derp.

That's what I get for trying to hurry through the finishing stages of a project.

Works fine now though, thanks Rev.
Attached Thumbnails
Toyota cop conflicting ports-paris_tuileries_garden_facepalm_statue_zps2f99b3e2.jpg
dieselmiata is offline   Reply With Quote
Old 09-21-2014, 04:08 PM   #6
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Facepalm, greek-style. Propped for the lols.
Reverant is offline   Reply With Quote
Old 09-22-2014, 05:15 AM   #7
Newb

Join Date: Jun 2013
Location: Topeka, Kansas
Posts: 28
Total Cats: 0
Default

Don't feel too bad dieselmiata. I did the same thing few days ago when i installed my cops.
Turns out one my cop came fried or i somehow fried it. I think i forgot to changed my dwells in test mode. It's at 4.0 by default in tunerstudio. not sure how i fried only one coil tho instead of two. oh well will order new one. Hopefully get it to run soon. Reverant may be you can point me in right direction. any diy on how to wire toyota cops for full sequential ? Don't you have to use ALED or WLED for extra spark output?
Dhruvil is offline   Reply With Quote
Old 09-23-2014, 10:30 AM   #8
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Yes, you do have to use WLED and ALED. That means those two can't be used for anything else (ie cooling fans etc).
Reverant is offline   Reply With Quote
Old 09-23-2014, 11:30 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

dwell at 4.0ms, 5.0ms, 6-7-8ms, won't fry a coil.
Braineack is offline   Reply With Quote
Old 09-23-2014, 12:27 PM   #10
Newb

Join Date: Jun 2013
Location: Topeka, Kansas
Posts: 28
Total Cats: 0
Default

Well what caused it to fried than? How come i only burnup one coil? I am not using ALED and WLED for anything. My fans are wired straight. Any diagrams or diy on how to wired them using ALED and WLED?

Thanks!
Dhruvil is offline   Reply With Quote
Old 09-23-2014, 12:31 PM   #11
Junior Member

Join Date: Oct 2011
Location: New Hampshire
Posts: 322
Total Cats: 53
Default

You said it might have been friend when it was delivered.
adamiata is offline   Reply With Quote
Old 09-23-2014, 12:33 PM   #12
Newb

Join Date: Jun 2013
Location: Topeka, Kansas
Posts: 28
Total Cats: 0
Default

True adamiata. I am just wondering what can cause a coil to fry. Sorry I suck at English.
Dhruvil is offline   Reply With Quote
Old 11-14-2014, 06:08 AM   #13
Newb

Join Date: Jun 2013
Location: Topeka, Kansas
Posts: 28
Total Cats: 0
Default

So now I am getting spark to all the coils in test mode but car doesn't fire up. It doesn't even act like it wants to fire up. Not sure what's going on :/
Dhruvil is offline   Reply With Quote
Old 11-14-2014, 09:57 AM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

Quote:
Originally Posted by Dhruvil View Post
So now I am getting spark to all the coils in test mode but car doesn't fire up. It doesn't even act like it wants to fire up. Not sure what's going on :/
start a new thread that actually addresses your issue.
Braineack is offline   Reply With Quote
Old 11-18-2014, 01:59 AM   #15
Newb

Join Date: Jun 2013
Location: Topeka, Kansas
Posts: 28
Total Cats: 0
Default

Sorry about that. New thread posted.
Dhruvil is offline   Reply With Quote
Old 11-20-2014, 01:37 PM   #16
Junior Member

Join Date: Sep 2014
Location: whats that coming over the hill?
Posts: 67
Total Cats: -15
Default

I did this and it ran perfect but I could not get the tacho to work
zammish is offline   Reply With Quote
Old 11-20-2014, 08:42 PM   #17
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Dhruvil that gauge of wiring looks a bit light. It's probably fine for the trigger but not for GND or +12V. Not sure if that's your problem or not but it certainly can't be helping.
timk is offline   Reply With Quote
