Old 12-09-2008, 09:13 PM   #1
Junior Member
Thread Starter

Join Date: May 2007
Posts: 46
Total Cats: 0
Default tps

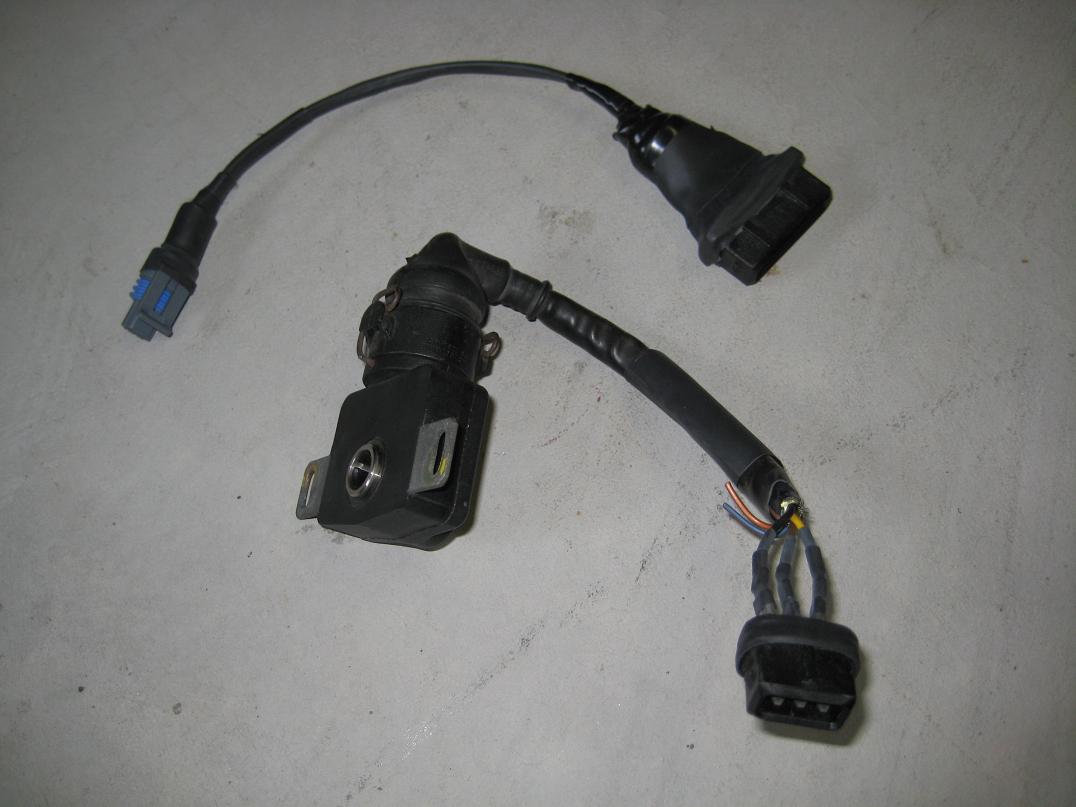

I has a 9093MSPNP modified by DIY for VTPS
Found an OEM male connector at the junk and wired it to a BMW TPS.
Used the 3 shielded wires only

BLK +5 V
BRWN Grnd
YELLOW Signal

Wanted to know if this looks correct before i hook it up this weekend

TIA
Attached Thumbnails
SideDraft is offline   Reply With Quote
Old 12-10-2008, 10:38 AM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

is there a "how-to" on modifying the 9093 for variable tps? I want to send my car to the dyno this weekend, but would really like to hook up the tps before it goes.

Is it ok to convert to TPS later, or will that require more tuning? I'd like to pay to tune it once, and be done with it...set it and forget it.
hustler is offline   Reply With Quote
Old 12-10-2008, 10:42 AM   #3
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

TPS is only good for boost duty, over-run(not even that needed) and acceleration enrichment.

I dont think anything else uses TPS.
Saml01 is offline   Reply With Quote
Old 12-10-2008, 12:24 PM   #4
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Quote:
Originally Posted by hustler View Post
is there a "how-to" on modifying the 9093 for variable tps? I want to send my car to the dyno this weekend, but would really like to hook up the tps before it goes.
Shockingly, DIY chose to hide this information from the public by printing it right in the MSPNP manual. Specifically, it's in Section Five: Modifying your MSPNP.

Quote:
Is it ok to convert to TPS later, or will that require more tuning? I'd like to pay to tune it once, and be done with it...set it and forget it.
As Sam said, assuming you run in speed-densnity mode, the TPS does not influence the VE calculation except during TPSaccel. Since you're doing your tuning steady-state on a dyno, accel should not come into play.



SideDraft,

I'm away from home this week and don't have access to my good wiring diagrams, but it's easy enough to figure out whether the TPS is wired properly- just stick it on the car and observe the TPS value of the MS by looking at the RealTime Display window in megatune. Does it go up when you press the pedal, and down when you release it? (Don't forget that you need to run the TPS Calibration wizard.)
Joe Perez is online now   Reply With Quote
Old 12-10-2008, 01:47 PM   #5
Junior Member
iTrader: (1)

Join Date: Apr 2008
Location: Springfield Oregon
Posts: 174
Total Cats: 0
Default

for 90-93 it is supposed to fix the idle droop/dieing issues as per this...so it is most definitely not useless.
miatamoxie is offline   Reply With Quote
Old 12-10-2008, 02:14 PM   #6
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Joe Perez View Post
As Sam said, assuming you run in speed-densnity mode, the TPS does not influence the VE calculation except during TPSaccel. Since you're doing your tuning steady-state on a dyno, accel should not come into play.
how dare they hide that ****. I've never soldered a board before...is this something I should consider researching and doing...or just ship it to DIY?

I don't have a lot of time, so I was just going to let BEGi tune it on their standard dyno. Is this a mistake? I could take it to Tuning Concepts for the same amount of money, but then I'd have to be there to work the software.
hustler is offline   Reply With Quote
Old 12-10-2008, 02:23 PM   #7
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Quote:
Originally Posted by hustler View Post
how dare they hide that ****. I've never soldered a board before...is this something I should consider researching and doing...
Surely there must be someone in the greater Dallas - Ft. Worth area who knows how to solder. Might call Bell and see if someone there is able to do the mod. This really is very basic Electronics 101 level stuff.
Joe Perez is online now   Reply With Quote
Old 12-10-2008, 02:26 PM   #8
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Joe Perez View Post
Surely there must be someone in the greater Dallas - Ft. Worth area who knows how to solder. Might call Bell and see if someone there is able to do the mod. This really is very basic Electronics 101 level stuff.
I'm in Austin now, and the last thing I need to do is **** up on my work, and be stuck down here with a car I must get towed back to dallas.
hustler is offline   Reply With Quote
Old 12-10-2008, 03:04 PM   #9
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by hustler View Post
I'm in Austin now, and the last thing I need to do is **** up on my work, and be stuck down here with a car I must get towed back to dallas.
Man up, you can do it. Get a soldering iron, some desoldering braid and some solder, find some junk computer parts and practice for 5 minutes, you'll get the hang of it real quick.

Its removing 2 resistors and connecting 2 wires.
wayne_curr is offline   Reply With Quote
Old 12-11-2008, 12:38 AM   #10
Junior Member
Thread Starter

Join Date: May 2007
Posts: 46
Total Cats: 0
Default

Quote:
Originally Posted by Joe Perez View Post
SideDraft,

I'm away from home this week and don't have access to my good wiring diagrams, but it's easy enough to figure out whether the TPS is wired properly- just stick it on the car and observe the TPS value of the MS by looking at the RealTime Display window in megatune. Does it go up when you press the pedal, and down when you release it? (Don't forget that you need to run the TPS Calibration wizard.)

By Calibration Wizard you mean, Megatune>Tools>CalibrateTPS>Get Current?

Should closed throttle read "0" or does it need to have a minimal value?

Last edited by SideDraft; 12-11-2008 at 10:22 AM.
SideDraft is offline   Reply With Quote
Old 12-11-2008, 12:52 AM   #11
Senior Member
iTrader: (8)

turbobluemiata's Avatar

Join Date: Aug 2006
Location: Springfield, IL
Posts: 1,019
Total Cats: 0
Default

launch control works better
turbobluemiata is offline   Reply With Quote
Old 02-03-2009, 04:45 PM   #12
Senior Member
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

Can anybody share VTPS part numbers or model vehicle that I can use the VTPS from ?

Thanks
poobs is offline   Reply With Quote
Old 02-03-2009, 04:49 PM   #13
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

The easiest would be from a '90-'93 automatic Miata, or any other B6 car (Escort / Probe, 323, etc) that used the same device.

Mine came from a B18C Honda. It required some physical modification to fit.
Joe Perez is online now   Reply With Quote
Old 02-03-2009, 05:19 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,904
Total Cats: 1,793
Default

Braineack is online now   Reply With Quote
Old 02-03-2009, 05:31 PM   #15
Senior Member
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Thumbs up

Gentlemen;

Thank you both very much. I am on my way
poobs is offline   Reply With Quote
Old 02-03-2009, 05:54 PM   #16
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

where can I get some gay-little female connectors for the electrical connections for this ****? 99 tps and 1.6 plugs don't go together, like interracial marriage.
hustler is offline   Reply With Quote
Old 02-03-2009, 06:49 PM   #17
Senior Member
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

Quote:
Originally Posted by hustler View Post
where can I get some gay-little female connectors for the electrical connections for this ****? 99 tps and 1.6 plugs don't go together, like interracial marriage.
Try Radio ****

They will first try to sell you a cell phone
poobs is offline   Reply With Quote
Old 02-03-2009, 07:02 PM   #18
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by poobs View Post
Try Radio ****

They will first try to sell you a cell phone

I failed at radio shack this morning. In for more, repeated failure. I need to just go to a junkyard and chop one off the harness.
hustler is offline   Reply With Quote
Old 02-03-2009, 07:03 PM   #19
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,904
Total Cats: 1,793
Default

yes, and many cars share the connector.
Braineack is online now   Reply With Quote
Old 02-03-2009, 07:22 PM   #20
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Braineack View Post
yes, and many cars share the connector.
I'd love for some examples because I'm in the dark on this **** and I'd prefer to not take the t-body off to check fitment at the junkyard.
hustler is offline   Reply With Quote
