Old 01-26-2012, 01:09 AM   #1
Junior Member
Thread Starter

Join Date: Sep 2011
Location: Chesterfield, VA
Posts: 252
Total Cats: 2
Default tune boost without tps

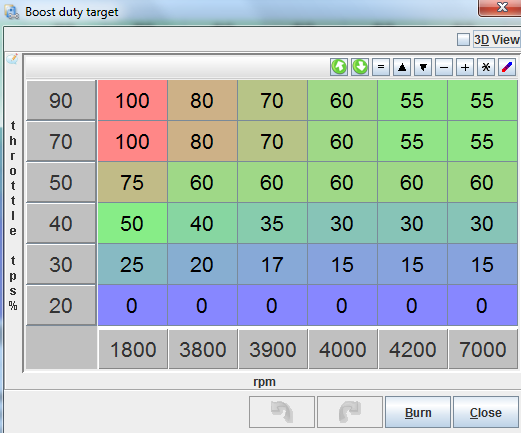

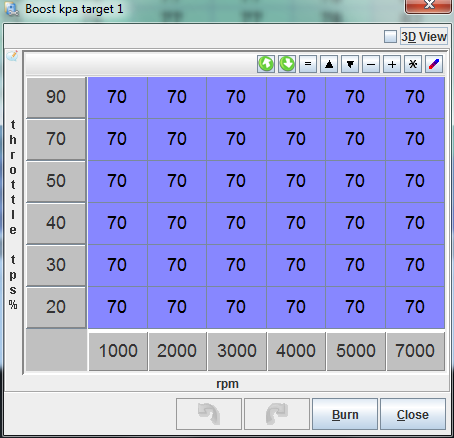

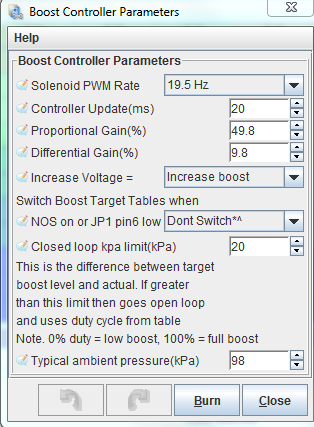

I have a 1992, no tps. According to my datalogs, TP always reads 49. How do I control how much boost I get and make sure not to get too much? I'd like to stay under 10psi. See attachments.

I'm guessing I just use one row on the boost duty table? If so, how should the values and rpms read?
Attached Thumbnails
tune boost without tps-boost_control.png   tune boost without tps-boost_target.png   tune boost without tps-boost_duty.png
travisb is offline   Reply With Quote
Old 01-26-2012, 02:29 AM   #2
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Douche.

Dann
nitrodann is offline   Reply With Quote
Old 01-26-2012, 06:58 AM   #3
Junior Member
Thread Starter

Join Date: Sep 2011
Location: Chesterfield, VA
Posts: 252
Total Cats: 2
Default

Wth
I have searched this and other sites numerous times for this info and did not see it discussed.
travisb is offline   Reply With Quote
Old 01-26-2012, 09:39 AM   #4
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Quote:
Originally Posted by travisb View Post
I have a 1992, no tps. According to my datalogs, TP always reads 49. How do I control how much boost I get and make sure not to get too much? I'd like to stay under 10psi. See attachments.

I'm guessing I just use one row on the boost duty table? If so, how should the values and rpms read?
You would need to set up the boost duty table so you have the same value across each column from 100% to 0% TPS, whereas the values will be different with each RPM. Set the duty cycle to whatever keeps it under 10 psi.
Matt Cramer is offline   Reply With Quote
Old 01-26-2012, 10:02 AM   #5
Junior Member
Thread Starter

Join Date: Sep 2011
Location: Chesterfield, VA
Posts: 252
Total Cats: 2
Default

Thanks. Do I need to adjust the tables for VE, spark, etc. to max out at 175 kpa? I think they are at 218 or so right now.
travisb is offline   Reply With Quote
Old 01-26-2012, 10:04 AM   #6
Junior Member
Thread Starter

Join Date: Sep 2011
Location: Chesterfield, VA
Posts: 252
Total Cats: 2
Default

Also, since it is rpm based, how should out spread out the range?
And I'm guessing I should start with low boost at low rpm and gradually increase it the higher the rpm gets.
travisb is offline   Reply With Quote
Old 01-26-2012, 10:07 AM   #7
Newb

Join Date: Jun 2011
Posts: 32
Total Cats: 1
Default

Open each table, Click on the header row value and change the value
msm782 is offline   Reply With Quote
Old 01-26-2012, 10:11 AM   #8
Junior Member
Thread Starter

Join Date: Sep 2011
Location: Chesterfield, VA
Posts: 252
Total Cats: 2
Default

Thanks Jeremy. I've got that. I was asking if I'm not planning on more than 10psi, would it be better to have 175kpa be my top value instead of 218. And then I would make adjustments appropriately the rest of the way down the table.
travisb is offline   Reply With Quote
Old 01-26-2012, 10:27 AM   #9
Newb

Join Date: Jun 2011
Posts: 32
Total Cats: 1
Default

Sorry, I misread the question.

That would allow you finer control over the range you're actually using.
msm782 is offline   Reply With Quote
Old 01-26-2012, 10:59 AM   #10
Junior Member
Thread Starter

Join Date: Sep 2011
Location: Chesterfield, VA
Posts: 252
Total Cats: 2
Default

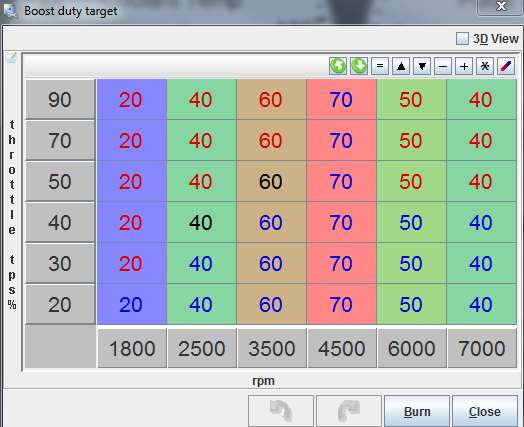

And back to boost duty, I could do something like the attached image, right? I have not tried it yet, but just asking for confirmation.
Attached Thumbnails
tune boost without tps-capture.png
travisb is offline   Reply With Quote
Old 01-26-2012, 03:25 PM   #11
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by travisb View Post
I was asking if I'm not planning on more than 10psi, would it be better to have 175kpa be my top value instead of 218.
It's not necessary to do so. In theory, you could gain one extra row of resolution, but it's not a bad idea to have some headroom in the map. I'd simply set the 218 row super-rich as a contingency to deal with boost overshoot and then leave it alone.
Joe Perez is offline   Reply With Quote
