So i'm reviving this thread and will refer my other one to this one once I finish this. I want to point out I believe my changes above to be incorrect.

I believe this to be right instead but I'm having sync issues. When I screwed with my board did I remove something I shouldn't have or not add something that I should have?

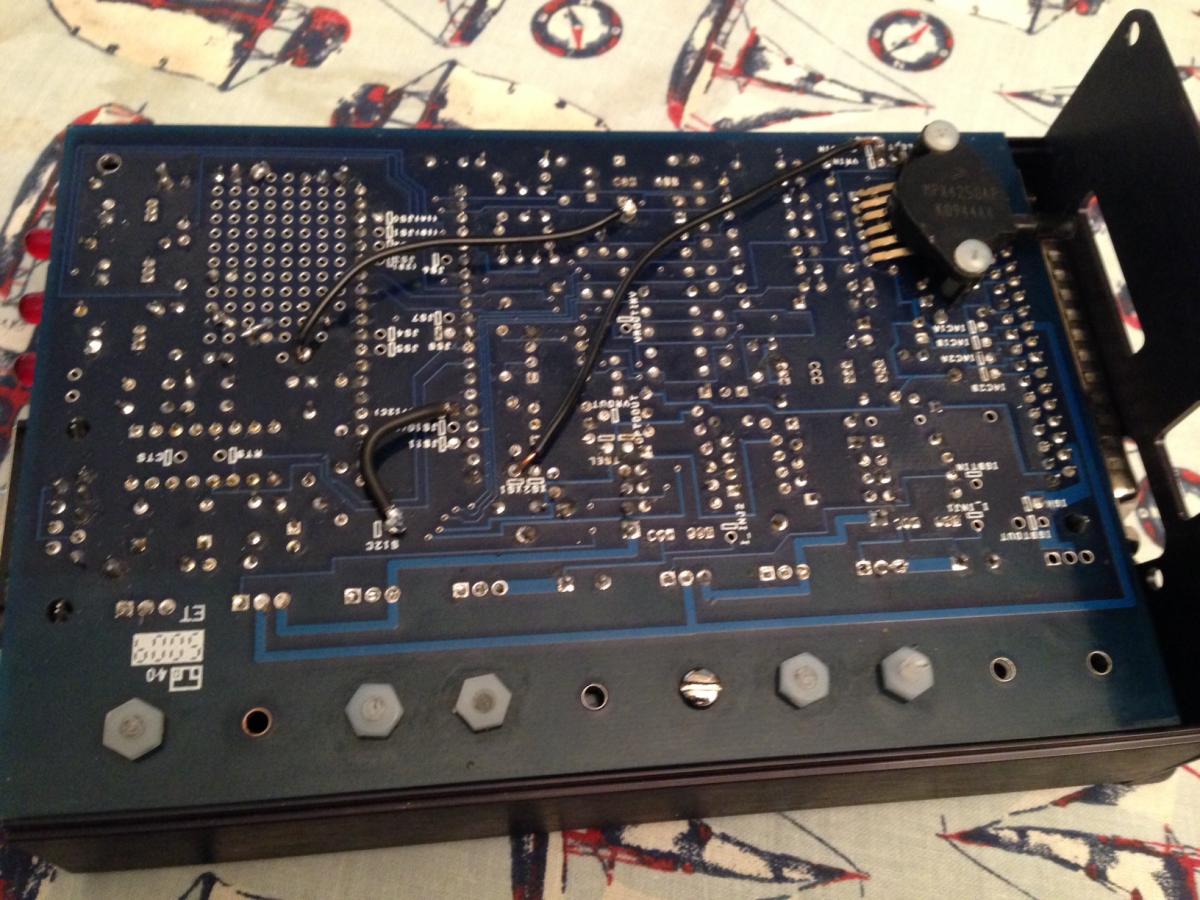

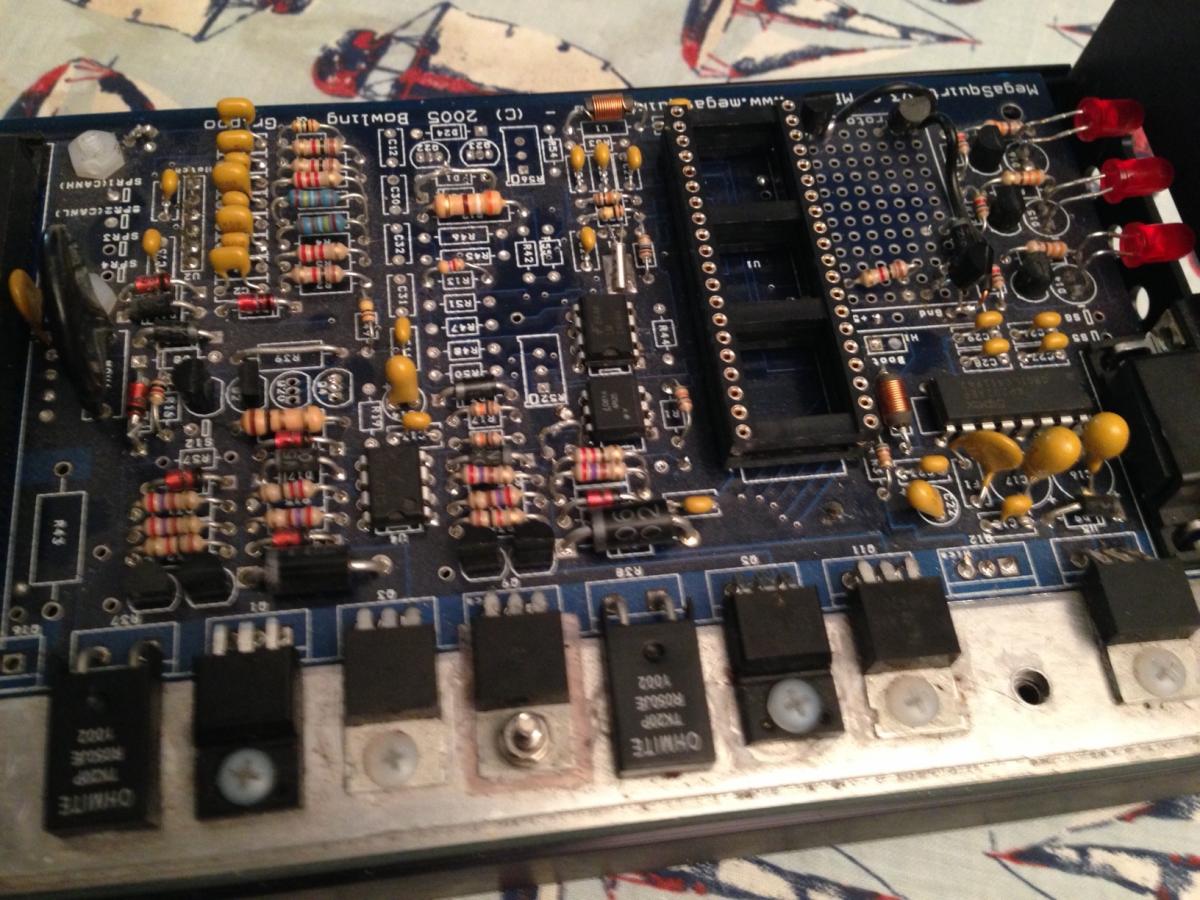

Also in the pics it's hard to see but there is a jumper from tsel to OPTOOUT

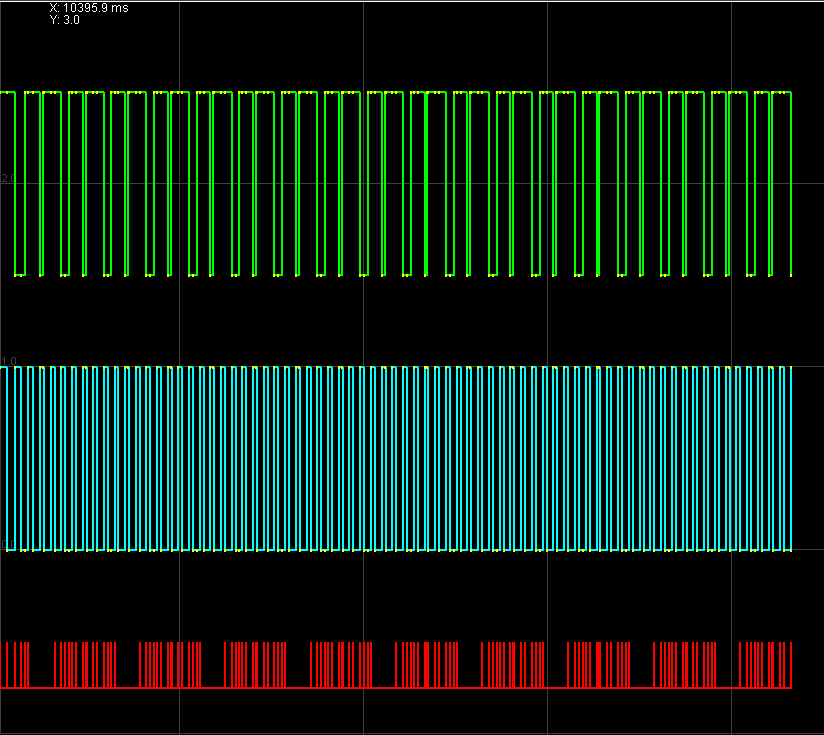

this is a link back to my other thread that has my msq and a log.
https://www.miataturbo.net/megasquir...estions-78883/

is there any other info anyone thinks would be useful for me to post in order to get assistance?



found this thread https://www.miataturbo.net/megasquir...-inside-60759/

think it answers my questions. Is vr really that much better than opto?
