Old 01-29-2009, 11:52 AM   #1
Junior Member
Thread Starter

Join Date: Nov 2006
Posts: 158
Total Cats: 0
Default ve table for 99 ms1E

I am having fuel trouble still with this 99. so i wanted to see someone else's ve table for a 99 12x12 table..... just to compare and see the diff.. also to see if if it would work better.

thanks
what miata? is offline   Reply With Quote
Old 01-29-2009, 11:56 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,827
Total Cats: 1,781
Default

everyone's here will be the same, more or less.
Braineack is online now   Reply With Quote
Old 01-29-2009, 12:06 PM   #3
Junior Member
Thread Starter

Join Date: Nov 2006
Posts: 158
Total Cats: 0
Default

well for my 96 my table is definitely looking different. 99 fuel p is 60 statict, that's like my 96 running 15 to 20 psi.. so it should be a lil different. Also i did not specify its a 99 with 550cc. i just want to see the values under boost.

thanks for the quick respond
what miata? is offline   Reply With Quote
Old 01-29-2009, 02:46 PM   #4
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

How about you post yours.
cjernigan is offline   Reply With Quote
Old 01-29-2009, 04:42 PM   #5
Junior Member
Thread Starter

Join Date: Nov 2006
Posts: 158
Total Cats: 0
Default

ill send the whole msq ....... here
Attached Files
File Type: msq 1-3-09 street 6-7lbshighres.msq (35.2 KB, 96 views)
what miata? is offline   Reply With Quote
Old 01-29-2009, 04:46 PM   #6
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

I got a VE map you should try. It's for a 99 w/ 550s. But injector size doesn't matter whatsoever on a ve table BTW. You adjust your req. fuel to compensate for larger injectors. Anyway, ve tables are different from NA's to NB's because NA's ran a FPR that was referenced to vacuum as to always have the SAME delta P. IE in vac pressure goes down, in boost, fuel pressure goes up. NB's rand 62PSI at the rail at all times, and it don't change. But with a stock fuel pump, you loose fuel pressure at higher RPMs. Shitty returnless system + weak shitty pump FTL.

Anyways, I'll find what my tuned safe map and post it here in a sec.
patsmx5 is online now   Reply With Quote
Old 01-29-2009, 04:51 PM   #7
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

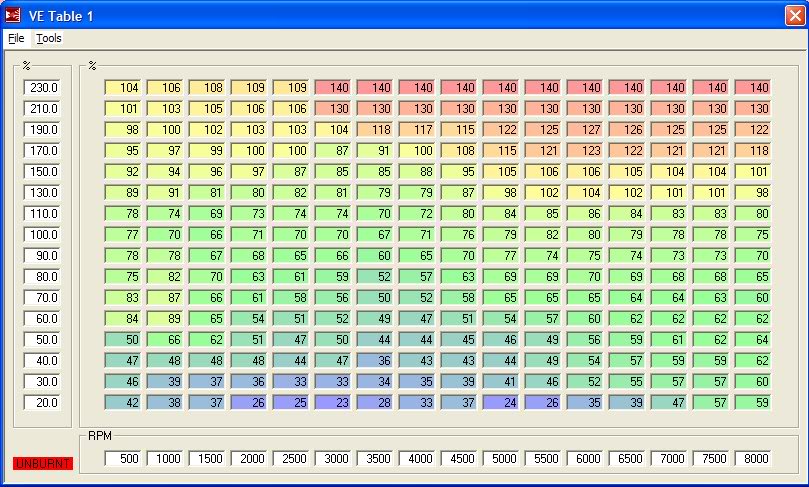

Well, mine are 16x16. Here's a screen shot. You can just pick 12 of these or whatever. It will give you an idea of what I run.
Name:  vetable1-29-09.jpg
Views: 84
Size:  114.5 KB

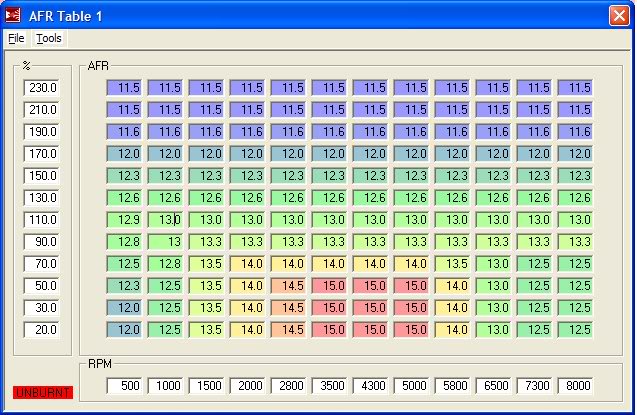

This is the AFR table it's tuned for.

Name:  afrtable1-11-091.jpg
Views: 11
Size:  79.7 KB
patsmx5 is online now   Reply With Quote
Old 01-29-2009, 04:53 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,827
Total Cats: 1,781
Default

whoops. i saw VE and thought spark.
Braineack is online now   Reply With Quote
Old 01-29-2009, 10:44 PM   #9
Junior Member
Thread Starter

Join Date: Nov 2006
Posts: 158
Total Cats: 0
Default

Hey thanks PAT for the info

Any of you 99 guys ever had a prob with the regulator down by the fuel pump?
Like do they happen to fail sometimes or something of that nature?
what miata? is offline   Reply With Quote
