Default VVt Engine in Mk1.6 - What Changes To Megasquirt Do I Make?

So with a bit of luck I should get all the wiring finished after fitting the VVT engine into my MK1 .1.6 and be ready to start the car. What I want to double check is what changes I need to make in Tunerstudio to my Rev MS2 with built in VVT tuner for the new engine? My MS2 is currently set/mapped to run my now removed mk1 1.6 NA engine, (my car was running great prior to the engine swap, starting well etc).

1.) I will now be running sequential injection instead of batch. Where do I change this in Tunerstudio?

2.) I will now be running MK2 1.8 Burgandy injectors instead of MK1 1.6 injectors. Do I need to change any settings in Tunerstudio or just tune my VE table?

3.) Will my MK1 1.6 ignition table by OK for the MK2.5 VVT engine?

4.) Cranking/Priming ASE etc will my 1.6 settings be fine or will all these need changing?

5.) Anything else I need to change on my MS2 to now run the MK2.5 engine from my current MK1 1.6 settings?

Thanks

Chris
krispe is offline   Reply With Quote
Old 08-02-2013, 12:52 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,908
Total Cats: 1,793
Default

have you wired it for sequential fuel and controlling vvt?
Braineack is offline   Reply With Quote
Old 08-02-2013, 12:54 PM   #3
Junior Member
Thread Starter

Join Date: Aug 2011
Posts: 56
Total Cats: 0
Default

Hi Braineack.

Yep 2 new wires added direct from MS2 harness for sequential, (added to pins 2 and 4) and 1 wire from built in VVT controller on my MS2 connected to VVT soleniod

Re-wired my original batch harness to sequential, (hopefully done correctly) just need to know how and what to change on my MS2 to start using it with the MK2 burgundy injectors.
krispe is offline   Reply With Quote
Old 08-02-2013, 01:01 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,908
Total Cats: 1,793
Default

lower the req_fuel by the percent difference between the two injectors.
Braineack is offline   Reply With Quote
Old 08-02-2013, 01:14 PM   #5
Junior Member
Thread Starter

Join Date: Aug 2011
Posts: 56
Total Cats: 0
Default

I think my req_fuel was 14.1 whilst running MK1 1.6 230cc injectors, so If I now run MK2 1.8 240cc I change it to 13.50?

(Actually just checked an email from Reverant which suggests setting req_fuel of 11.6)

I've also just clicked on "calculate require fuel" in tunerstudio and if |I enter 1800cc, 4 cyliners, 240cc/min and 14.7 it says 12.6?

Which do I use?
krispe is offline   Reply With Quote
Old 08-02-2013, 01:17 PM   #6
Junior Member
Thread Starter

Join Date: Aug 2011
Posts: 56
Total Cats: 0
Default

Ignore the above post! Correct cc for mk MK2 injectors is 260 not 240, which using the calculator gives a req_fuel of 11.6 as per Revs email. Not sure why my previous req_fuel was set to 14.1 though for my 1.6 injectors??
krispe is offline   Reply With Quote
Old 08-02-2013, 01:28 PM   #7
Junior Member
Thread Starter

Join Date: Aug 2011
Posts: 56
Total Cats: 0
Default

Do I need to make any changes in Tunerstudio for now running sequential injection instead of batch or just by adding the two wires and re-wiring automatically mean the car/ecu will be sequential?
krispe is offline   Reply With Quote
Old 08-02-2013, 01:40 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,908
Total Cats: 1,793
Default

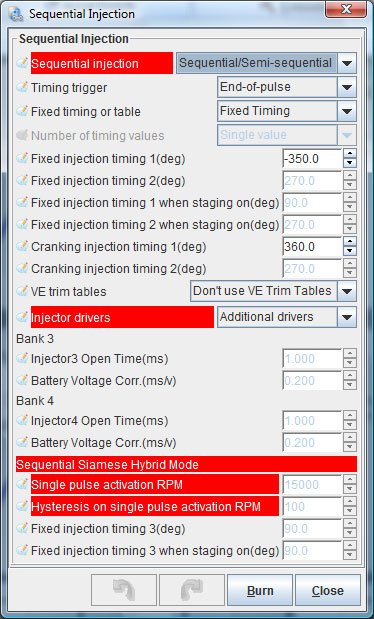

yes you need to activate it in software:

Attached Thumbnails
VVt Engine in Mk1.6 - What Changes To Megasquirt Do I Make?-seq_mod_settings_page.jpg
Braineack is offline   Reply With Quote
Old 08-02-2013, 01:44 PM   #9
Junior Member
Thread Starter

Join Date: Aug 2011
Posts: 56
Total Cats: 0
Default

Thanks again
