Default When do you go open loop? Plus VEAL questions

Background:

1992 with BEGI-S with the ff relevant mods
  • Braineack-made MS 1
  • 460-cc injectors
  • intercooler

I came across a post saying that closed-loop should be *off* in boost.
Where is the ideal point to switch from closed-loop to open-loop?

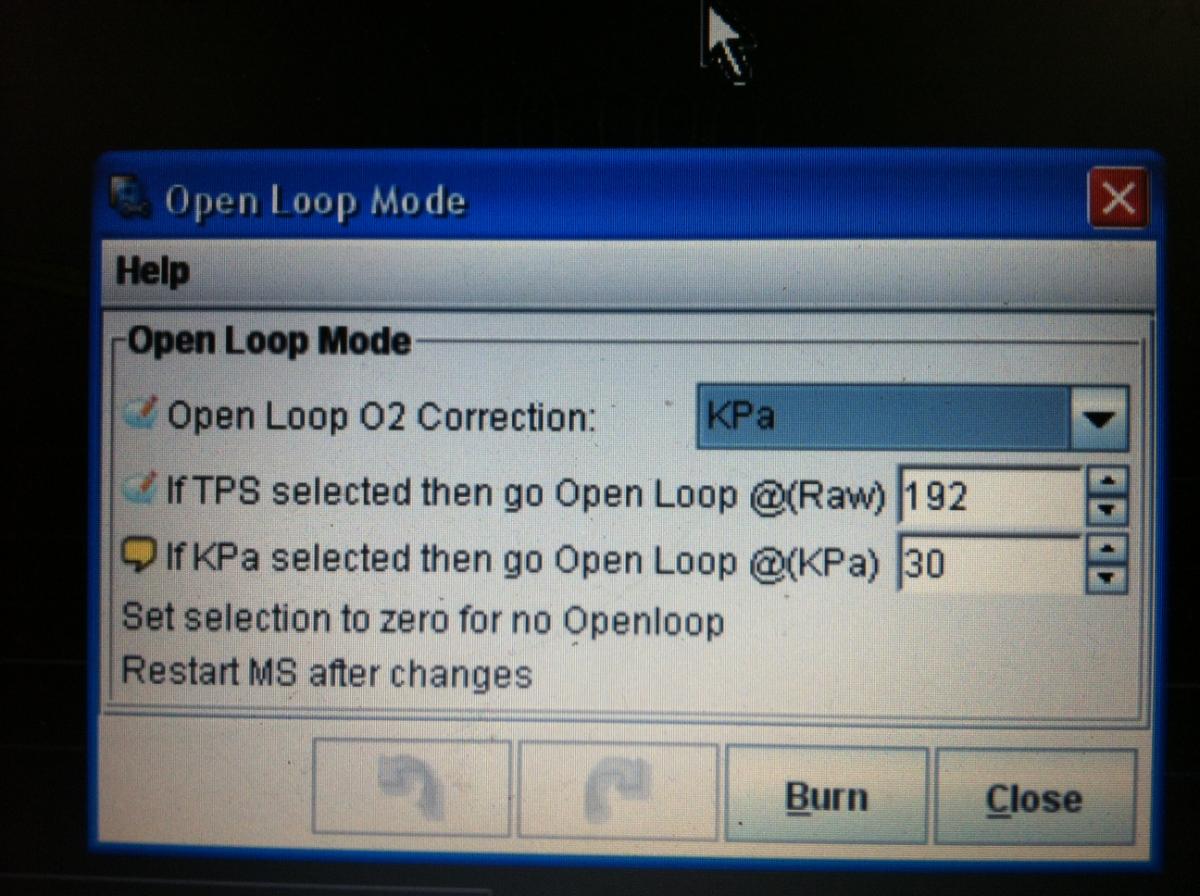

I currently have it at 30kpa. So, I guess above that, the car switches to the VE table for fueling and ignores 02 sensor feedback. Is this ok?
I tried switching at 100kpa, it felt like it wasn't building boost as fast and the engine was less responsive, so I set it back lower.

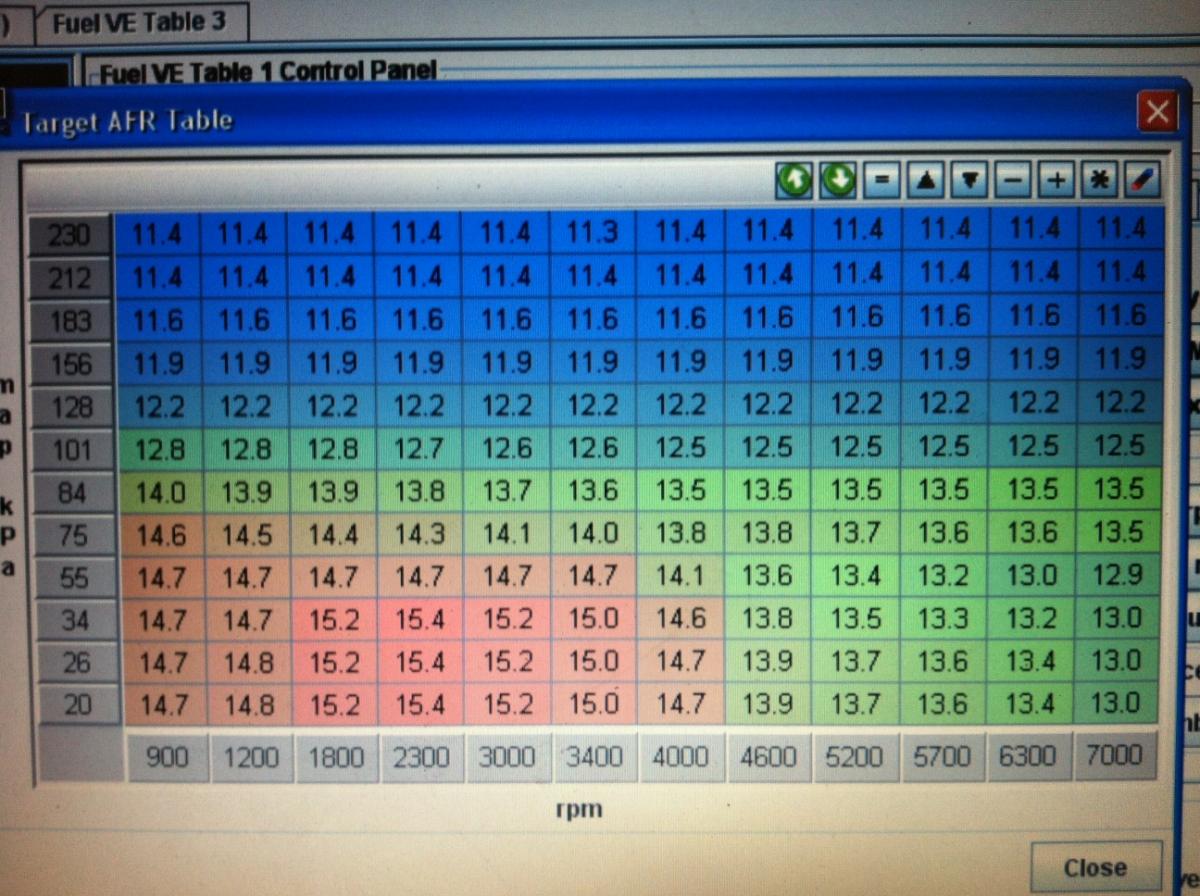

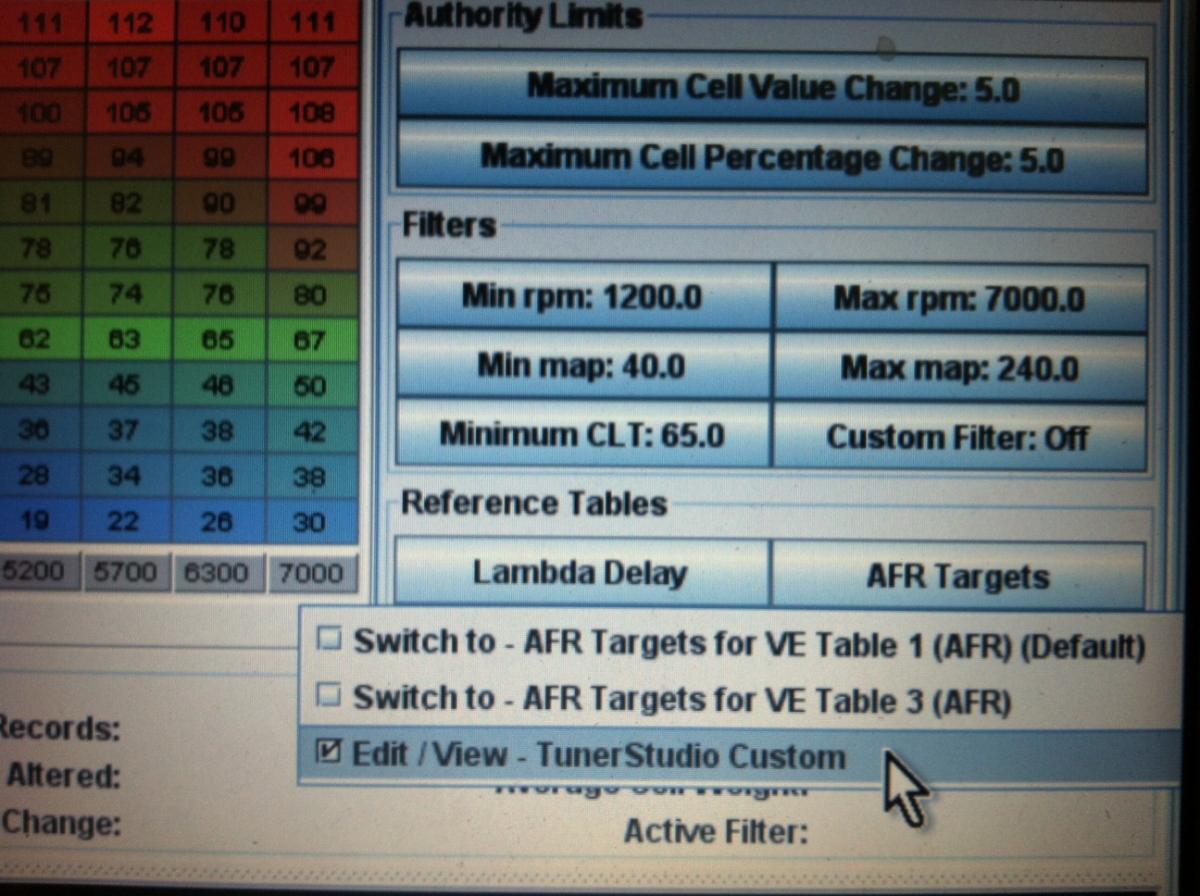

Also, I saw another table under VEAL in Tunerstudio. I was happy with my old AFR table, but this other one is 12x12 and has more resolution. Car feels good after about 2 hours worth of VEAL tuning and I'll continue to smooth out the VE Fuel table. Is there any reason why I should stop this and go back to the default (table 1)?

Finally, should PWM 2-wire idle control be set to PWM? Mine came with B&G setting. It seems to run better on PWM, but I don't know if I should change it.

Thanks.
Attached Thumbnails
When do you go open loop? Plus VEAL questions-openloop.jpg   When do you go open loop? Plus VEAL questions-tunerstudio_veal_customafr.jpg   When do you go open loop? Plus VEAL questions-ts_afr_12x12.jpg
bogly is offline   Reply With Quote
Old 04-04-2012, 02:27 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,895
Total Cats: 1,792
Default

go open loop at around 100kPa. righ tnow youre pretty much disabling ego.
Braineack is online now   Reply With Quote
Old 04-04-2012, 02:41 PM   #3
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2007
Location: South Jersey
Posts: 112
Total Cats: 1
Default

Thanks Scott.

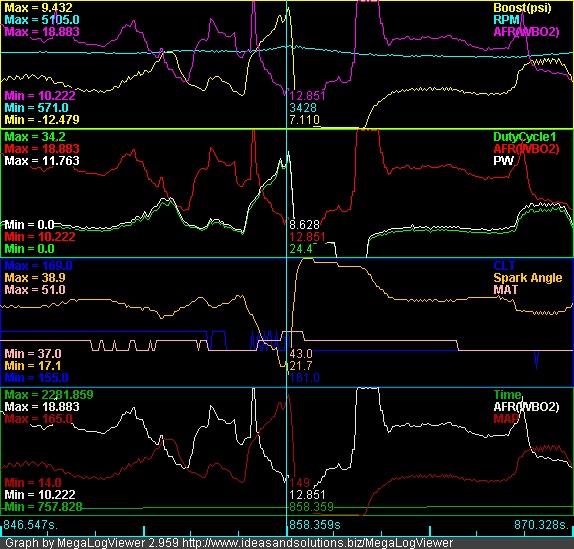

On another note, what started this all is my search for smooth AFR's on the logs. It seems like when you guys have smooth AFR's when providing screenshots or logs. Mine have always bounced up and down, even on my logs, they always come up jagged.
Attached Thumbnails
When do you go open loop? Plus VEAL questions-t28_3_21_2012.jpg
bogly is offline   Reply With Quote
Old 04-04-2012, 02:44 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,895
Total Cats: 1,792
Default

looks fine to me...
Braineack is online now   Reply With Quote
Old 04-04-2012, 03:05 PM   #5
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

The Print Screen button does a better job at taking pictures of this stuff btw.

Check your keyboard it should be somewhere on the top right end.
triple88a is offline   Reply With Quote
Old 04-04-2012, 03:06 PM   #6
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I run 14.7:1 everywhere from 90kpa down with 15.5:1 in the cruise cells from 300-4500rpm.
hustler is offline   Reply With Quote
Old 04-04-2012, 03:24 PM   #7
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,332
Default

Quote:
Originally Posted by hustler View Post
I run 14.7:1 everywhere from 90kpa down with 15.5:1 in the cruise cells from 300-4500rpm.
Lean, baby, lean. I run 14.7 to 80kpa, 13.0 at 95kpa, no different at cruise.
Savington is offline   Reply With Quote
Old 04-04-2012, 03:36 PM   #8
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

16.5 in cruise like a bauce (E85 though)
triple88a is offline   Reply With Quote
