Angry Why cant i change PWM values in tunerstudio?

hi all,

iv just put in my 440cc injectors, they are low impedence injectors and i have the board modded for them.

I came to change the valuves of the PMW like the threashhold etc and for some reson on tunerstudio they are grayed out and i can find no way at all of changing them.

Can anyone advise?
Viper is offline   Reply With Quote
Old 08-20-2010, 11:21 PM   #2
Junior Member

Join Date: May 2007
Location: Atlanta
Posts: 384
Total Cats: 39
Default

ms version? software?

i grabbed jbperf's peak and hold driver for low resistance injectors because ms1 with hires code can't do PWM.
gooflophaze is offline   Reply With Quote
Old 08-20-2010, 11:26 PM   #3
Junior Member

Join Date: Mar 2009
Location: maine
Posts: 224
Total Cats: -1
Default

is tuner studio set to advanced user?
94blackmx5 is offline   Reply With Quote
Old 08-21-2010, 08:46 AM   #4
Junior Member
Thread Starter

Join Date: Aug 2009
Location: Coventry, UK
Posts: 97
Total Cats: 0
Default

Quote:
Originally Posted by 94blackmx5 View Post
is tuner studio set to advanced user?
yep
Viper is offline   Reply With Quote
Old 08-21-2010, 09:35 AM   #5
Junior Member

Join Date: Mar 2009
Location: maine
Posts: 224
Total Cats: -1
Default

do you have tuner studio light or the paid version? i know in light version you lose a lot of the functions.
94blackmx5 is offline   Reply With Quote
Old 08-21-2010, 10:28 AM   #6
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

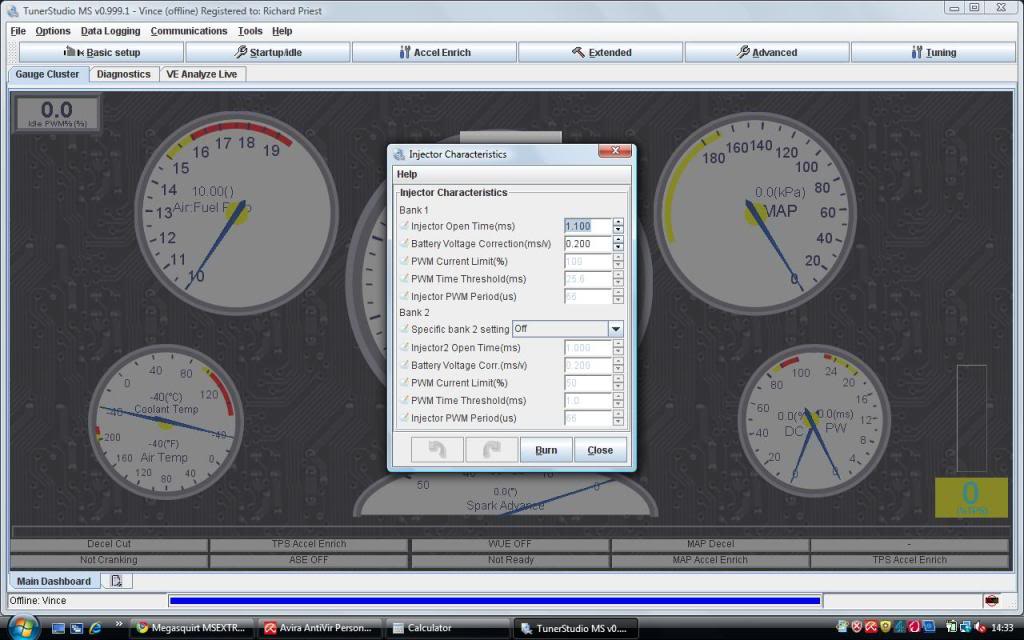

I installed Vipers MSII for him. I think it's a bug as it does the same thing on my car. All the PWM stuff is greyed out.

Name:  injectorPWM.jpg
Views: 3
Size:  89.4 KB

I've posted on MSExtra about it, I think it might be a bug....
richyvrlimited is offline   Reply With Quote
Old 08-21-2010, 01:46 PM   #7
Junior Member

Join Date: Mar 2009
Location: maine
Posts: 224
Total Cats: -1
Default

i would run the update and get version 999.1 or 999.3 that should fix it. i'm pretty sure they worked out most of the bugs for thoose two
94blackmx5 is offline   Reply With Quote
Old 08-21-2010, 03:44 PM   #8
Junior Member
Thread Starter

Join Date: Aug 2009
Location: Coventry, UK
Posts: 97
Total Cats: 0
Default

thats for the help guys, iv now installed dropping resistors, im guessign theres no need to worr yabout the PWMs now?
Viper is offline   Reply With Quote
Old 08-21-2010, 06:19 PM   #9
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

With dropping resistors you effectively have high impedance injectors, so yeah don't worry
richyvrlimited is offline   Reply With Quote
Old 08-22-2010, 09:44 AM   #10
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

You don't mention your firmware version, but I'm assuming it's one of the MS1 HR's. HR does not support peak and hold. The work around is adding resistors, as you've already done.
Ben is offline   Reply With Quote
Old 08-22-2010, 12:14 PM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by Ben View Post
You don't mention your firmware version, but I'm assuming it's one of the MS1 HR's. HR does not support peak and hold. The work around is adding resistors, as you've already done.
looks like MS-II so it's shouldn't do that, probably a random setting or a firmware glitch. What firmware?
Braineack is offline   Reply With Quote
Old 08-22-2010, 01:57 PM   #12
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Jean of JBPerf fame figured it out.

Despite running batch injection he has 'additional drivers' selected under the sequential options tab.

Still runs as normal, (so you can return to batch/semi-sequential in software - find dead times etc ), but with sequential you can't use peak and hold injectors, so the option is greyed out.
