Default Wideband AFR not matching DIYPNP AFR

Both items have good ground.
I called AEM and they told me for 31-4100 to input the following:
10.0 afr at 0.0V
19.98 afr at 4.99V

I took a video and the AFRs don't match.
It doesn't look like a delay either.
For example during the short video:
wideband vs laptop
15.2 vs 15.7
14.9 vs 15.5
14.5 vs 15.4
14.4 vs 15.0
14.2 vs 14.9
14.1 vs 14.7
14.2 vs 14.5
14.4 vs 14.7
14.7 vs 15.0
14.3 vs 15.1
14.3 vs 14.7

So it's not even a fixed pattern.
Any suggestions on what I can try?
Halcyon is offline   Reply With Quote
Old 03-04-2013, 03:27 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

you need to measure voltages to account for any groudning offset between the gauge and MS and account for that in the calibration, then if it's still not quite right...


you might need to change the lamdba lag factor? But keep in mind your MS will update the readings much faster that silly *** ugeo display will. it has awful refresh rates.
Braineack is offline   Reply With Quote
Old 03-04-2013, 03:58 PM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2006
Location: San Francisco, CA
Posts: 298
Total Cats: 0
Default

In general, what's a good lambda lag factor?
Halcyon is offline   Reply With Quote
Old 03-04-2013, 04:07 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

as high as possible (ie, no filtering/dampening).
Braineack is offline   Reply With Quote
Old 03-04-2013, 04:11 PM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2006
Location: San Francisco, CA
Posts: 298
Total Cats: 0
Default

To measure grounding offset. Do I do a voltage drop test?
Halcyon is offline   Reply With Quote
Old 05-13-2013, 11:59 PM   #6
Junior Member

Join Date: Aug 2007
Location: Burlington, VT
Posts: 419
Total Cats: 0
Default

Halcyon,
did you figure this out?
I am seeing a similar issue with my AEM.
Jim
jbresee is offline   Reply With Quote
Old 05-14-2013, 12:01 AM   #7
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Link your grounds.
Full_Tilt_Boogie is offline   Reply With Quote
Old 05-14-2013, 09:06 AM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Quote:
Originally Posted by jbresee View Post
Halcyon,
did you figure this out?
I am seeing a similar issue with my AEM.
Jim
calibrate your MS to match the actual output of you gauge, not the published settings.
Braineack is offline   Reply With Quote
Old 05-14-2013, 11:08 AM   #9
Junior Member

Join Date: Mar 2013
Location: Houston
Posts: 113
Total Cats: -3
Default

Brain, is the assumption there that the gauge is right and the published settings become irrelevant once the grounding effects are factored in?
Fathom55 is offline   Reply With Quote
Old 05-14-2013, 11:08 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

si.
Braineack is offline   Reply With Quote
Old 05-14-2013, 12:18 PM   #11
Junior Member

Join Date: May 2011
Location: UK
Posts: 47
Total Cats: 0
Default

does the aem let you output set voltages?

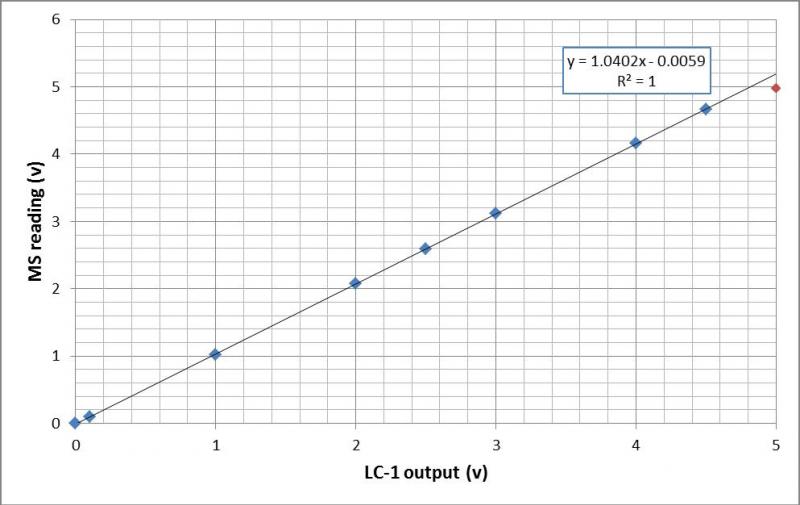

on my LC-1 i got it to output from 0v to 5v in steps of 0.5v and recorded what it gave me in tunerstudio. as well as a linear voltage offset that increased with voltage, i had a very funny point at the top end that was throwing my 0-5v calibration out using those two points.



anyway, the upshot is, whatever afr (or volts) your tunerstudio reads for a given voltage output from your wideband, just set that afr as the setpoint for that voltage. in my case, 4.5v output gives 4.65v reading in TS... 4.65v = 19.33 AFR so set 19.33AFR to 4.5v in the wideband.

the check is to use the equation generated in the graph above to give you the offset for 14.7 AFR. For me, 2.265v output gives 2.35v reading in TS. Set output to 2.265v (an option whilst warming up on the LC-1) and check you get 14.7 AFR in TS.

however, if it's not a consistent relationship then you either need to work on your grounds or concentrate on the area from 11 - 18 AFR if that's any better.
Attached Thumbnails
Wideband AFR not matching DIYPNP AFR-afrgraph_zps1ba27564.jpg
skinny is offline   Reply With Quote
Old 05-14-2013, 01:43 PM   #12
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

I had to use the custom gauge for my AEM to match TS. The 4100 calibration was always about .15 to .2 off

iirc

0V = 10
5V = 18.7

I have a feeling that everyone may have a slightly different calibration due to grounding and wiring.
miatauser884 is offline   Reply With Quote
Old 05-15-2013, 11:06 PM   #13
Junior Member

Join Date: Aug 2007
Location: Burlington, VT
Posts: 419
Total Cats: 0
Default

On AEM's site there is a post about this. They suggest disconnecting the sensor, turning the car on and seeing if the gauge and TS both show 14.7.

I did this test and they match perfectly. Once I plug the sensor in, the gauge shows 14.7, but TS shows 15.2.

Does this imply that it's an issue with ground differences, or a problem with the gauge/WB itself?

Is it possible that the increase in power consumption caused by the sensor being installed causes the delta?
