Default wiring in launch control to my home built MS1v3.0

been searching for a launch control write up that is simple enough for me to read all morning but since im kinda slow i have not been able to fully understand what im doing. i found this page so i think im on the right track:

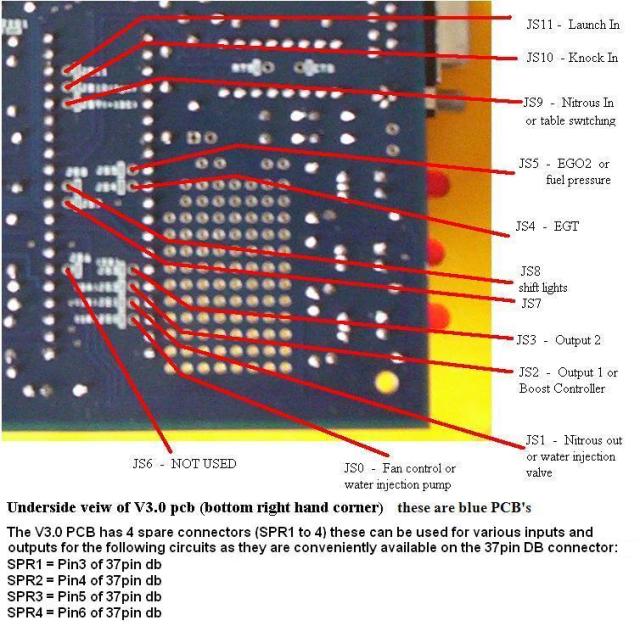

MSnS-Extra Hardware Manual



so according to this i should be able to run a jumper wire from JS11 to SPR4 and then run pin 6 of the DB37 to my clutch switch to make launch control work.

i just want some confirmation before i start soldering stuff. thanks for your help
Attached Thumbnails
wiring in launch control to my home built MS1v3.0-ms1v30extrainputs.jpg
fastivab6tg25mr is offline   Reply With Quote
Old 07-04-2012, 04:04 PM   #2
Junior Member

Join Date: Sep 2010
Location: SFL
Posts: 376
Total Cats: 3
Default

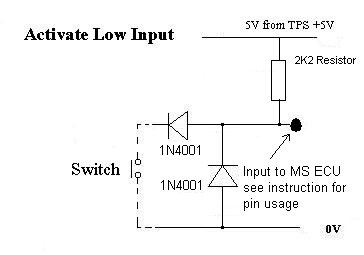

yes JS11 works but you should build a protective circuit in the proto area like this:


otherwise you risk burning up the ecu
Attached Thumbnails
wiring in launch control to my home built MS1v3.0-lowinput.jpg
MD323 is offline   Reply With Quote
Old 07-04-2012, 04:10 PM   #3
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

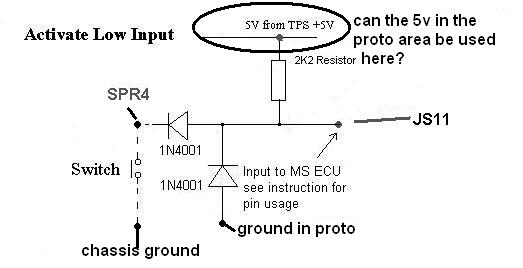

is that really necessary for a wire that only sees a ground signal?

and does the vertical 1N4001 diode need to be attached to the ground side of the switch or could it be to any chassis ground?

i was thinking :




EDIT: REDREW PICTURE
Attached Thumbnails
wiring in launch control to my home built MS1v3.0-ms1v30lowinputmodified.jpg   wiring in launch control to my home built MS1v3.0-ms1v30lowinputmodified2.jpg

Last edited by fastivab6tg25mr; 07-04-2012 at 04:44 PM.
fastivab6tg25mr is offline   Reply With Quote
Old 07-04-2012, 04:20 PM   #4
Junior Member

Join Date: Sep 2010
Location: SFL
Posts: 376
Total Cats: 3
Default

place it after the other one in the MS case and attach the other side to the ground pad in the proto area.

some people do not and never have an issue, but it should be done.

think of it this way, a helmet is only neccassary when you wreck.
MD323 is offline   Reply With Quote
Old 07-04-2012, 04:28 PM   #5
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

good point. that is a 2200 ohm resistor right?
fastivab6tg25mr is offline   Reply With Quote
Old 07-04-2012, 04:31 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,814
Total Cats: 1,780
Default

the protection circuit on the clutch switch, imho, is overkill.


give me a sec and ill draw you exactly how you should do it.
Braineack is online now   Reply With Quote
Old 07-04-2012, 04:42 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,814
Total Cats: 1,780
Default

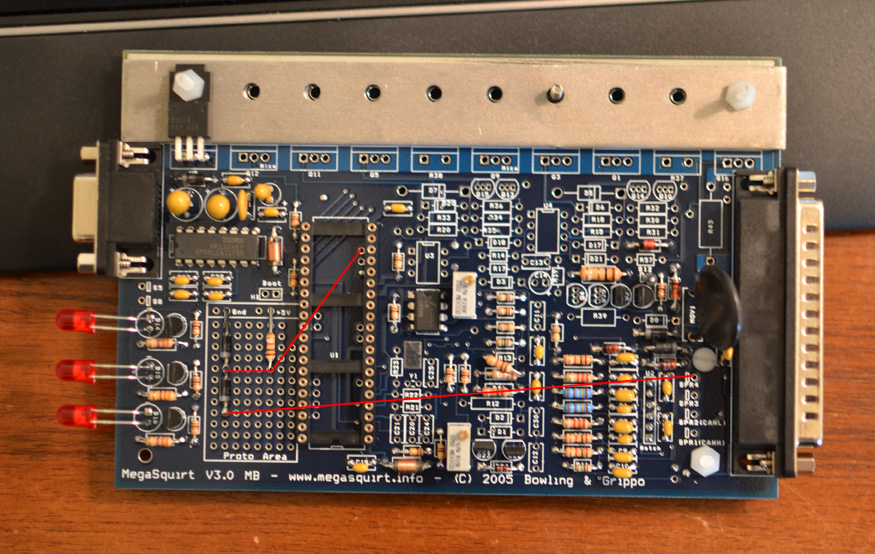

here:



DB37 - 6 IN to JS11 through active low input.




If I were doing it, I'd do DB37-6 straight to JS11.
Attached Thumbnails
wiring in launch control to my home built MS1v3.0-clutchin.jpg
Braineack is online now   Reply With Quote
Old 07-04-2012, 04:47 PM   #8
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

awesome! thanks so much
fastivab6tg25mr is offline   Reply With Quote
Old 07-04-2012, 09:37 PM   #9
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

thanks for the help. wired JS11 straight to SPR4. ran the wire to my clutch switch and grounded the other side of the switch to the pedal assembly. works awesome.
fastivab6tg25mr is offline   Reply With Quote
Old 07-05-2012, 11:00 PM   #10
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

its loud and makes fire... what more can i ask for?
