Default WRX Injectors

What's involved in getting these to work? I did a search and found that they're a direct fit except for some length issue. Can someone elaborate?
The_Pipefather is offline   Reply With Quote
Old 02-22-2008, 12:44 AM   #2
Senior Member
iTrader: (7)

Join Date: Mar 2005
Location: VT
Posts: 939
Total Cats: 0
Default

Quote:
Originally Posted by The_Pipefather View Post
What's involved in getting these to work? I did a search and found that they're a direct fit except for some length issue. Can someone elaborate?
Are there the 440cc's?

They should be PnP..., IIRC they are shorter so you may have to use a different spacer on the rail (I had to use a couple of washers for my DSM's)
Jefe is offline   Reply With Quote
Old 02-22-2008, 12:52 AM   #3
Senior Member
Thread Starter
iTrader: (5)

Join Date: Nov 2007
Location: Troy, MI
Posts: 860
Total Cats: 13
Default

I think they're somewhere around 425-ish.

So all I need to add is a couple of washers? Then its definitely worth it for the price.
The_Pipefather is offline   Reply With Quote
Old 02-22-2008, 02:57 AM   #4
Junior Member

Join Date: Apr 2006
Location: santabarbara,ca
Posts: 97
Total Cats: 1
Default

make sure to post when and if you decide to get and install em i'd like to know how it goes
cheesecow1 is offline   Reply With Quote
Old 02-22-2008, 05:08 AM   #5
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

The pink ones are around 420ish, but supposedly if you clip the caps they're good for around 700cc.. Defiantly post up more info when you get it.
elesjuan is offline   Reply With Quote
Old 02-22-2008, 05:48 AM   #6
Newb

Join Date: Nov 2007
Location: Irvine, CA
Posts: 35
Total Cats: 0
Default

Pink injectors are around 550, the factory blue injectors from the 02 - 05 are about 425. Blue injectors from the 06 - 07 are around 550 as well.

If you clip the caps you get 850cc's. I will try to post a picture to show the difference between the two. I have used both sets in my WRX.

Edit: Here you go

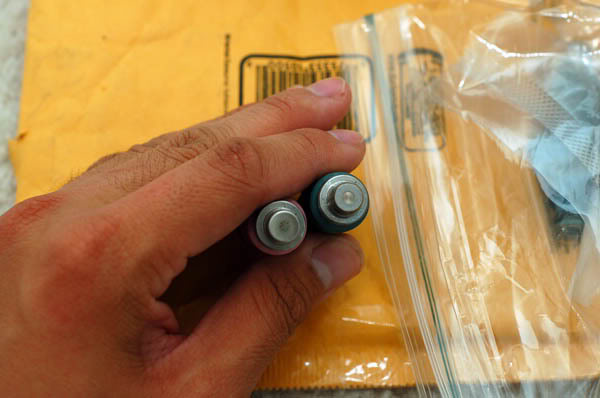

Name:  moddedinjec.jpg
Views: 81
Size:  37.9 KB
Name:  pinkinjectors.jpg
Views: 76
Size:  38.9 KB
Left are the JDM pink sti injectors, right are clip 02-05 wrx injectors. I'll try to get a picture of the factory unclipped injectors. I think they should flow enough for miata purposes, Getting to fit is another thing. I have an extra set and i'll see if they fit on my miata later on in the month.
lugee is offline   Reply With Quote
Old 02-22-2008, 05:55 AM   #7
Newb

Join Date: Nov 2007
Location: Irvine, CA
Posts: 35
Total Cats: 0
Default

btw -these injectors go for about 30 - 50 a set on Nasioc, clipped (Cap mod) sets go for around 100. Clipped sets also vary in flow from 800 - 850 so becareful if you choose this route, try to get sets that are matched well. If you guys have questions about these, I will try my best to answer them.
lugee is offline   Reply With Quote
Old 02-22-2008, 11:38 AM   #8
Senior Member
Thread Starter
iTrader: (5)

Join Date: Nov 2007
Location: Troy, MI
Posts: 860
Total Cats: 13
Default

If you have a stock miata injector lying around, can you take a detailed pic of both side by side so that the length difference is apparent?

30-50 hmmm....looks like I will have to do some bargaining.
The_Pipefather is offline   Reply With Quote
Old 02-22-2008, 01:52 PM   #9
Newb

Join Date: Nov 2007
Location: Irvine, CA
Posts: 35
Total Cats: 0
Default

I don't have a stock miata injector lying around, but i'll take some measurements later on today.

Last edited by lugee; 02-22-2008 at 02:08 PM.
lugee is offline   Reply With Quote
Old 02-22-2008, 02:24 PM   #10
Newb

Join Date: Nov 2007
Location: Irvine, CA
Posts: 35
Total Cats: 0
Default





THe injectors are about 2 and a half inches long.

Excuse the weird picture sizing, I don't have photoshop on this computer and was too lazy to get on my other one.
lugee is offline   Reply With Quote
Old 02-22-2008, 08:35 PM   #11
Senior Member
Thread Starter
iTrader: (5)

Join Date: Nov 2007
Location: Troy, MI
Posts: 860
Total Cats: 13
Default

Cool...I just found some info on the Subaru forums:

http://forums.nasioc.com/forums/show...7+injectors%22

The gist of the thread is that the #195500-2020 RX7 injectors fit the WRX, only issue being they are a little longer and the manifold-side seat is a little larger.

So it should be the exact opposite for the Miata. Interesting.
The_Pipefather is offline   Reply With Quote
Old 02-22-2008, 09:03 PM   #12
Newb

Join Date: Nov 2007
Location: Irvine, CA
Posts: 35
Total Cats: 0
Default

Quote:
Originally Posted by The_Pipefather View Post
Cool...I just found some info on the Subaru forums:

http://forums.nasioc.com/forums/show...7+injectors%22

The gist of the thread is that the #195500-2020 RX7 injectors fit the WRX, only issue being they are a little longer and the manifold-side seat is a little larger.

So it should be the exact opposite for the Miata. Interesting.
When I get the time, I try to pop on the WRX injectors to see if they fit on my 1.8.
lugee is offline   Reply With Quote
Old 02-24-2008, 05:21 PM   #13
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Quote:
Originally Posted by lugee View Post
Pink injectors are around 550, the factory blue injectors from the 02 - 05 are about 425. Blue injectors from the 06 - 07 are around 550 as well.

If you clip the caps you get 850cc's. I will try to post a picture to show the difference between the two. I have used both sets in my WRX.

Okay, thank you for clarification... I get *** backwords on that stuff sometimes.

I was of the impression they were a direct fit drop in replacement for the top feed WRX injectors, kinda looks like its not worth the hassle. :(
elesjuan is offline   Reply With Quote
Old 04-13-2008, 09:12 PM   #14
Senior Member
Thread Starter
iTrader: (5)

Join Date: Nov 2007
Location: Troy, MI
Posts: 860
Total Cats: 13
Default

Finally pulled my injectors today to upgrade. I didn't think the situation was this bad :( :




Every SINGLE dimension on both is the same, only the length is less.

Any ideas on how to get these to fit? Or maybe I should stop acting like the maverick and simply go with the conventional choice.
The_Pipefather is offline   Reply With Quote
Old 09-26-2010, 09:30 AM   #15
aug
Junior Member
iTrader: (7)

Join Date: Jan 2010
Location: Long Island, NY
Posts: 349
Total Cats: 0
Default

For future reference, here is my solution to WRX injectors in a Miata application:

https://www.miataturbo.net/showpost....5&postcount=12
aug is offline   Reply With Quote
Old 09-26-2010, 06:26 PM   #16
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

where did you get those extender caps?
18psi is offline   Reply With Quote
Old 09-26-2010, 07:06 PM   #17
aug
Junior Member
iTrader: (7)

Join Date: Jan 2010
Location: Long Island, NY
Posts: 349
Total Cats: 0
Default

Sorry, should have mentioned that:

http://www.fiveomotorsport.com/elect...s/?itemid=1136

Hope this helps someone.

I got them cheaper on eBay from this seller.
aug is offline   Reply With Quote
