Default WUE doesn't go off.

Can someone please give me some clue on why my Warmup enrichment doesn't go off even I droved for an hour. and the CLT reached 80"C

Thanks
Attached Thumbnails

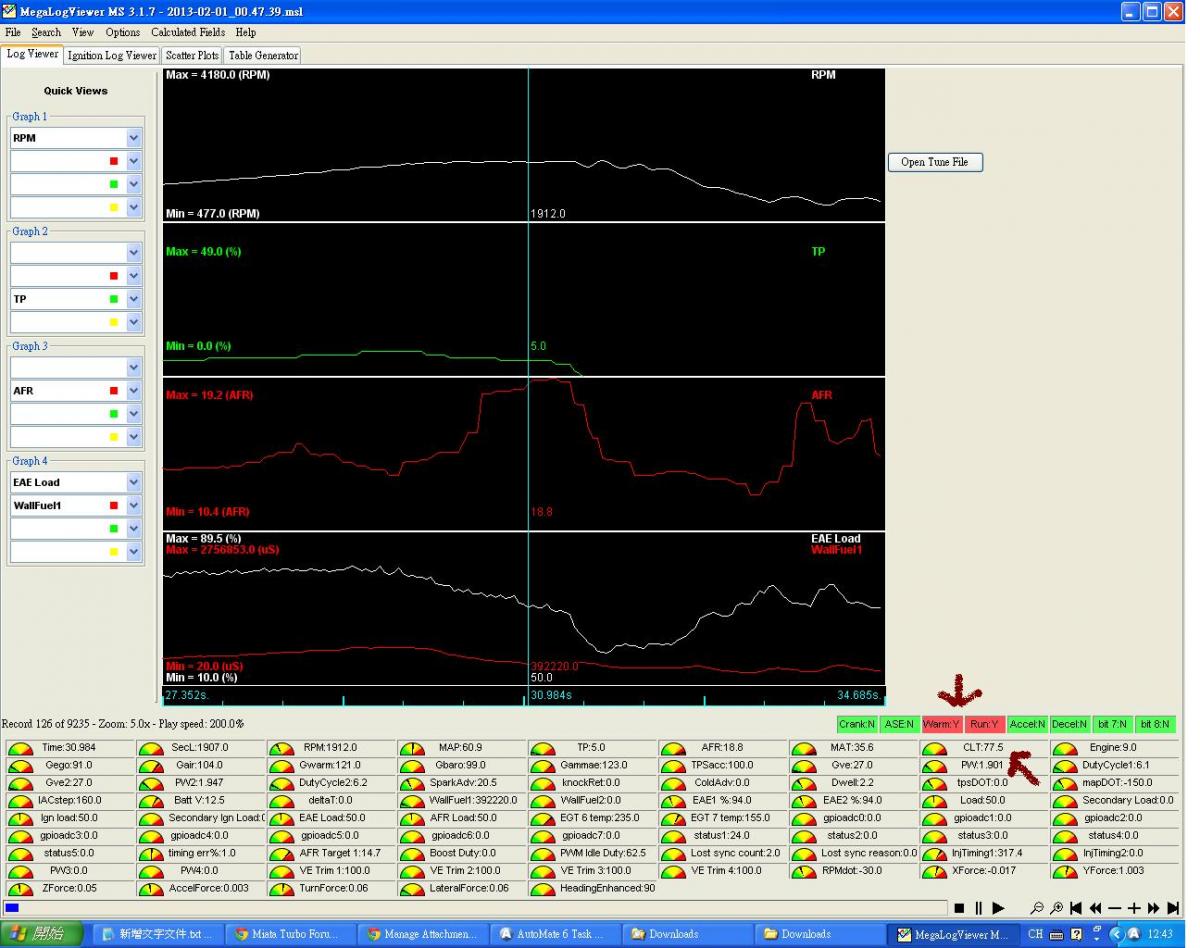

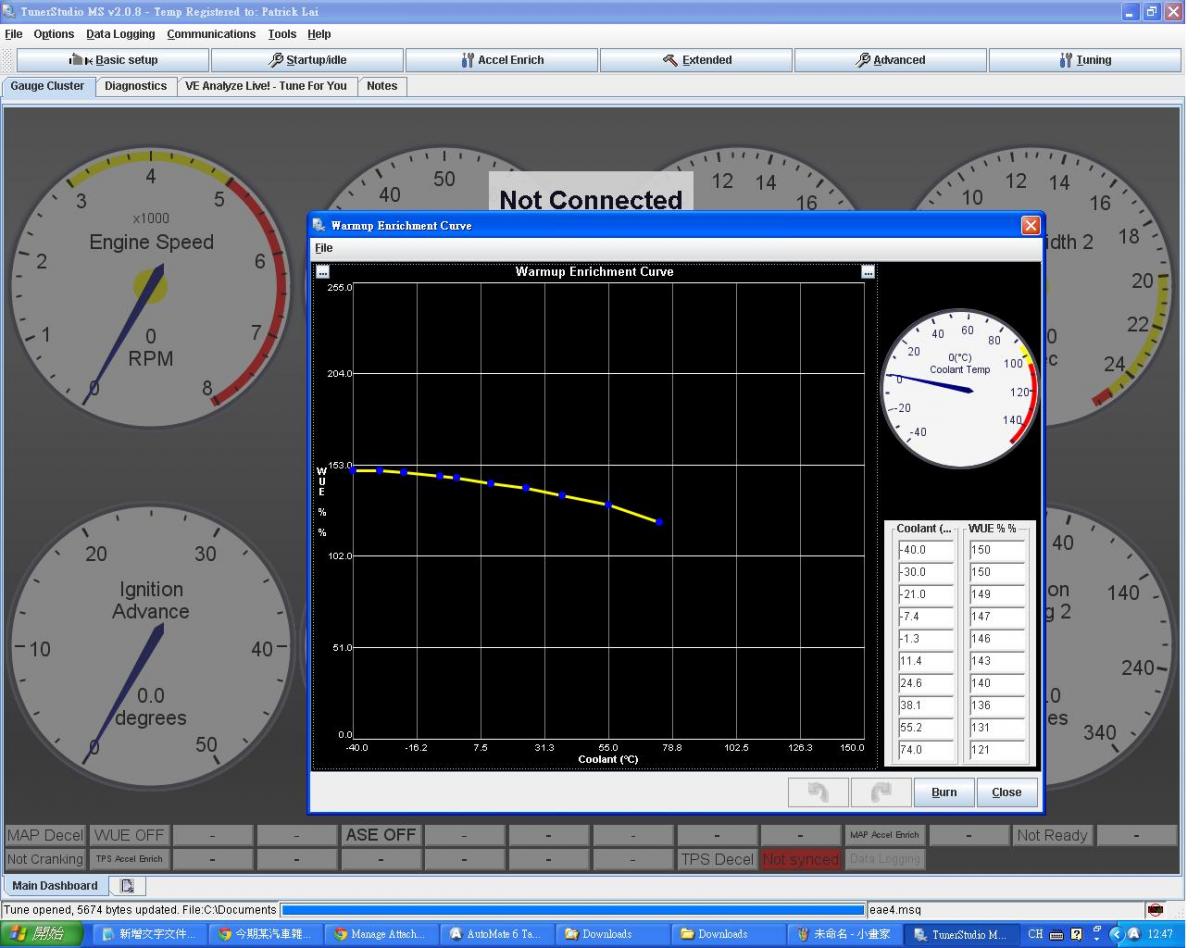

WUE doesn't go off.-warm-up.jpg   WUE doesn't go off.-wue.jpg
Attached Files
File Type: msq 2013-02-01_11.39.47.msq (84.7 KB, 56 views)
oprso is offline   Reply With Quote
Old 02-01-2013, 12:53 AM   #2
Junior Member
iTrader: (1)

Join Date: Sep 2009
Location: Colorado
Posts: 166
Total Cats: 5
Default

looks like you warm up enrichment curve never goes below 121%. the last temperature value should equal 100% (no enrichment). if you go higher than the last point on the curve the WUE stays at the last value, in your case 121%
GraemeD is offline   Reply With Quote
Old 02-01-2013, 01:46 AM   #3
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

Quote:
Originally Posted by GraemeD View Post
looks like you warm up enrichment curve never goes below 121%. the last temperature value should equal 100% (no enrichment). if you go higher than the last point on the curve the WUE stays at the last value, in your case 121%
Thanks for your quick reply. . ok I take a look.
I am living in hong kong, temperature here will never go below 0. Should I set something above that or just keep it like that?
oprso is offline   Reply With Quote
Old 02-01-2013, 09:13 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

make the curve hit 100% at ~65C. that turns off WUE.
Braineack is offline   Reply With Quote
Old 02-01-2013, 02:09 PM   #5
Junior Member
iTrader: (5)

Join Date: Mar 2012
Location: Gilbert, Az
Posts: 337
Total Cats: 26
Default

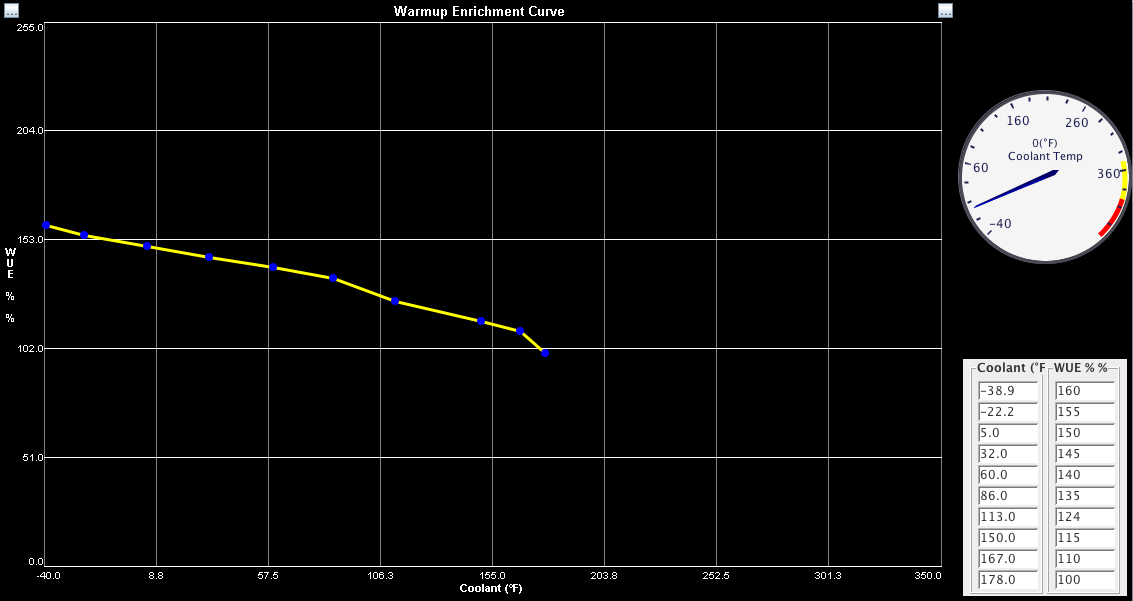

Do something like this:
Attached Thumbnails
WUE doesn't go off.-screen-shot-2013-02-01-11.08.45-am.png
SJP0tato is offline   Reply With Quote
Old 02-01-2013, 07:30 PM   #6
Junior Member

Join Date: May 2011
Location: Central Kentucky
Posts: 221
Total Cats: 1
Default

I have this problem too. Very helpful, thanks.
Oochi is offline   Reply With Quote
Old 02-01-2013, 11:53 PM   #7
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

problem solved.
thx a lot
oprso is offline   Reply With Quote
