Old 06-15-2012, 08:05 PM   #101
Elite Member
iTrader: (6)

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

Have you pulled the plugs? Black or shiny new ish looking. If they are black I'd say you're burning oil. If they're shiny new ish looking my guess is the turbo or exhaust valve seals. Really the only thing after the cylinders that has oil. Would at least narrow it down to engine or exhaust stem seals/turbo. The more I read this the more I think this is something simple you refuse or are to retarded to try. Re-read the thread and start at the easiest (or within your ability) thing or cheapest possible solution. Then go from there.
TorqueZombie is offline   Reply With Quote
Old 06-15-2012, 08:06 PM   #102
Elite Member
iTrader: (6)

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

Quote:
Originally Posted by BogusSVO View Post
Have you even looked at the links, or bothered to look at the attached pic on how to PROPERLY hook up a catch can that I posted for you?

Lets do one thing at a time, and check the things off your list.

and NO there is no way to check the valve stem seals with out removing most of the valve train.

Personaly I wouls like to see you with a 10 or 12 AN drain line....

Since you are fighting tooth and nail from opening up the engine back up.. Lets try a few other things before that then.

***1 read links on catch can, and hook up your can that way.

***2 install a larger drain line on turbo

If smoke on decell is still there after these 2 things.....

***3 install an oil restrictor in turbo feed line.

still smoke?? yes??

***4 Pull head off and apart and change the valve stem seals..at this point we can look at a few other things too.


Who is this Corky guy?
This^ for the love of all the kittens, this^! Also, he does keep repeating it is on after idle burp. But still. Try it
TorqueZombie is offline   Reply With Quote
Old 06-15-2012, 08:13 PM   #103
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

Quote:
Originally Posted by torquezombie View Post
the more i read this the more i think this is something simple you refuse or are to retarded to try.
+1
18psi is offline   Reply With Quote
Old 06-15-2012, 09:01 PM   #104
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2008
Location: Minneapolis, MN
Posts: 963
Total Cats: -1
Default

Corky Bell is founder of Bell Engineering And Bell Intercoolers. He is a very respected man. I talk to him multiple times and he is extremely helpful.

-8 is totally enough that's what begi uses in all their kits and Flyinmiata.

I did do another little test. I have an EGT bung right by cylinder 3. I pulled the probe out and let the car idle, there was absolutely no smoke coming out of it at idle. So I reved the engine and a pretty huge plume came out the exhaust pipe and absolutely nothing out the bung. So I am wondering if smoke was coming out the motor wouldn't it smoke out the bung?
Rushin is offline   Reply With Quote
Old 06-15-2012, 09:15 PM   #105
Senior Member
iTrader: (1)

BogusSVO's Avatar

Join Date: Mar 2012
Location: Pensacola Fla.
Posts: 590
Total Cats: 191
Default

Yes it is...

So now we are back to the turbo...

If the return line is too small and oil backs up in the CHCA, it would smoke on decell when the oil ring unloads on decell.....

BUT I thought you had the turbo checked out by the builder and all was well there...


Oh wait... this is the builder that dosent know how to use a wrench.....


But anyhow... if the ID of the return is not 5/8 it is too small...

Cool deal... thats what they use.....
This what I use...is a min of a 5/8 ID

Now have you looked into what pressure and flow the turbo needs?
BogusSVO is offline   Reply With Quote
Old 06-17-2012, 12:19 AM   #106
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2008
Location: Minneapolis, MN
Posts: 963
Total Cats: -1
Default

Pulled the turbo. I have had a blown turbo on my Lgt and this is for sure does not look like a blown turbo.

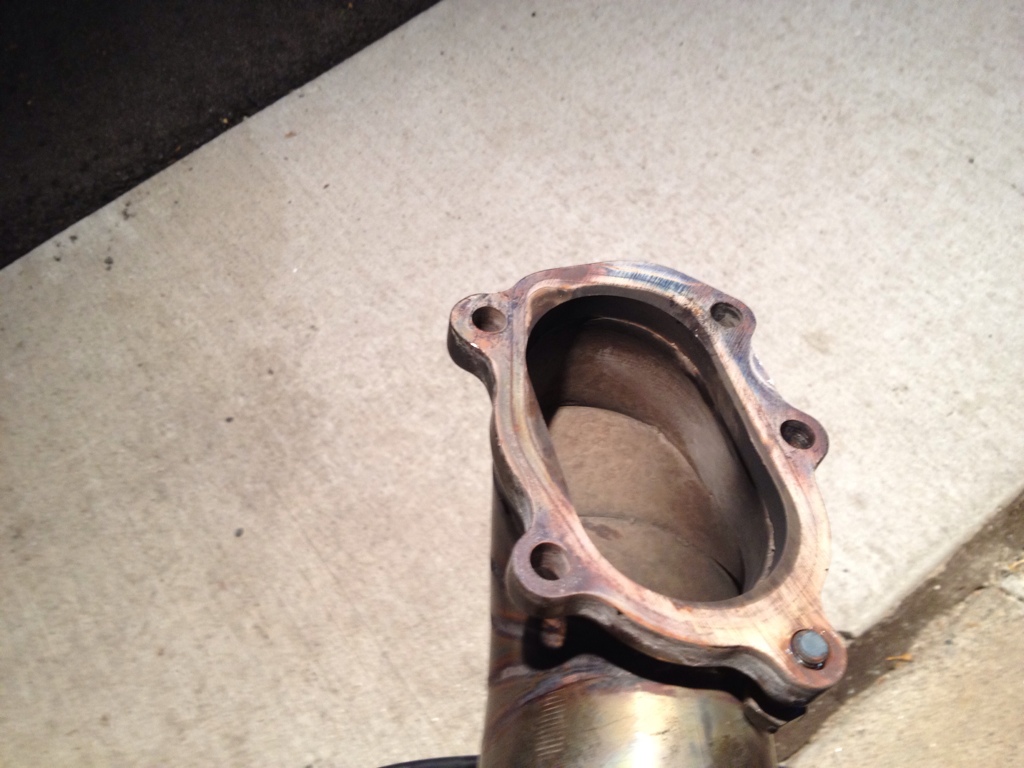

First downpipe

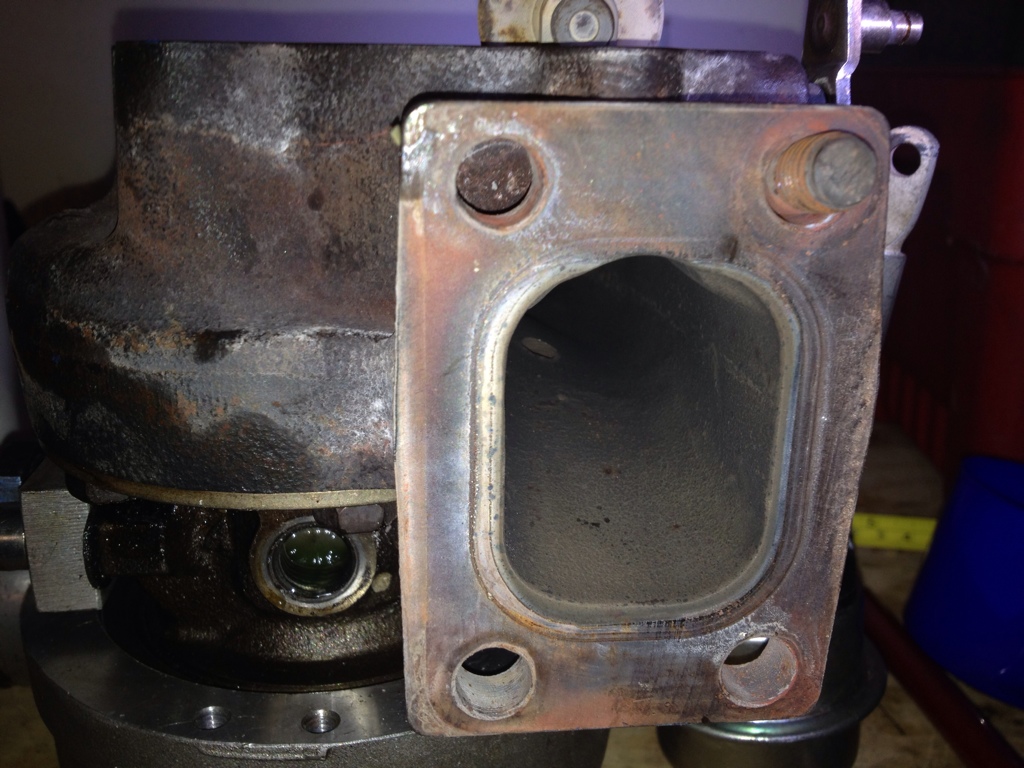

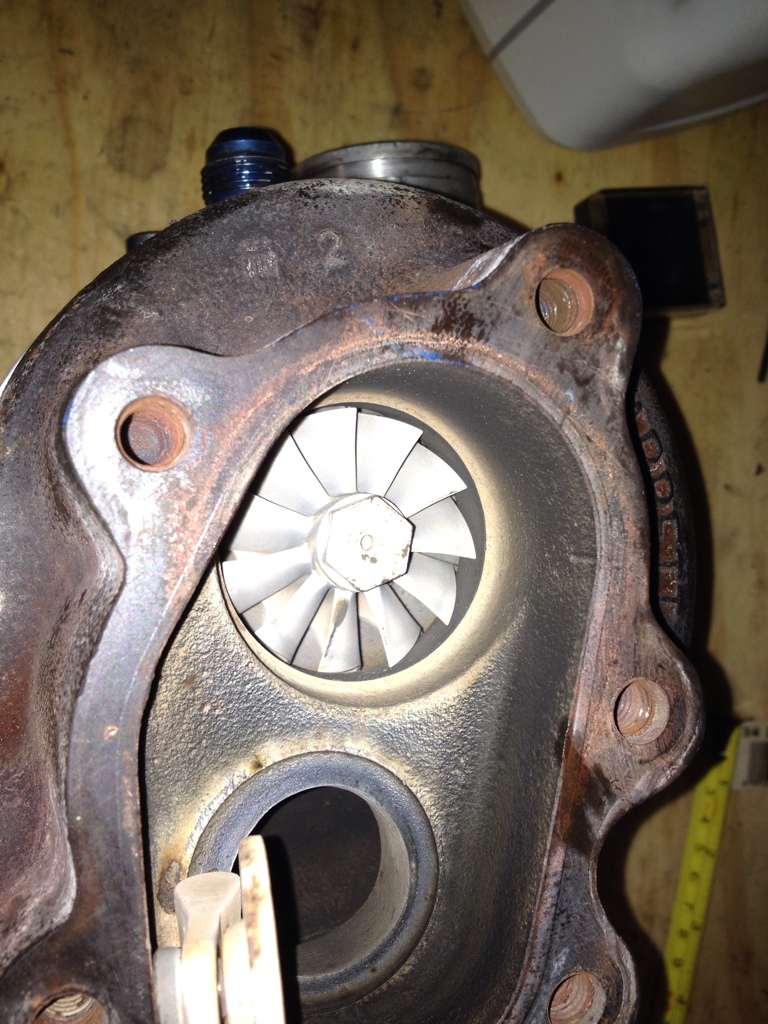

Hot side of the turbo was totally 100% dry.

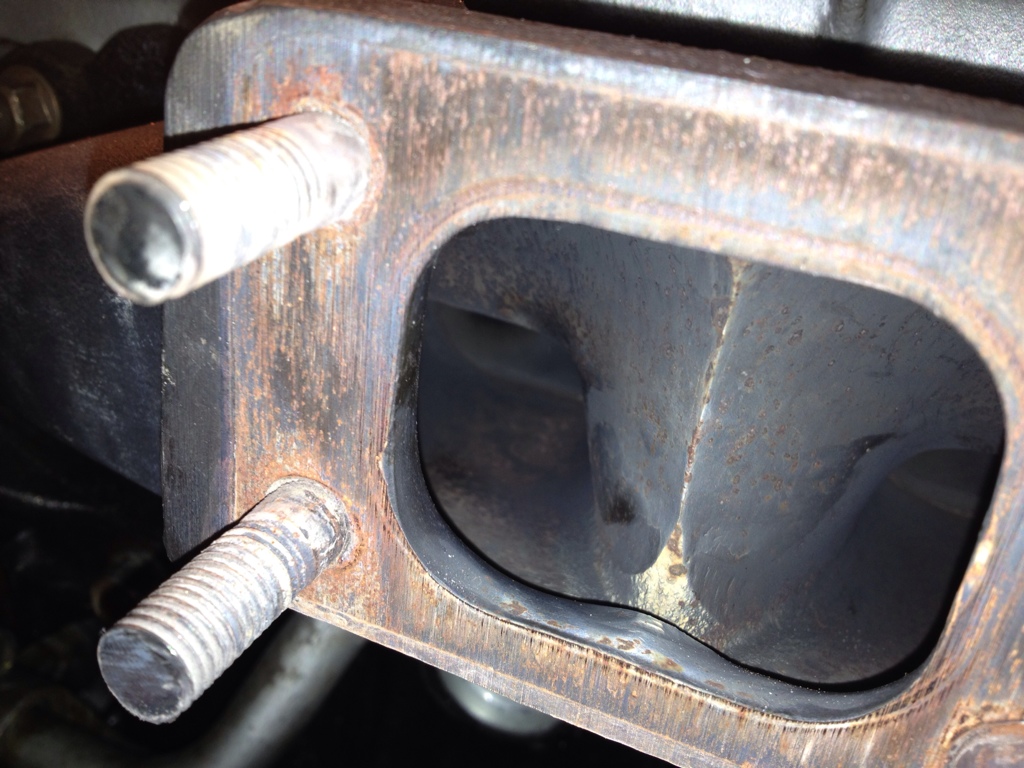

Manifold. Haven't pulled it yet will do it tomorrow


Manifold looks pretty dry too.
Attached Thumbnails
1.6l: SMOKING. Built bottom end, smoke out of oil dipstick/valve cover-492cdc25.jpg   1.6l: SMOKING. Built bottom end, smoke out of oil dipstick/valve cover-5ac7837d.jpg   1.6l: SMOKING. Built bottom end, smoke out of oil dipstick/valve cover-827a4e4b.jpg   1.6l: SMOKING. Built bottom end, smoke out of oil dipstick/valve cover-ef2fe6dd.jpg
Rushin is offline   Reply With Quote
Old 06-17-2012, 02:45 PM   #107
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

I would have ecpected you to see smoke out of the egt hole. What happened to the smoke out of the dipstick tube and breather Ports? Are you still getting this? Is it possible to have a small leak where the center section meets the exhaust housing? It doesnt take much oil to make a lot of smoke. If it is a small amount, then it might all be burning off, instead of leaving residue.

If the block is still smoking, then I think u need to quit dicking around andpull the head. Its easy if you have a hoist. Hot side and cold side stay connected. Unbolt dp, fuel, lines, intake pipe, and wiring, UNbolt head, lift out.
miatauser884 is offline   Reply With Quote
Old 06-17-2012, 03:20 PM   #108
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2008
Location: Minneapolis, MN
Posts: 963
Total Cats: -1
Default

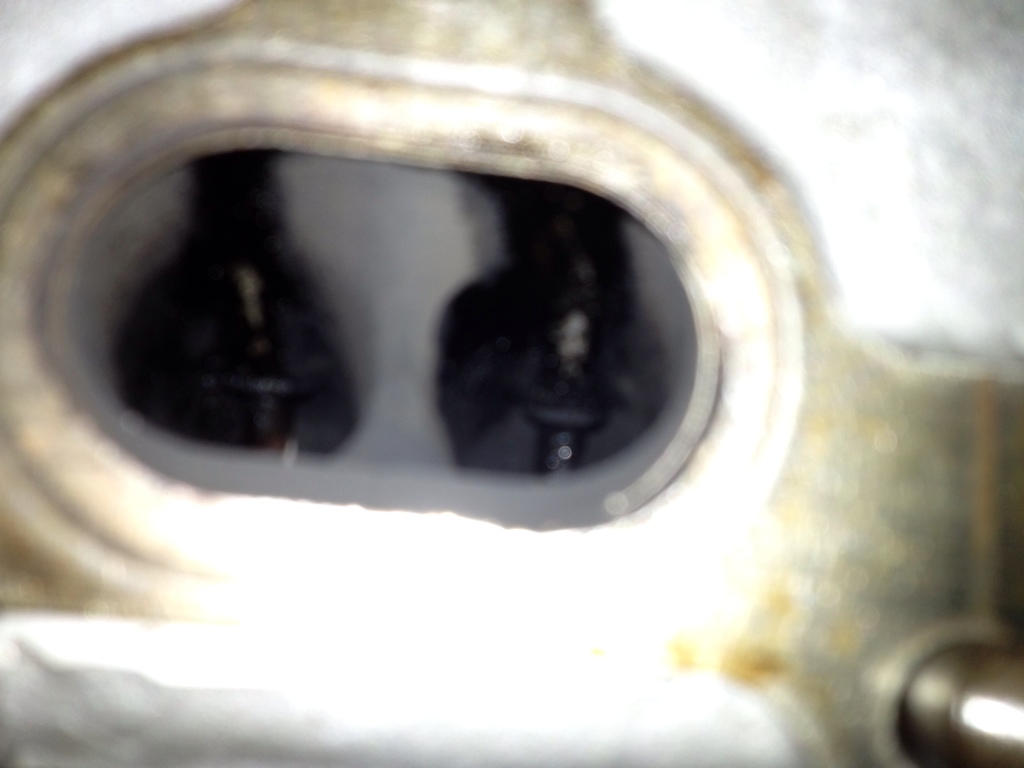

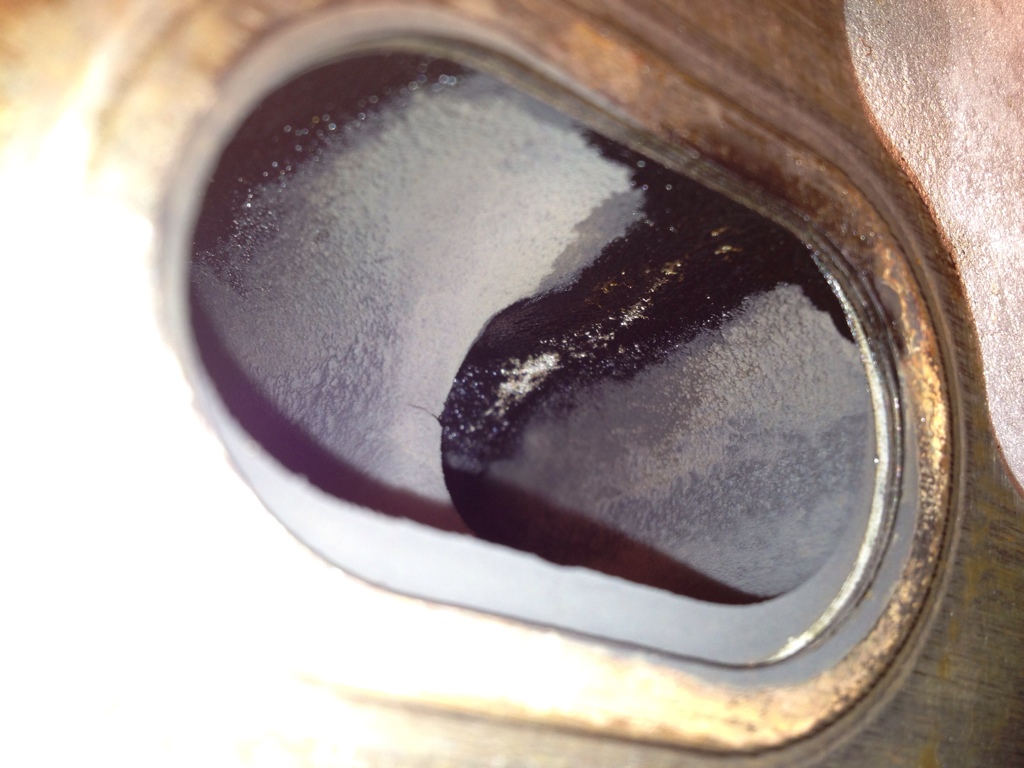

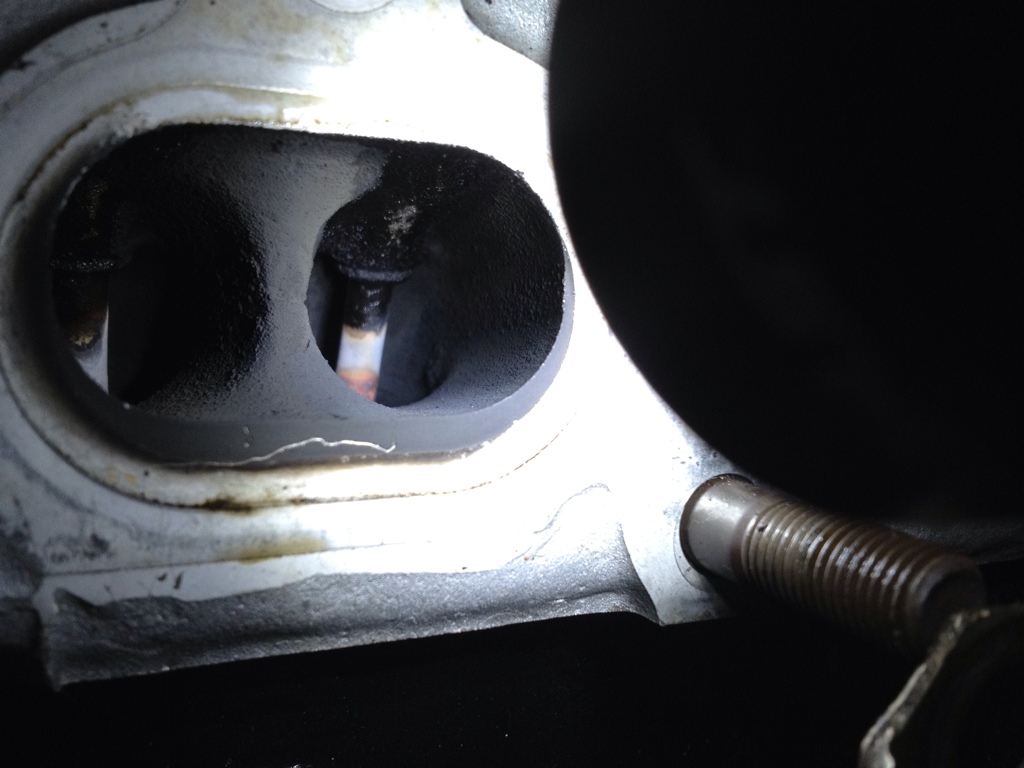

Well, i think we are going to take the guess work out of this with this new information. To me these valve seals look absolutely fucked.

At least its for sure a part of the issue.



Attached Thumbnails
1.6l: SMOKING. Built bottom end, smoke out of oil dipstick/valve cover-c945d203.jpg   1.6l: SMOKING. Built bottom end, smoke out of oil dipstick/valve cover-cddd0a66.jpg   1.6l: SMOKING. Built bottom end, smoke out of oil dipstick/valve cover-ab1c91e7.jpg
Rushin is offline   Reply With Quote
Old 06-17-2012, 05:04 PM   #109
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

what happened to seeing them from the top and confirming they're fine? lol

at least you're getting somewhere though.
18psi is offline   Reply With Quote
Old 06-17-2012, 07:41 PM   #110
Senior Member
iTrader: (1)

BogusSVO's Avatar

Join Date: Mar 2012
Location: Pensacola Fla.
Posts: 590
Total Cats: 191
Default

seals or guides.. or both......

looks like you found the issue
BogusSVO is offline   Reply With Quote
Old 06-17-2012, 07:46 PM   #111
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2008
Location: Minneapolis, MN
Posts: 963
Total Cats: -1
Default

probably both. All look exactly the same. Maybe the shop used wrong seals.
Rushin is offline   Reply With Quote
Old 06-17-2012, 07:47 PM   #112
Senior Member
iTrader: (1)

BogusSVO's Avatar

Join Date: Mar 2012
Location: Pensacola Fla.
Posts: 590
Total Cats: 191
Default

the seals should have come in the gasket kit......
BogusSVO is offline   Reply With Quote
Old 06-17-2012, 07:48 PM   #113
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2008
Location: Minneapolis, MN
Posts: 963
Total Cats: -1
Default

Question: Should i get another cometic head gasket or just go with stock composite one? I want to make sure that i can run 20psi of boost.
Rushin is offline   Reply With Quote
Old 06-17-2012, 07:48 PM   #114
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2008
Location: Minneapolis, MN
Posts: 963
Total Cats: -1
Default

Quote:
Originally Posted by BogusSVO View Post
the seals should have come in the gasket kit......
Apparently the intake seals did but the engine builder used supertech on exhaust side.
Rushin is offline   Reply With Quote
Old 06-17-2012, 07:54 PM   #115
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

no composite. never composite

MLS or bust
18psi is offline   Reply With Quote
Old 06-17-2012, 08:02 PM   #116
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2008
Location: Minneapolis, MN
Posts: 963
Total Cats: -1
Default

one think i dont want to do is to deck the head. really hope i dont have to do it. I feel like with composite HG it is more likely to seal better.
Rushin is offline   Reply With Quote
Old 06-17-2012, 08:03 PM   #117
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

Quote:
Originally Posted by Rushin View Post
one think i dont want to do is to deck the head. really hope i dont have to do it. I feel like with composite HG it is more likely to seal better.
no
18psi is offline   Reply With Quote
Old 06-17-2012, 08:04 PM   #118
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2008
Location: Minneapolis, MN
Posts: 963
Total Cats: -1
Default

no what?
Rushin is offline   Reply With Quote
Old 06-17-2012, 08:06 PM   #119
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

No it will not, your feelings are stupid. composite is crap, and if you want to run significant boost you shouldn't use it. hell, you shouldn't use it period, no matter how much boost. its 5x as prone to leaking and failing than mls.
if you head is warped you need to fix the problem instead of using stupid completely useless ideas that will back fire on you.

do it once, do it right
18psi is offline   Reply With Quote
Old 06-17-2012, 09:01 PM   #120
Senior Member
iTrader: (1)

BogusSVO's Avatar

Join Date: Mar 2012
Location: Pensacola Fla.
Posts: 590
Total Cats: 191
Default

18psi.... I will have to dissagree.... I have seen composite HG hold 400 hp and more.

Now That I am still learning the miata engines, there may be "tribal Knowlage" on why the composites are not used. If there is, I do hope you will share.

Surface prep for a MLS is way more critical on both the block and head to achieve a good seal.

Rushin.... what bothers you about having the head decked? It is simple and easy to have done.
The trick is finding a shop that will use the right equipment But do not let the head be belt surfaced.

If you look at threads I have started find one "Why NOT to have your head belt surfaced"

But if the head is warped, or has fire rings have the head surfaced.

A composite may be able to take up too .003 warp and seal a NA grandma engine and give a decent service, when you modify the engine and increase the power out put it will not last like it should.
BogusSVO is offline   Reply With Quote
