Old 05-31-2009, 07:50 PM   #21
Elite Member
iTrader: (5)

Join Date: Jan 2007
Location: Freehold, NJ
Posts: 1,577
Total Cats: -2
Default

which DO kit is it? and what size nozzle are you using?
disturbedfan121 is offline   Reply With Quote
Old 05-31-2009, 07:54 PM   #22
Senior Member
iTrader: (8)

turbobluemiata's Avatar

Join Date: Aug 2006
Location: Springfield, IL
Posts: 1,019
Total Cats: 0
Default

I cant wait to get mine finished
turbobluemiata is offline   Reply With Quote
Old 05-31-2009, 07:57 PM   #23
Senior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,371
Total Cats: -1
Default

Quote:
Originally Posted by disturbedfan121 View Post
which DO kit is it? and what size nozzle are you using?

It is the stage 1 universal kit. The cheapest one. I am running the 7gph nozzle. I tried the 10 and it was just too much.
wes65 is offline   Reply With Quote
Old 05-31-2009, 08:01 PM   #24
Elite Member
iTrader: (5)

Join Date: Jan 2007
Location: Freehold, NJ
Posts: 1,577
Total Cats: -2
Default

awesome...now i know which one to use lol you've helped me make up my mind about getting it lol
disturbedfan121 is offline   Reply With Quote
Old 05-31-2009, 08:51 PM   #25
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Like i been telling you guys all along keep **** simple and it works
magnamx-5 is offline   Reply With Quote
Old 05-31-2009, 09:02 PM   #26
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Quote:
Originally Posted by wes65 View Post
I am running the 7gph nozzle. I tried the 10 and it was just too much.
Huh.

Without professing to be a WI guru, I find this quite interesting. Based solely upon the calculator provided by DO, I chose to run a 3 GPH nozzle with my kit.

If we assume a maximum of 80% duty cycle on your 550cc injectors, and an actual 7 GPH on your WI system, then your water:fuel ratio is exactly 1:1 at peak load, and greater than that at lesser load. You may be running something other than straight water (like 50% meth) in which case the percentage drops somewhat, but you see where I'm going.

How did you reach the decision to run the 7 GPH nozzle?

Last edited by Joe Perez; 06-01-2009 at 12:29 PM. Reason: I'm retarded.
Joe Perez is offline   Reply With Quote
Old 06-01-2009, 12:08 AM   #27
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

yeah i told him a 3gph as well. Iono how he reasoned his choice but i assumed he just grabbed the biggest one he had first and stepped down etc. Hell I barely run a 7gph on both of my nozzles put together.
magnamx-5 is offline   Reply With Quote
Old 06-01-2009, 01:53 AM   #28
Senior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,371
Total Cats: -1
Default

Quote:
Originally Posted by Joe Perez View Post
Huh.

Without professing to be a WI guru, I find this quite interesting. Based solely upon the calculator provided by DO, I chose to run a 3 GPH nozzle with my kit.

If we assume a maximum of 80% duty cycle on your 550cc injectors, and an actual 7 GPH on your WI system, then your water:fuel ratio is exactly 1:1 at peak load, and greater than that at lesser load. You may be running something other than straight water (like 50% meth) in which case the percentage drops somewhat, but you see where I'm going.

How did you reach the decision to run the 7 GPH nozzle?
I am not seeing how 7gph is a 1:1 ratio. 7gph is 441cc/min. I am running 1760cc/min of fuel at 80% duty cycle. They say that the more extreme setups run a 1:4 water to fuel ratio, the less extreme run around 1:10 water to fuel ratio. I am wanting 400whp on stock motor, also, i want to run a LOT of timing, so i considered my setup to be on the extreme side.
wes65 is offline   Reply With Quote
Old 06-01-2009, 01:54 AM   #29
Senior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,371
Total Cats: -1
Default

I have 4 nozzles, 3,7,10,and 12 gph. I spoke with chance at devils own and we came to the conclusion that i would need 10-12 gph once i really start making power.
wes65 is offline   Reply With Quote
Old 06-01-2009, 03:18 AM   #30
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Yeah but you could probly wean abit of it off and still be good. You need to find a ballance between your capacity and your consumption. That is why i have a 2 stage system, well that and the drivability issues of a 7gph nozzle at 4 psi would be horrible. You might need a bigger snail for 400 but you will certianly be into the 300's with avengance using your setup.
magnamx-5 is offline   Reply With Quote
Old 06-01-2009, 12:01 PM   #31
Senior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,371
Total Cats: -1
Default

Quote:
Originally Posted by magnamx-5 View Post
Yeah but you could probly wean abit of it off and still be good. You need to find a ballance between your capacity and your consumption. That is why i have a 2 stage system, well that and the drivability issues of a 7gph nozzle at 4 psi would be horrible. You might need a bigger snail for 400 but you will certianly be into the 300's with avengance using your setup.
Yeah, I am shooting for 350whp on this turbo. Hell, i may puke a rod a 290, we'll see.
wes65 is offline   Reply With Quote
Old 06-01-2009, 12:29 PM   #32
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Quote:
Originally Posted by wes65 View Post
I am not seeing how 7gph is a 1:1 ratio. 7gph is 441cc/min. I am running 1760cc/min of fuel at 80% duty cycle.
I fail at basic math.
Joe Perez is offline   Reply With Quote
Old 06-01-2009, 12:32 PM   #33
Senior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,371
Total Cats: -1
Default

Quote:
Originally Posted by Joe Perez View Post
I fail at basic math.
Haha it's all good. I thought maybe you had a 1 cylinder miata or something
wes65 is offline   Reply With Quote
Old 06-01-2009, 03:40 PM   #34
Elite Member
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,771
Total Cats: 18
Default

That map is CRAZY! Your CRAZY! Good luck! Got more ballz than me.
IcantDo55 is offline   Reply With Quote
Old 06-01-2009, 04:04 PM   #35
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Quote:
Originally Posted by wes65 View Post
Haha it's all good. I thought maybe you had a 1 cylinder miata or something
Nah, I was just thinking that maybe you were running TBI.

You've inspired me to do some further research into the subject, and I am finding some evidence to support the use of fuel:water ratios as high as 4:1 for minimum EGT, and given that my "water" is actually 50% "fuel", I am seriously contemplating the use of a larger injection nozzle. Combined with the fact that I'm using a 2d progressive controller, I may be able to get away with quite a lot here.
Joe Perez is offline   Reply With Quote
Old 06-01-2009, 04:07 PM   #36
Senior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,371
Total Cats: -1
Default

Quote:
Originally Posted by IcantDo55 View Post
That map is CRAZY! Your CRAZY! Good luck! Got more ballz than me.

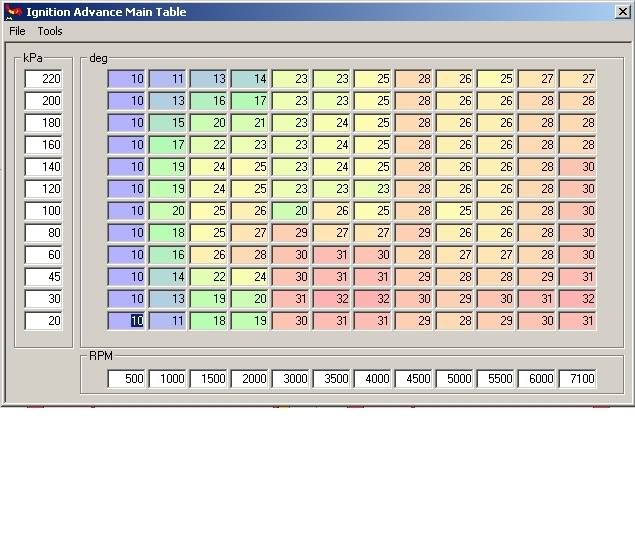

Haha, not too crazy for a good meth setup. This is where i got my inspiration.

Name:  timming.jpg
Views: 0
Size:  75.9 KB
wes65 is offline   Reply With Quote
Old 06-02-2009, 01:04 AM   #37
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Ahh that looks familiar i been telling you guys not to be punks for years and Wes finally steped up i hope you are next joe and Scot needs to get on board as well.
magnamx-5 is offline   Reply With Quote
Old 06-02-2009, 01:09 AM   #38
Senior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,371
Total Cats: -1
Default

Quote:
Originally Posted by magnamx-5 View Post
Ahh that looks familiar i been telling you guys not to be punks for years and Wes finally steped up i hope you are next joe and Scot needs to get on board as well.
Haha, it should. I thought Joe already was running WI?
wes65 is offline   Reply With Quote
Old 06-02-2009, 01:19 AM   #39
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

he is but he is being a ***** about it he needs some big boy pants like we wear in KY and Indiana.
magnamx-5 is offline   Reply With Quote
Old 06-02-2009, 01:22 AM   #40
Senior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,371
Total Cats: -1
Default

Quote:
Originally Posted by magnamx-5 View Post
he is but he is being a ***** about it he needs some big boy pants like we wear in KY and Indiana.
That's right. More Timing. More Boost. More Power!
wes65 is offline   Reply With Quote
