Old 06-17-2009, 04:53 PM   #21
Junior Member
iTrader: (2)

Join Date: Jun 2007
Location: Western N.C.
Posts: 447
Total Cats: 1
Default

I mounted my 2.5 gallon tank in the center of the trunk using “I” bolts on each side of the tank, and a small ratchet strap to secure it.
Milton Tucker is offline   Reply With Quote
Old 06-17-2009, 05:39 PM   #22
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,863
Total Cats: 485
Default

Is the 4 qt (1 gallon) tank just not big enough for track use? Mounting that would be far easier.
ThePass is offline   Reply With Quote
Old 06-17-2009, 05:43 PM   #23
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,360
Total Cats: 1,323
Default

3gph nozzle, in boost 75% of the time, means a 1 gallon tank is empty in 30 minutes.

So nobody here has a clean mounting solution?
Savington is online now   Reply With Quote
Old 06-17-2009, 06:08 PM   #24
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,661
Total Cats: 1,559
Default

Quote:
Originally Posted by Savington View Post
So nobody here has a clean mounting solution?
Necessity is the mother of invention.

See moonshiners.



If you find a better way everyone will follow you.


sixshooter is online now   Reply With Quote
Old 06-17-2009, 06:41 PM   #25
Junior Member

Join Date: Nov 2005
Location: Athens
Posts: 197
Total Cats: 0
Default

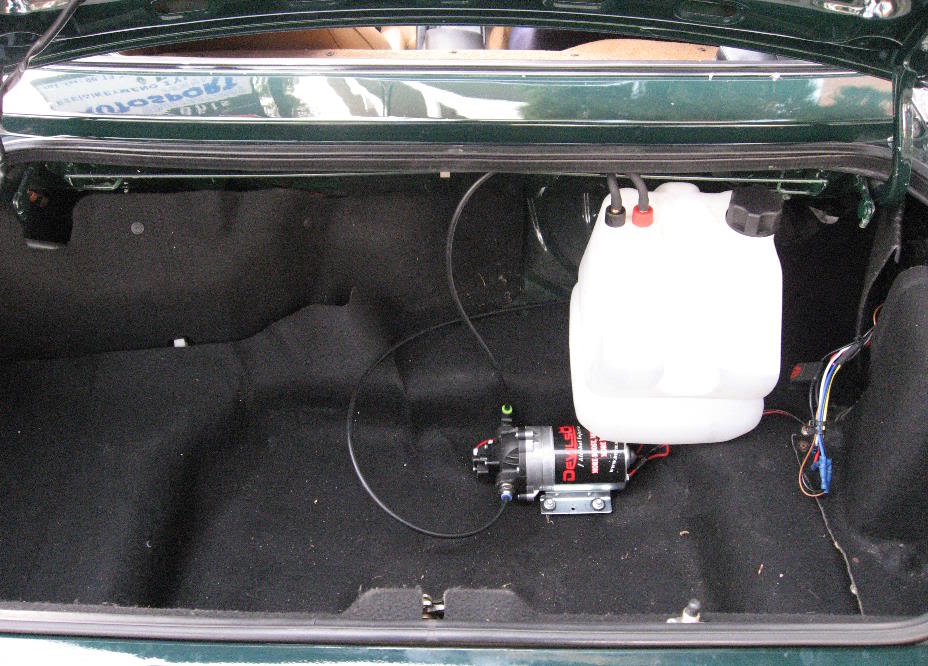

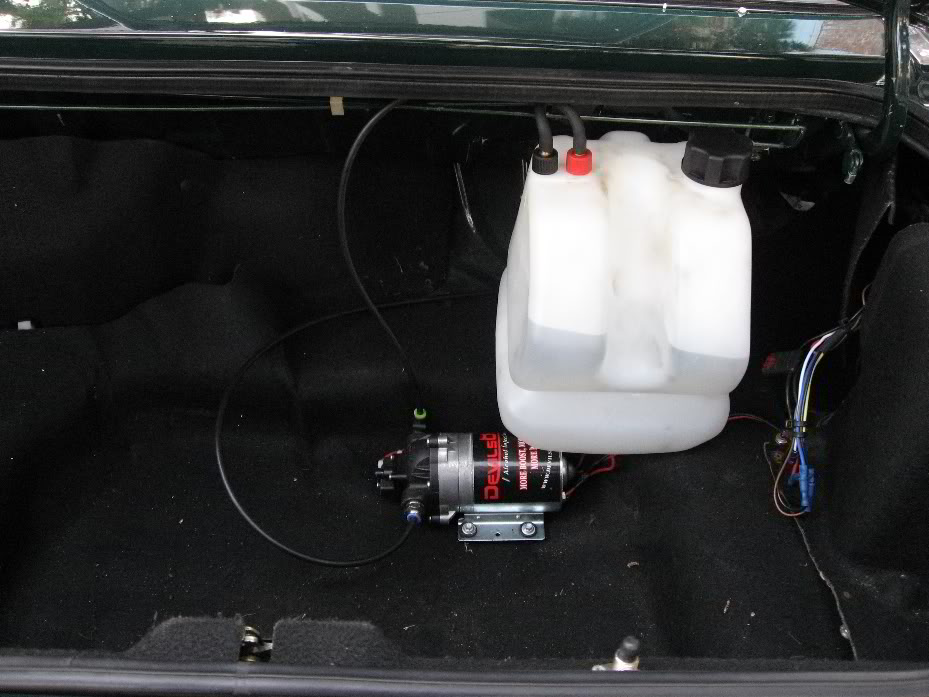

I made up a bracket for mine, but it wasn't strong enough when the tanks full, so i just used some ratchet straps.

Name:  IMG_1734.jpg
Views: 2
Size:  117.1 KB


Name:  IMG_1736.jpg
Views: 2
Size:  96.1 KB

Cheers
Mark
eunos1800 is offline   Reply With Quote
Old 06-17-2009, 07:05 PM   #26
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

I had an install thread. It should still be here somewhere. I basically got some angle bar at the Lowes spare metal section. The kind with slots cut in it. I cut 2 foot long sections and used self tapping screws to hold them down to the car. I mounted it on the right side of the spare tire well. Beside the battery. I put them parallel, front to back of the car, with the space btw them being the width of my tank. I then used 2 huge worm clamps on either end of the tank and tightened it down with a drill. It wouldn't budge a mm. Super secure. The only thing I could see that you specifically should look into is a tank with baffles.
neogenesis2004 is offline   Reply With Quote
Old 06-17-2009, 07:06 PM   #27
Guest
iTrader: (1)

ray_sir_6's Avatar

Join Date: Dec 2006
Location: DFW, TX
Posts: 714
Total Cats: 0
Default

I do not know how to embed youtube videos so a moderator will have to edit this for me. Oh look one did.

ray_sir_6 is offline   Reply With Quote
Old 06-18-2009, 12:50 AM   #28
Junior Member
iTrader: (8)

Join Date: Jul 2008
Location: Portland, OR
Posts: 397
Total Cats: 9
Default

I am not sure this will fit width wide as I cant find the dimensions but I think you could find a way to mount this. The spec C tank is popular with STI owners running meth
Sti Spec C 12L Tank IA Performance
kaisersoze is offline   Reply With Quote
Old 06-18-2009, 01:05 AM   #29
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Quote:
Originally Posted by elesjuan View Post
Why squabble about a few pounds of weight on a street car? Just turn up the power.
cause i cant run any more boost on my turbo without being out of the effeciency and, why not **** it i can walk call a tow truck and be done with it or i will push the car or just do what i gotta do. Don't have a wife joe so that wont be happening. If your car isn't as bad *** as it can be then what is the point in driving it. Watered down supercars are for ******, i want the ability to do 0-100 fast 100-0 fast and smoke anything in sight. Dont be such a newb man risk is inherent to greatness.
magnamx-5 is offline   Reply With Quote
Old 06-18-2009, 01:07 AM   #30
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

what are your dimensions savington? There is alot of room behind the battery going to the passenger compartment. or if it is shallow enough put it into the indention of the stock trun for a semi flat laod floor.
magnamx-5 is offline   Reply With Quote
Old 06-18-2009, 01:26 PM   #31
Senior Member
iTrader: (14)

Join Date: Aug 2007
Location: Buffalo, NY
Posts: 734
Total Cats: 1
Default

deliverator is offline   Reply With Quote
Old 06-20-2009, 12:39 AM   #32
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,360
Total Cats: 1,323
Default

Dimensions are 7 3/4" x 12 3/4" x 7 3/4".

2.5 Gallon Tank DevilsOwn Injection

My fitting is located on the slanted section near the bottom of the tank, with that fitting aimed at the back of the car (figured I'd be under acceleration when the water is on so I want the water sloshing towards it).
Savington is online now   Reply With Quote
Old 06-20-2009, 12:41 AM   #33
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

Exact same tank i had.... too bad the pics on my old post are dead and i don't have them anymore.
neogenesis2004 is offline   Reply With Quote
Old 06-20-2009, 01:22 AM   #34
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

mount it where the spare tire is ala neon the same way i did with my 1 gall. FWIW i cant believe you spent 50 bucks on a friggin tank does it rain cash in california?
magnamx-5 is offline   Reply With Quote
Old 06-20-2009, 04:58 AM   #35
Junior Member
iTrader: (7)

Join Date: Feb 2007
Location: Overland Park, KS
Posts: 395
Total Cats: 6
Default

Quote:
Originally Posted by Savington View Post
Dimensions are 7 3/4" x 12 3/4" x 7 3/4".

2.5 Gallon Tank DevilsOwn Injection...

For others who may be considering this tank, it is available from US Plastic for under $25. Cap sold separately, make sure you add one to the cart. Credit goes to Y8S for this info. For your convenience their full selection of small multi-purpose tanks and caps can be found here

For mounting I purchased a tie down/eye-bolt set from Harbor Freight on sale for $8. Sorry, no pics. I haven't installed my tank yet, but the mounting position will be similar to Joe's

Last edited by MazDilla; 06-20-2009 at 05:24 AM.
MazDilla is offline   Reply With Quote
Old 06-21-2009, 01:51 AM   #36
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,360
Total Cats: 1,323
Default

Quote:
Originally Posted by magnamx-5 View Post
mount it where the spare tire is ala neon the same way i did with my 1 gall. FWIW i cant believe you spent 50 bucks on a friggin tank does it rain cash in california?
I paid $35 shipped from US Plastics. Same exact tank, though.
Savington is online now   Reply With Quote
Old 06-29-2009, 10:38 PM   #37
Senior Member

Join Date: May 2008
Location: Canada
Posts: 510
Total Cats: 104
Default

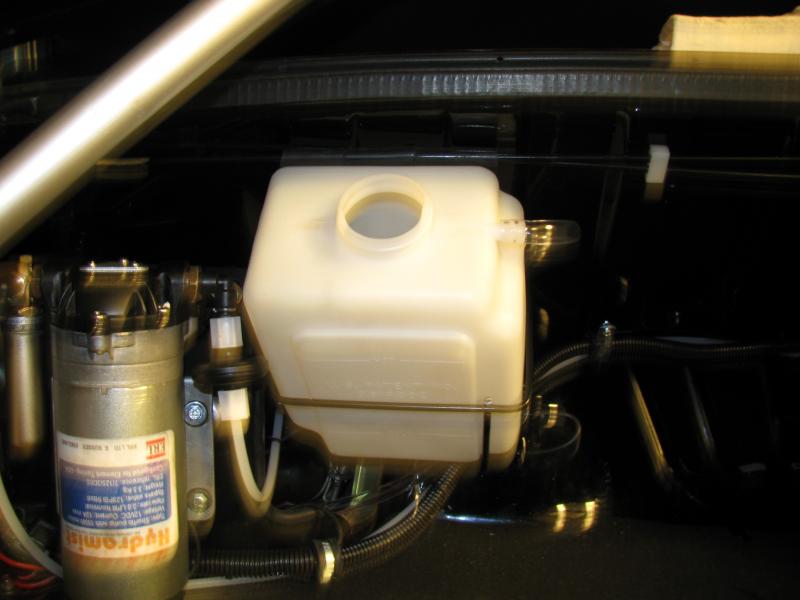

It's not a great picture, but this is the set-up that FM did for me. Tank is about 2 liters and sits just to the right of the jack storage area (jack is long gone and a compressor/inflatant kit has taken its place).

It's not ideal as I can't run it too low without the fluid sloshing away from the pick-up under acceleration, but the Hydramist mapping only uses the right amount of methanol mix that's needed, so a tank lasts quite a while, even when lapping.
Attached Thumbnails
it shows how it mounts the tank or it gets the hose again (v. trunk-mounted tank)-14-hydramist.jpg
DeerHunter is offline   Reply With Quote
Old 06-30-2009, 01:09 AM   #38
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Quote:
Originally Posted by DeerHunter View Post
It's not ideal as I can't run it too low without the fluid sloshing away from the pick-up under acceleration, but the Hydramist mapping only uses the right amount of methanol mix that's needed, so a tank lasts quite a while, even when lapping.
Where did the mount your nozzle(s)?
jayc72 is offline   Reply With Quote
Old 06-30-2009, 10:33 AM   #39
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Also which nozzles did you/FM use? I'd really like to know as I have the exact same setup minus the stroker.
Faeflora is offline   Reply With Quote
Old 06-30-2009, 04:43 PM   #40
Former Vendor

Join Date: Feb 2008
Posts: 128
Total Cats: 2
Default

Used the larger 2 of the 3 that come with the Hydramist. Mounted them at the IC outlet.
usd2bfst is offline   Reply With Quote
