Old 06-30-2009, 04:48 PM   #41
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Quote:
Originally Posted by usd2bfst View Post
Used the larger 2 of the 3 that come with the Hydramist. Mounted them at the IC outlet.
So before the air temp sensor and the BOV?
jayc72 is offline   Reply With Quote
Old 06-30-2009, 05:50 PM   #42
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

What if you did a taller thin tank just behind a passenger seat next to the center console? (if you even have a passenger seat in your track beast) You could use something like this 6 quart one. Just use self tapping sheet metal screws or you could bolt it into place. You could hide the pump in the truck and run supply lines through to it. This could keep the weight lower and more centered in the car if that's a concern.

cueball1 is offline   Reply With Quote
Old 06-30-2009, 05:51 PM   #43
Former Vendor

Join Date: Feb 2008
Posts: 128
Total Cats: 2
Default

Yes.
usd2bfst is offline   Reply With Quote
Old 06-30-2009, 05:52 PM   #44
Former Vendor

Join Date: Feb 2008
Posts: 128
Total Cats: 2
Default

50/50 water methanol is flammable, and burns with a clear flame.
usd2bfst is offline   Reply With Quote
Old 07-02-2009, 01:21 AM   #45
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Quote:
Originally Posted by usd2bfst View Post
50/50 water methanol is flammable, and burns with a clear flame.
So mounting pre-BOV that is VTA would be a bad idea then?

Any issue with the Link temp sensor and water/meth injection?
jayc72 is offline   Reply With Quote
Old 07-02-2009, 12:20 PM   #46
Former Vendor

Join Date: Feb 2008
Posts: 128
Total Cats: 2
Default

I have a guy coming back this fall (for more HP) who has had an Aquamist on his Link FM2 system for the last 5 years or so. I'll have a good idea when I get into it.

I'd run distilled water to hedge your bets.
usd2bfst is offline   Reply With Quote
Old 08-09-2009, 10:21 PM   #47
Elite Member
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

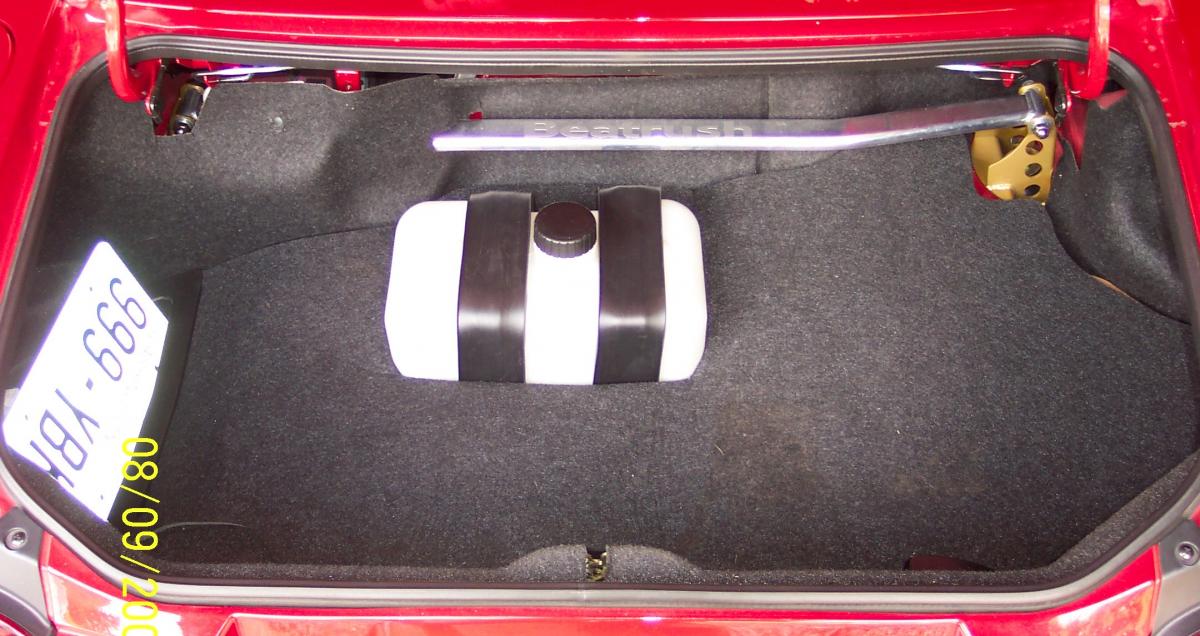

I know this is an older thread, but I came across it while searching for information on how to mount my tank. So I thought I would add my installation. It's a 2.5 gallon Devil's Own reservoir and the pump is mounted under the carpet. I used some 1" metal bands to secure it. Held it nice and solid, but I didn't care for the unfinished look. Cut up a rubber seal meant for a garage door to cover the metal bands giving it a better look. Any thoughts?
Attached Thumbnails
it shows how it mounts the tank or it gets the hose again (v. trunk-mounted tank)-methanol-tank.jpg
JayL is offline   Reply With Quote
Old 08-09-2009, 10:28 PM   #48
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

That tank looks familiar...

Looks better than my trunk. Have you plumbed the wires/hose yet?
SKMetalworks is offline   Reply With Quote
Old 08-10-2009, 12:29 AM   #49
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Will it fit between the Beatrush bar and the upper lip in front of the trunk lid? If so, I would be tempted to mount it to the top of the bar, and redo the carpet to cover it all up. The bar looks pretty beefy. Or, get a flatter, wider tank and mount it underneath the bar.
ZX-Tex is offline   Reply With Quote
Old 08-10-2009, 12:38 AM   #50
Elite Member
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Quote:
Originally Posted by sbkcocker499 View Post
That tank looks familiar...

Looks better than my trunk. Have you plumbed the wires/hose yet?
Plumbed the hose inside a fuel line and ran the entire thing under the car. I will finish it up tomorrow if I don't get hung up on anything.

Quote:
Originally Posted by ZX-Tex View Post
Will it fit between the Beatrush bar and the upper lip in front of the trunk lid? If so, I would be tempted to mount it to the top of the bar, and redo the carpet to cover it all up. The bar looks pretty beefy. Or, get a flatter, wider tank and mount it underneath the bar.
It wouldn't fit in there because it was just a little too deep. There's actually about 3 inches of the tank that is below the carpet. I wish there was an actual tank that had identical dimensions to a spare tire. I wonder how hard it would be to make one?
JayL is offline   Reply With Quote
Old 08-10-2009, 12:43 AM   #51
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by JayL View Post
It wouldn't fit in there because it was just a little too deep. There's actually about 3 inches of the tank that is below the carpet. I wish there was an actual tank that had identical dimensions to a spare tire. I wonder how hard it would be to make one?
I have considered that. IMO, if you bought some 3 or 4" PVC pipe and some 45 deg couplings, you could build a toroid (octagonal) that would fit nicely in the spare space, and have decent volume. Quick and easy. Fill it with some open-cell foam to prevent slosh, and/or use an intermediate tank like Joe Perez' sweet dual tank setup.

The harder route would be to mold a fiberglass tank to fit the well. Or hell, I wonder if tire rubber is water/meth compatible. Take a 'spare', add fittings, and viola. Well, maybe not, the wheel would probably be attacked by the methanol.
ZX-Tex is offline   Reply With Quote
Old 08-10-2009, 05:28 AM   #52
Junior Member

Join Date: Aug 2008
Posts: 118
Total Cats: 0
Default

Mounting the tank isn't actually my concern it is the routing of the feed.
rrjwilson is offline   Reply With Quote
