Default BW S252 Turbo

Left from initial sale.
trying to make it easier to manage through individual posting.
Barely used BW S252. No oil leaks or out of spec shaft play.
Great turbo for a 1.8, never had the chance to run it past 12 PSI but it spools just as good as a BB turbo.
Brand new is 1k
Selling for
$600 Shipped in the US.


Specifications.
Borg Warner S252 Turbo also known as the S200SX with 55 lbs/min flow rating

::Compressor:: (cold side)
- Wheel: 52mm Inducer / 70mm Exducer w/ Extended Tip Technology
- Housing: 3.00" air inlet / 2.50" charge pipe outlet

::Turbine:: (hot side)
- Wheel: 69mm Inducer / 61mm Exducer (Made of Inconel 713 for high-temperature operation)
- Housing: Bullseye Power Stainless Steel 0.55 A/R T3 Exhaust Housing (Custom Ordered and was $400 by itself new)

By extending the ends of the compressor wheel, BorgWarner has effectively
increased the pressure ratio, efficiency and flow of the entire compressor.

Another factor that increases the efficiency of the turbo as well as overall
flow is the height of the compressor wheel blades. The BorgWarner extended tip
version is over 20% taller than the standard 50 trim. The theory that the longer
the air stays on the blades the more boost you can run and the more air it will
flow thus improving the aerodynamics of the turbo.

This extended tip compressor
wheel is rated at more than 55 lbs/min vs. the standard 50 trim at only 49
lbs/min.

Compressor Wheel Inducer - 52mm
Compressor Wheel Exducer - 70mm
Turbine Wheel Inducer - 69mm
Turbine Wheel Exducer - 61mm
Attached Thumbnails

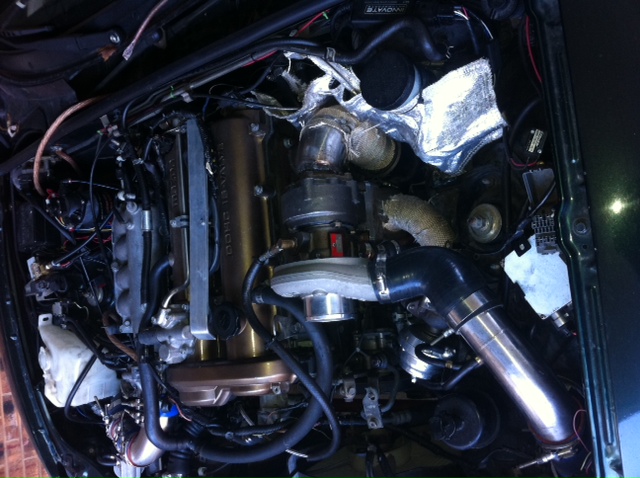

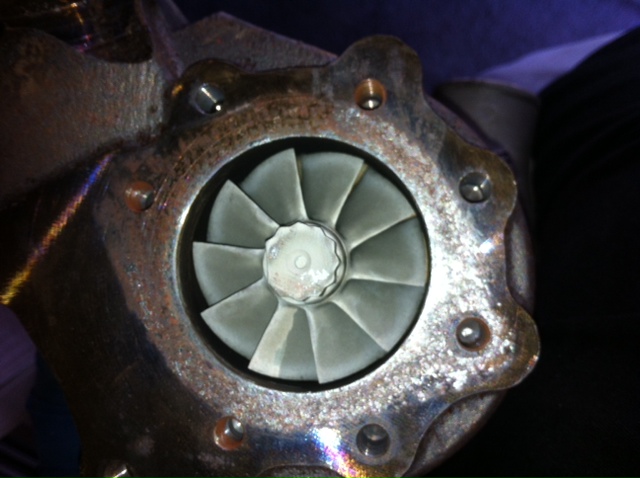

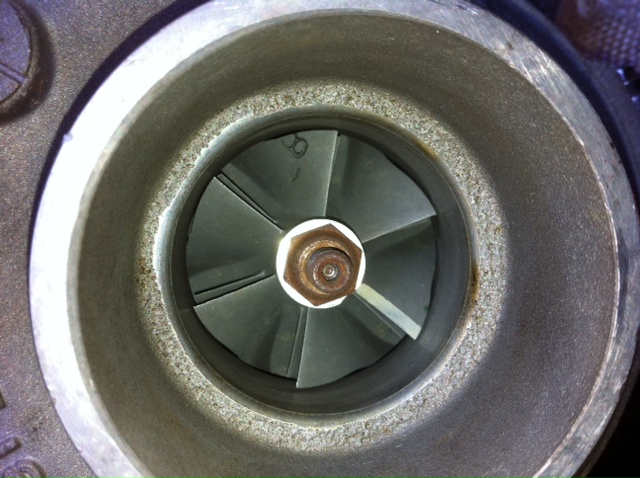

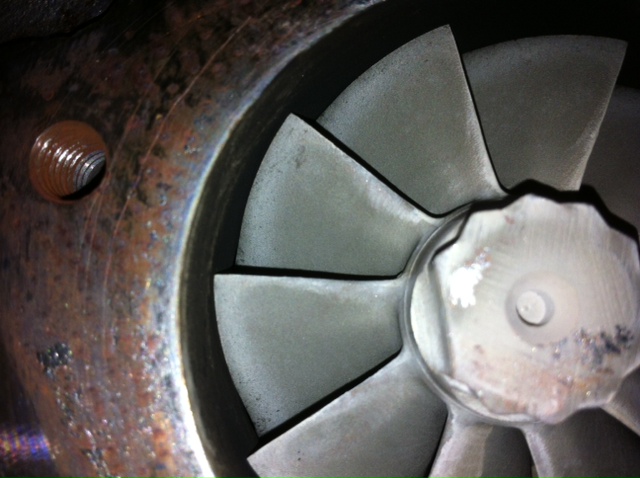

BW S252 Turbo-bw2.jpg   BW S252 Turbo-bw-1.jpg   BW S252 Turbo-bw-3.jpg   BW S252 Turbo-bw-4.jpg
musanovic is offline
Old 05-09-2012, 09:02 PM   #2
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

I think faefae needs this.
curly is offline
Old 05-09-2012, 09:22 PM   #3
Senior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2007
Location: North Cackalackey
Posts: 716
Total Cats: 2
Default

Quote:
Originally Posted by curly View Post
I think faefae needs this.
I agree it is a bad *** turbo.
musanovic is offline
Old 05-09-2012, 09:24 PM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,198
Total Cats: 2,584
Default

I wish I could see a dyno plot of this or at least a boost log on a mazda 1.8:(
18psi is offline
Old 05-09-2012, 09:42 PM   #5
Senior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2007
Location: North Cackalackey
Posts: 716
Total Cats: 2
Default

Quote:
Originally Posted by 18psi View Post
I wish I could see a dyno plot of this or at least a boost log on a mazda 1.8:(
You will be the first to show us. Max I had is 12 PSI which is nothing compared to ...... Well 24-26
musanovic is offline
Old 05-10-2012, 10:46 PM   #6
Senior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2007
Location: North Cackalackey
Posts: 716
Total Cats: 2
Default

Bump?
Come on this is a quality piece.
musanovic is offline
Old 05-12-2012, 10:14 PM   #7
Senior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2007
Location: North Cackalackey
Posts: 716
Total Cats: 2
Default

Bamp
musanovic is offline
Old 05-16-2012, 12:23 PM   #8
Senior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2007
Location: North Cackalackey
Posts: 716
Total Cats: 2
Default

bump
some more details

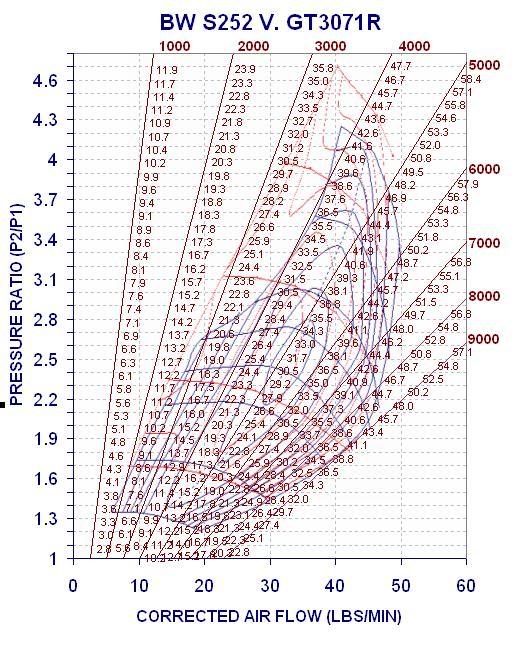

The S252 is most closely related to the GT3071R. It's rated at 55 lbs/min where the GT3071R is rated at 47lbs min. You can see in the link below where the compressor maps for both are overlayed. The S252 is in red while the GT3071R is in blue and you can see that overall it has better flow characteristics
Attached Thumbnails
BW S252 Turbo-bws252vgt3071r.jpg
musanovic is offline
Old 05-16-2012, 11:18 PM   #9
Senior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2007
Location: North Cackalackey
Posts: 716
Total Cats: 2
Default

O.G is going to be a happy BW owner.
Thanks for the buy.
musanovic is offline
Old 06-05-2012, 12:45 PM   #10
Newb

Join Date: Jun 2012
Posts: 1
Total Cats: 0
Default

i'm guessing this sold?
interviewatruins is offline
Old 06-05-2012, 01:00 PM   #11
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

What was the spool at even 12psi like, Mus?
blaen99 is offline
Old 06-08-2012, 10:16 AM   #12
Senior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2007
Location: North Cackalackey
Posts: 716
Total Cats: 2
Default

Quote:
Originally Posted by blaen99 View Post
What was the spool at even 12psi like, Mus?
it's hard to put in words.
everybody that had a ride thought it was a BB turbo.
between shifts wastegate stayed open, no boost lag.
musanovic is offline
Old 07-04-2012, 12:35 PM   #13
Senior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2007
Location: North Cackalackey
Posts: 716
Total Cats: 2
Default

Buyer backed out.
4th of July special
550$ shipped in the US
musanovic is offline
Old 07-10-2012, 10:28 AM   #14
Senior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2007
Location: North Cackalackey
Posts: 716
Total Cats: 2
Default

Nobody wants a fast miata?
bump
musanovic is offline
Old 07-10-2012, 11:51 AM   #15
Senior Member
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

How many miles are on this?
miatauser123 is offline
Old 07-10-2012, 12:14 PM   #16
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,073
Total Cats: 253
Default

Good jehovah why must you tempt me with such things
viperormiata is offline
Old 07-10-2012, 12:18 PM   #17
Senior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2007
Location: North Cackalackey
Posts: 716
Total Cats: 2
Default

Quote:
Originally Posted by Dem768 View Post
How many miles are on this?
no more than 8K
perfect condition you can still see the factory marks on the compressor wheel
musanovic is offline
Old 07-10-2012, 12:22 PM   #18
Senior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2007
Location: North Cackalackey
Posts: 716
Total Cats: 2
Default

Quote:
Originally Posted by viperormiata View Post
Good jehovah why must you tempt me with such things

time to jump on this beast. Honastly 1/2 price of a GR30R but better performance.
time to step it up a bit
I really want to see what damage this does on a built motor. 24-26PSI.
I know it made excellet power on a GTI my friend has.
he saw 350ish WHP at something like 5800RPM before he leaned out and had to let off.
musanovic is offline
Old 07-10-2012, 01:09 PM   #19
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,198
Total Cats: 2,584
Default

Get this turbo, run 20+ psi, win at life.

I'll bet it will make an easy 400 without even pushing the boost too much.

If I didn't have my 2876 already I'd get this in a heartbeat.
18psi is offline
Old 07-10-2012, 01:33 PM   #20
Senior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2007
Location: North Cackalackey
Posts: 716
Total Cats: 2
Default

Quote:
Originally Posted by 18psi View Post
Get this turbo, run 20+ psi, win at life.

I'll bet it will make an easy 400 without even pushing the boost too much.

If I didn't have my 2876 already I'd get this in a heartbeat.
Sell the 2876 lol
Thanks for the input
musanovic is offline
