Default MS3x with 1.6 PNP Harness, LS coilpacks, VTPS, prewired for everything.

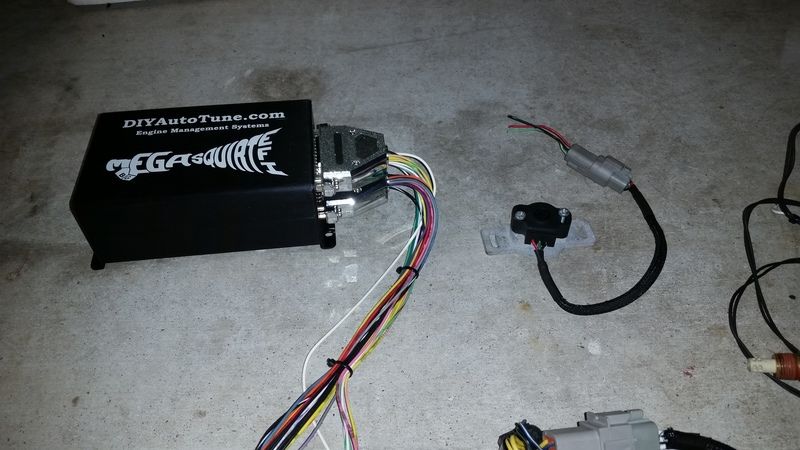

MS3x PNP for 1990 1.6 built by Braineack... Made by him less than a year ago, with less than 500 miles used on it. Works perfectly.

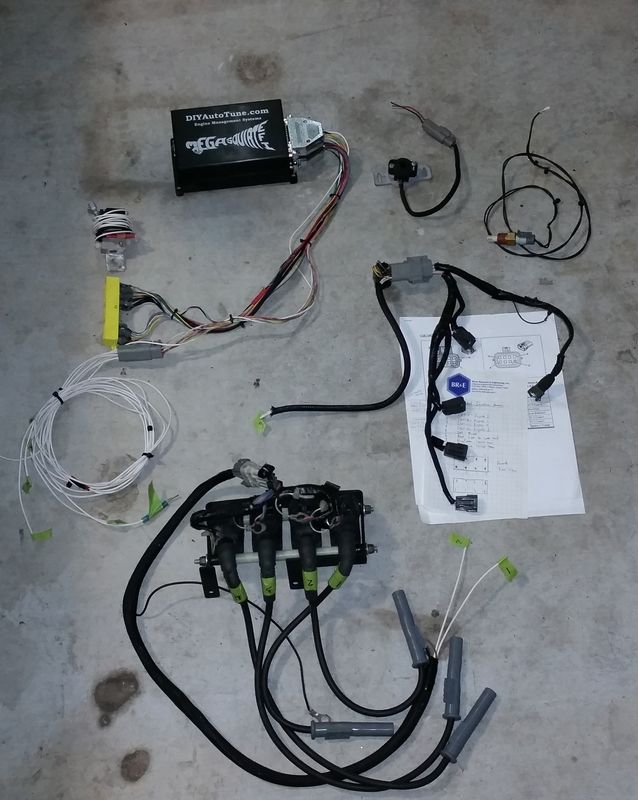

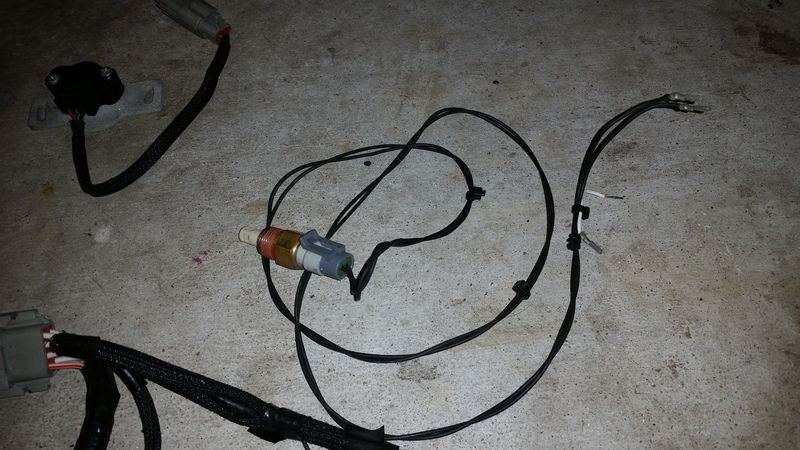

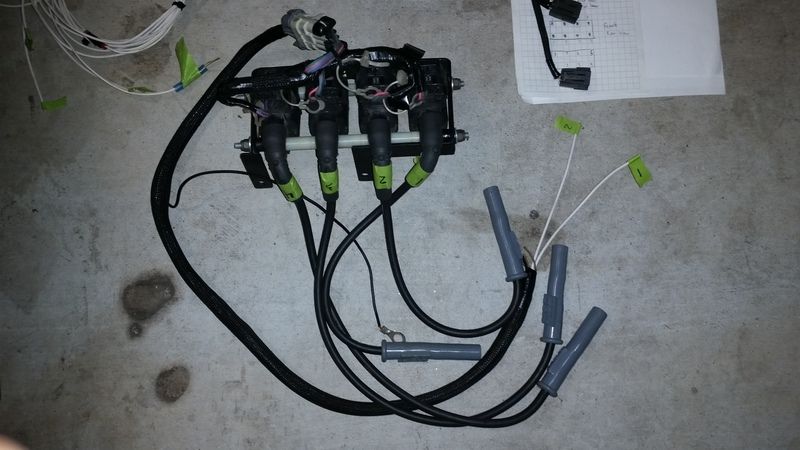

Full sequential injection/ignition, LS1 coil packs, GM electronic boost controller, Fuel injector wiring for easy connection into OEM wiring, LS1 coil packs + wiring, MSD 8.5mm spark plug wires, GM IAT sensor, jumper wire, Aluminum/Nylon 3D printed VTPS bracket with VISHNAY VTPS fits easy.

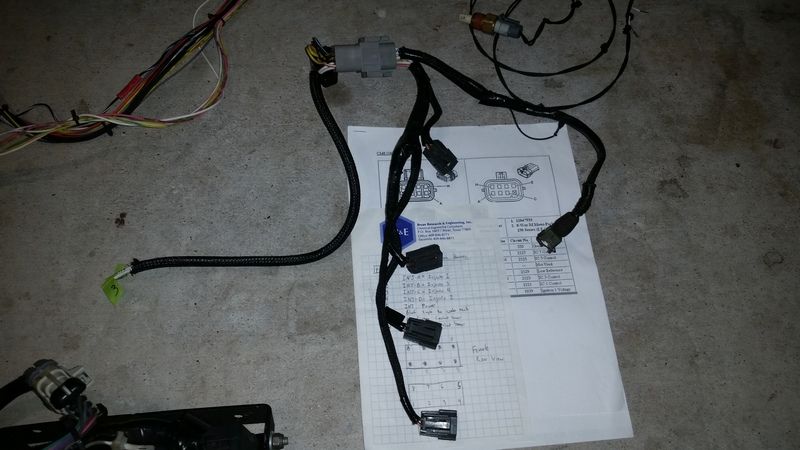

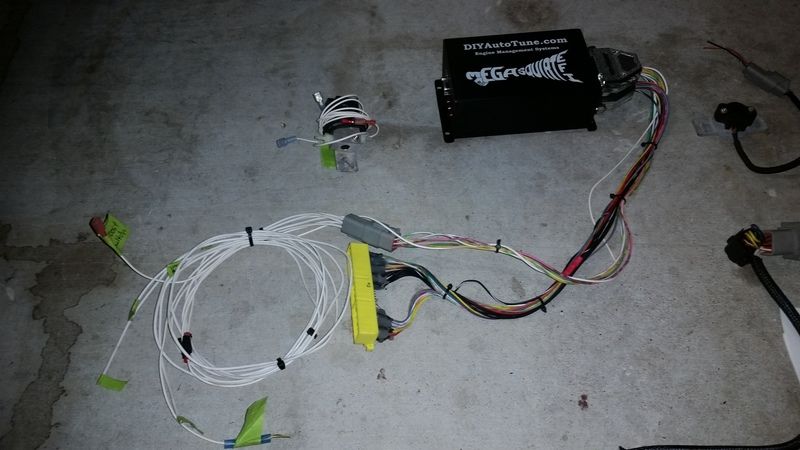

The wiring should be streamlined and everything is labeled exactly where it needs to go. I even left some of the OEM wires attached for easy match up. Also includes wiring diagrams I made. ($1500 shipped)
