Default MSM axles

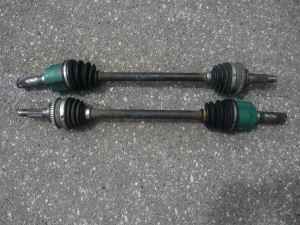

A pair of Mazdaspeed Miata half shafts. $300 obo. Email me at gibscreen_23 at yahoo dot com.
Attached Thumbnails
MSM axles-5k95h25ma3fb3i93j9c2na85482ecb0851f75.jpg
Gibscreen is offline   Reply With Quote
Old 02-24-2012, 12:43 PM   #2
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

You should team up with the guy selling the mazdaspeed torsen for cheap. He has no axles, and you kinda need both to do the swap.
miatauser884 is offline   Reply With Quote
Old 02-24-2012, 03:09 PM   #3
Junior Member
iTrader: (30)

Join Date: Jul 2011
Location: Chandler, AZ
Posts: 430
Total Cats: -11
Default

Quote:
You should team up with the guy selling the mazdaspeed torsen for cheap. He has no axles, and you kinda need both to do the swap.
+1 teamwork
Silentoreo34 is offline   Reply With Quote
Old 02-24-2012, 03:19 PM   #4
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,901
Total Cats: 109
Default

What are the differences between the Mazdaspeed and non Mazdaspeed? I thought that they would work in any Miata 1.8 diff.
miata2fast is offline   Reply With Quote
Old 02-24-2012, 03:22 PM   #5
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

I was under the impression that the MS had thicker axles.

Sorry OP, not trying to side track, just trying to help you get your stuff sold.
miatauser884 is offline   Reply With Quote
Old 02-24-2012, 03:41 PM   #6
Junior Member
iTrader: (2)

Join Date: Oct 2010
Location: Jacksonville, FL
Posts: 125
Total Cats: 0
Default

I just did this swap. The axles look the same, but may be different. I did not remove them from the CV joints, so I really can't say for sure. What is different are the CV joints. They are larger diameter where they fit into the diff, about 2mm larger if I recall. So yes, you need MSM axles (CV's anyway) to fit a MSM diff.
bobbiemartin is offline   Reply With Quote
Old 02-24-2012, 03:54 PM   #7
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,901
Total Cats: 109
Default

The CV would have nothing to do with axles fitting in the diff.
miata2fast is offline   Reply With Quote
Old 02-24-2012, 04:03 PM   #8
Junior Member
iTrader: (2)

Join Date: Oct 2010
Location: Jacksonville, FL
Posts: 125
Total Cats: 0
Default

Quote:
Originally Posted by miata2fast View Post
The CV would have nothing to do with axles fitting in the diff.
The axles do not fit into the diff, the CV does. The axles fit into the (inner) CV joint. I can't say if the axles are different, but the splined end of the CV joint is larger where it fits into the diff.

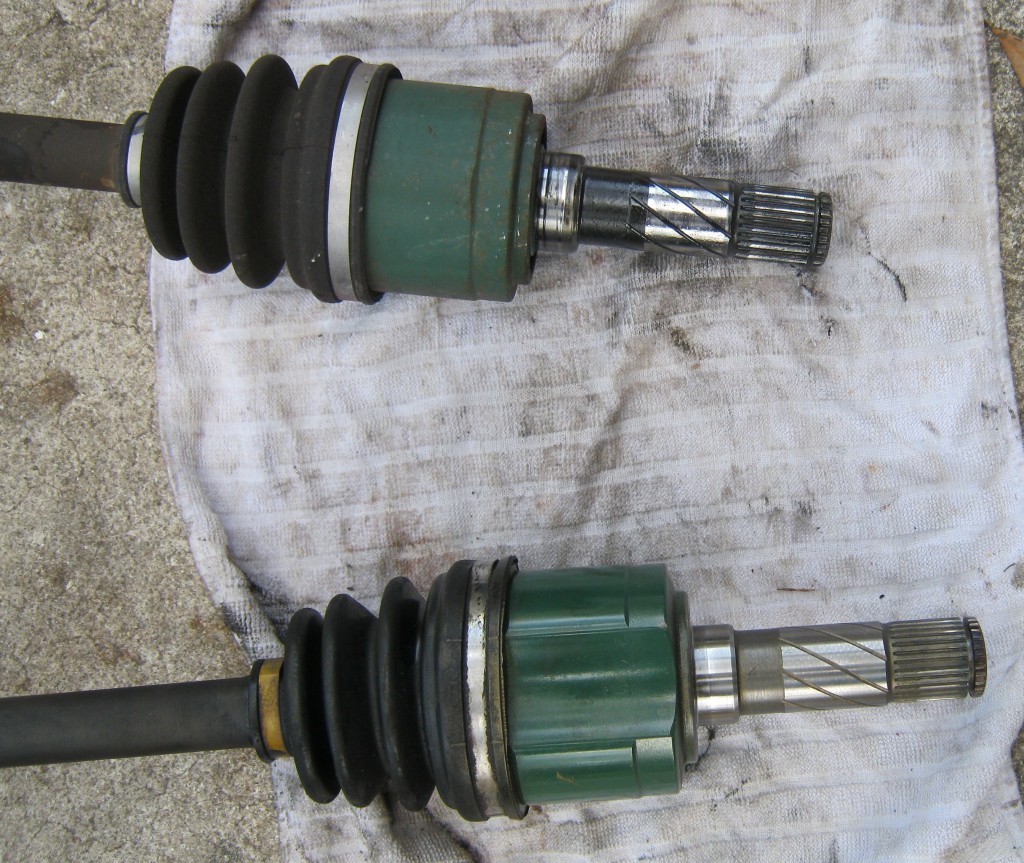

That is a standard Miata inner CV joint & axle on the top, MSM on the bottom. On the CV joint, the seal area is the same, everything past there to the splined end is a larger diameter on the MSM CV joint. As I recall, 28mm vs 30mm.
Attached Thumbnails
MSM axles-msmaxles001.jpg
bobbiemartin is offline   Reply With Quote
Old 02-24-2012, 04:53 PM   #9
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,901
Total Cats: 109
Default

Thanks for the clarification. When you said CV, I thought you were strictly refering to the joint itself. I thought that you meant the joint was more robust.

Correct me if I am wrong, but I considered the smooth and splined area to be axle shafts, and only the joint to be the CV, thus creating a shaft in multiple parts with the CV joining them.
miata2fast is offline   Reply With Quote
Old 02-24-2012, 05:04 PM   #10
Junior Member
iTrader: (2)

Join Date: Oct 2010
Location: Jacksonville, FL
Posts: 125
Total Cats: 0
Default

Quote:
Originally Posted by miata2fast View Post
Thanks for the clarification. When you said CV, I thought you were strictly refering to the joint itself.
I pretty much was doing that
Quote:
I thought that you meant the joint was more robust.
It's bigger, so I would say yes, it probably is
Quote:
Correct me if I am wrong, but I considered the smooth and splined area to be axle shafts, and only the joint to be the CV, thus creating a shaft in multiple parts with the CV joining them.
The splined area in my pic is part of the CV joint as is the entire green area. The rubber boot covers part of the CV joint, I suppose one could argue both ways on if the boot is part of the CV joint. It will work without the boot, but not for very long. The axle is the round shaft between the inner and outer CV joints. Typically, its splined and snaps in the CV joint, under the rubber boots. Hope this makes sense.
bobbiemartin is offline   Reply With Quote
