Old 04-11-2007, 03:20 PM   #1
Newb
Thread Starter

Join Date: Dec 2006
Posts: 27
Total Cats: 0
Default NA6 NIB Sparco Spring - SoCal 909

Bought these brand new in box. They appear to be old stock. Never installed, zero miles of use. Paid 125 for them so asking for the same. Shiping should be no more than 15-20 bucks.

Email: [email protected]
location: Fontana, CA 92336

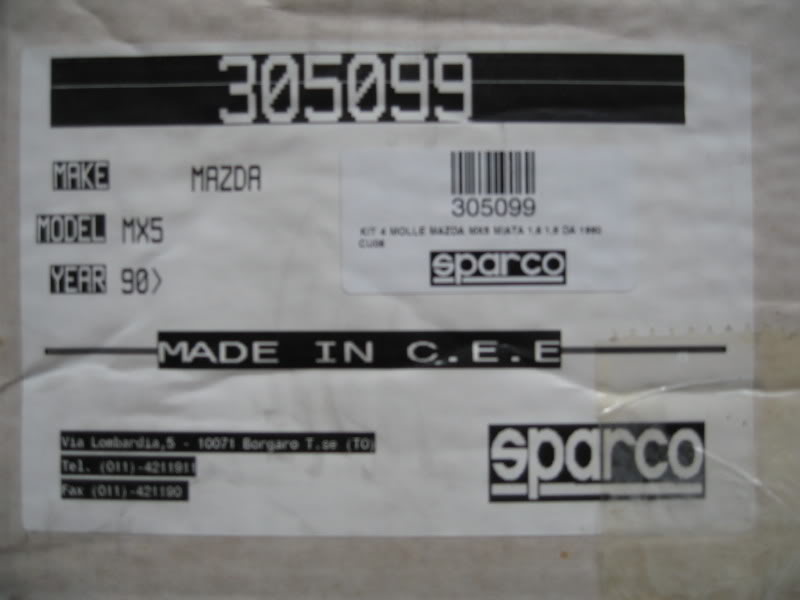

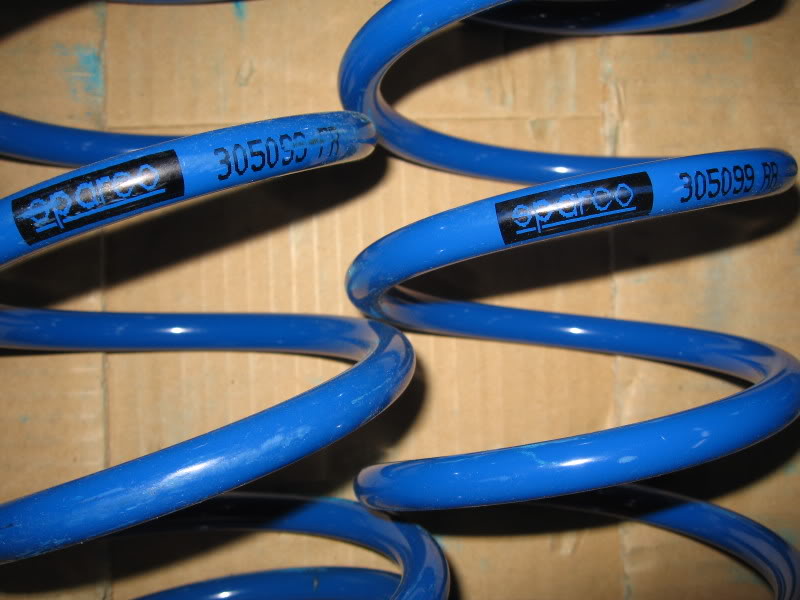

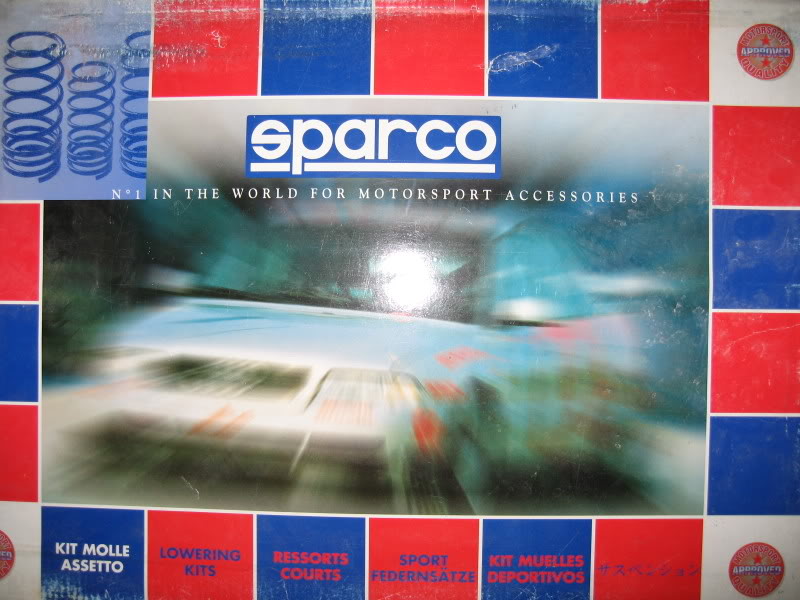

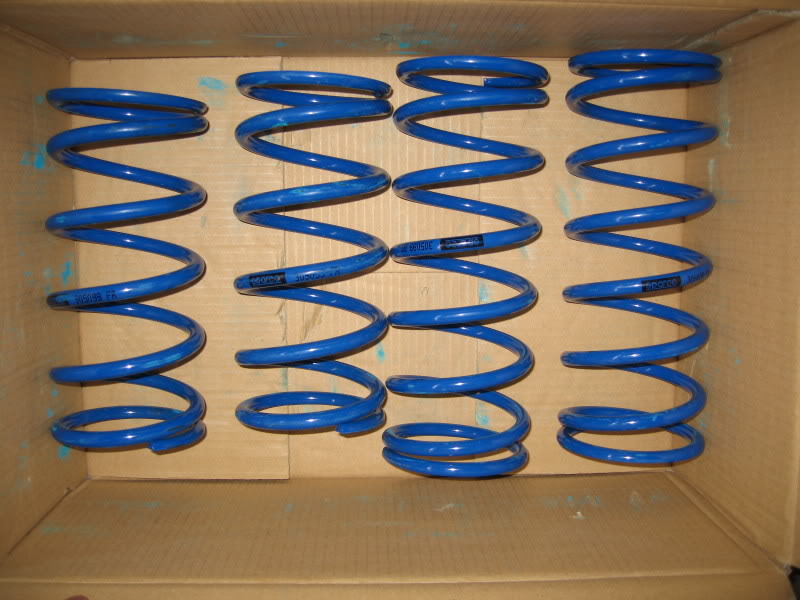

It has original manual form so I tried to look for spring rates, but could not find any info on them. Only came out with the below info if any one can determine spring rate from it. They are stiffer than stock, but slightly softer than Tein S-tech from my personal body weight compression testing.

Spring Type: Linear
Outside Diameter: 106mm
Wire Size: 10,75mm / 10,25mm
Spring Length: 235mm/275mm (f/r)
Max load: 625kg / 645kg
Total number of turns: 6,25 / 7,75

Name:  IMG_2659.jpg
Views: 1
Size:  82.9 KB
Name:  IMG_2656.jpg
Views: 1
Size:  38.2 KB
Name:  IMG_2657.jpg
Views: 1
Size:  79.6 KB
Name:  IMG_2658.jpg
Views: 1
Size:  64.0 KB
griplimited is offline   Reply With Quote
Old 04-11-2007, 04:12 PM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

whoa!
hustler is offline   Reply With Quote
Old 04-12-2007, 01:32 PM   #3
Newb
Thread Starter

Join Date: Dec 2006
Posts: 27
Total Cats: 0
Default

125 shipped, 100 picked up
griplimited is offline   Reply With Quote
Old 04-18-2007, 05:12 AM   #4
Newb
Thread Starter

Join Date: Dec 2006
Posts: 27
Total Cats: 0
Default

ttt
griplimited is offline   Reply With Quote
Old 04-18-2007, 10:02 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

K = Gd^4/8ND^3

where

G = shear modulus | (~11.0 X 10^6 psi) | 11000000
d = wire diameter | 0.423 F / 0.403 R
N = # of coils | 6.25 F / 7.75 R
D = coil diameter | (wire center to center) 4.173

so

F: 99.129 Lbs. R: 65.862 Lbs.

FWIW OEM NB springs are 154/105 FR....maybe i did the math wrong?
Braineack is offline   Reply With Quote
Old 04-18-2007, 01:16 PM   #6
Newb
Thread Starter

Join Date: Dec 2006
Posts: 27
Total Cats: 0
Default

hmm. Well from body weight compression, the front sparco spring is much harder to compress than the rear of my Tein Stech at 174#. The height is slightly higher than the Teins all around.
griplimited is offline   Reply With Quote
Old 04-20-2007, 05:03 PM   #7
Newb
Thread Starter

Join Date: Dec 2006
Posts: 27
Total Cats: 0
Default

somebody pls take em outa here.
griplimited is offline   Reply With Quote
Old 05-24-2007, 07:54 AM   #8
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Still have them? I'll give them a try for $100 shipped to 60002
lazzer408 is offline   Reply With Quote
Old 05-24-2007, 11:08 AM   #9
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

~350lbs.

I think its like K x .55 or something close. I ran 16k/14k.... and it equated to about 900/800lbs on my civic.
Splitime is offline   Reply With Quote
Old 05-24-2007, 11:49 AM   #10
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

damn how did i miss this thread they still for sale?
magnamx-5 is offline   Reply With Quote
Old 05-25-2007, 12:01 AM   #11
I'm Miserable!
iTrader: (3)

Join Date: Apr 2007
Location: Lynchburg,VA
Posts: 55
Total Cats: 0
Default

Pics of them on car ?
gonzoe91na is offline   Reply With Quote
Old 05-25-2007, 02:31 PM   #12
Newb
Thread Starter

Join Date: Dec 2006
Posts: 27
Total Cats: 0
Default

Currently pending sale.
griplimited is offline   Reply With Quote
Old 05-26-2007, 01:43 AM   #13
Newb
Thread Starter

Join Date: Dec 2006
Posts: 27
Total Cats: 0
Default

Sold
griplimited is offline   Reply With Quote
Old 06-04-2007, 05:24 PM   #14
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Well that didn't work out. They can't hold the stock weight of the car on an empty tank with no one in it. Bottomed out.

Anyone else have springs that maintain the stock ride height but stiffer? Or recomend something?

Blue Sparco springs forsale. Best offer.
lazzer408 is offline   Reply With Quote
Old 06-04-2007, 09:09 PM   #15
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,363
Total Cats: 1,323
Default

Quote:
Originally Posted by Splitime View Post
~350lbs.

I think its like K x .55 or something close. I ran 16k/14k.... and it equated to about 900/800lbs on my civic.
56 lb.in per kg/mm. (could be kg/cm)
Savington is offline   Reply With Quote
