Default VIBRANT Intercooler - Bolt on custom intercoolers

I picked up a small number of Vibrant intercoolers, one as an upgrade for my car and figured I could save a couple of you guys some money if I made a few of them all at once.

This is the basic design to get things started - The final shipped versions will be fully reinforced and tig welded. This is a bolt in intercooler for the NB Miata.

This design keeps great ground clearance, good and high pipe routing and is ready for some big power setups. Recommended for the 250+ crowd.

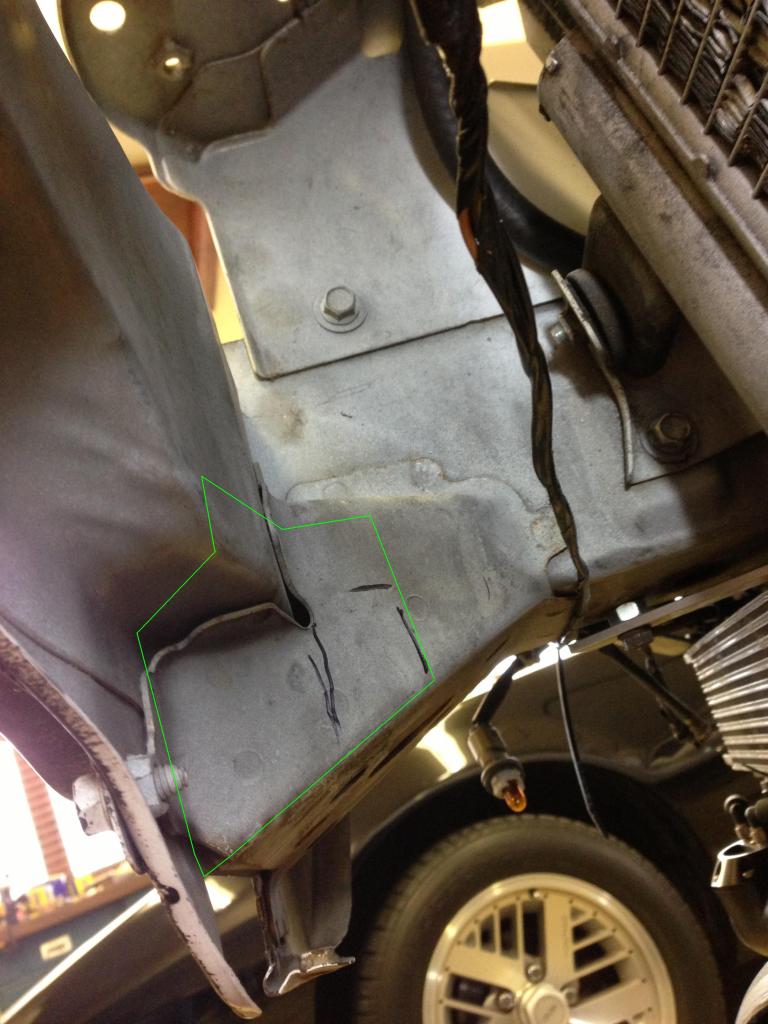

For installation of such a big core you'll need to cut away some material outlined in this illustration. The intercooler will be complete with a better template:

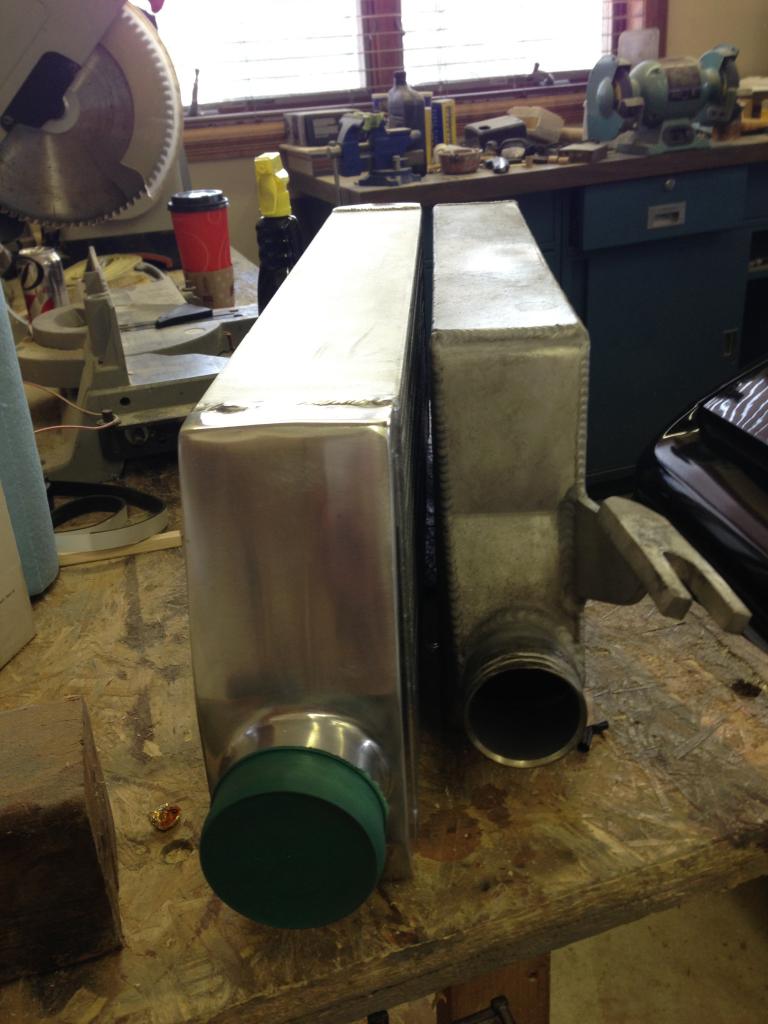

Here is a photo next to the BEGI #3 intercooler.

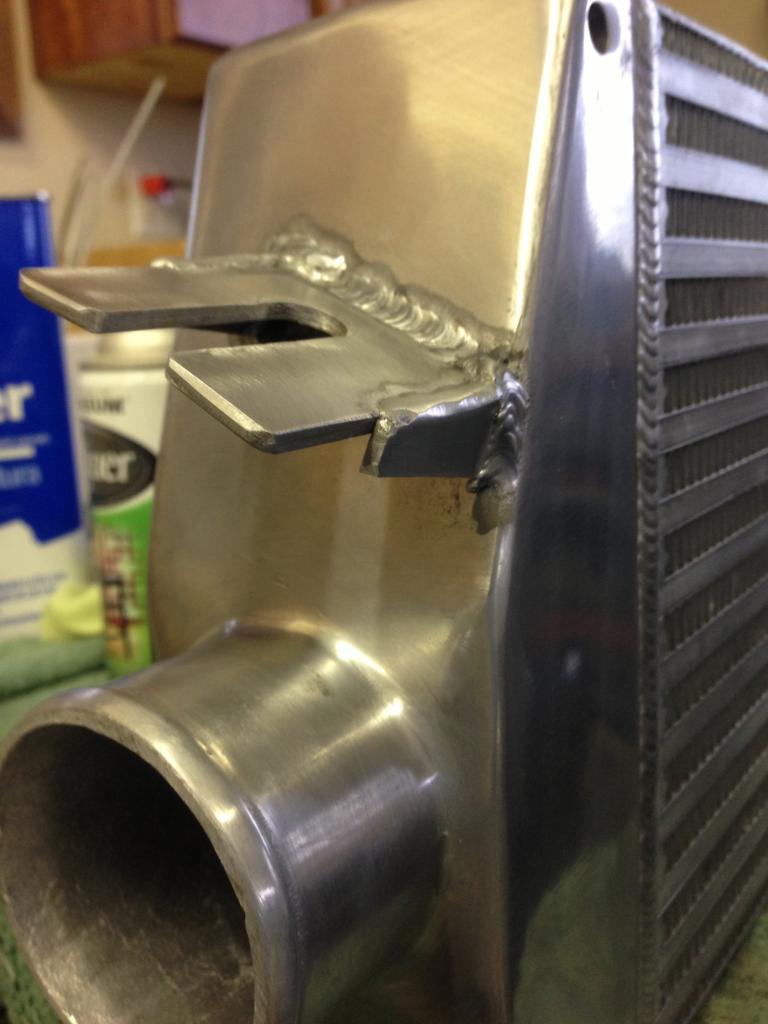

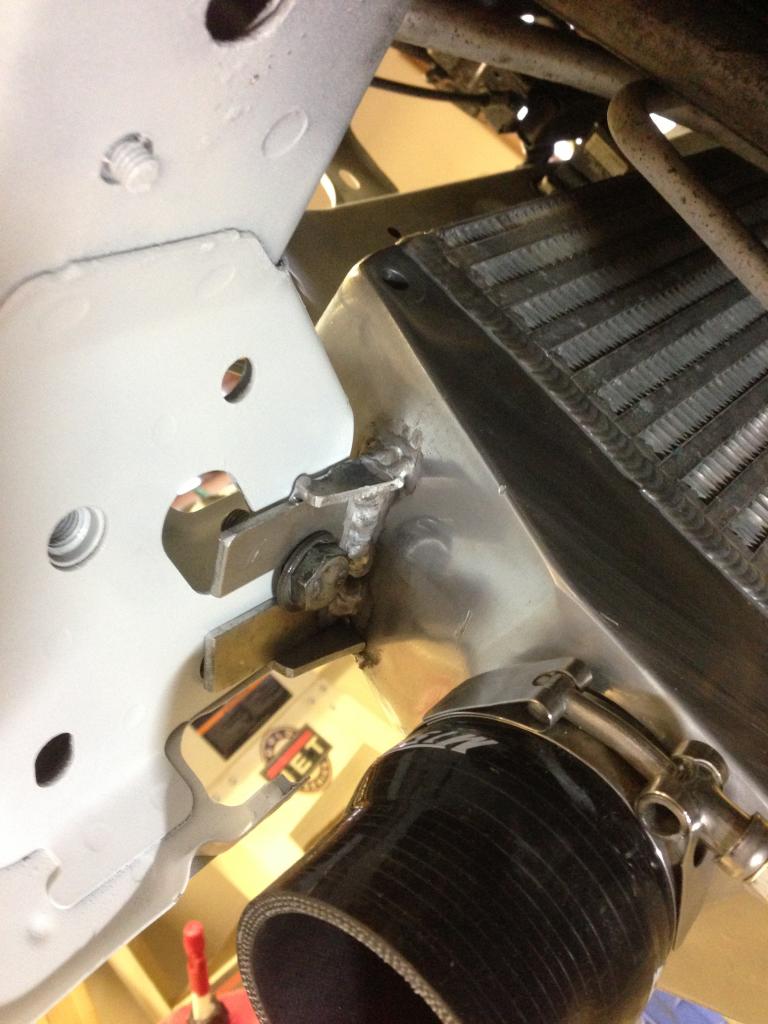

Here is a photo of the mounting point. You can use the same location that the BEGI intercooler is mounted to.


As you can see it tucks up nicely behind the crash beam:

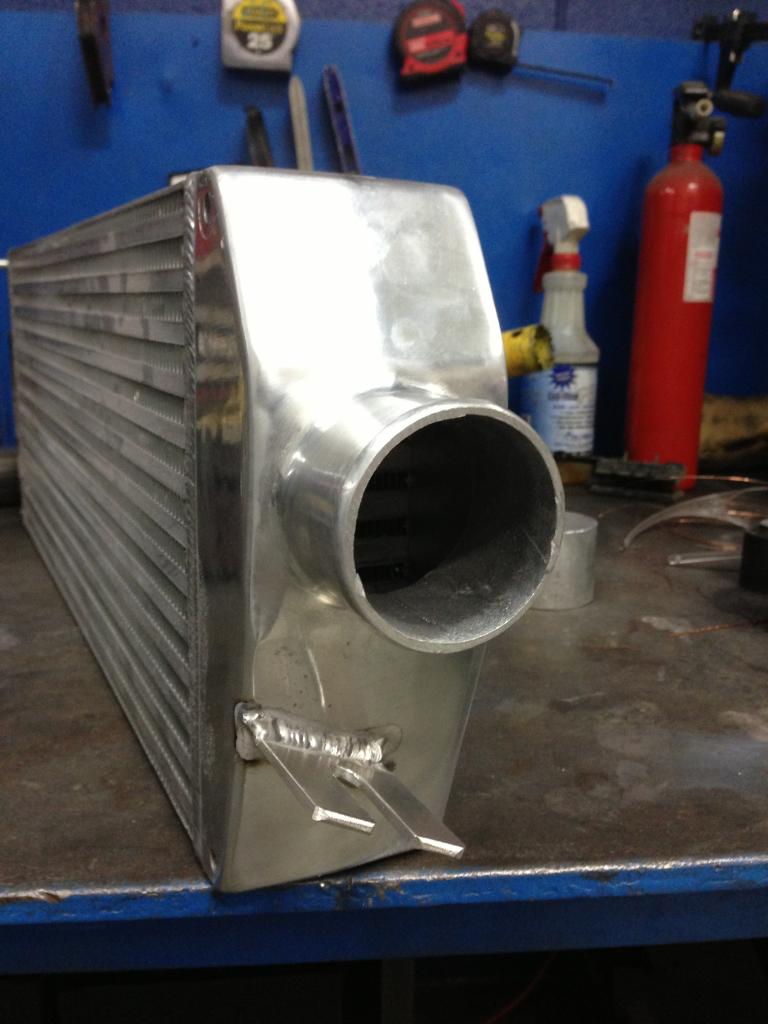

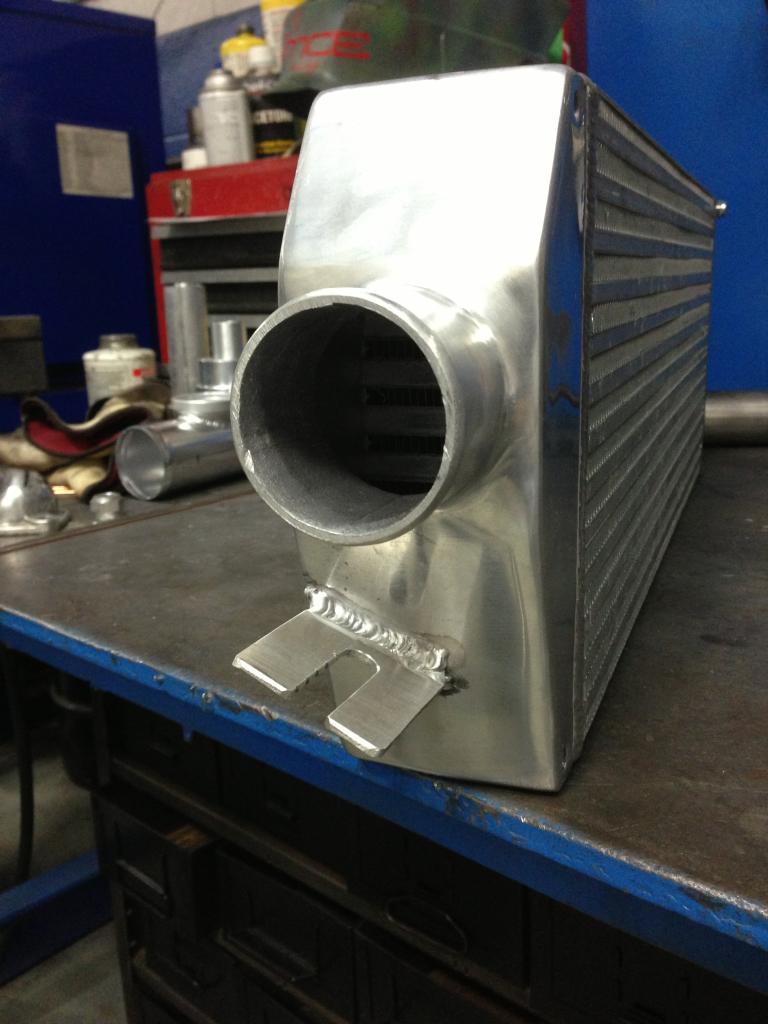

Here are some specs on the intercooler core:

Vibrant Bar and Plate Intercoolers are designed and built to provide superior cooling efficiency and overall durability compared to tube and fin style intercoolers, resulting in these cores being suitable for even the most extreme racing conditions.


Intercooler Dimensions
----------------------

Core Width: 24" (Overall Width with End Tanks: 30")
Core Height: 9.25"
Core Thickness: 3.25"
Inlet Diameter: 2.50"
Outlet Diameter: 2.50"
Inlet/Outlet Neck Location: Offset


Intercooler Specifications:
---------------------------

Approx. Flow Rate for this intercooler: 725 CFM at 1.5PSi pressure drop
Approx. HP Rating for this intercooler: 550 HP

Asking price is 300 shipped within the US. I only have a couple of these as of now so I apologize. SEND PM FOR PAYMENT INSTRUCTIONS
Attached Thumbnails
VIBRANT Intercooler - Bolt on custom intercoolers-picture020_zps3ea3537f.jpg   VIBRANT Intercooler - Bolt on custom intercoolers-picture019_zpsadba495a.jpg   VIBRANT Intercooler - Bolt on custom intercoolers-picture008cut_zps5e5d9696.jpg   VIBRANT Intercooler - Bolt on custom intercoolers-picture006_zps33f783c8.jpg   VIBRANT Intercooler - Bolt on custom intercoolers-picture022_zps17d816f3.jpg


Last edited by miatauser123; 01-29-2013 at 12:31 AM.
miatauser123 is offline
Old 01-28-2013, 11:55 PM   #2
Elite Member
iTrader: (6)

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

Since my intercooler is all boxed up from the move anyone have a pic of where the pipes locate on the FMII setup? Would like to compare to see if it comes remotely close. Wouldn't mind a better intercooler, but don't want to mess with hoses too.
TorqueZombie is offline
Old 01-29-2013, 12:29 AM   #3
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

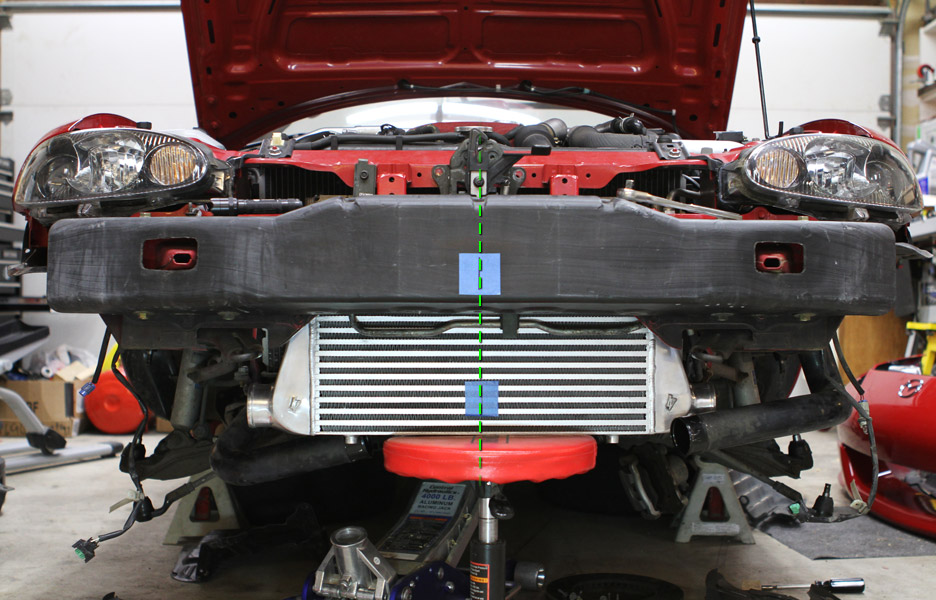

Should be about 1-2 inches higher inlet and outlet. If I recall correctly the FM kit should have enough silicone to make these adjustments without much modification, if any.

Attached Thumbnails
VIBRANT Intercooler - Bolt on custom intercoolers-image_zps13c5fc1a.jpeg
miatauser123 is offline
Old 01-29-2013, 01:16 AM   #4
Elite Member
iTrader: (6)

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

Got a pic of it with the bumper on? I might dig mine out and gauge a ball park tomorrow. Would like one to replace my FM (smaller version) intercooler. The FM lines are all silicone. One for the hot side and two for the cold with a small metal piece for the BOV and AIT sensor just before the throttle. I like my hoses, can't weld, and not paying some local jack-hole to screw it up.
TorqueZombie is offline
Old 01-29-2013, 01:24 AM   #5
Newb

Join Date: Oct 2011
Location: good old NJ
Posts: 37
Total Cats: 0
Default

pmed
weak_sauce is offline
Old 01-29-2013, 09:35 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

I want the little BEGi one.
Braineack is offline
Old 01-29-2013, 11:14 AM   #7
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

2 allocated and paid for. 1-pending. If I get two more today we will just end up making a couple more for you guys.
miatauser123 is offline
Old 01-30-2013, 11:41 AM   #8
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

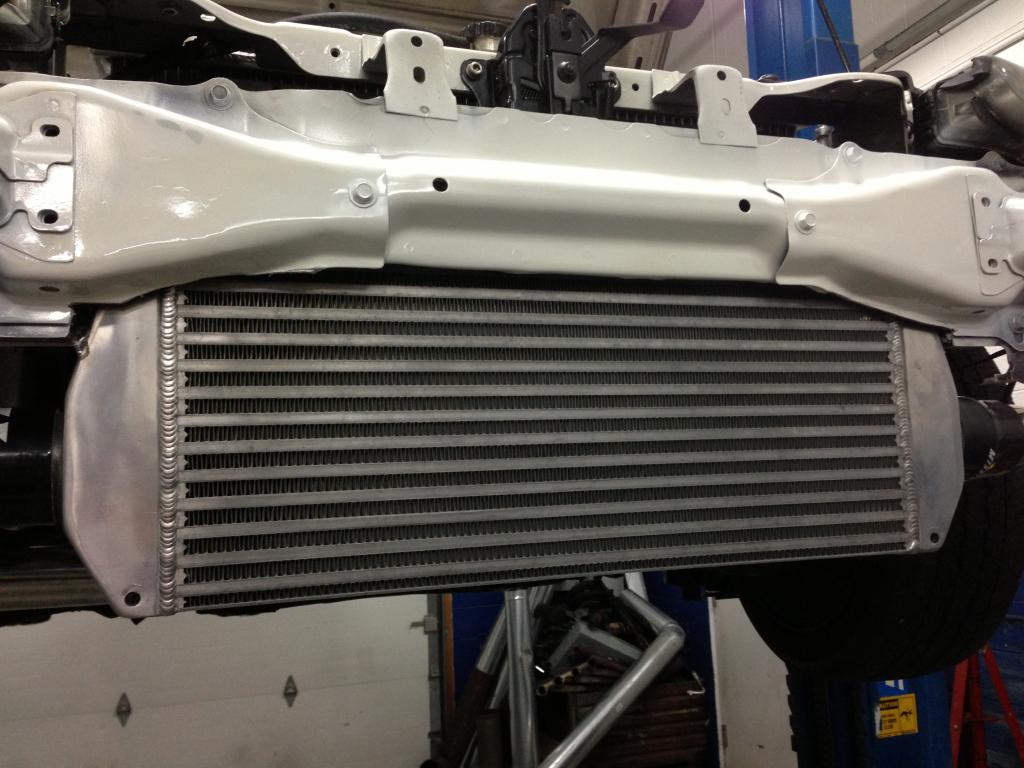

A couple of updates for you guys:


Attached Thumbnails
VIBRANT Intercooler - Bolt on custom intercoolers-picture020_zps03506b33.jpg   VIBRANT Intercooler - Bolt on custom intercoolers-picture021_zpsf79fe706.jpg
miatauser123 is offline
Old 01-31-2013, 10:43 AM   #9
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

One more of these from the first batch left guys.
miatauser123 is offline
Old 01-31-2013, 01:33 PM   #10
Senior Member
iTrader: (8)

paNX2K&SE-R's Avatar

Join Date: Dec 2007
Location: Mocksville, NC
Posts: 676
Total Cats: 11
Default

Do you think there would be any way to use the standard BEGi piping with it?
paNX2K&SE-R is offline
Old 01-31-2013, 02:43 PM   #11
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by paNX2K&SE-R View Post
Do you think there would be any way to use the standard BEGi piping with it?
YES! You do need to change your coupler size though. The inlet is 2.5 on the new intercooler and the BEGi is 2 inch.
miatauser123 is offline
Old 02-01-2013, 12:33 PM   #12
Senior Member
iTrader: (8)

paNX2K&SE-R's Avatar

Join Date: Dec 2007
Location: Mocksville, NC
Posts: 676
Total Cats: 11
Default

Another question just hit me, is it also compatible with a/c?
paNX2K&SE-R is offline
Old 02-01-2013, 02:06 PM   #13
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by paNX2K&SE-R View Post
Another question just hit me, is it also compatible with a/c?
Absolutely - I still have AC on my car.
miatauser123 is offline
Old 02-03-2013, 11:08 AM   #14
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

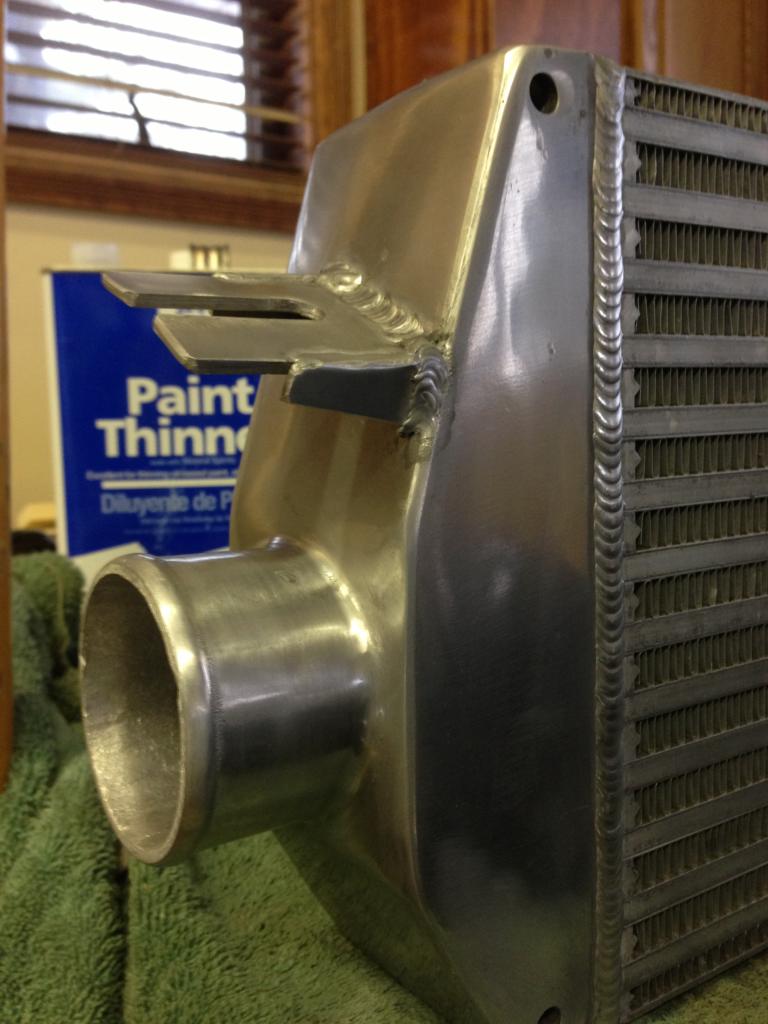

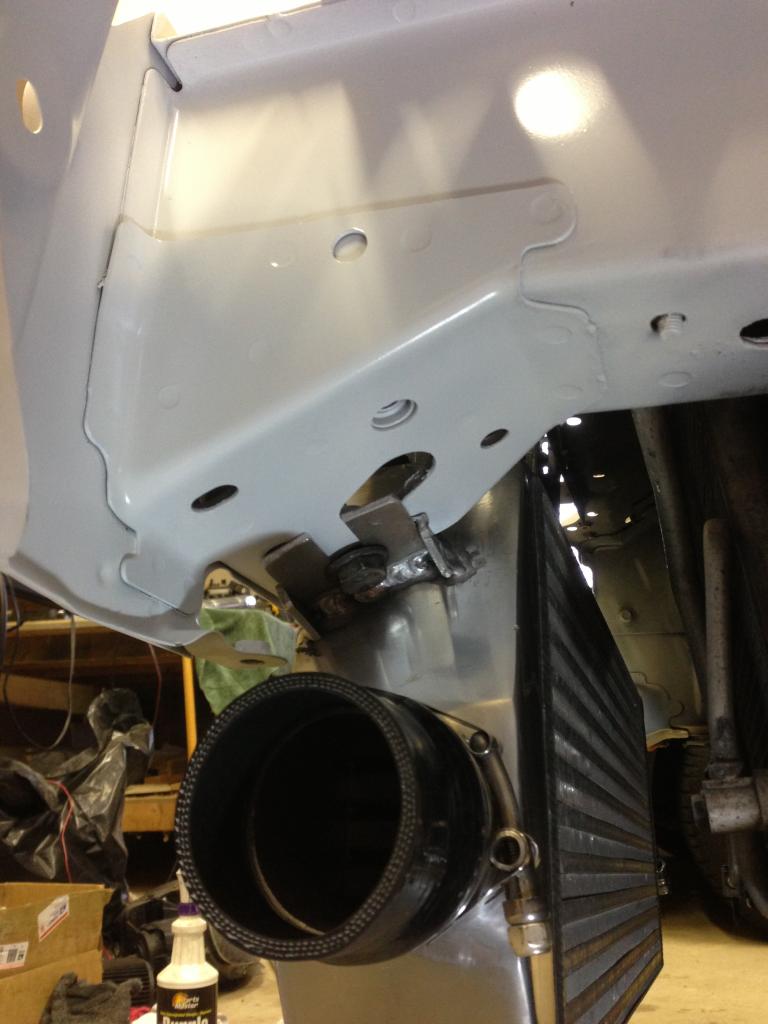

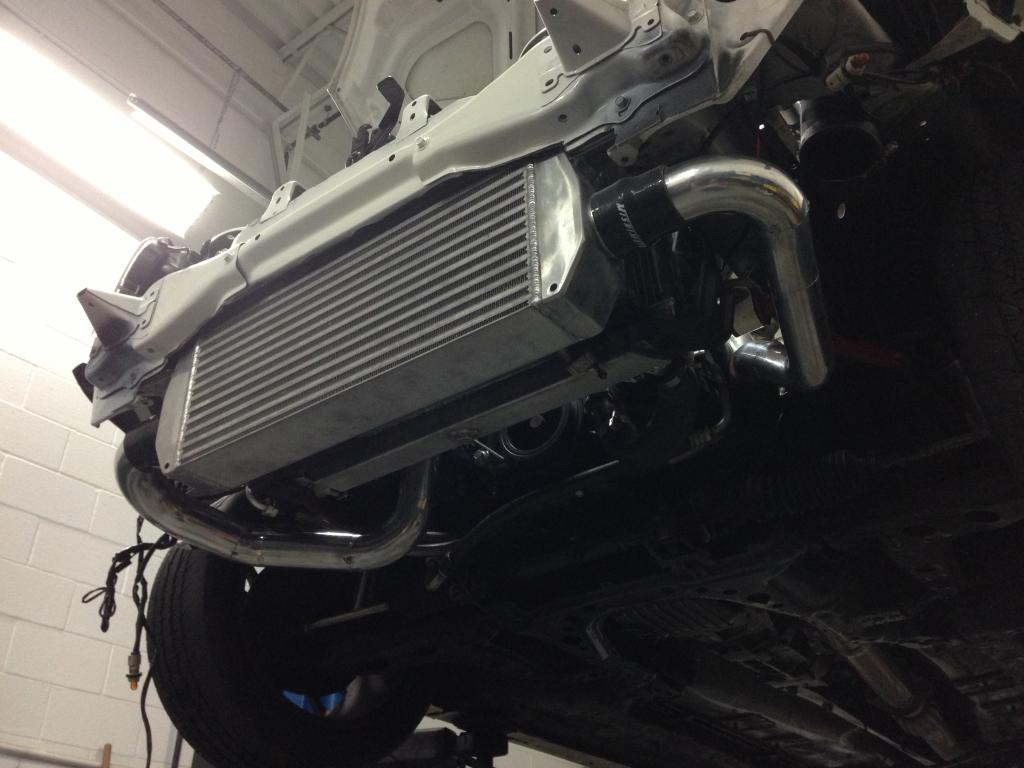

Updated pictures of the completed intercooler:

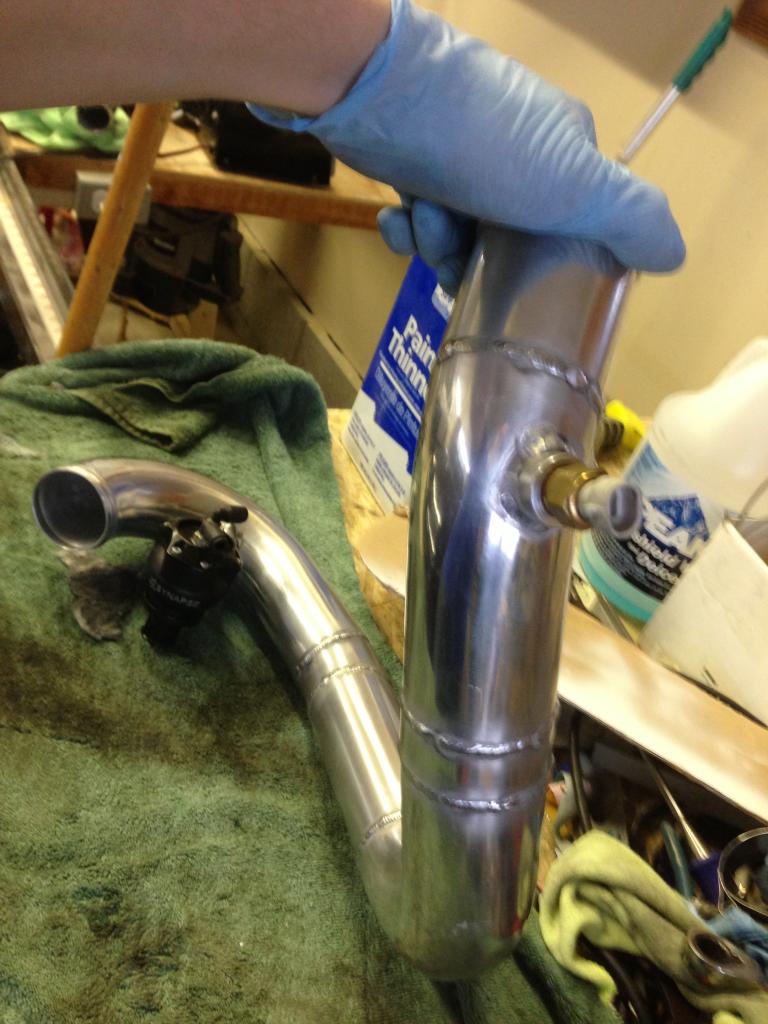

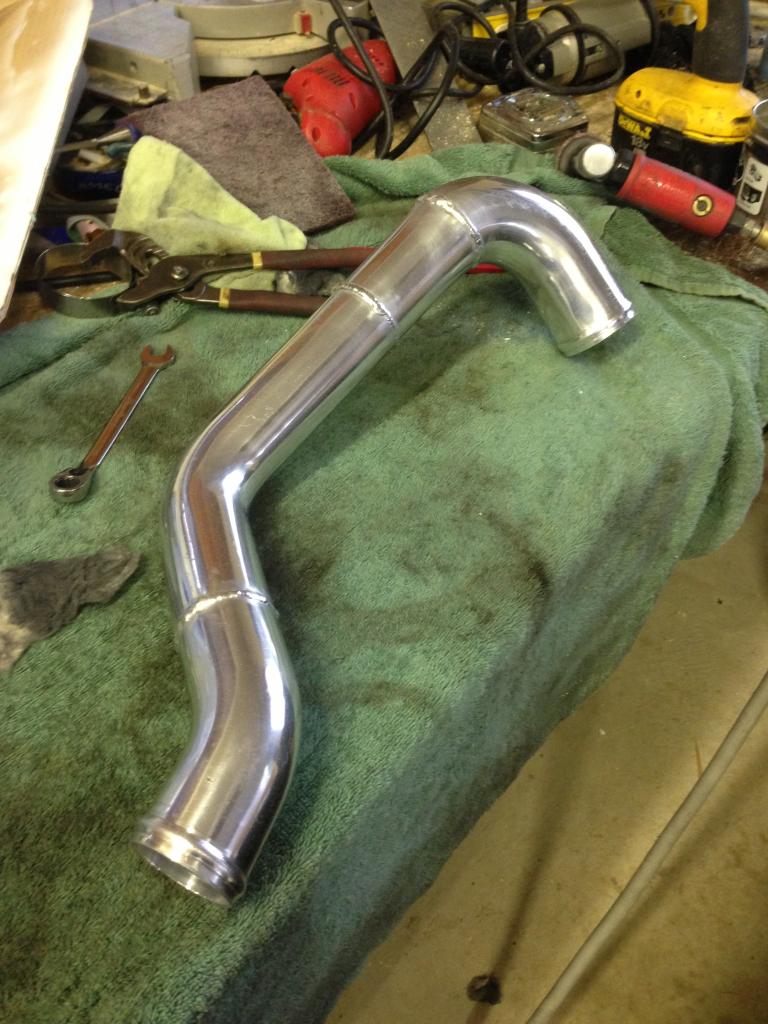

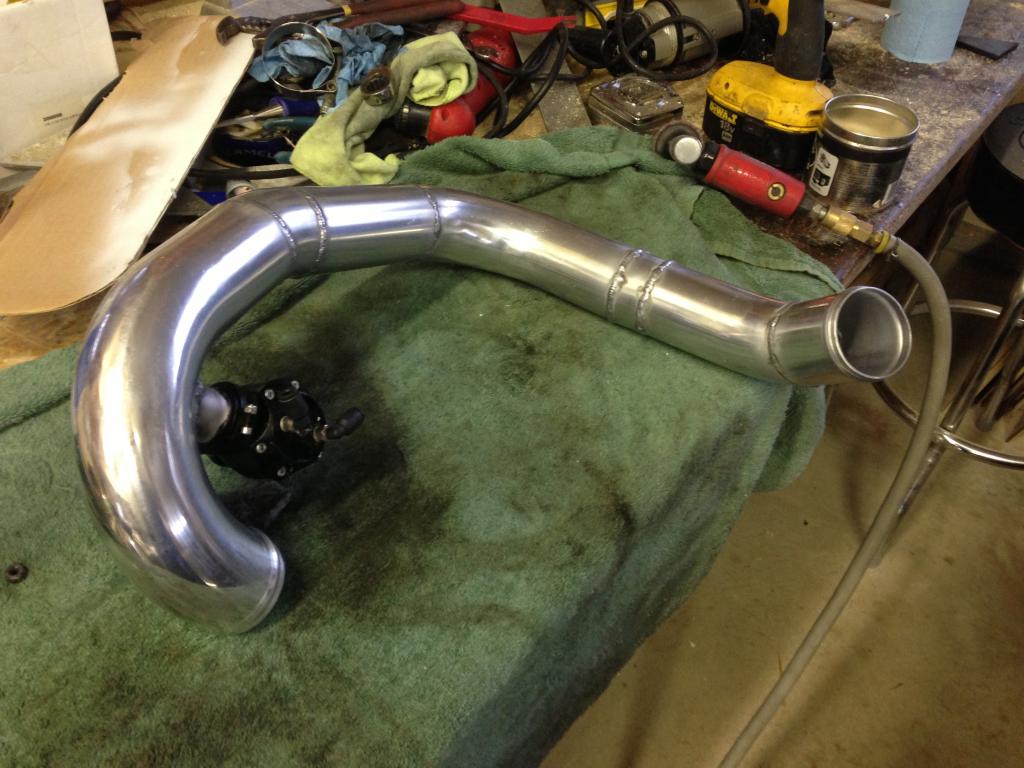

Unrelated really but I figured I'd give you guys a peek at my new IC pipes.


Attached Thumbnails
VIBRANT Intercooler - Bolt on custom intercoolers-image_zps9915753a.jpeg   VIBRANT Intercooler - Bolt on custom intercoolers-image_3_zps0d5471f4.jpeg   VIBRANT Intercooler - Bolt on custom intercoolers-image_8_zps8e8ec588.jpeg   VIBRANT Intercooler - Bolt on custom intercoolers-image_7_zpsff5df45b.jpeg   VIBRANT Intercooler - Bolt on custom intercoolers-image_6_zpsd60dc756.jpeg

VIBRANT Intercooler - Bolt on custom intercoolers-image_5_zps02afa91d.jpeg   VIBRANT Intercooler - Bolt on custom intercoolers-image_4_zpsde11ba30.jpeg
miatauser123 is offline
Old 02-03-2013, 12:37 PM   #15
Newb

Join Date: Oct 2011
Location: good old NJ
Posts: 37
Total Cats: 0
Default

How much do you actually have to trim? Doesnt seem like much from the photos
weak_sauce is offline
Old 02-03-2013, 08:48 PM   #16
Junior Member
iTrader: (3)

Join Date: Sep 2010
Location: Austin
Posts: 208
Total Cats: -2
Default

I'm local, will these fit a NA?
xcoldricex is offline
Old 02-03-2013, 10:55 PM   #17
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

You don't need to trim a ton but its thick metal.

The share the same bumper support so I'd imagine. I'd like to test fit if you're able to make it out. Shoot me a pm and let me know.
miatauser123 is offline
