Default MM9093 Daughter Board Schematic

So I'm once again going the MS route but this time I wanted to update the MS1 to an MS2 or MS3. But before I started modding, I wanted to better understand the MM9093. I could find the v3.57 main board schematics easily but for the life of me I couldn't find the schematics for the MM9093 daughter board. So I decided to the ohm out the board and create a schematic for my own use. Since I'm not the selfish type, I wanted to share it with the community. Give it a look see, let me know if I missed anything. Thanks.

I also included the schematic in PDF format. It makes searching for signals easier.

Regards,

Lee
Attached Thumbnails

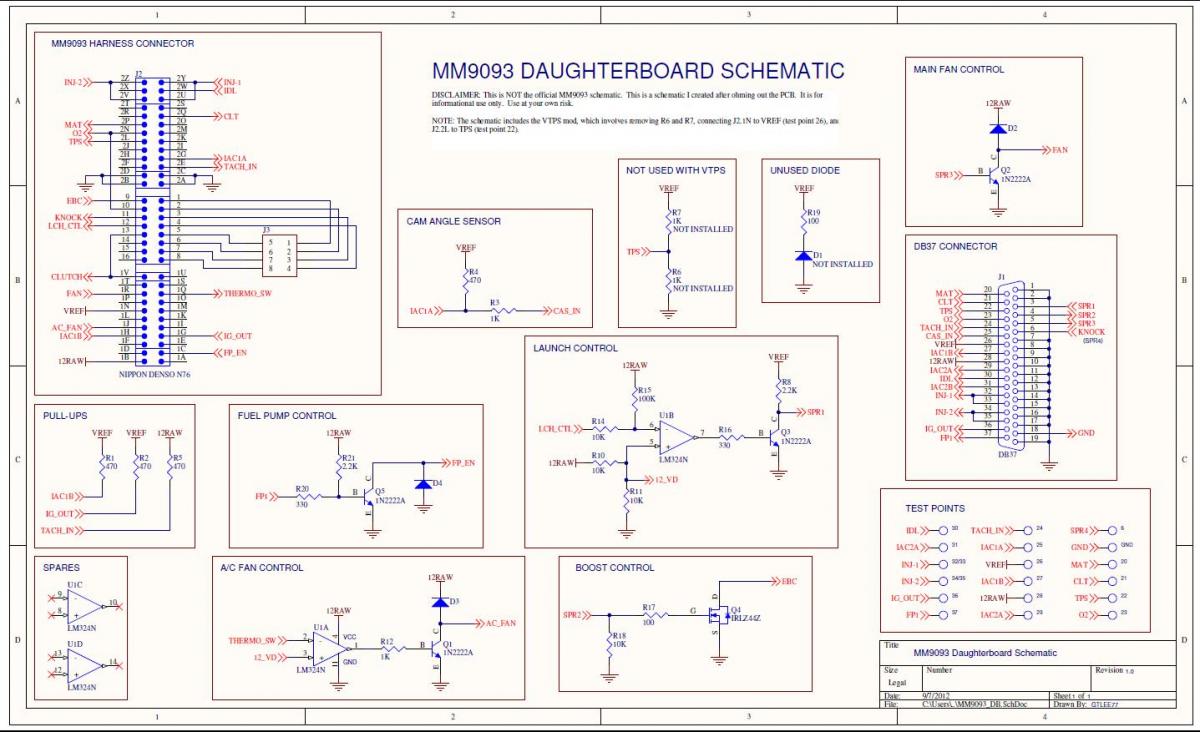

MM9093 Daughter Board Schematic-mm9093_db_v1.0.jpg
Attached Files
File Type: pdf MM9093_DB_v1.0.pdf (35.1 KB, 371 views)
gtlee77 is offline   Reply With Quote
Old 09-07-2012, 02:09 PM   #2
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Good effort. Props.
hornetball is offline   Reply With Quote
Old 09-08-2012, 10:35 AM   #3
Junior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2011
Location: Ft Lauderdale, FL
Posts: 76
Total Cats: 0
Default

Quote:
Originally Posted by hornetball View Post
Good effort. Props.
Thanks. Being a visual guy myself, by having the schematic it make it easier for me to see which circuits I can hijack for other purposes when I upgrade processors.

Last edited by gtlee77; 09-08-2012 at 10:35 AM. Reason: spelling
gtlee77 is offline   Reply With Quote
Old 09-10-2012, 12:07 PM   #4
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,264
Total Cats: 51
Default

That one's actually a bit easier to follow than the official schematics... Jerry was just learning when he drew up that one.
Matt Cramer is offline   Reply With Quote
Old 09-10-2012, 12:12 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

but is it all correct?
Braineack is offline   Reply With Quote
Old 09-10-2012, 12:33 PM   #6
Junior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2011
Location: Ft Lauderdale, FL
Posts: 76
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
but is it all correct?
I'd like to know the answer to that question myself
gtlee77 is offline   Reply With Quote
