Default MS2PNP Air conditioning idle-up

Been playing around with the closed loop idle control with a MSPNP2 and a '94. Works awesome, but the AC idle is definitely reacting to the draw of the compressor, not predicting it.

Is the ECU already wired for the AC idle up? Or do I need to wiring something from the AC button to the ECU?

Here are the default settings I have once I activate AC idle up:

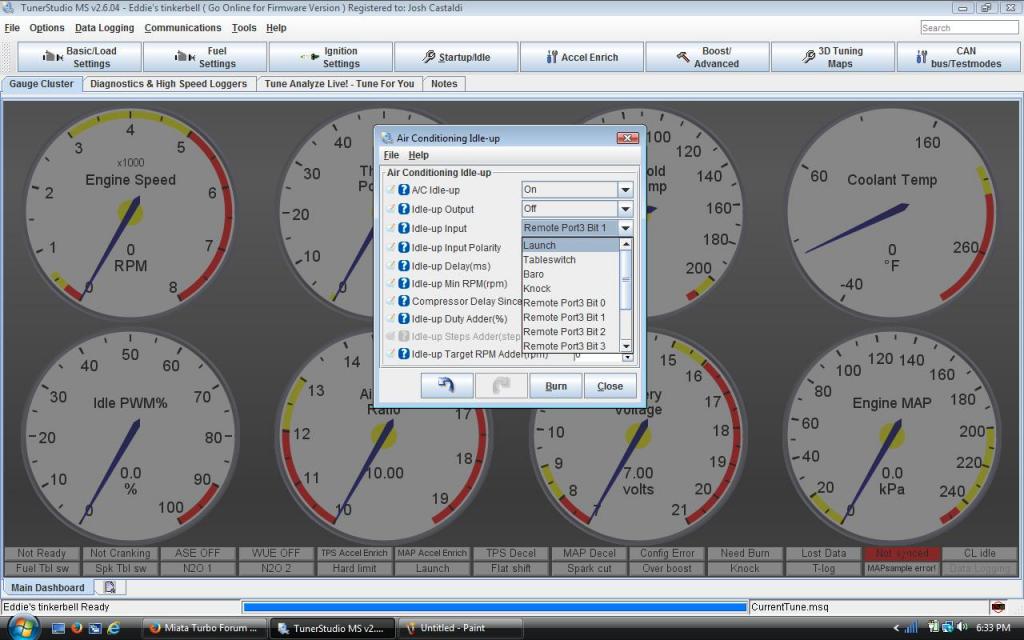

And the drop down menu choices for which pin I should use:



Attached Thumbnails
MS2PNP Air conditioning idle-up-acidleup3_zpsfded240e.jpg   MS2PNP Air conditioning idle-up-acidleup_zps7990ab44.jpg   MS2PNP Air conditioning idle-up-acidleup2_zpsb04eb6f8.jpg
curly is online now   Reply With Quote
Old 12-19-2014, 12:46 AM   #2
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,707
Total Cats: 19
Default

pop open the case, there is a **** in there to adjust the predictive idle up, its a hardware control not a software one.
Stealth97 is offline   Reply With Quote
Old 12-19-2014, 02:43 AM   #3
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

This should help.
aidandj is offline   Reply With Quote
Old 12-19-2014, 12:07 PM   #4
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

Perfect, thanks. This quote pretty much sums it up:

Quote:
Originally Posted by Matt Cramer View Post
The MSPNP Gen 2 uses the current stable firmware release (3.2.1), but there is no provision in it for bringing the A/C signal to the processor. You'd need to do a couple wiring changes to use the firmware based idle up.
It was running on 3.2.1 yesterday, but it's now on 3.3.1. But does the older MS2 still have the potentiometer to use the AC idle up?

I guess I'll have to wire it, as the owner does not want it to be reacting to the ac draw, he wants it predicting it.
curly is online now   Reply With Quote
Old 12-19-2014, 12:38 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

how is it wired now?

to be reactive, you need to wire the INPUT into the MS, and then allow the MS to control the OUTPUT.

it wont turn on the compressor until after you idle up delay. If it's not wired in this manner, I'd remove the delay completly.
Braineack is offline   Reply With Quote
Old 12-19-2014, 03:09 PM   #6
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

We've unplugged the stock ecu, and plugged in the MS. That's how it's wired.

So you're saying the output is the compressor? And I need to lower the delay for it to catch the idle sooner?

is there any software changed I can make as to how much it raises the idle valve? Or is it purely hardware?
curly is online now   Reply With Quote
Old 12-19-2014, 03:45 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

diypnp2 is different.

but change the adder%
Braineack is offline   Reply With Quote
Old 12-19-2014, 06:10 PM   #8
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Is this a V1.2 or V1.3 ecu? The a/c control is very different between them.
Ben is offline   Reply With Quote
Old 12-19-2014, 07:36 PM   #9
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

Good to know. If I had to guess it's a V1.2, it has the original 3.2.1 firmware and has been purchased for quite some time now. I'm guessing it'll say on a sticker on the box? Haven't looked at it yet.

But assuming it's a V1.2, have any insights?

Scott, adder% is a software setting or the hardware setting we've discussed? My question is how to make the AC idle up work, aka: what input/output pin to select, if it's wired in through the stock harness.
curly is online now   Reply With Quote
Old 12-19-2014, 07:42 PM   #10
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

http://www.megasquirtpnp.com/docs/mspnp_g2_boardID.php

Looks like its a different rear connector between board revs.

For the adder percentage: If its a V1.2 then no software settings to configure. Just adjust the dial in the picture I linked above.

V1.3 default uses the table switch input. But can be changed with a jumper.

Attached Thumbnails
MS2PNP Air conditioning idle-up-acidle.png
aidandj is offline   Reply With Quote
Old 12-19-2014, 08:04 PM   #11
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

Ah, so try setting idle-up output pin to table switch and if it doesn't work it's a v1.2 and I should open the box.

That's what I'm hearing.
curly is online now   Reply With Quote
Old 12-19-2014, 08:08 PM   #12
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

You can count the number of pins on the front connector too
aidandj is offline   Reply With Quote
Old 12-19-2014, 10:00 PM   #13
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by curly View Post
Ah, so try setting idle-up output pin to table switch and if it doesn't work it's a v1.2 and I should open the box.

That's what I'm hearing.
If it's the V1.2, you can set the a/c on idle bump by rotating the marked trim pot on the mainboard. We did it this way because it is simple for the end user to implement and works pretty well, and because that way it wouldn't use any I/O. However everyone wanted to be able to configure in software, so we changed it in V1.3. I personally prefer the older method, but it's not what you guys wanted, and we wanted to deliver what was requested of us.
Ben is offline   Reply With Quote
Old 01-18-2015, 10:14 PM   #14
Junior Member
iTrader: (2)

Join Date: Dec 2014
Location: Salinas, CA
Posts: 263
Total Cats: 18
Default

Sorry to hijack the thread, but I recently installed a mspnp2 in my 1990. I'm having an issue with AC idle up always raising the idle even if AC isn't on.
konmo is offline   Reply With Quote
Old 01-19-2015, 12:44 PM   #15
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Konmo, can you please attach a data log of the issue and a copy of your MSQ?
Matt Cramer is offline   Reply With Quote
Old 01-19-2015, 01:00 PM   #16
Junior Member
iTrader: (2)

Join Date: Dec 2014
Location: Salinas, CA
Posts: 263
Total Cats: 18
Default

Quote:
Originally Posted by Matt Cramer View Post
Konmo, can you please attach a data log of the issue and a copy of your MSQ?
Here is my current MSQ. I already turned off the setting and changed a few things so its not exactly the same tune as the log, but very similar.
It won't let me upload the log. Its under the max size. not sure what is happening.
Attached Files
File Type: msq CurrentTune.msq (108.7 KB, 72 views)
konmo is offline   Reply With Quote
Old 01-19-2015, 01:47 PM   #17
Junior Member
iTrader: (2)

Join Date: Dec 2014
Location: Salinas, CA
Posts: 263
Total Cats: 18
Default

https://www.dropbox.com/s/rowtmvnqcs...erbnb.msl?dl=0


Not sure if I'm allowed to do this, but here is the log. I had to upload it to dropbox. I have the high idle since after cranking and I turn off ac idle advance around 4 min into the log. You can see my idle rpm goes down to my set 950
konmo is offline   Reply With Quote
Old 01-19-2015, 04:37 PM   #18
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Do you have a V1.2 or V1.3 board? If it's a V1.2 board, the idle up circuit works on its own and avoids the tune settings.
Matt Cramer is offline   Reply With Quote
Old 01-19-2015, 04:48 PM   #19
Junior Member
iTrader: (2)

Join Date: Dec 2014
Location: Salinas, CA
Posts: 263
Total Cats: 18
Default

Quote:
Originally Posted by Matt Cramer View Post
Do you have a V1.2 or V1.3 board? If it's a V1.2 board, the idle up circuit works on its own and avoids the tune settings.
Hmm I'm pretty sure it's a 1.3 board. It had a jumper set on the tableswitch pins. I had read that 1.3 boards came like that.
konmo is offline   Reply With Quote
Old 01-20-2015, 09:23 AM   #20
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

V1.3s are green, V1.2s are red.
