Angry MSPNP Fried?

Last night driving home from work, I was autotuning with my MSPNP Gen 1 and my car (92 Turbo listed in my signature) just randomly shut off. I immediately pulled out my laptop and tunerstudios wouldn't connect. so I tried Megatune only to get the following error message:

Controller code version does not match signature in MsnS-extra.ini.

(See audit.log for where the above file was found.)

Expected “MsnS-extra format 029q *********” (found in ini file)
received “” (from controller)

Table corruption may occur, this is usually a very serious problem.

The red lights in the case no longer light up and the car will not start back up. Did my MSPNP fry itself? :( I have not pulled the case off for fear of voiding any possible warranty i might have.
f1luva92 is offline   Reply With Quote
Old 05-11-2012, 11:04 AM   #2
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2007
Location: Charlottesville, VA
Posts: 177
Total Cats: 0
Default

TTT I need this car back up and running. I put an email in to DIY Autotune hopefully they can help me out.
f1luva92 is offline   Reply With Quote
Old 05-11-2012, 04:23 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

youll have to try to reflash it... but it appears to be getting power, but cupported its firmware.
Braineack is offline   Reply With Quote
Old 05-11-2012, 04:40 PM   #4
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2007
Location: Charlottesville, VA
Posts: 177
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
youll have to try to reflash it... but it appears to be getting power, but cupported its firmware.

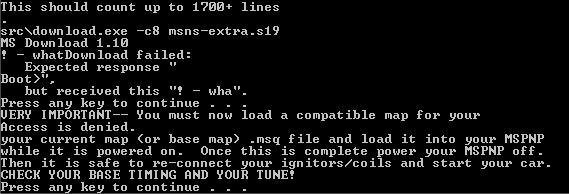

I tried to reload the firmware yesterday but got the attached error message.
Attached Thumbnails
MSPNP Fried?-screen-shot-error-message.png
f1luva92 is offline   Reply With Quote
Old 05-11-2012, 04:45 PM   #5
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2007
Location: Charlottesville, VA
Posts: 177
Total Cats: 0
Default

just got an email back from Matt at DIY and he said to try jumping the 2 "Boot" pins and reloading the firmware as if I were upgrading from standard code. I'm going to try this after work. One thing I will say, even if this doesn't work, DIY has been great about getting back to me in a reasonable amount of time. first email took less than 24 hours, second email was less than 3... very impressed with the customer service so far.
f1luva92 is offline   Reply With Quote
Old 05-11-2012, 04:58 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

yeah boot jumper must be used.
Braineack is offline   Reply With Quote
Old 05-11-2012, 09:12 PM   #7
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by f1luva92 View Post
I tried to reload the firmware yesterday but got the attached error message.
Did you not install the boot jumper?
Ben is offline   Reply With Quote
