NB MSPNP startup issues/fine tuning


Old 05-20-2015, 08:34 AM
  #1
Junior Member
Thread Starter

Join Date: May 2015
Posts: 79
Total Cats: 1
Default NB MSPNP startup issues/fine tuning

Yes, another thread on this. Sorry but I can't find what I'm looking for. 99 Miata. Headerback exhaust, intake. Installed my PNP2 yesterday. I had some trouble starting it up first time but once started, ran fine. I set my base timing but didn't touch anything else. Today, I had some trouble getting it started. Had to throttle it a bit to get it going. Also, as far as "fine tuning" goes, what should I be adjusting if anything?
emericareaper2 is offline
Old 05-20-2015, 08:49 AM
  #2
Boost Czar
iTrader: (62)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 76,387
Total Cats: 2,295
Default

if you had to throttle to start, then your cranking table has too much fuel.
Braineack is offline
Old 05-20-2015, 08:49 AM
  #3
Junior Member
Thread Starter

Join Date: May 2015
Posts: 79
Total Cats: 1
Default

Also, when I'm setting my base timing, I set it to 10 degrees on the "fixed timing", burn & with my timing light, it shows I'm right at the mark. But when I go to change it to "use table", then burn, the timing light shows I'm off timing by about 7 marks.
emericareaper2 is offline
Old 05-20-2015, 08:50 AM
  #4
Boost Czar
iTrader: (62)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 76,387
Total Cats: 2,295
Default

Originally Posted by emericareaper2 View Post
Also, when I'm setting my base timing, I set it to 10 degrees on the "fixed timing", burn & with my timing light, it shows I'm right at the mark. But when I go to change it to "use table", then burn, the timing light shows I'm off timing by about 7 marks.
what is that MS actually demanding at that point?
Braineack is offline
Old 05-20-2015, 08:52 AM
  #5
Junior Member
Thread Starter

Join Date: May 2015
Posts: 79
Total Cats: 1
Default

Demanding? Sorry for misunderstanding. When I switch back to "use table" on my ignition advance gauge it shows 17 degrees. Whereas using the "fixed timing" it stays at 10 degrees
emericareaper2 is offline
Old 05-20-2015, 08:58 AM
  #6
Junior Member
Thread Starter

Join Date: May 2015
Posts: 79
Total Cats: 1
Default

So I did find from another thread, the timing is okay. I'm supposed to leave it at use table. But I still need some help with cold starts & tips on fine tuning. What should I be adjusting?
emericareaper2 is offline
Old 05-20-2015, 09:04 AM
  #7
Boost Czar
iTrader: (62)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 76,387
Total Cats: 2,295
Default

okay, and is the table set to 17?
Braineack is offline
Old 05-20-2015, 09:08 AM
  #8
Junior Member
Thread Starter

Join Date: May 2015
Posts: 79
Total Cats: 1
Default

Not sure where my table is. I set it back to "use table" & then adjusted the timing some more to get it closer to the timing marks. My ignition advance gauge reads 16 degrees timing
emericareaper2 is offline
Old 05-20-2015, 09:13 AM
  #9
Boost Czar
iTrader: (62)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 76,387
Total Cats: 2,295
Default

lol.

you set it fixed timing in order to sync the timing to the MS. you defeat the purpose if you go back to use table and try to sync it again.

This would be like trying to set your idle speed while holding the throttle pedal open.
Braineack is offline
Old 05-20-2015, 09:26 AM
  #10
Junior Member
Thread Starter

Join Date: May 2015
Posts: 79
Total Cats: 1
Default

Jeeezum. The newb is strong today with me.
emericareaper2 is offline
Old 05-20-2015, 10:35 AM
  #11
Junior Member
Thread Starter

Join Date: May 2015
Posts: 79
Total Cats: 1
Default

So is it fine that the timing goes to 16 degrees after I switch to "use table" & then burn it?
emericareaper2 is offline
Old 05-20-2015, 10:53 AM
  #12
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,141
Total Cats: 3,145
Default

You're gonna need to learn at least the basics before even touching your car. I suggest doing some reading.
Yes, "use table" means it will run what your table tells it to run, vs "fixed timing" means it will run what you set the fixed timing to be when you sync the ms to the engine.
18psi is offline
Old 05-20-2015, 11:01 AM
  #13
Boost Czar
iTrader: (62)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 76,387
Total Cats: 2,295
Default

Originally Posted by emericareaper2 View Post
So is it fine that the timing goes to 16 degrees after I switch to "use table" & then burn it?
not if your spark table was demanding 58--but is it?
Braineack is offline
Old 05-20-2015, 12:10 PM
  #14
Junior Member
Thread Starter

Join Date: May 2015
Posts: 79
Total Cats: 1
Default

No^
emericareaper2 is offline
Old 05-20-2015, 12:16 PM
  #15
Junior Member
Thread Starter

Join Date: May 2015
Posts: 79
Total Cats: 1
Default

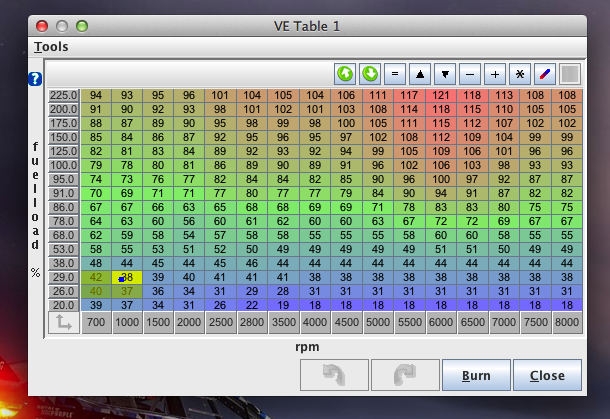

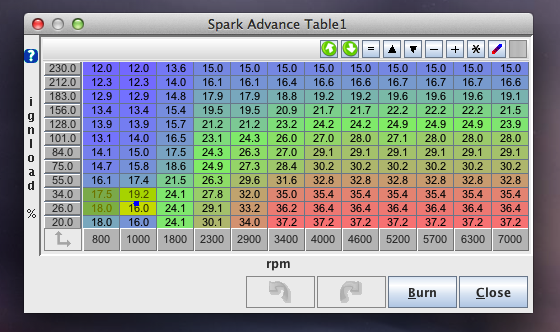

Attached Thumbnails NB MSPNP startup issues/fine tuning-abvplqx.png   NB MSPNP startup issues/fine tuning-ssdebum.png
emericareaper2 is offline
Old 05-20-2015, 12:17 PM
  #16
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,141
Total Cats: 3,145
Default

well wouldya look at that: it's commanding 16 and hitting 16

18psi is offline
Old 05-20-2015, 12:27 PM
  #17
Junior Member
Thread Starter

Join Date: May 2015
Posts: 79
Total Cats: 1
Default

That's a good thing right? Lol do those tables look alright?
emericareaper2 is offline
Old 05-20-2015, 01:19 PM
  #18
Junior Member
Thread Starter

Join Date: May 2015
Posts: 79
Total Cats: 1
Default

Damn. Now the car keeps stalling for me. Takes several tries to get it started but keeps stalling.
emericareaper2 is offline
Old 05-20-2015, 01:20 PM
  #19
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,141
Total Cats: 3,145
Default

you might want to tune the car then
18psi is offline
Old 05-20-2015, 01:27 PM
  #20
Junior Member
Thread Starter

Join Date: May 2015
Posts: 79
Total Cats: 1
Default

^Once again, how? I heard autotuning is what I should be doing but I have no idea where that is in Tunerstudio. I've been reading up today & still am not any more informed. Maybe I'm looking in the wrong place.
emericareaper2 is offline
