Default Smoke from exhaust

My car was leaking oil, and I realized that it was leaking from the turbo return line. I purchased the McMaster Carr replacement recommended by the board here. My friend who helped me install it said even though it was a little long, and didn't go constantly down, it would be fine.

I drove home and it seemed okay. Last night, I swapped the stock cat with a test pipe As I drove my car to school today, I noticed that it would smoke when I put any load on the turbo.

It seems after searching the forums, it's because the return line might be pooling. Does that sound right? This GReddy kit is starting to annoy me. Grrrr
turbored is offline   Reply With Quote
Old 09-28-2006, 03:47 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

How long have you had the kit? Stock greddy return? What color smoke? How is your crankcase breather line routed?
Braineack is offline   Reply With Quote
Old 09-28-2006, 03:56 PM   #3
Senior Member
Thread Starter

Join Date: May 2005
Location: San Francisco
Posts: 547
Total Cats: 0
Default

had the kit for a while. No problems until i swapped the return line. smoke is white. crankcase breather is routed after the turbo (I don't have any place to mount the breather before the turbo because the maf goes right into the turbo and the filter goes right on the MAF.
turbored is offline   Reply With Quote
Old 09-28-2006, 04:02 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Quote:
Originally Posted by turbored View Post
crankcase breather is routed after the turbo
ding ding ding!

Has it always been routed this way? What you are doing is pressurizing the crankcase, which is forcing air into the return line. This pushes the oil back into the turbo where is blows past the seals into your exhaust.

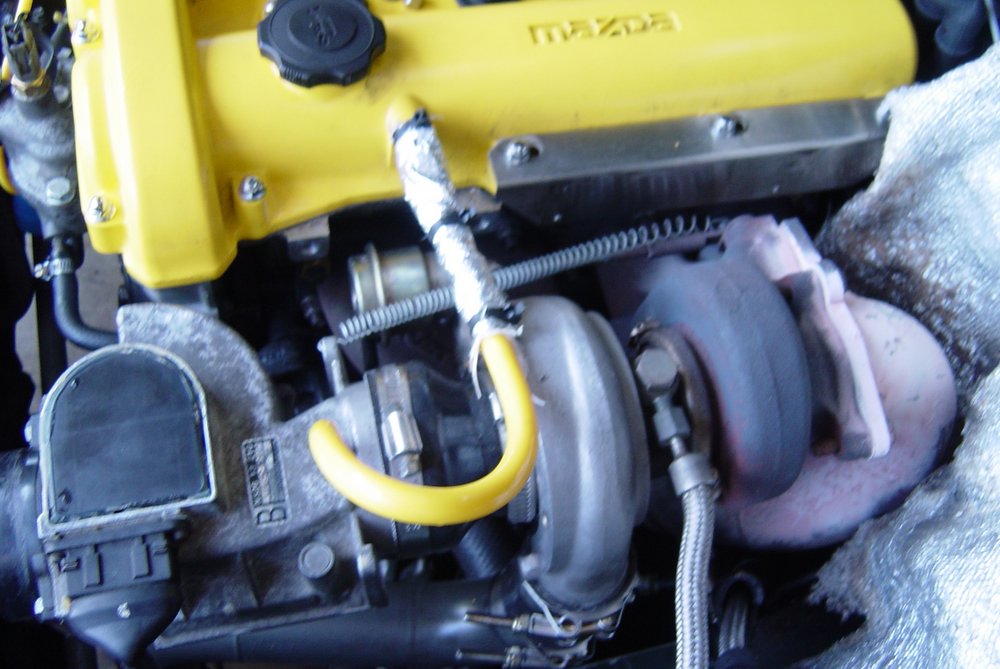

Here's your solution:



1/8" NPT tap
1/8" to 3/8" slip on fitting
total cost = $5
Braineack is offline   Reply With Quote
Old 09-28-2006, 04:15 PM   #5
Elite Member
iTrader: (2)

Newbsauce's Avatar

Join Date: Jul 2006
Location: NoVA
Posts: 2,304
Total Cats: 2
Default

He is also suggesting that you paint your valve cover yellow to solve the problem.
Total cost 3.75
Newbsauce is offline   Reply With Quote
Old 09-28-2006, 04:18 PM   #6
Senior Member
Thread Starter

Join Date: May 2005
Location: San Francisco
Posts: 547
Total Cats: 0
Default

Quote:
Originally Posted by braineack View Post
ding ding ding!

Has it always been routed this way?
Well, it's always been routed this way :\
turbored is offline   Reply With Quote
Old 09-28-2006, 04:26 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

for ***** and giggles try at least removing it form where it's at now and plug the hole in the intake path. With the line to the crankcase open to the air, see if there is a difference.

If routing the drain line around the engine bay with about 5 feet of hose make sure there are no flat spots. I suspect bad drainage and crankcase pressurization are your culprits.
Braineack is offline   Reply With Quote
Old 09-28-2006, 09:58 PM   #8
Senior Member
iTrader: (1)

Join Date: Mar 2006
Location: Tucson "it's 110" Arizona
Posts: 1,017
Total Cats: 0
Default

Quote:
Originally Posted by Newbsauce View Post
He is also suggesting that you paint your valve cover yellow to solve the problem.
Total cost 3.75
Pretty good, newb.

Quote:
Originally Posted by turbored View Post
I swapped the stock cat with a test pipe As I drove my car to school today, I noticed that it would smoke when I put any load on the turbo.
I bet the breather line was always routed after the turbo and removing the cat let him see the smoke.

That line is supposed to see vacuum, not boost.
UofACATS is offline   Reply With Quote
Old 09-28-2006, 11:41 PM   #9
Senior Member
Thread Starter

Join Date: May 2005
Location: San Francisco
Posts: 547
Total Cats: 0
Default

actually i was catless and didn't see smoke for a while. I put the cat for testing. Anyways, I did 2 things:

1) Put the line before the turbo just like the picture
2) cut the return like about 8" and routed it for better return.

Took the car on a test drive and it seems good. We'll know tomorrow I guess, when I drive to school (20mi)
turbored is offline   Reply With Quote
Old 09-28-2006, 11:49 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Braineack is offline   Reply With Quote
Old 09-28-2006, 11:59 PM   #11
Senior Member

Join Date: Dec 2004
Posts: 1,450
Total Cats: -1
Default

They'll never learn will they, brain? That's o.k., because that's why we built this posse...yeah we built this posse...WE BUILT THIS POSSE ON CRANKCASE BREATHER LINES!
bripab007 is offline   Reply With Quote
Old 09-28-2006, 11:59 PM   #12
Senior Member

Join Date: Dec 2004
Posts: 1,450
Total Cats: -1
Default

Whoa, time for bed.
bripab007 is offline   Reply With Quote
Old 09-28-2006, 11:59 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

hahahaha. good times.
Braineack is offline   Reply With Quote
Old 09-29-2006, 02:15 PM   #14
Senior Member
Thread Starter

Join Date: May 2005
Location: San Francisco
Posts: 547
Total Cats: 0
Default

smoke is gone.
turbored is offline   Reply With Quote
Old 09-29-2006, 02:31 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Brian we need to start adding kill marks to the sides of our rides
Braineack is offline   Reply With Quote
Old 09-29-2006, 03:05 PM   #16
Senior Member

Join Date: Dec 2004
Posts: 1,450
Total Cats: -1
Default

Oh man, that's good...although it'd be difficult to capture what our "kill" is in a simple drawing/picture.
bripab007 is offline   Reply With Quote
Old 09-29-2006, 03:18 PM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

how about some fox body profiles so we look cool, but we know the real meaning?
Braineack is offline   Reply With Quote
Old 09-29-2006, 03:58 PM   #18
Senior Member

Join Date: Dec 2004
Posts: 1,450
Total Cats: -1
Default

Hmmm....I like the cut of your jib, man.
bripab007 is offline   Reply With Quote
