Old 02-29-2016, 06:27 PM   #41
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

VD doesnt need the gearing etc unless its using it for drag corrections because the datalog has rpm to calculate torque from.
nitrodann is offline   Reply With Quote
Old 02-29-2016, 06:41 PM   #42
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

it does need the gearing and tire diameter because it's part of the equation
18psi is offline   Reply With Quote
Old 02-29-2016, 06:45 PM   #43
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

That can only be important if it needs to know ground speed, which isnt important unless its used for drag calcs, for proof notice that cars on a dyno have zero groundspeed.
nitrodann is offline   Reply With Quote
Old 02-29-2016, 06:48 PM   #44
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

I have no idea what you're saying but it needs the gear used and tire diameter every time or it wont even spit out the plot for you.

And if you put in the wrong one, it will skew results by 100-200hp
18psi is offline   Reply With Quote
Old 02-29-2016, 06:50 PM   #45
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Quote:
Originally Posted by Savington View Post
. . . you'll understand what I'm saying. Dynojets don't need to know RPM to generate an accurate power curve, and they never ask for tire diameter or gear ratios at all. They measure raw power based on the time it takes to accelerate a known mass (the drum), then use RPM to back-calculate torque output from there.
Yeah, I get it. Two different ways to calculate based upon the inputs available.

Quote:
Originally Posted by nitrodann View Post
VD doesnt need the gearing etc unless its using it for drag corrections because the datalog has rpm to calculate torque from.
Actually, VD is using the gearing and wheel diameter applied to the RPM to get the speed . . . and then comparing that to time to get the acceleration. It also uses speed and the input Cd to put in a drag factor. It only looks to our MS logs for RPM and time.

So, just like Andrew's Dynojet example, VD is taking a little bit of information and deriving a whole bunch from basic physics. Both examples are pretty cool I think.
hornetball is offline   Reply With Quote
Old 02-29-2016, 07:02 PM   #46
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Quote:
Originally Posted by hornetball View Post
Yeah, I get it. Two different ways to calculate based upon the inputs available.



Actually, VD is using the gearing and wheel diameter applied to the RPM to get the speed . . . and then comparing that to time to get the acceleration. It also uses speed and the input Cd to put in a drag factor. It only looks to our MS logs for RPM and time.

So, just like Andrew's Dynojet example, VD is taking a little bit of information and deriving a whole bunch from basic physics. Both examples are pretty cool I think.
Of course .. Because the car is the load. Lolol my bad.
nitrodann is offline   Reply With Quote
Old 02-29-2016, 07:19 PM   #47
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Quote:
Originally Posted by nitrodann View Post
Because the car is the load.
Xactly! Aaannd, this is also why it is so important to control things like road slope, road surface, tire pressure, wind, etc. when using VD. All of those things affect the "load."

Compare that to an actual dyno where the inertia of the roller or the resistance from an Eddy brake are nice and consistent run after run.

Sorry for rambling. I like physics and just came off a track weekend so I'm a bit amped-up and having a hard time getting back to real work.
hornetball is offline   Reply With Quote
Old 02-29-2016, 07:29 PM   #48
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Yeah I just totally forgot that VD needs the speed to calculate acceleration. I spaced on that one.
nitrodann is offline   Reply With Quote
Old 03-01-2016, 06:19 PM   #49
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

So, I took on the challenge. I grabbed one of my old VD pull datalogs from the Red car (MSPNP1) and modified it as follows:

1. Opened it in Excel.
2. Added a "Delta RPM" column that calculates the RPM difference between each row of data. I'm using RPM as a proxy for speed since the pull is in a single gear.
3. Added a "Delta Time" column that calculates the time difference between each row of data.
4. Added an "RPM/s" column that is "Delta RPM"/"Delta Time."
5. When I graphed "RPM/s," I found the result to be noisy (I'll bet data from a second or third generation MS would be a lot better). So I added a "Smooth RPM/s" column that is just "RPM/s" going through a single-pole filter with an adjustable filter constant. A filter constant of 20 gave a pretty viewable line.
6. I then saved the spreadsheet as a text file for VD.

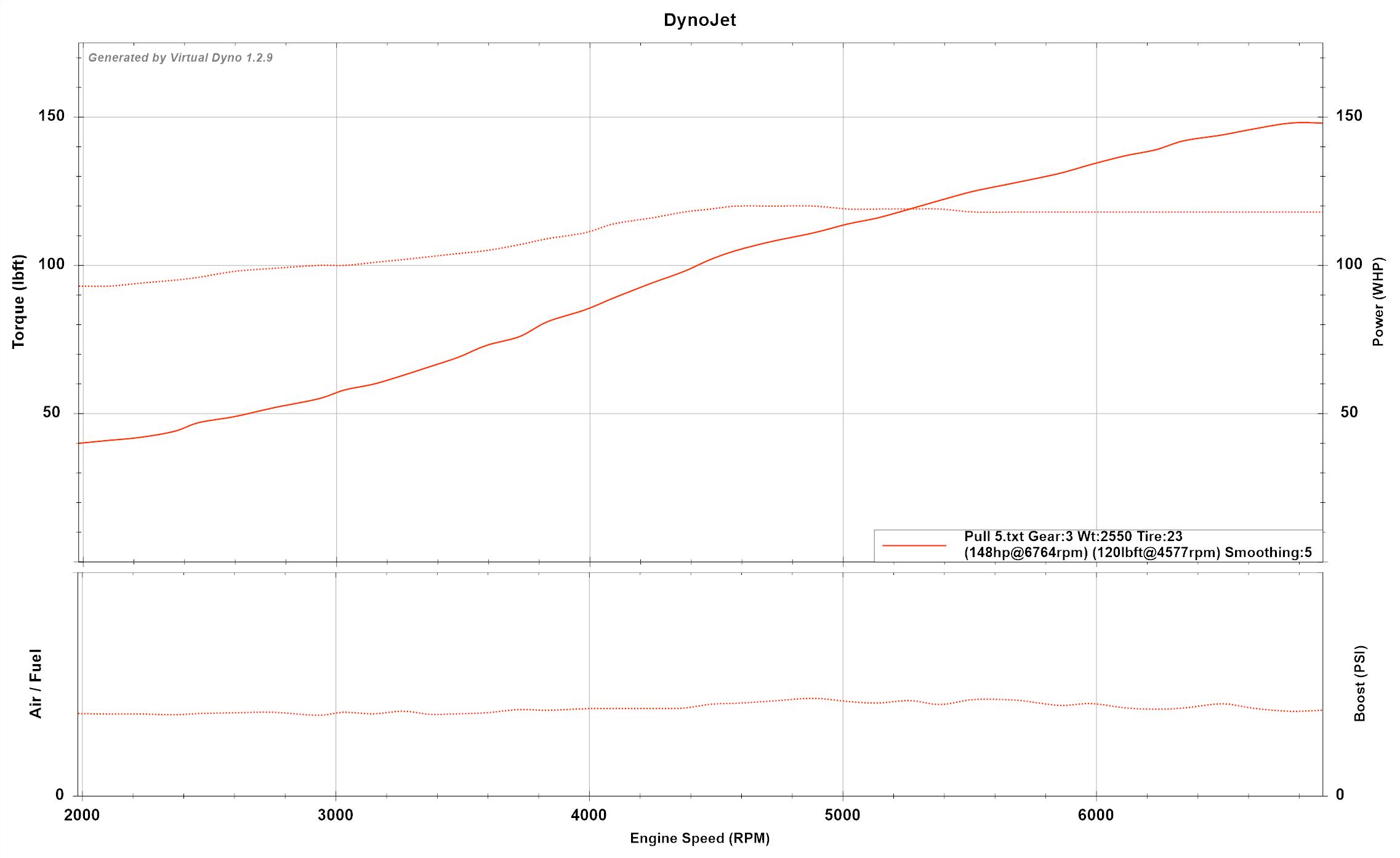

I opened the text file in VD and then told VD that "Smooth RPM/s" was my boost so it would plot that line on the same graph as torque and HP. This is the result:



You can draw your own conclusions. Spreadsheet and VD text file also attached. Vlad, you could do this with some of your data too.
Attached Thumbnails
Acceleration curve vs torque curve vs HP curve.-pull-5-smoothed-rpm-per-sec-line.jpg
Attached Files
File Type: txt Pull 5.txt (24.6 KB, 34 views)
File Type: xls Pull 5.xls (75.0 KB, 57 views)
hornetball is offline   Reply With Quote
Old 03-01-2016, 06:46 PM   #50
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Thank-you.

So far that's close but both curves are pretty flat, data with an obvious knee point would be better.

If I sent a datalog of a dyno run and a street pull on a car with a lumpy torque curve would you easily be able to do the same?
nitrodann is offline   Reply With Quote
Old 03-01-2016, 07:00 PM   #51
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

Putting the charts together and expecting them to relate to each other is never going to work, BTW. You're taking one chart (acceleration) which naturally factors in aerodynamic drag, and trying to relate it in some fashion to a chart that doesn't factor in aerodynamic drag.
Savington is offline   Reply With Quote
Old 03-01-2016, 07:07 PM   #52
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

I still haven't figured out what question is being asked. But there are 50 post so far.
patsmx5 is offline   Reply With Quote
Old 03-01-2016, 07:16 PM   #53
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Quote:
Originally Posted by patsmx5 View Post
I still haven't figured out what question is being asked. But there are 50 post so far.
53. I'm not sure what the question is either. But it would be a hoot to do this with YOUR data.
hornetball is offline   Reply With Quote
Old 03-01-2016, 07:22 PM   #54
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Quote:
Originally Posted by nitrodann View Post
Thank-you.

So far that's close but both curves are pretty flat, data with an obvious knee point would be better.

If I sent a datalog of a dyno run and a street pull on a car with a lumpy torque curve would you easily be able to do the same?
I would think so. Don't you have Excel?
hornetball is offline   Reply With Quote
Old 03-01-2016, 07:31 PM   #55
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Quote:
Originally Posted by Savington View Post
Putting the charts together and expecting them to relate to each other is never going to work, BTW. You're taking one chart (acceleration) which naturally factors in aerodynamic drag, and trying to relate it in some fashion to a chart that doesn't factor in aerodynamic drag.
Drag is really easy to factor in, it just goes up with the square of soeed. As you well know.

With a Turbo car I can move the torque knee with ease and repeat.

To answer regarding excel I can't use it well enough but my house mate can. I'll ask him.
nitrodann is offline   Reply With Quote
Old 03-01-2016, 08:25 PM   #56
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

Quote:
Originally Posted by hornetball View Post
53. I'm not sure what the question is either. But it would be a hoot to do this with YOUR data.
What data? I'll share anything I have.
patsmx5 is offline   Reply With Quote
Old 03-01-2016, 11:14 PM   #57
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Can someone upload an excel pull that has speed and time?

Also can someone plot it on virtual dyno, at last, what weight did you use for the car when plotting it?

I'll calculate the acceleration and graph it.
triple88a is offline   Reply With Quote
Old 03-02-2016, 10:42 AM   #58
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Quote:
Originally Posted by patsmx5 View Post
What data? I'll share anything I have.
Just the MS data that you used for VD. Preferably the one showing 1000HP.
hornetball is offline   Reply With Quote
Old 03-02-2016, 10:45 AM   #59
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Quote:
Originally Posted by triple88a View Post
Can someone upload an excel pull that has speed and time?

Also can someone plot it on virtual dyno, at last, what weight did you use for the car when plotting it?

I'll calculate the acceleration and graph it.
That's what I did above. So long as you stay in a single gear, RPM ~ speed. To convert RPM to speed, you just multiply by a constant consisting of gear ratio, axle ratio and tire diameter. The curve shapes will be identical.
hornetball is offline   Reply With Quote
Old 03-02-2016, 12:08 PM   #60
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

Quote:
Originally Posted by hornetball View Post
To convert RPM to speed, you just multiply by a constant consisting of gear ratio, axle ratio and tire diameter.
In theory, yes. In practice, I've spent lots and lots of time comparing RPM-calculated "speed" to GPS-verified speed, and they never, ever match. At high speed, the difference is substantial (5%+). RPM-calculated speed always overestimates actual ground speed. My hypothesis is deformation of the tire at high speed.
Savington is offline   Reply With Quote
