Old 08-10-2011, 10:38 AM   #21
Crumple Zone Tester
iTrader: (7)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,656
Total Cats: 447
Default

Quote:
Originally Posted by hustler View Post
WOW!









I mean, who buys the retail box version of TurboTax anymore? That's crazy.
mgeoffriau is offline   Reply With Quote
Old 08-10-2011, 11:22 AM   #22
I'm Miserable!

Join Date: Feb 2010
Posts: 584
Total Cats: 0
Default

Quote:
Originally Posted by Bond View Post
qft.

That rack scares me, I have already stuffed one car in the wall due to steering problems. A good way to ruin your day, week, month, year.
What exactly is it that you believe will occur here?
sjmarcy is offline   Reply With Quote
Old 08-10-2011, 11:49 AM   #23
Elite Member
iTrader: (6)

Join Date: Nov 2007
Location: Southlake,Texas
Posts: 3,251
Total Cats: 17
Default

Well I'll be on my 3rd lap cruising around on a track day for charity, maybe driving 5/10's, then I'll approach the right handed sweeper at ~70mph, turn the wheel, keep going straight, hit a haybail and nearly flip. (2 wheel side balance, rallycar style)
Bond is offline   Reply With Quote
Old 08-10-2011, 11:52 AM   #24
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by Bond View Post
Well I'll be on my 3rd lap cruising around on a track day for charity, maybe driving 5/10's, then I'll approach the right handed sweeper at ~70mph, turn the wheel, keep going straight, hit a haybail and nearly flip. (2 wheel side balance, rallycar style)
I think sjmarcy's point is in Hustlers example picture, whilst the welds may not last, if they did in fact break, you wouldn't loose any steering ability, merely the lack of slop the welds are there to stop.
richyvrlimited is offline   Reply With Quote
Old 08-10-2011, 12:05 PM   #25
Crumple Zone Tester
iTrader: (7)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,656
Total Cats: 447
Default

How much slop are we talking about? If it introduces a few unexpected degrees of steering angle at the wrong moment, it could still be pretty frightening, if not entirely catastrophic.
mgeoffriau is offline   Reply With Quote
Old 08-10-2011, 12:07 PM   #26
Junior Member
iTrader: (3)

Join Date: Apr 2010
Location: San Antonio, TX
Posts: 411
Total Cats: 1
Default

Quote:
Originally Posted by Bond View Post
Well I'll be on my 3rd lap cruising around on a track day for charity, maybe driving 5/10's, then I'll approach the right handed sweeper at ~70mph, turn the wheel, keep going straight, hit a haybail and nearly flip. (2 wheel side balance, rallycar style)
Did you guys take apart the steering components and examine what failed?

Quote:
Originally Posted by richyvrlimited View Post
I think sjmarcy's point is in Hustlers example picture, whilst the welds may not last, if they did in fact break, you wouldn't loose any steering ability, merely the lack of slop the welds are there to stop.
Exactly.
RavynX is offline   Reply With Quote
Old 08-10-2011, 12:08 PM   #27
Junior Member
iTrader: (3)

Join Date: Apr 2010
Location: San Antonio, TX
Posts: 411
Total Cats: 1
Default

Quote:
Originally Posted by mgeoffriau View Post
How much slop are we talking about? If it introduces a few unexpected degrees of steering angle at the wrong moment, it could still be pretty frightening, if not entirely catastrophic.
See my post on the first page. Video showing how much slop there is in a depowered pinion...

http://vimeo.com/15245486
RavynX is offline   Reply With Quote
Old 08-10-2011, 12:21 PM   #28
Elite Member
iTrader: (6)

Join Date: Nov 2007
Location: Southlake,Texas
Posts: 3,251
Total Cats: 17
Default

Quote:
Originally Posted by RavynX View Post
Did you guys take apart the steering components and examine what failed?
1. Trying to race cars from the 60's.
2. Spline stripped.

It was a mini. Not a miata. But after one steering failure, you think twice. I have a manual rack in my car, I would never depower without welding the spline, all the way around.
Bond is offline   Reply With Quote
Old 08-10-2011, 12:49 PM   #29
I'm Miserable!

Join Date: Feb 2010
Posts: 584
Total Cats: 0
Default

I'd love to sell you some Miata pinion shaft insurance. Send me a PM for monthly payment information. Coincidentally sales are high and gross profit is 100% as there are no shafts breaking and there won't be any.

The stock power steering pinion shaft transmits torque through a skinny shaft or rod deliberately designed to twist as effort rises until it can no longer do so. This rod sends more high pressure fluid to the rack as it actuates a spool valve. It cannot move past a certain amount of rotation or twist due to the separate spline device elsewhere on the assembly hitting its stops. This spline midway on the shaft (barely visible) is where you weld and is not to be mistaken for the steering input shaft spline to which the steering column attaches.

The amount of skinny rod twist is in the neighborhood of 3/4 inch of play at the steering wheel, but this is only when input torque is high. If input torque is low then there is no play since the skinny twist rod doesn't twist at those times.

You can examine a pinion shaft at the steering input end. See that hole? That is where a steel pin passes through the hollow upper end of the outer shaft to retain the skinny twist shaft within it so that it can transmit torque. Further down the skinny rod attaches to the pinion end in some manner.

Stock, the torque can only go through the skinny twist rod and the center located spline when it twists all the way. Welded and there are then three paths. The skinny rod in the core. The two main shaft at their now filled up splines. And the welds themselves.

If the welds failed (all of them), and all the weld material disintegrated and rematerialized into Fort Knox (empty), you'd still have steering. But with about 3/4 inch of play using the stock unaltered bits that remain fully functional. Back to where you started and just as safe. However, the weld material jammed up the splines. Hence you would never get all that play, you'd still have none in that region.

Peace of mind is priceless, so do what you're gonna do anyway and just ignore me. If you need some aerospace welds performed by former Space Shuttle techs begging for change at the street corner, great. They can use F1 welding rod and have the Pope bless the steering rack. And of course you'd have the insurance policy I just sold you. Backed by the full faith and credit of the USA. Wait, what?!!

I'd switch to 8 lug hubs and wheels before I'd worry much about this issue. After all 8 lug setups are stronger. I don't want to have a wheel come off the car.
sjmarcy is offline   Reply With Quote
Old 08-10-2011, 12:51 PM   #30
I'm Miserable!

Join Date: Feb 2010
Posts: 584
Total Cats: 0
Default

Quote:
Originally Posted by Bond View Post
1. Trying to race cars from the 60's.
2. Spline stripped.

It was a mini. Not a miata. But after one steering failure, you think twice. I have a manual rack in my car, I would never depower without welding the spline, all the way around.
Those old Brit gears and splines are made of the finest Milk Chocolate money can buy. They keep the raw material chilled in Lucas refrigerators next to their warm beer.

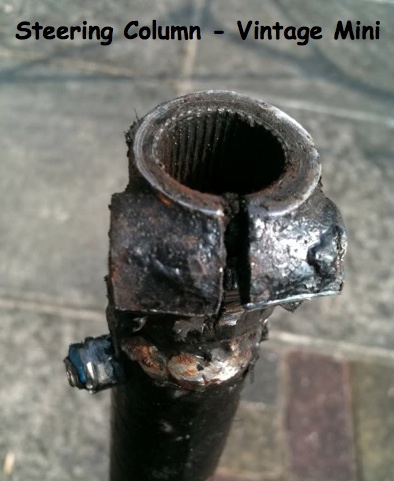

How many Engineering disasters can you spot on this steering column shaft from a Vintage Mini?
Attached Thumbnails
ARTech welded steering pinion compared to another-minioops.jpg

Last edited by sjmarcy; 08-10-2011 at 01:23 PM.
sjmarcy is offline   Reply With Quote
Old 08-10-2011, 01:05 PM   #31
Junior Member
iTrader: (3)

Join Date: Apr 2010
Location: San Antonio, TX
Posts: 411
Total Cats: 1
Default

Quote:
Originally Posted by sjmarcy View Post
I'd switch to 8 lug hubs and wheels before I'd worry much about this issue.
Finally some common sense...
RavynX is offline   Reply With Quote
Old 08-10-2011, 01:07 PM   #32
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I like the new sjmarcy more than the old one. Global ignore works!!!
hustler is offline   Reply With Quote
Old 08-10-2011, 01:38 PM   #33
Senior Member
iTrader: (1)

Join Date: May 2008
Location: south texas
Posts: 1,419
Total Cats: 9
Default

My ghetto rack works fine, and so do my Taiwanese coilovers. Fancy racks and xida's would be appreciated, but lets. face it, none of us are good enough to extract the full potential of our cars yet anyway. This topic is moot. Pretty welds are pretty. Can't die from it. Won't go faster with it.
spoolin2bars is offline   Reply With Quote
Old 08-10-2011, 01:48 PM   #34
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by spoolin2bars View Post
My ghetto rack works fine, and so do my Taiwanese coilovers. Fancy racks and xida's would be appreciated, but lets. face it, none of us are good enough to extract the full potential of our cars yet anyway. This topic is moot. Pretty welds are pretty. Can't die from it. Won't go faster with it.
in for ban.
hustler is offline   Reply With Quote
Old 08-11-2011, 03:55 PM   #35
Senior Member
iTrader: (1)

Join Date: May 2008
Location: south texas
Posts: 1,419
Total Cats: 9
Default

lol.. you are drunk with power.
spoolin2bars is offline   Reply With Quote
Old 08-11-2011, 04:31 PM   #36
Junior Member

Join Date: Jan 2008
Location: Gainesville, Tx
Posts: 229
Total Cats: 1
Default

Honey badger don't give a ****.
sixace is offline   Reply With Quote
Old 08-11-2011, 04:34 PM   #37
I'm Miserable!

Join Date: Feb 2010
Posts: 584
Total Cats: 0
Default

Quote:
Originally Posted by spoolin2bars View Post
lol.. you are drunk with power.
And during business hours, for shame!
sjmarcy is offline   Reply With Quote
Old 08-11-2011, 06:22 PM   #38
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by spoolin2bars View Post
lol.. you are drunk with power.
I believe that I'm fundamentally too immature to serve as an authority on an internet forum, lol. For this reason I only warn for grammar and retardation.
hustler is offline   Reply With Quote
Old 08-14-2011, 07:18 PM   #39
Senior Member
iTrader: (1)

Join Date: May 2008
Location: south texas
Posts: 1,419
Total Cats: 9
Default

Quote:
Originally Posted by sixace View Post
Honey badger don't give a ****.
lol.... what's he eating the rest of the week?....................................






................cobra!
spoolin2bars is offline   Reply With Quote
Old 08-15-2011, 02:14 PM   #40
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by Bond View Post
1. Trying to race cars from the 60's.
2. Spline stripped.

It was a mini. Not a miata. But after one steering failure, you think twice. I have a manual rack in my car, I would never depower without welding the spline, all the way around.
The thing is if the welds break in this instance it goes back to behaving just like the stock piece in terms of strength and all the steering load goes through the slender flexible shaft through the center that remains free of the heat affected zone from the weld pretty much even if you badly barbeque the outer cage as your welding it. This thing is two parts and The skinny center shaft is fixed at one end only by a small round cross pin. By welding it in this way your just fixing the cage around the center shaft so it cant twist as easily between the hard stops on the cage around it.

I have done this mod and I can say the crummy welds don't scare me at all. The most difficult thing about doing this is welding it without it warping. You would have to be dam lucky to get a continuous bead around the thing without it being warped when it cooled. I put a beautiful tig weld all around one in small increments and it came out warped as **** luckily I had a spare to try it again. If it warps you get tight and loose spots in the pinion adjustment to the rack and it feels horrible. The small dabs at 4 locations might be the best way to do it to avoid warping it.

Bob
bbundy is offline   Reply With Quote
