Old 04-04-2015, 09:57 PM   #101
ʎpunq qoq

Join Date: Jan 2014
Location: Western Australia
Posts: 502
Total Cats: 100
Default

They look like they fit the form fairly well. Considering it was modelled from photos and a couple of dimensions I'm surprised it needed only a little trimming!

It's a little hard to see where I need to adjust the model. Would you be able to sketch on my 3D viewport images where it needs modification? That last photo looks as though the top lip doesn't extend forward enough.

I'll pm you my email address. It's a public holiday here on Mon but I can tweak it Tuesday and get you an update.
Madjak is offline   Reply With Quote
Old 05-20-2015, 01:45 PM   #102
Senior Member
iTrader: (2)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,297
Total Cats: 22
Default

If anyone needs a test model for the GV lip I will have my NA bumper off the car and can modify a prototype and/or take pictures as needed. The top part is smashed but still pretty close on the bottom of the bumper.
Der_Idiot is offline   Reply With Quote
Old 05-20-2015, 01:46 PM   #103
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Madjak and I have been working on it a bit. He is pretty busy right now though.
aidandj is offline   Reply With Quote
Old 05-21-2015, 02:28 AM   #104
ʎpunq qoq

Join Date: Jan 2014
Location: Western Australia
Posts: 502
Total Cats: 100
Default

Quote:
Originally Posted by aidandj View Post
Madjak and I have been working on it a bit. He is pretty busy right now though.
yeah sorry guys... been a bit busy trying to get my track car sorted for weekend of motorsport next weekend. After that I'll have some spare time again.
Madjak is offline   Reply With Quote
Old 05-22-2015, 12:34 PM   #105
Senior Member
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

I am going to be doing full 3d scan of my car in about a month (using 4 kinect v2 sensors). I can post the files from that so that people can build a more accurate model.
asmasm is offline   Reply With Quote
Old 05-22-2015, 12:56 PM   #106
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Could I do a scan of the air inlet with a single kinect?
aidandj is offline   Reply With Quote
Old 05-22-2015, 12:57 PM   #107
Senior Member
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

You could but I don't find the kinect v1 to be accurate enough for much in terms of critical measurements and parts fit. The data is too noisey.
asmasm is offline   Reply With Quote
Old 05-22-2015, 01:20 PM   #108
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

I meant a single v2 kinect
aidandj is offline   Reply With Quote
Old 05-22-2015, 01:20 PM   #109
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

My dream is a nextengine 3d scanner and a decent 3d printer, are there any of the latter in the <$500 range that are capable of printing parts this size reliably?

I built a early rep-rap printer that was largely useless. It was the steel allthread with printed clamping nuts, except they were extruded plastic versions. Sloppy piece of crap couldn't lay more than 1/2" before going all lopsided...
deezums is offline   Reply With Quote
Old 05-22-2015, 01:25 PM   #110
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

I personally think the up mini is the only printer worth its money in that range
aidandj is offline   Reply With Quote
Old 05-25-2015, 07:41 PM   #111
Junior Member
iTrader: (2)

Join Date: Oct 2011
Location: Chicago Il
Posts: 111
Total Cats: 2
Default

I'm moderately happy with my Printrbot | Affordable high resolution 3D printers. I think I need a heated bed though.
akbloom is offline   Reply With Quote
Old 05-26-2015, 03:39 AM   #112
ʎpunq qoq

Join Date: Jan 2014
Location: Western Australia
Posts: 502
Total Cats: 100
Default

You can do photo-modelling quite accurately with a good setup. So you place markers on the surface you want to track, and then you take a series photos in a circle around the surface and use software to either photo-model or track the markers.

I use an application called Syntheyes to track marker information and can get accuracy around the 1mm mark for most surfaces. I use this at work to place 3D accurately into helicopter or drone footage, or to modify objects moving in the video footage, like people's heads.

When I get some spare time, I'm going to make some 3D printed canyards for the front spoiler. I'll use this technique to get an accurate surface model of the front spoiler and wheel arch and then model over the top in 3D for the canyard. This process should be fairly accurate and reduce the number of iterations required to get the model correct.
Madjak is offline   Reply With Quote
Old 05-26-2015, 03:56 AM   #113
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

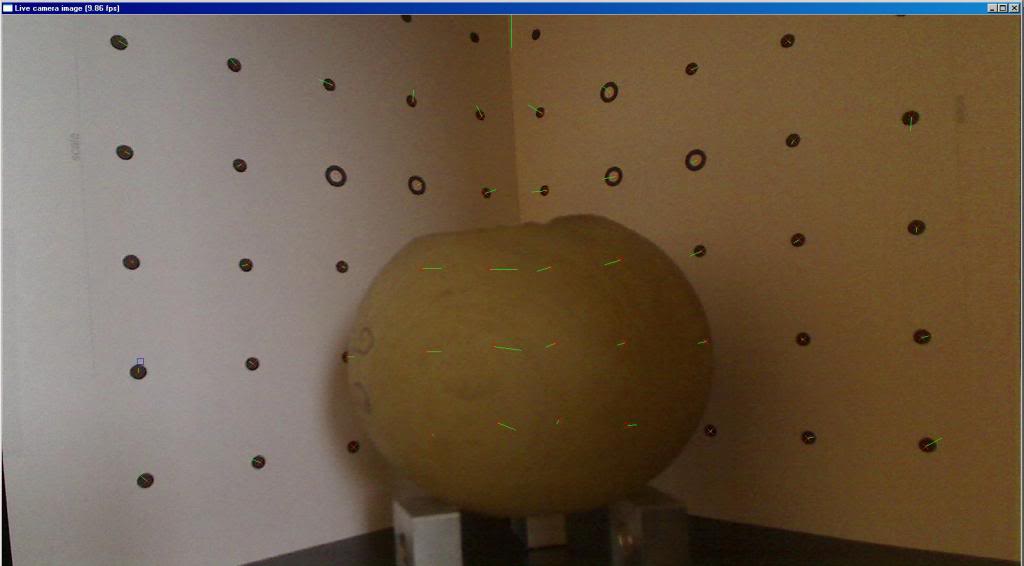

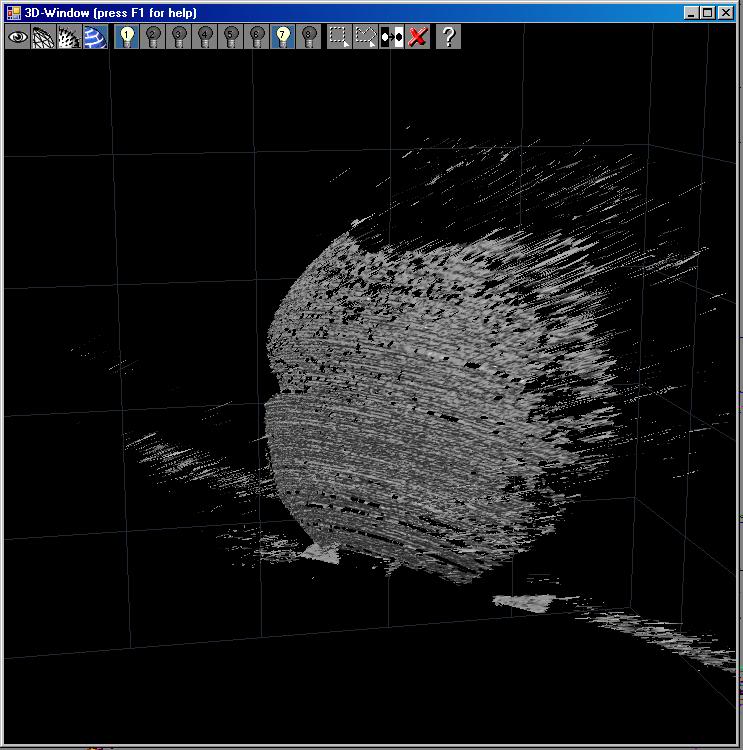

I tried using a 3d webcam, a laser level, a printed grid, and a free program called david3d. If I had worked with it more I imagine it would have worked great!





This was what seems like ages ago though, half a decade. I had great plans to build a rotary table and a servo or gear driven motor for the laser sweep.

No go on a car though, though they had a structured light scan option. If only I had a projector!
Attached Thumbnails
Brake ducts in R-package front lip-result.jpg   Brake ducts in R-package front lip-scansetup.jpg
deezums is offline   Reply With Quote
Old 08-30-2015, 07:11 PM   #114
Senior Member
iTrader: (2)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,297
Total Cats: 22
Default

So how did those duct adapters work out for you guys? Did they hold up over the summer?
Der_Idiot is offline   Reply With Quote
Old 08-30-2015, 07:13 PM   #115
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Not sure. Madjack got real busy. I'm not very good with solidworks. They were close but I haven't used them yet.
aidandj is offline   Reply With Quote
Old 08-30-2015, 10:26 PM   #116
ʎpunq qoq

Join Date: Jan 2014
Location: Western Australia
Posts: 502
Total Cats: 100
Default

I've had some ducting sitting on my bench for 2 months waiting to be installed I just haven't had a chance to check fitment. I actually jacked my car up yesterday to have a look as I just need to tweak the R-lip ones to fit past my custom radiator mounts.

I'm going to trim my radiator hanger so I can check the fitment properly, but it looks like they would fit a stock car nicely.

The GV-lip version needed some mods. Aidandj, I can have a look at it this week.

Also for 3D scanning, try Agisoft photoscan. It doesn't work too well with reflective surfaces though. Might have to get your car really dirty!
Madjak is offline   Reply With Quote
Old 12-01-2015, 05:23 PM   #117
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

nice work. Once finalized, would these parts be used as printed, or used for a foundation to mold CF/FG?
psyber_0ptix is offline   Reply With Quote
Old 06-07-2016, 11:49 AM   #118
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

Can someone print me a set ^_^
psyber_0ptix is offline   Reply With Quote
Old 06-07-2016, 01:06 PM   #119
Senior Member
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

Did these ever get finalized? I will probably take a stab at it soon with an expanding foam pour followed by a 3d scan. I'll share the scan volume when I do.

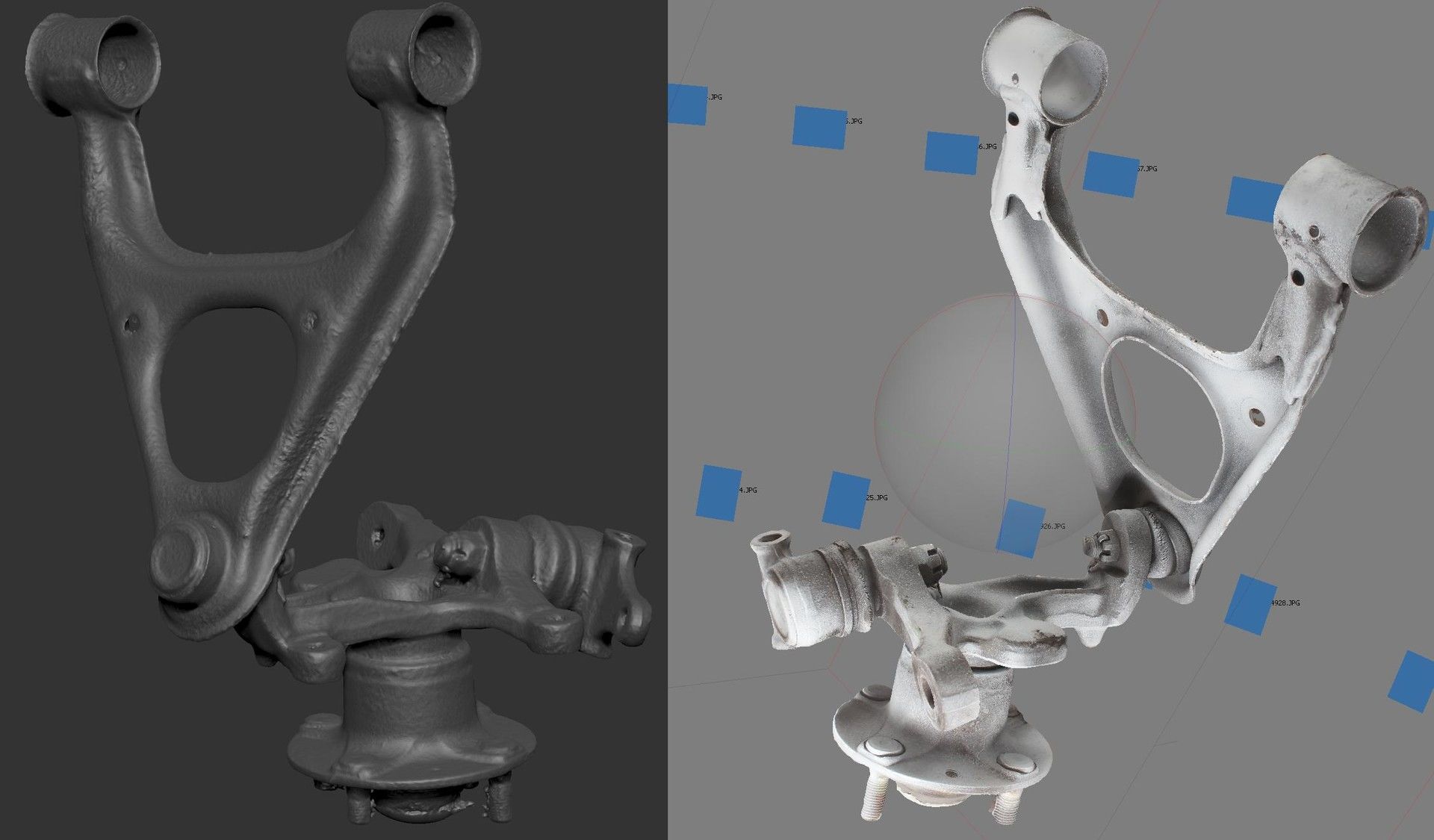

Also, on the subject of scanning- For the cost photogrammetry is the way to go. I have worked with data from high end lidar systems, kinect scans, and good photoscan setups. The photoscans are the best option for relatively small parts where super tight tolerances aren't needed.. Agisoft photoscan works very well if you prep surfaces, take careful photos, and spend some time editing the point cloud. This example is about 100 photos and I spent 20 minutes cleaning up the point cloud. You can get better results with more time editing the point cloud and masking your photos, but for dimensional reference this is plenty.

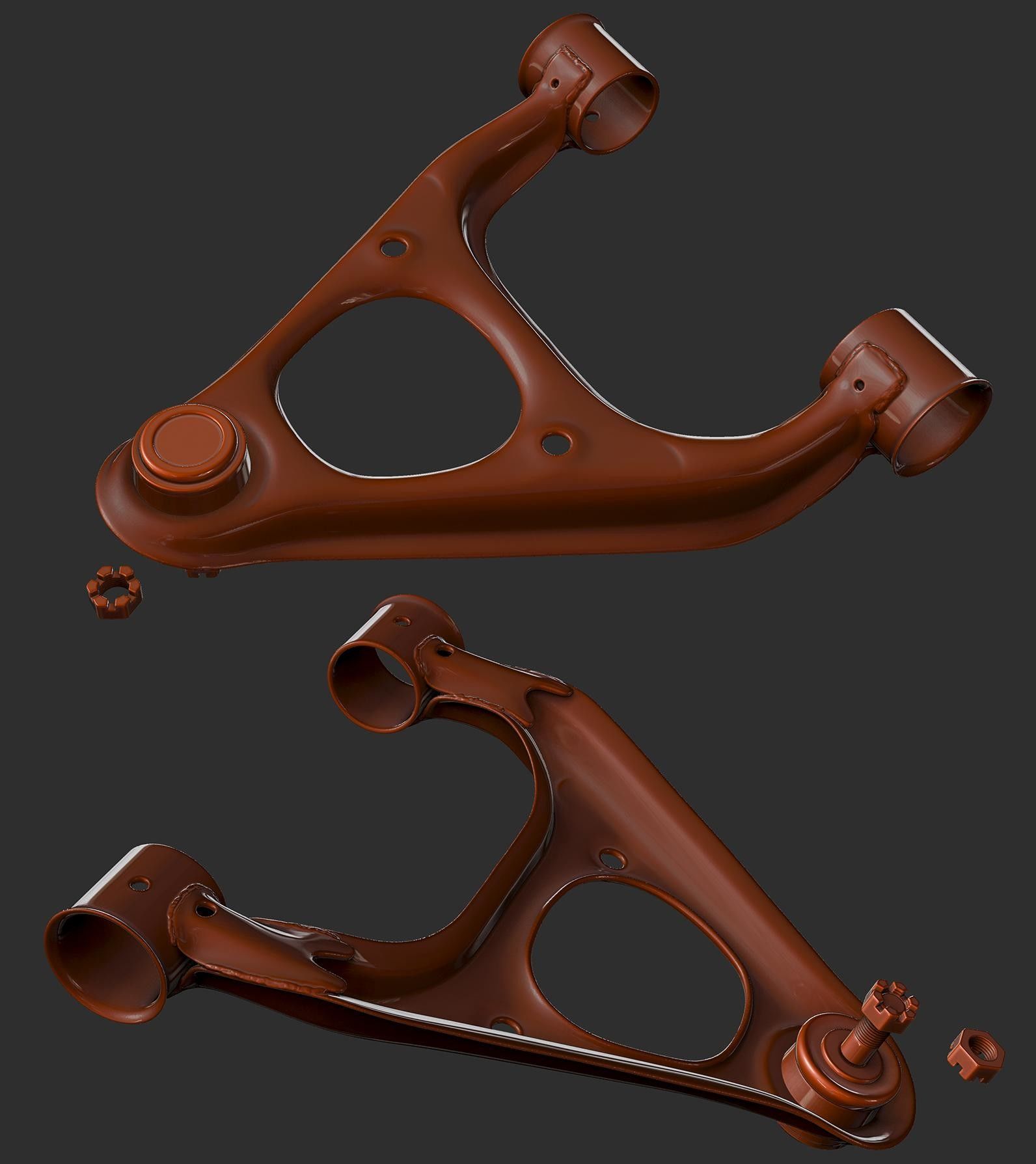

Clean model built from scan reference:
Attached Thumbnails
Brake ducts in R-package front lip-80-photoscan_209e6a0efcca80826f20577462beaf45c44d4166.jpg   Brake ducts in R-package front lip-80-photoscan_model_e11b639e88f896a792fa9c3f5b4cff31789a1cf6.jpg

Last edited by asmasm; 06-07-2016 at 01:38 PM.
asmasm is offline   Reply With Quote
Old 06-07-2016, 01:37 PM   #120
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

This is amazing. How can I get into this line of work?
