Old 11-15-2012, 08:45 AM   #21
Junior Member

Join Date: Dec 2006
Posts: 192
Total Cats: 8
Default

Quote:
Originally Posted by ThePass View Post

I have personally seen this happen.

And wouldn't you feel the fool (assuming you survived the incident) to be the guy who intentionally did his cage in a way that doesn't protect you in a rollover, when that's the primary point of a cage, if you're unlucky enough to have to find out how bad your design is?

-Ryan
Agreed, but my point was closer to, "I'm not going to worry about NASCAR bars nearly as much as chassis rigidity. If I was going to take the car on track, it would be completely the opposite"

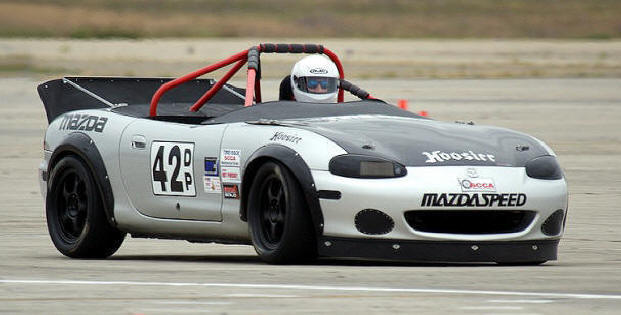

Close to what I'm imagining for my bar:
Attached Thumbnails
building my cage-2007-05-13_001427_cox_dp_miata_at_atwater.jpg
tpwalsh is offline   Reply With Quote
Old 11-15-2012, 10:05 AM   #22
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by toppertee View Post
No Dents, in my skull yet, finger crossed:

That looks like flammable pipe insulation (or pool noodles) and not SFI approved roll bar padding. One will catch on fire, melt, drip on your skin and get stuck to you as a melting blob of plastic burning your skin off, the other one is SFI approved roll bar padding.
Leafy is offline   Reply With Quote
Old 11-15-2012, 12:20 PM   #23
Senior Member
iTrader: (1)

Join Date: Nov 2010
Posts: 951
Total Cats: -252
Default

Quote:
Originally Posted by ThePass View Post
Woah woah woah, I posted the above then read the rest of the thread and noticed you are not building a cage you're building a roll bar.

BIG DIFFERENCE - not just "blah blah, same thing" - not at all.

A roll bar should be 1.75" tubing.

1.5" Should ONLY be used in a roll cage

If you're looking at an SCCA rulebook you should already know this.



Just about every cage in miatas are done in 1.5", and this is absolutely acceptable. For a roll bar though, the only ones that meet NASA/SCCA are 1.75"

On the subject of thickness, I would agree that that is adequate, but SCCA requires .120 for roll bars, so which rule book you're following changes things.

-Ryan
My car is a former spec miata and it has a 1.75 inch cage.
wannafbody is offline   Reply With Quote
Old 11-15-2012, 12:40 PM   #24
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by toppertee View Post
No Dents, in my skull yet, finger crossed:

That plumbing insulation is better than HD roll cage foam.
hustler is offline   Reply With Quote
Old 11-15-2012, 01:32 PM   #25
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,359
Total Cats: 1,323
Default

Quote:
Originally Posted by wannafbody View Post
My car is a former spec miata and it has a 1.75 inch cage.
SCCA allows 1.75x.095 in cages, but NASA doesn't. 1.75x.095 is lighter than 1.50x.120.
Savington is offline   Reply With Quote
Old 11-15-2012, 10:33 PM   #26
Senior Member

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 782
Total Cats: 23
Default

Man, I wish we could have re manufactured seat belt mount points in our cars like the blackbird one pictured on page 1.

Our Sactioning body won't let them on the street unless the OEM setbelt points remain.

I have had to remove seatbelts and run harness on the street. Sometimes VERY annoying.

I might borrow that picture and submit it for consideration......
mx5-kiwi is offline   Reply With Quote
Old 11-16-2012, 12:33 AM   #27
Newb

Join Date: Aug 2011
Location: Brisbane
Posts: 39
Total Cats: -14
Default

Quote:
Originally Posted by Leafy View Post
That looks like flammable pipe insulation (or pool noodles) and not SFI approved roll bar padding. One will catch on fire, melt, drip on your skin and get stuck to you as a melting blob of plastic burning your skin off, the other one is SFI approved roll bar padding.
Yes but SFI padding is soooo expensive, plus the padding is only there to cover my welds. I found I was blowing holes in my tubes with my arc welder, so I just tacked the tubes in place and sealed the gaps with filler and put plenty of paint on the joints. Job done.
So if I don't crash or set my car on fire, I should be o.k.
toppertee is offline   Reply With Quote
Old 11-16-2012, 12:46 AM   #28
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by toppertee View Post
Yes but SFI padding is soooo expensive, plus the padding is only there to cover my welds. I found I was blowing holes in my tubes with my arc welder, so I just tacked the tubes in place and sealed the gaps with filler and put plenty of paint on the joints. Job done.
So if I don't crash or set my car on fire, I should be o.k.
I have no words.
Leafy is offline   Reply With Quote
Old 11-16-2012, 01:02 AM   #29
Senior Member
iTrader: (6)

Join Date: Aug 2009
Location: Charlotte, NC
Posts: 924
Total Cats: 16
Default

Not sure if.....
Gryff is offline   Reply With Quote
Old 11-16-2012, 01:14 AM   #30
Elite Member
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

There is no way you could be serious. That was a joke right.
rharris19 is offline   Reply With Quote
Old 11-16-2012, 05:19 AM   #31
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,863
Total Cats: 484
Default

Oh my god.. this thread just went south fast.



He's joking right?
ThePass is offline   Reply With Quote
Old 11-16-2012, 07:05 AM   #32
Newb

Join Date: Aug 2011
Location: Brisbane
Posts: 39
Total Cats: -14
Default

Quote:
Originally Posted by mx5-kiwi View Post
Man, I wish we could have re manufactured seat belt mount points in our cars like the blackbird one pictured on page 1.

Our Sactioning body won't let them on the street unless the OEM setbelt points remain.

I have had to remove seatbelts and run harness on the street. Sometimes VERY annoying.

I might borrow that picture and submit it for consideration......
I welded two metal 20mm slugs through the vertical bar on the main hoop. Then drilled and tapped the slug and fitted aftermarket belts.
Have a look at the almac kit car that is sold in new Zealand and check what standard they used to pass the M.O.T for there belt set up.
Over here in austraila when we are not riding kangaroos to work we use cars, due to the laws we are not allowed to run harness on the street, as there is no standard approvals in Australia for harnesses. I'm pretty sure the standard is the same in nz as we share the same standards. So as a guess you should be able to get cert for the belt as I did.
toppertee is offline   Reply With Quote
Old 11-16-2012, 08:18 AM   #33
Junior Member
iTrader: (3)

Join Date: Apr 2012
Location: Moscow, PA
Posts: 118
Total Cats: 2
Default

Quote:
Originally Posted by toppertee View Post
Yes but SFI padding is soooo expensive, plus the padding is only there to cover my welds. I found I was blowing holes in my tubes with my arc welder, so I just tacked the tubes in place and sealed the gaps with filler and put plenty of paint on the joints. Job done.
So if I don't crash or set my car on fire, I should be o.k.

tplociniak is offline   Reply With Quote
Old 11-16-2012, 08:54 AM   #34
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

Attached Thumbnails
building my cage-pjmea9rrreiwdci7pvq7eq2.jpg
GeneSplicer is offline   Reply With Quote
Old 11-16-2012, 10:40 AM   #35
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,660
Total Cats: 1,559
Default

Meh, I used the smaller diameter pool noodles held in place by wires to get the basic shape I wanted. Then I carefully wrapped that in fiberglass matting and added the resin. It took three layers of matting to get the thickness and strength I wanted. After the resin hardened I cut off the suspension wires flush with the surface. Then I sanded it down and smoothed it with body filler (Bondo) to make it look smooth like metal. Several coats of gloss black Krylon and then some rollbar padding over it to complete the look and you are done. Add some decals to keep people from looking to closely and you have got it made. And I saved having to spend $500 on a Hard Dog DD.
sixshooter is offline   Reply With Quote
Old 11-16-2012, 01:29 PM   #36
Senior Member
Thread Starter
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

Attached Thumbnails
building my cage-anchorman-well-escalated-quickly.jpg
FowlerMotorsports is offline   Reply With Quote
Old 11-16-2012, 04:34 PM   #37
Newb

Join Date: Aug 2011
Location: Brisbane
Posts: 39
Total Cats: -14
Default

Quote:
Originally Posted by sixshooter View Post
Meh, I used the smaller diameter pool noodles held in place by wires to get the basic shape I wanted. Then I carefully wrapped that in fiberglass matting and added the resin. It took three layers of matting to get the thickness and strength I wanted. After the resin hardened I cut off the suspension wires flush with the surface. Then I sanded it down and smoothed it with body filler (Bondo) to make it look smooth like metal. Several coats of gloss black Krylon and then some rollbar padding over it to complete the look and you are done. Add some decals to keep people from looking to closely and you have got it made. And I saved having to spend $500 on a Hard Dog DD.
Two thumbs up, heaps lighter as well. Super work there, by thinking out side the box, well done champ.
toppertee is offline   Reply With Quote
Old 11-17-2012, 03:16 PM   #38
Senior Member
iTrader: (4)

mr_hyde's Avatar

Join Date: Jul 2009
Location: Seattle
Posts: 799
Total Cats: 25
Default

Quote:
Originally Posted by sixshooter View Post
Meh, I used the smaller diameter pool noodles held in place by wires to get the basic shape I wanted. Then I carefully wrapped that in fiberglass matting and added the resin. It took three layers of matting to get the thickness and strength I wanted. After the resin hardened I cut off the suspension wires flush with the surface. Then I sanded it down and smoothed it with body filler (Bondo) to make it look smooth like metal. Several coats of gloss black Krylon and then some rollbar padding over it to complete the look and you are done. Add some decals to keep people from looking to closely and you have got it made. And I saved having to spend $500 on a Hard Dog DD.
That does it. I'm tearing this heavy cage out of my car and saving some weight. I'm thinking of some PVC tube filled with expanding foam for strength. Home Depot Motorsports saves at least 70 pounds! Win!
mr_hyde is offline   Reply With Quote
Old 11-18-2012, 12:40 AM   #39
Senior Member

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 782
Total Cats: 23
Default

I have no idea where this thread is heading all of a sudden !! BUT thanks Toppertee, I will look in to that.

The MANZ rules seem to have gone a bit crazy here of late, it doesn't look too good at this point...
