Came back from the 4th round of the Miata Challenge after a weekend full of aero testing fun.
Spent a few sessions playing with both front and rear wing adjustments.
More testing is needed for sure, but the front wing definitely made an impact on aero balance and grip levels.

The car was very neutral and balanced in Laguna last month and the only change I made in it since was the front wing.
Before going out on track for the first time during the weekend, I cranked the rear wing's AOA up by a good bit with the understanding that if the front wing worked as expected, I'll encounter oversteer unless the rear wing was set more aggressive.
And boy was I right..

Even with the steeper AOA on the rear wing, the balance shifted to the front enough to get the rear end to step out and make me look like a hero in a bunch of corners.

So yeah, it may have the look that only a mother can love and a face for the radio, but the thing works.







Moti

Last edited by Braineack; 05-27-2013 at 12:54 PM.
Blackbird is offline   Reply With Quote
Old 05-27-2013, 08:01 AM   #2
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Pics don't work for me.
Oscar is offline   Reply With Quote
Old 05-27-2013, 12:06 PM   #3
Senior Member
Thread Starter

Join Date: Oct 2011
Location: Northridge, CA
Posts: 655
Total Cats: 282
Default

Something is wrong with your browser, you should look into it
Blackbird is offline   Reply With Quote
Old 05-27-2013, 01:15 PM   #4
Junior Member

Join Date: Mar 2012
Posts: 322
Total Cats: 23
Default

Quote:
Originally Posted by Oscar View Post
Pics don't work for me.
Don't work here either.
M.Adamovits is offline   Reply With Quote
Old 05-27-2013, 01:17 PM   #5
Senior Member

Join Date: May 2011
Location: Pennsylvania
Posts: 1,119
Total Cats: 33
Default

Quote:
Originally Posted by M.Adamovits View Post
Don't work here either.
your browser must suck too...

i can CLEARLY see pictures of boxes with red x's.....
supercooper is offline   Reply With Quote
Old 05-27-2013, 01:25 PM   #6
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

All of your browsers suck. I can clearly see small image icons with a little moon and a mountain. Obviously these images are meant to illustrate... well, something...
ZX-Tex is offline   Reply With Quote
Old 05-27-2013, 02:25 PM   #7
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

Spectacular fail lol

What's even more funny is "last edited by Braineak" apparently even the Brain wasn't able to fix the massive fail either.

OP - please try again.
18psi is offline   Reply With Quote
Old 05-27-2013, 03:39 PM   #8
Senior Member
Thread Starter

Join Date: Oct 2011
Location: Northridge, CA
Posts: 655
Total Cats: 282
Default

Massive fail seems to work alright on other forums using the same links...

Let's try attachments instead.

Moti

BTW, if any mod or admin wants to edit the OP to show the pics somehow using the original links, here they are -
http://www.blackbirdfabworx.com/SRP2013-049w.jpg
http://www.blackbirdfabworx.com/SRP2013-083w.jpg
http://www.blackbirdfabworx.com/SRP2013-081w.jpg

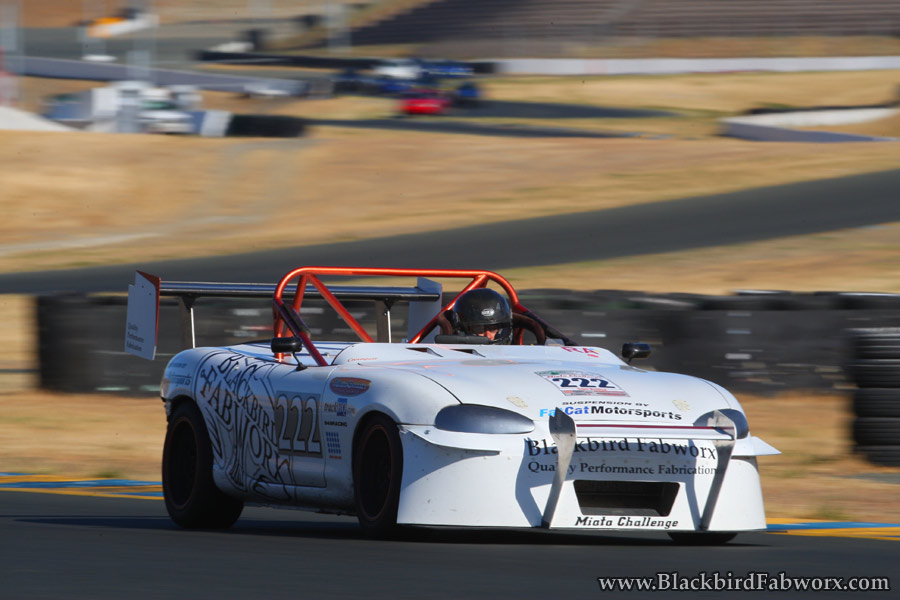

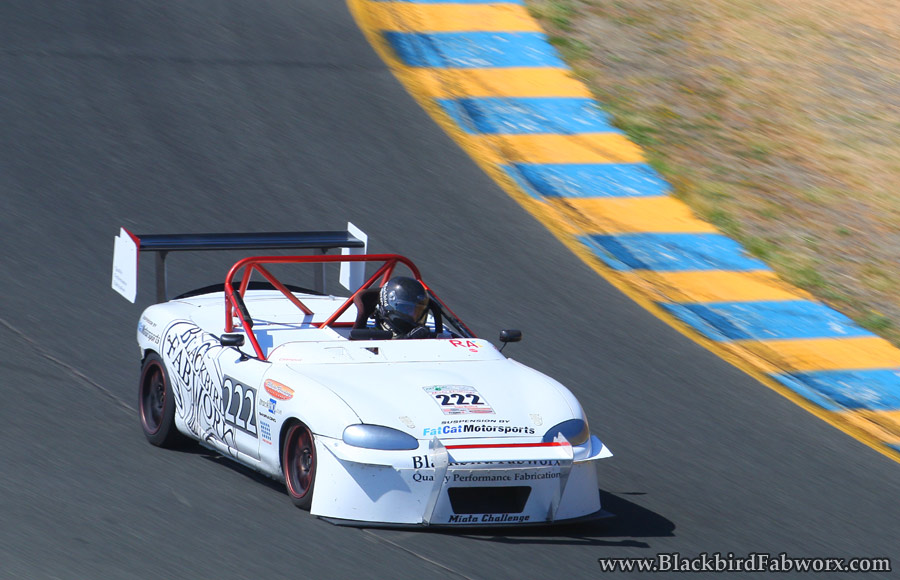

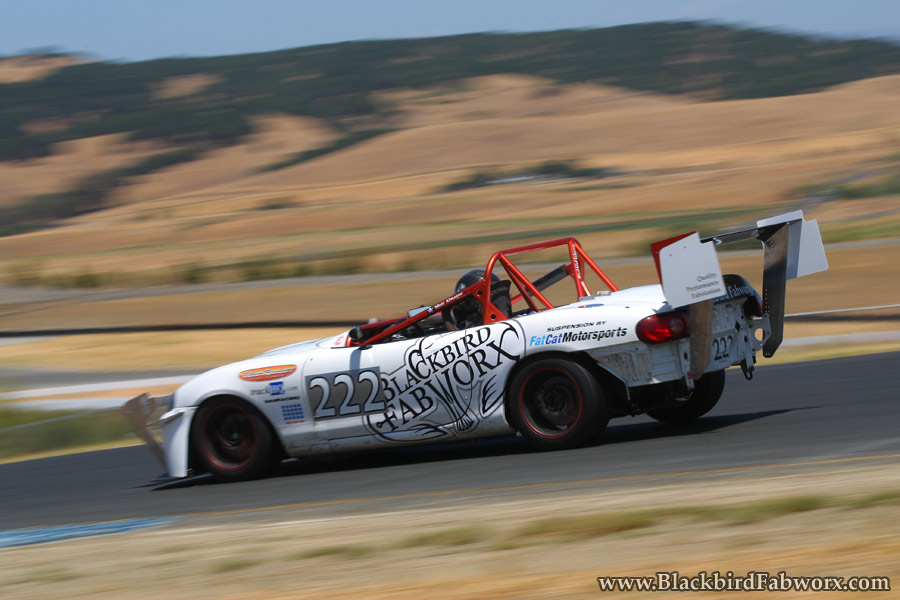

Attached Thumbnails
