Old 05-28-2013, 02:02 AM   #21
Newb

Join Date: Oct 2010
Posts: 18
Total Cats: 9
Default

Lol. Gotta love a slow computer. Oh well.
Edens is offline   Reply With Quote
Old 05-28-2013, 10:47 AM   #22
Junior Member

Join Date: Jun 2011
Location: Houston
Posts: 409
Total Cats: 17
Default

Very nicely done! Now hook up some shock sensors and tell us how much downforce its generating
Handy Man is offline   Reply With Quote
Old 05-28-2013, 11:59 AM   #23
Senior Member
iTrader: (1)

Join Date: Nov 2010
Posts: 951
Total Cats: -252
Default

How did your times with the front wing compare to previous times without it?
wannafbody is offline   Reply With Quote
Old 05-28-2013, 02:07 PM   #24
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

I'm surprised you didnt go lower to get the ground effect.

And since the TC wing has been brought up. I believe the TC and cobalt SS wings were high so that the drivers could see. They didnt mount them forward and low like moti because of rules.

It also brings up the question, how close can you get behind another car on track before you notice a loss of front downforce?
Leafy is offline   Reply With Quote
Old 05-28-2013, 07:00 PM   #25
Senior Member
Thread Starter

Join Date: Oct 2011
Location: Northridge, CA
Posts: 653
Total Cats: 282
Default

Didn't go lower because I was worried about altering the air flow to the rad too much and have a negative effect on the cooling.
The front wing idea has been done a long time ago, it cracks me up that people think this is something that any recent time attack team came up with

I don't think the choice of mounting on the TC had anything to do with rules, I believe the original building high mounting spot had been changed later to something much lower.

The wing is invisible to me from the driver seat, I nearly smashed it on the first time I tried to get out of my parking spot, not remembering for a sec that my car is now about a foot longer in the nose section

I don't have a direct comparison on any track between having the front wing on or not, I wanted to do it over the weekend but forgot... the difference between the complete aero package and not having the aero amounted to 3.2 seconds @ Sonoma this past weekend.

I'm hoping to get to WSIR this weekend and run the Miata Challenge.
My plan was to remove the front wing for that one and back down the rear wing to reduce drag (big willow is a high speed track), but if I make it out there, it's possible that I'll try running a session with the front wing to get a sense of the difference.
I doubt it'll result in any reduction in lap times as I'm already @ WOT like 99% of the time

More pics of the setup in my Sonoma event recap.

Moti
Blackbird is offline   Reply With Quote
Old 05-28-2013, 10:32 PM   #26
Junior Member

Join Date: Jun 2011
Location: Houston
Posts: 409
Total Cats: 17
Default

Quote:
Originally Posted by Blackbird View Post
I doubt it'll result in any reduction in lap times as I'm already @ WOT like 99% of the time
Needs moar POWA!
Handy Man is offline   Reply With Quote
Old 05-29-2013, 01:35 AM   #27
Senior Member
Thread Starter

Join Date: Oct 2011
Location: Northridge, CA
Posts: 653
Total Cats: 282
Default

I'm enjoying the challenge in seeing how far I can push the platform on a bone stock engine.
No, seriously, it's totally stock USDM VVT down to the airbox, all the emissions equipment, header, ECU...
Only thing different about it is that the test pipe / exhaust from the factory downpipe - back, the cat and exhaust were changed to clear the major surgery in the transmission tunnel for the purpose of seat fitment.

When it's time to add power, it'll be done properly
Blackbird is offline   Reply With Quote
Old 05-30-2013, 02:49 PM   #28
Ian
Junior Member
iTrader: (2)

Join Date: Jan 2012
Posts: 163
Total Cats: 4
Default

Moti,

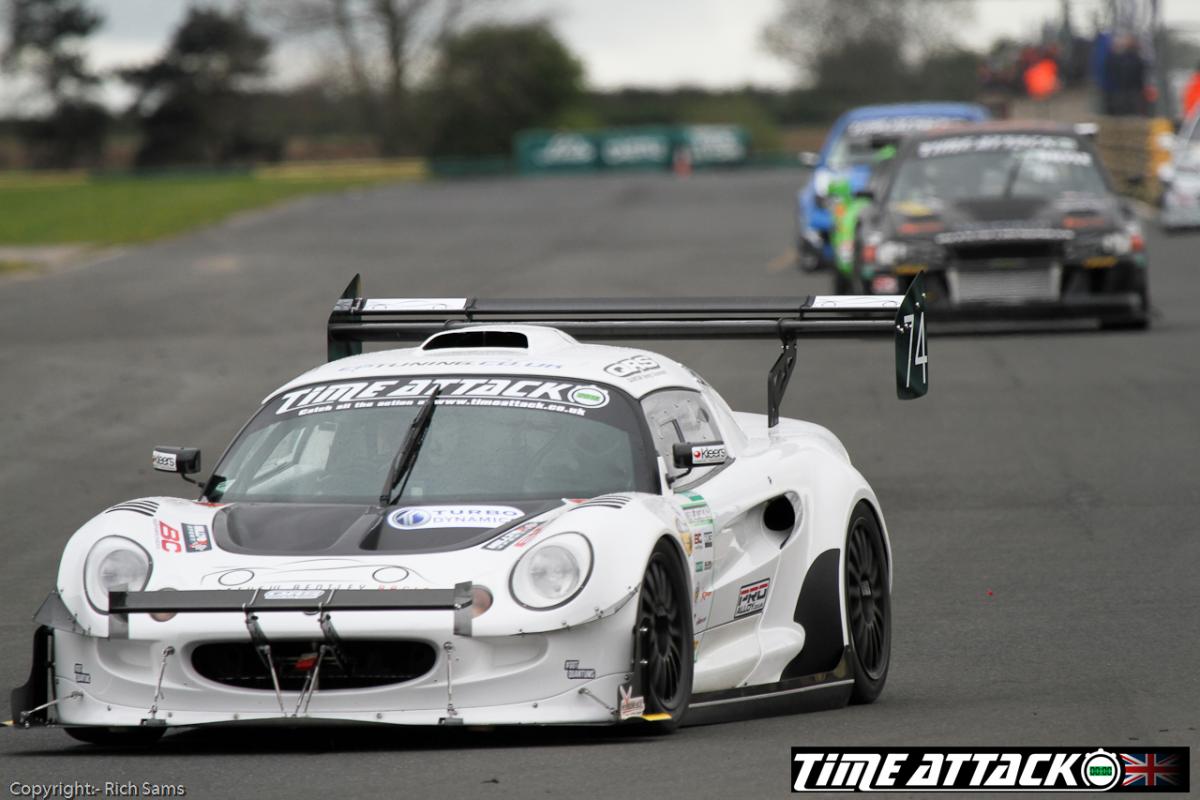

Stumbled on this sweet Lotus and thought you might appreciate it. Very similar approach.

Attached Thumbnails
Front wing-ta2013%2520r2%2520811.jpg
Ian is offline   Reply With Quote
Old 05-30-2013, 05:34 PM   #29
Junior Member

Join Date: Jun 2011
Location: Houston
Posts: 409
Total Cats: 17
Default

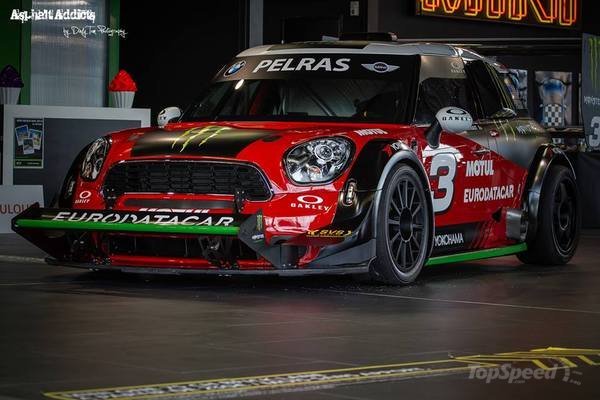

Pikes Peak Mini!

Attached Thumbnails
Front wing-mini-no-limit-pikes-3_600x0w.jpg
Handy Man is offline   Reply With Quote
Old 05-30-2013, 06:31 PM   #30
Junior Member

Join Date: Jun 2011
Location: Houston
Posts: 409
Total Cats: 17
Default

Also, it looks like Racecar Engineering will be doing an article on that Lotus

The Wing Shop - home page
Handy Man is offline   Reply With Quote
Old 05-30-2013, 08:12 PM   #31
Senior Member
iTrader: (1)

Join Date: Dec 2008
Location: Manassas, Virginia
Posts: 1,247
Total Cats: 57
Default

Blackbird, did you arbitrarily decide on, guestimate, or calculate the wing width and chord?
mx5autoxer is offline   Reply With Quote
Old 05-31-2013, 01:57 PM   #32
Senior Member
Thread Starter

Join Date: Oct 2011
Location: Northridge, CA
Posts: 653
Total Cats: 282
Default

For width I went with what made sense for mounting spots on my car, and like I said earlier the width can be added up to whatever I want.
The chord length was a part of the airfoil chosen, keep in mind it a prototype for experimental purposes, you can expect other wings to find their way to the nose of the car
Blackbird is offline   Reply With Quote
Old 06-02-2013, 09:02 PM   #33
Newb

Join Date: Jun 2013
Location: Atlanta, GA
Posts: 20
Total Cats: -15
Default

Man that Lotus is sexy. I really like the looks of your wing. It looks clean
botbullet0 is offline   Reply With Quote
Old 06-03-2013, 12:37 PM   #34
Senior Member
Thread Starter

Join Date: Oct 2011
Location: Northridge, CA
Posts: 653
Total Cats: 282
Default

Went to big willow on Saturday.
For those who don't know the track, it is all high speed. In my car I only shift twice in a lap, downshifting into 4th for the uphill section and back into 5th for the rest of the lap once the car gets back to the top of 4th gear.

Anyways, the front wing was hurting performance in a high speed track like WSIR, knocking the top end by a good 6-7 MPH.
After the first session I unbolted it and cranked the AOA on the rear wing back down.
2nd session laps were quicker.

Miata Challenge 6.1.13 WSIR | Flickr - Photo Sharing!

Moti
Blackbird is offline   Reply With Quote
Old 06-03-2013, 01:21 PM   #35
Junior Member

Join Date: Jun 2011
Location: Houston
Posts: 409
Total Cats: 17
Default

I'll repeat my previous statement:

Quote:
Originally Posted by Handy Man View Post
Needs moar POWA!
Handy Man is offline   Reply With Quote
Old 06-03-2013, 02:13 PM   #36
Senior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

Wow, 6-7 mph! That's a draggy little sucker.
Keith@FM is offline   Reply With Quote
Old 06-03-2013, 02:17 PM   #37
Senior Member
Thread Starter

Join Date: Oct 2011
Location: Northridge, CA
Posts: 653
Total Cats: 282
Default

Don't forget that the speed difference is from both wings - the front removed the the rear AOA dropped considerably.

Edited to note - also, the more power I'll add the less difference this will make in actual lap time because the car will be able to take advantage of the additional downforce.
At this point it's WOT all the time because of the low power, but if you had to use part throttle anywhere the extra downforce would come into play.
Blackbird is offline   Reply With Quote
Old 06-05-2013, 05:15 AM   #38
Senior Member

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 782
Total Cats: 23
Default

I dont know about real life but in Rfactor and so on losing 6-7 MPH v higher corner speeds usually means much faster lap times.......I think that would translate...?

Circuit racing...but probably not in targa type events...?

and as Blackbird says, very track dependant.
mx5-kiwi is offline   Reply With Quote
Old 06-05-2013, 11:41 AM   #39
Senior Member
Thread Starter

Join Date: Oct 2011
Location: Northridge, CA
Posts: 653
Total Cats: 282
Default

That's the thing at big willow, you're already floored for so much of the lap that the extra downforce doesn't do anything good.
The car makes a good bit of downforce without the front wing too, the splitter and rear wing are still working just fine
Blackbird is offline   Reply With Quote
Old 06-13-2013, 03:27 PM   #40
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,862
Total Cats: 484
Default

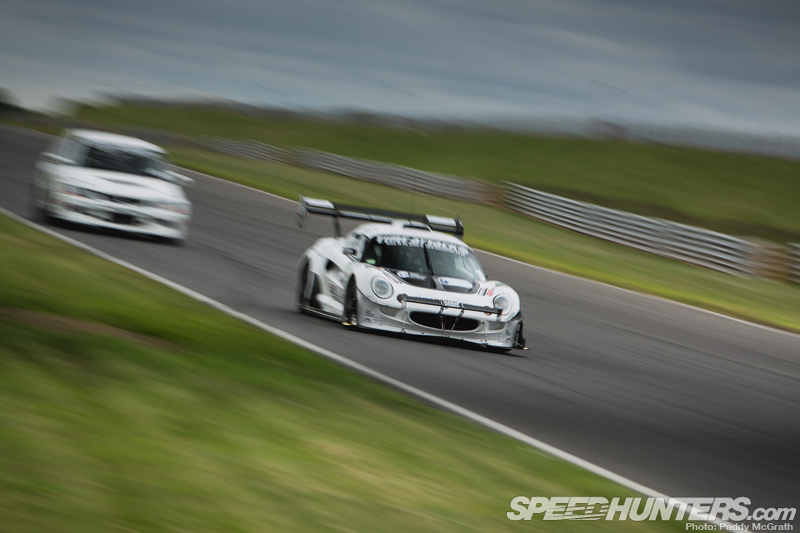

So that Lotus posted a bit earlier in this thread...

Took first place in Pro ("Unlimited") at the UK time attack.
(btw it's running a twin-charged K-series swap)

All hail front wings!

Attached Thumbnails
Front wing-time-attack-snetterton-34.jpg
ThePass is offline   Reply With Quote
