Default Hard Dog Hardcore Model Stamp?

Hi,

About to pick up a Hard dog Hardcore, but the seller doesnt know which model it is. Does anyone know if there is a stamp on these things and if so, where is it located?

If no stamp, any way I can differentiate what model it is?

Thanks!
ennjay is offline   Reply With Quote
Old 08-07-2014, 02:57 PM   #2
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

I don't think I have ever noticed a marking for what type of roll bar it is on any of the hard dogs I have seen.
shuiend is offline   Reply With Quote
Old 08-07-2014, 02:59 PM   #3
Junior Member
iTrader: (1)

Join Date: Aug 2008
Location: Austin, TX
Posts: 239
Total Cats: 4
Default

The hardcore bars are 1.75" DOM instead of the normal 1.5" no? That should be pretty obvious.

The only other thing will be the rear bars for M1 or M2. No way to know on that I guess.
mcfandango is offline   Reply With Quote
Old 08-07-2014, 03:05 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

it's pretty easy to tell with pictures.
Braineack is offline   Reply With Quote
Old 08-07-2014, 03:06 PM   #5
Junior Member
iTrader: (1)

Join Date: Aug 2008
Location: Austin, TX
Posts: 239
Total Cats: 4
Default

Thinking about it for a moment. The hardtop ones will have the main hoop shifted more towards the rear. The "normal" hardcore I believe limited the seat recline or travel somewhat. It never was a concern for me as I have short legs and a tall torso.
On the M1 or M2, the rear support tube would likely have to end closer to the main hoop on the M2 version. Or maybe it was the harness bar was somehow positioned closer to the driver seat. I had an M1 hardcore and not an M2.
mcfandango is offline   Reply With Quote
Old 08-07-2014, 03:09 PM   #6
Junior Member

Join Date: Jan 2007
Posts: 218
Total Cats: 15
Default

They don't have stamps or other identifying markings. Visual clues include 1.5 vs 1.75" diameter tubing, harness bar or no harness bar, straight or bent fore-aft braces for the main hoop.
freedomgli is offline   Reply With Quote
Old 08-07-2014, 03:25 PM   #7
Junior Member
Thread Starter
iTrader: (1)

Join Date: Nov 2013
Posts: 79
Total Cats: -8
Default

Thanks for the reply guys. I am mostly concrened if the hdhc bar will fit my softtop with a glass window. I'll see if I can get a picture or 2.
ennjay is offline   Reply With Quote
Old 08-07-2014, 07:31 PM   #8
Junior Member
Thread Starter
iTrader: (1)

Join Date: Nov 2013
Posts: 79
Total Cats: -8
Default

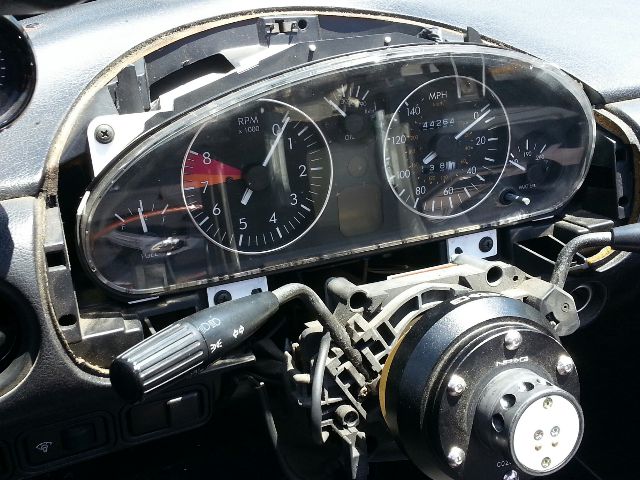

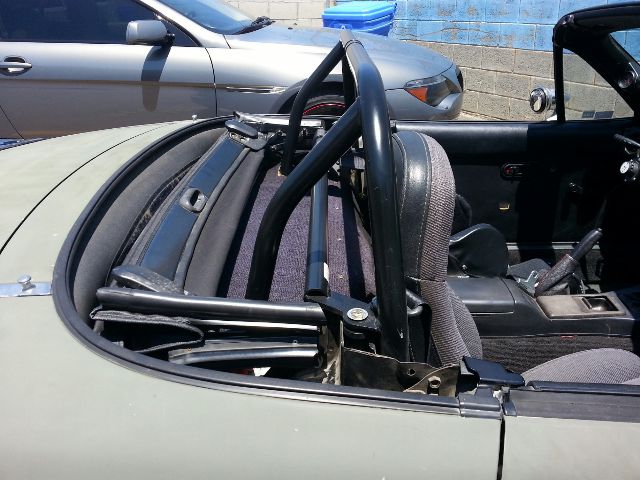

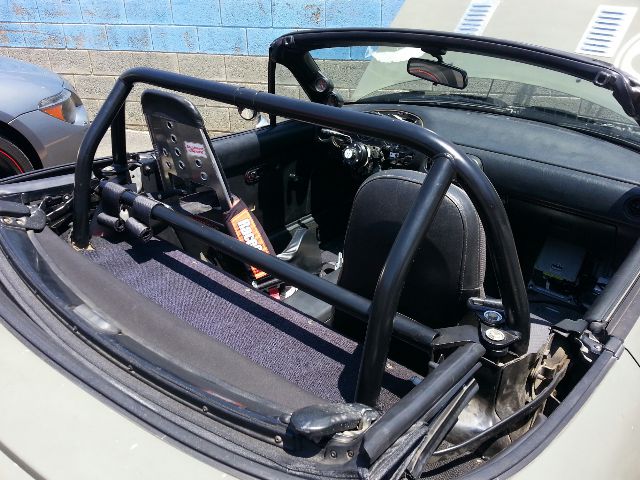

Here are some pictures I snapped today. Also check out the gauge cluster! It's not your typically cluster.

It doesnt appear to be a hard dog roll bar? But it does have a hard dog sticket on it.
Attached Thumbnails
Hard Dog Hardcore Model Stamp?-20140807_123038_resized.jpg   Hard Dog Hardcore Model Stamp?-20140807_123033_resized.jpg   Hard Dog Hardcore Model Stamp?-20140807_123054_resized.jpg
ennjay is offline   Reply With Quote
Old 08-07-2014, 08:39 PM   #9
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,878
Total Cats: 344
Default

Looks like an NB HD Sport with no diagonals. The NB sport has the bent rear braces like that, whereas the HC has straight ones. It's also got the separate bolt-in harness bar.


Sport: Miata M2 Sport Bar
HC: Miata M2 Hard Core Bar

--Ian
codrus is offline   Reply With Quote
Old 08-07-2014, 08:58 PM   #10
Junior Member

Join Date: Jan 2007
Posts: 218
Total Cats: 15
Default

Yep it looks like a M2 Sport w/o diagonals. And the gauges are revlimiter prototipo.

http://revlimiter.net/store/gauges-prototipo-na.php

You want a seat back brace if you're planning on tracking that car.
freedomgli is offline   Reply With Quote
Old 08-08-2014, 12:23 AM   #11
Junior Member
iTrader: (1)

Join Date: Aug 2008
Location: Austin, TX
Posts: 239
Total Cats: 4
Default

Definitely doesn't look like my old M1 Hardcore.
mcfandango is offline   Reply With Quote
Old 08-08-2014, 12:36 AM   #12
Junior Member

Join Date: Nov 2009
Location: SF, CA
Posts: 49
Total Cats: 2
Default

(Rain Man voice) Definitely definitely seat back brace on aluminum seat.

I've got the I/O racing one on my passenger seat, quite easy to install DIY.
billybobster is offline   Reply With Quote
