Default Heat exchangers ducting + forced brake cooling/ducting

I needed to redo my radiator/IC/oil cooler ducting and thought I'd post some pics about it.

I have the big *** raditator from TSE
the BEGI #3 intercooler
and a smallish oil cooler (Setrab, wide but only 11 rows or something).

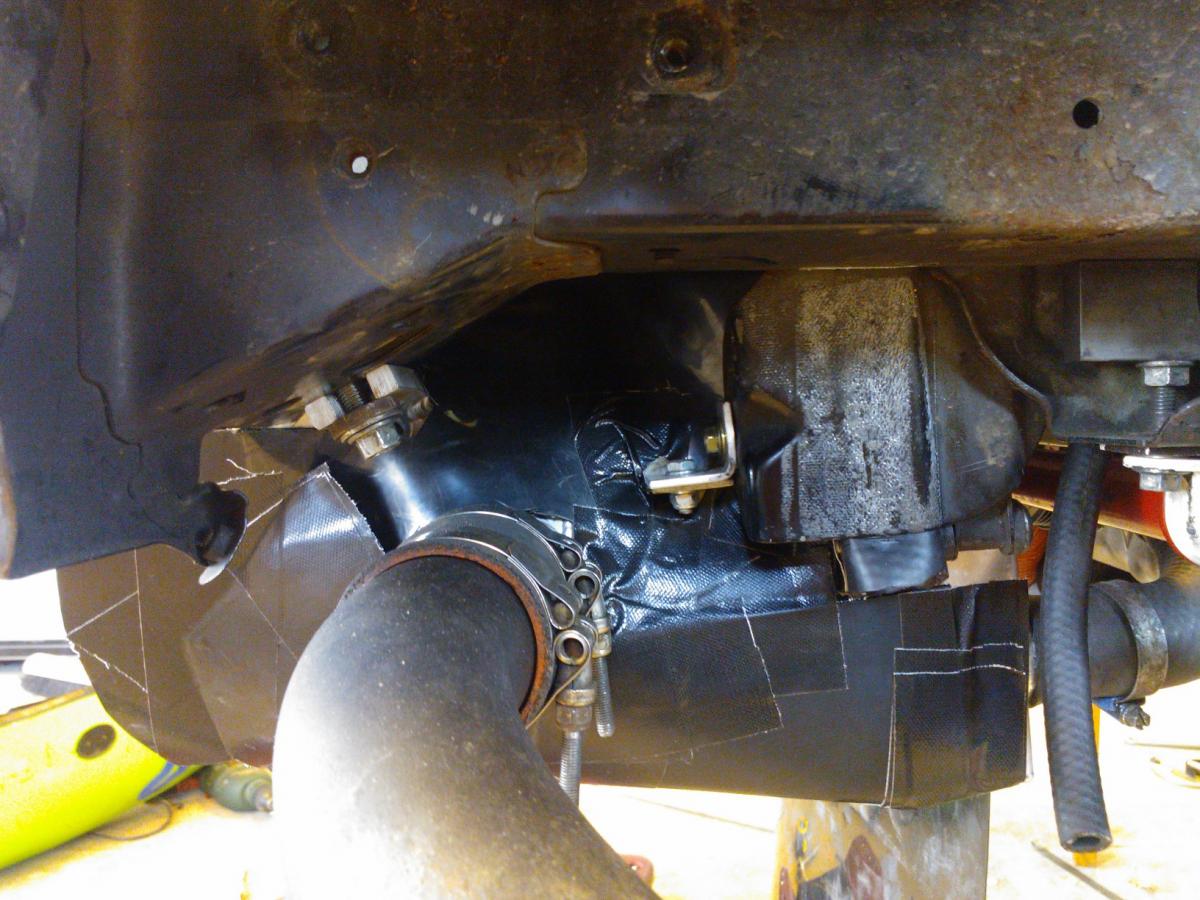

Ducting material is 2mm black plastic (not PVC) and lots of weatherproof ducttape of course.

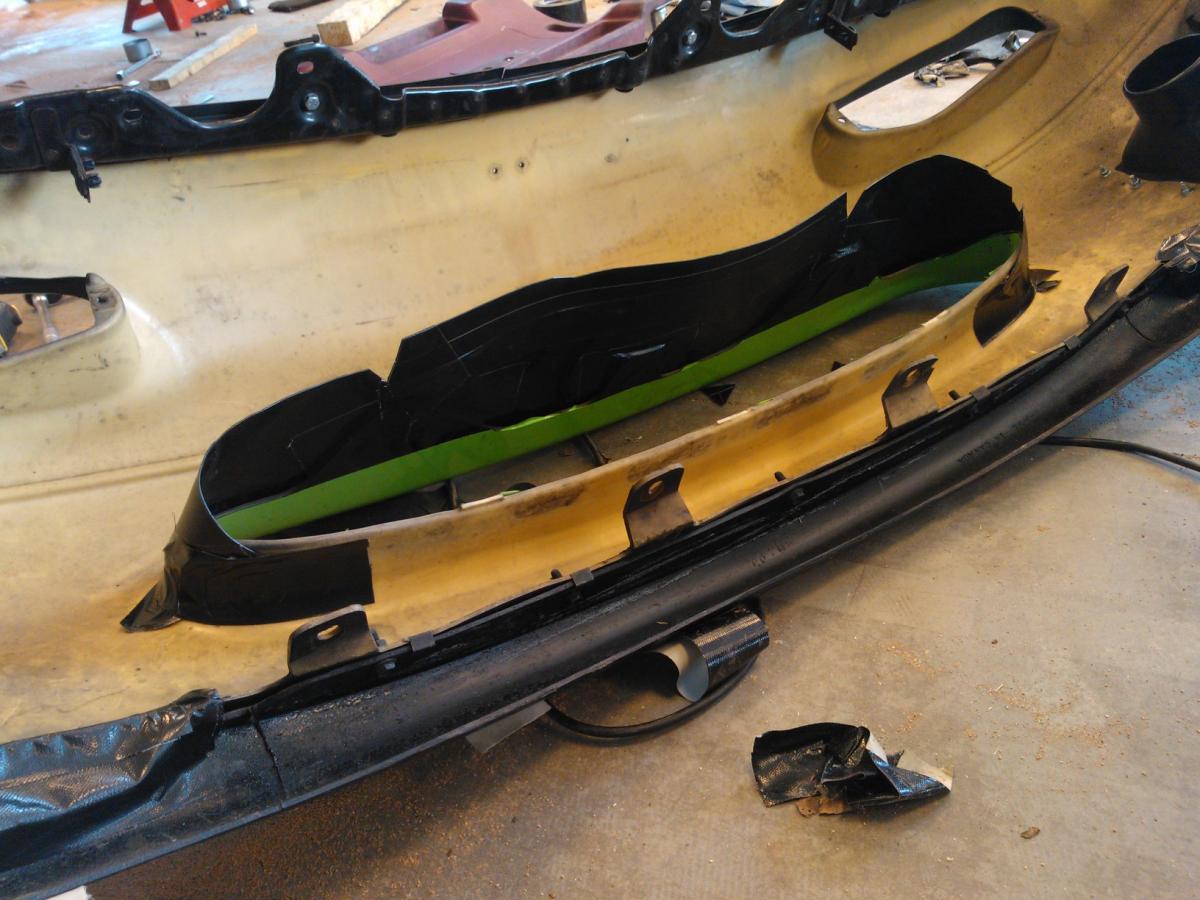

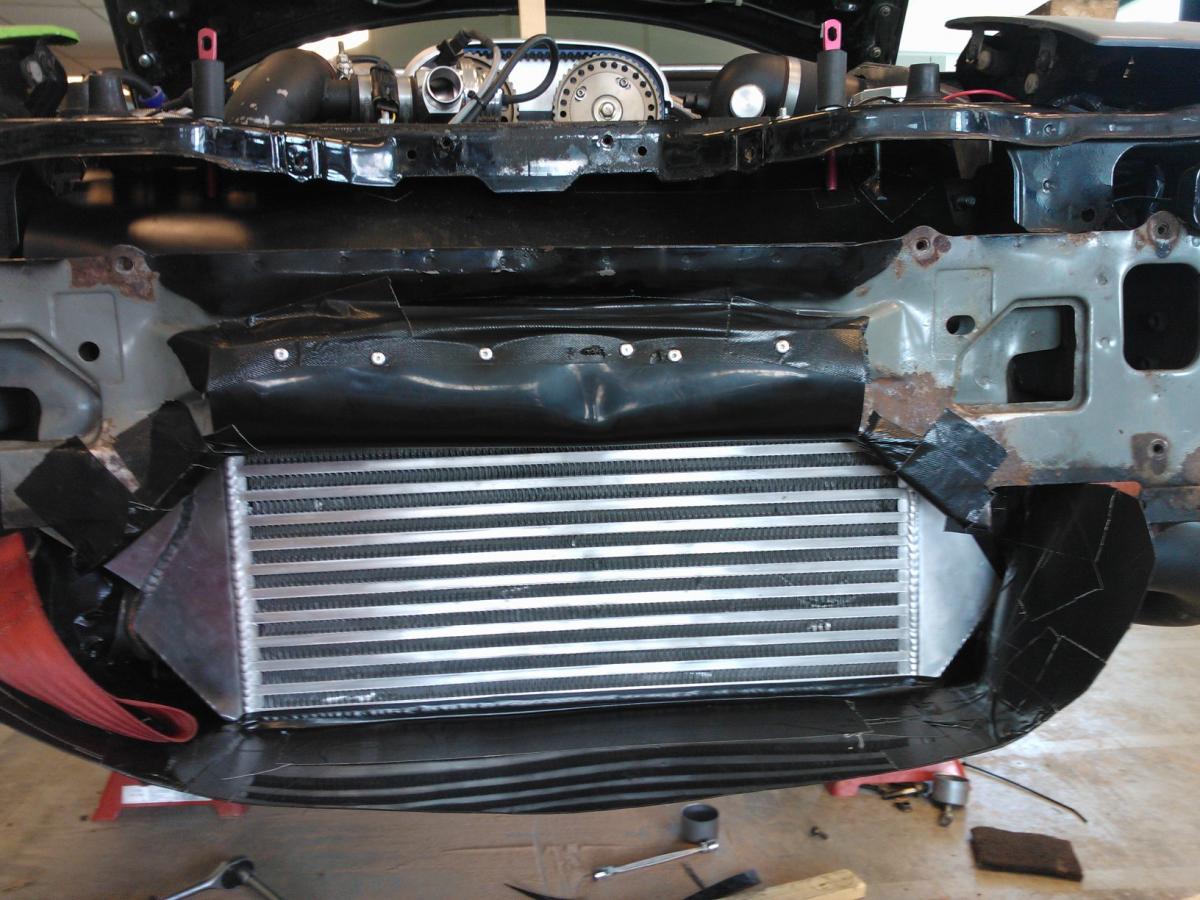

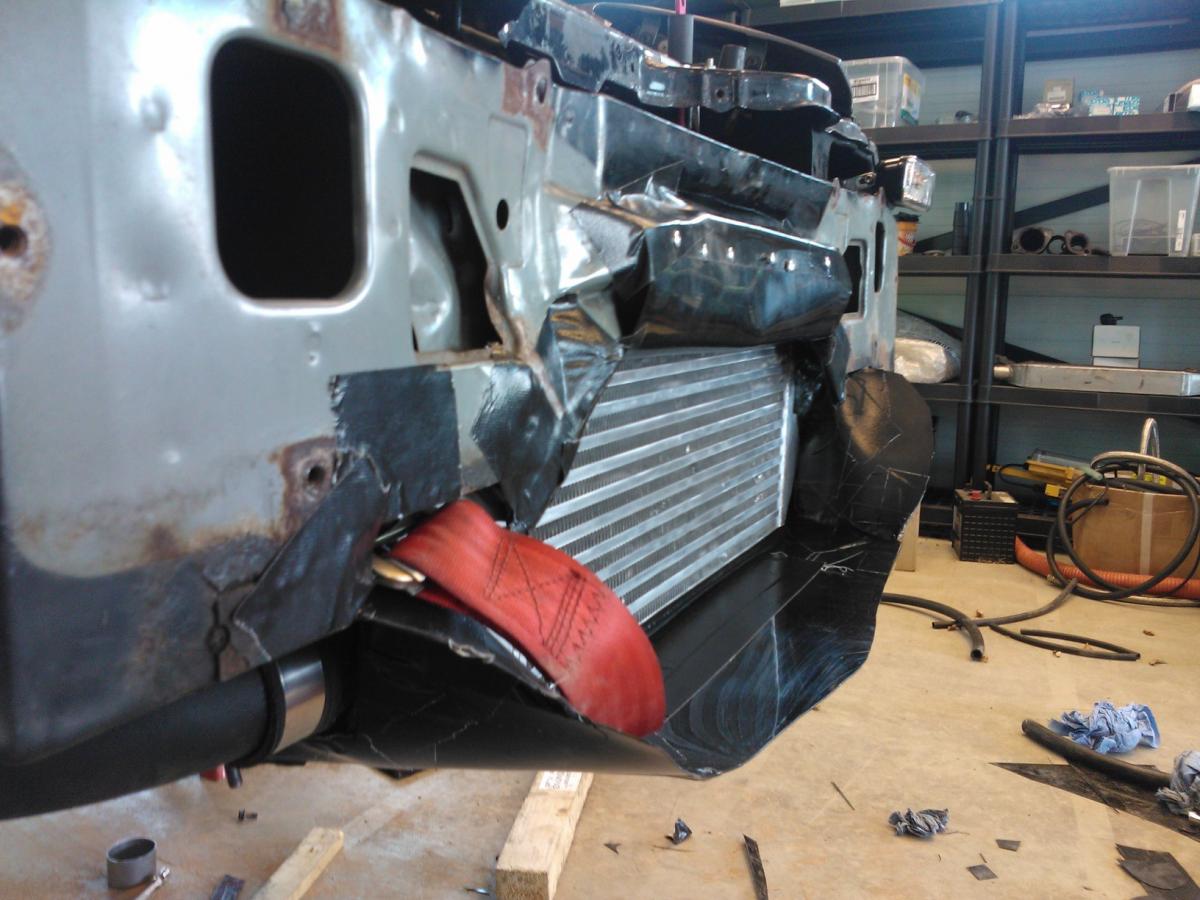

I extended the 'mouth' of the bumper a little and the ducting from the intercooler side so the two meet and gives a fully sealed chamber.

95% of the air passes the intercooler, all of it the radiator.

This is a sample video with the bumper loosely attached. I run a single 12" fan from chinaland:
Attached Thumbnails

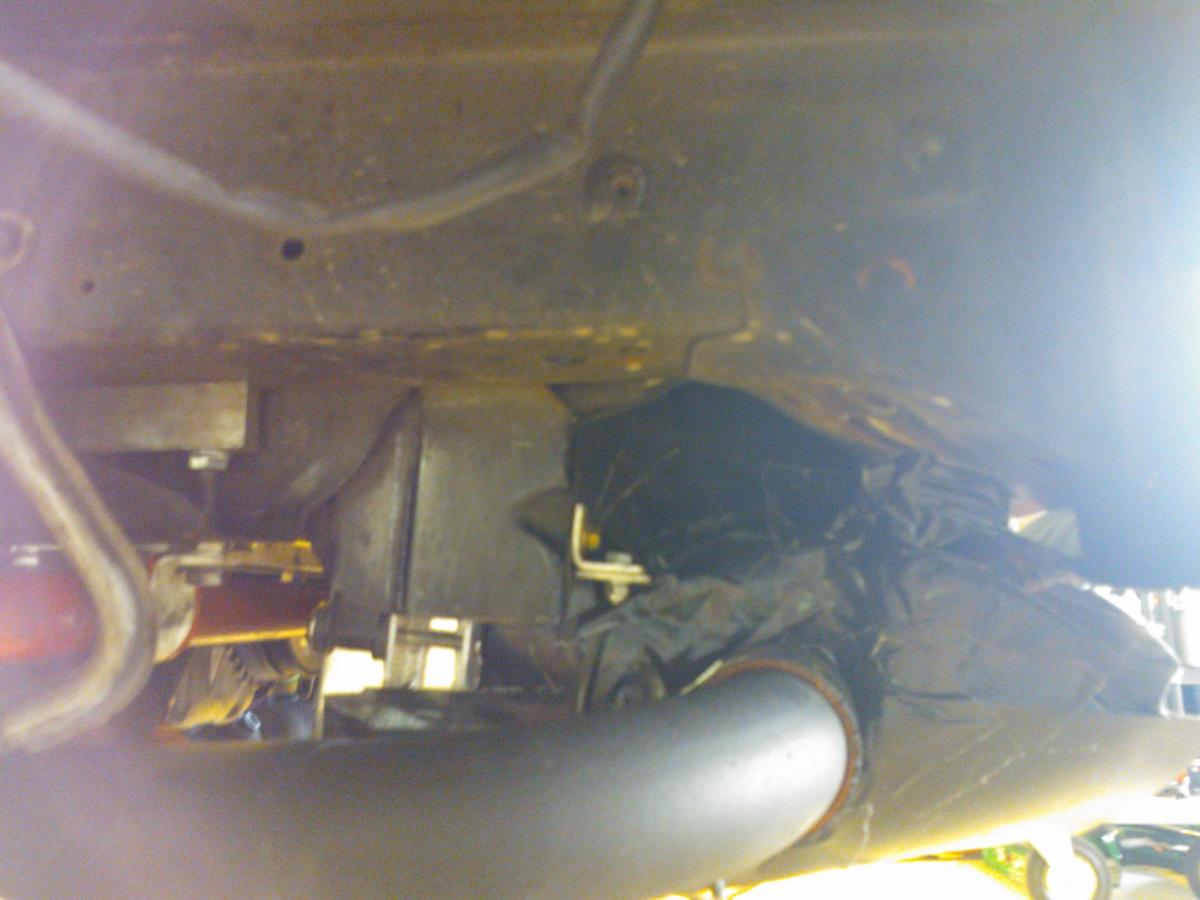

Heat exchangers ducting pics+vid-wp_000042.jpg   Heat exchangers ducting pics+vid-wp_000043.jpg   Heat exchangers ducting pics+vid-wp_000045.jpg   Heat exchangers ducting pics+vid-wp_000048.jpg   Heat exchangers ducting pics+vid-wp_000049.jpg


Last edited by Laur3ns; 06-14-2012 at 06:05 AM.
Laur3ns is offline   Reply With Quote
Old 05-28-2012, 06:39 PM   #2
Junior Member

Join Date: Jun 2011
Location: Houston
Posts: 409
Total Cats: 17
Default

I hope your duct tape holds up better than mine did. I had a similar setup and 1 track day in 90 degree heat with 120+mph straights and it all fell apart. I'm in the process of re-designing it using weather stripping and some sort of removable fasteners. It sucks having to re-tape everything whenever you work on the front end of the car.

Ohh, and wheres your oil cooler?
Handy Man is offline   Reply With Quote
Old 05-28-2012, 07:29 PM   #3
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by Handy Man View Post
I hope your duct tape holds up better than mine did. I had a similar setup and 1 track day in 90 degree heat with 120+mph straights and it all fell apart.
Should hold up. I've done roughly the same before. The tape is just holding the plastic sheet structure together, but we'll see.
Quote:
I'm in the process of re-designing it using weather stripping and some sort of removable fasteners. It sucks having to re-tape everything whenever you work on the front end of the car.
Keep us posted. I now have at least the bumper removable without retaping. Making the heat exchangers removable without re-doing it seems impossible.
Quote:
Ohh, and wheres your oil cooler?

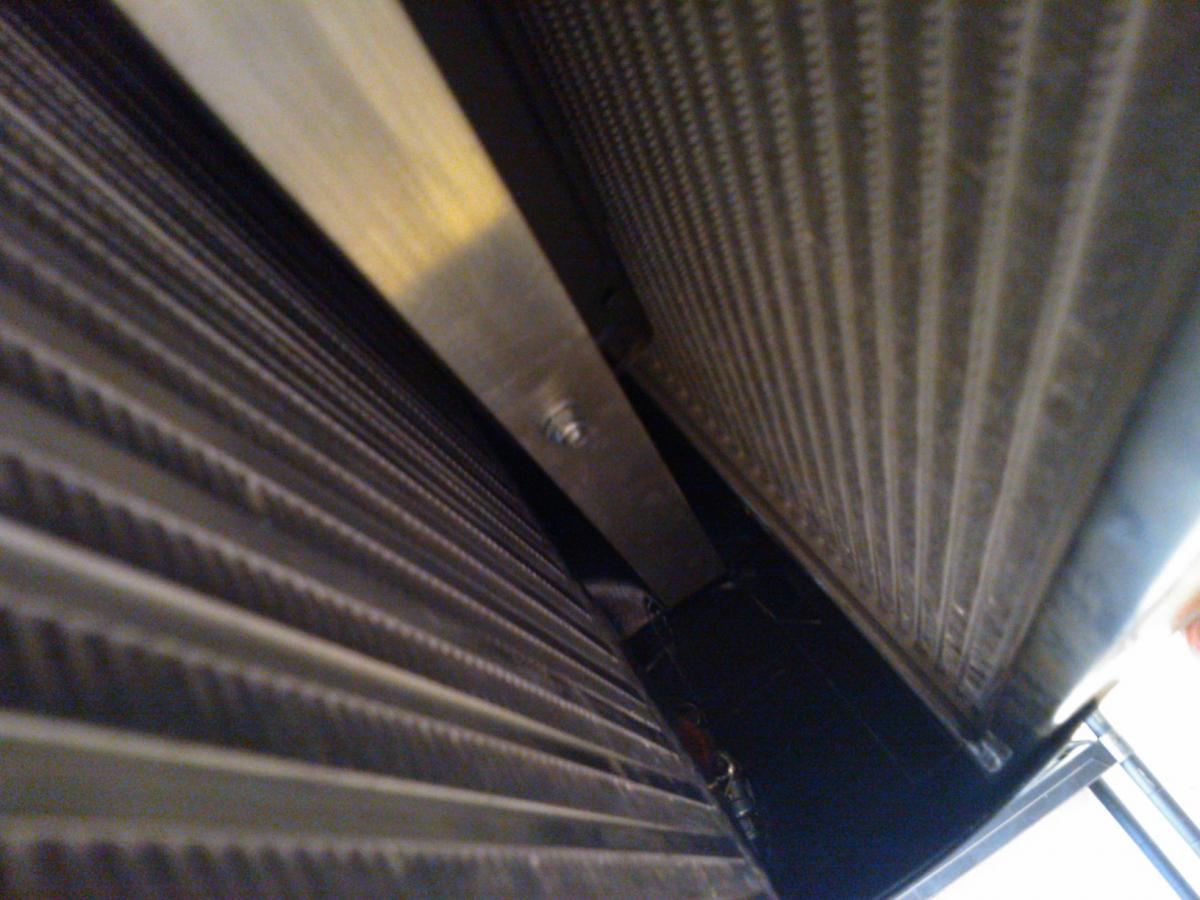

In between the rad en IC:
Attached Thumbnails
Heat exchangers ducting pics+vid-wp_000040.jpg
Laur3ns is offline   Reply With Quote
Old 05-29-2012, 11:53 AM   #4
Junior Member

Join Date: Jun 2011
Location: Houston
Posts: 409
Total Cats: 17
Default

Quote:
Originally Posted by Spookyfish View Post
Keep us posted. I now have at least the bumper removable without retaping. Making the heat exchangers removable without re-doing it seems impossible.
I'm kinda in the opposite scenario. Mine is riveted to the bumper, but mostly sealed with weather stripping to the radiator. Where my bottom horizontal piece of ducting meets the radiator I've riveted it to thin aluminum angle iron and put a strip of weather stripping on it, then I zip tie it tight against the radiator using the fan mounting tabs on the radiator. Pretty easy to R&R with just cutting and re zip tying, which is much easier than taping.

The hard part is the vertical pieces on the sides... They need to seal against the curving body on top, get around the IC and oil cooler pipes somehow, and seal against the horizontal bottom piece. I think I will split each into two pieces, one riveted to the horizontal bottom piece and the bumper and the other riveted to the body. Have them split around the IC and oil cooler lines so that the bottom of the ducting can come off with the bumper and allow removal of the heat exchangers and their lines, leaving the upper part of the ducting in place... I still need to figure out how I'm going to seal and attach the two halves to one another.
Handy Man is offline   Reply With Quote
Old 06-14-2012, 06:10 AM   #5
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

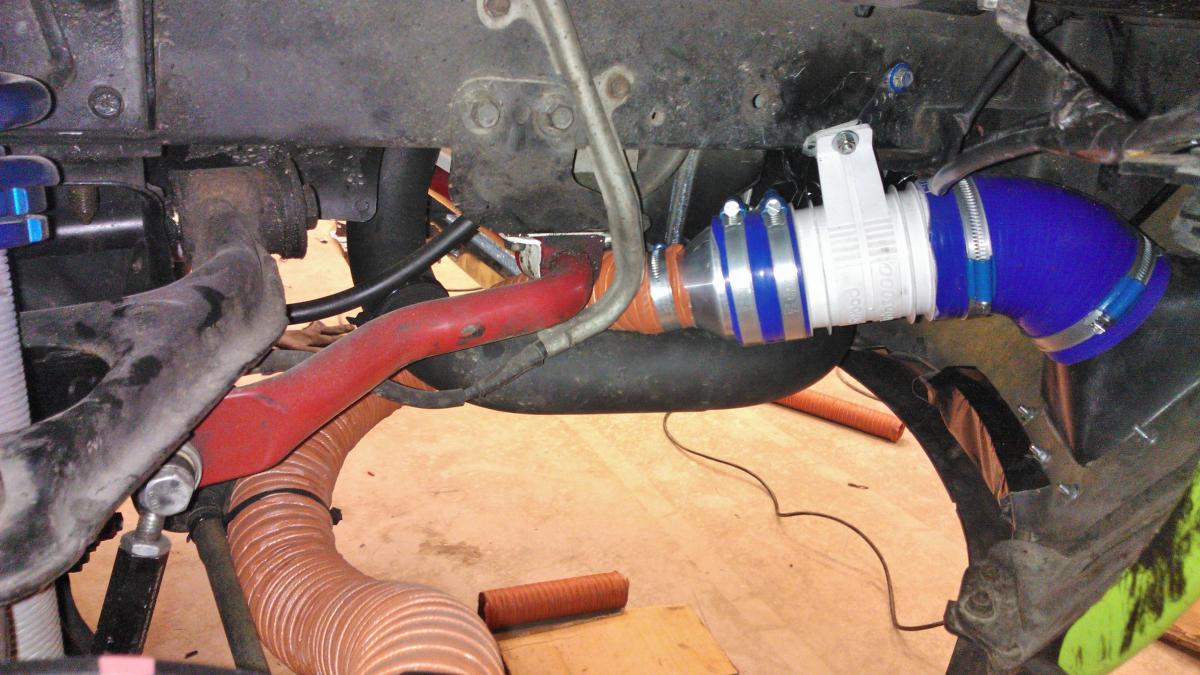

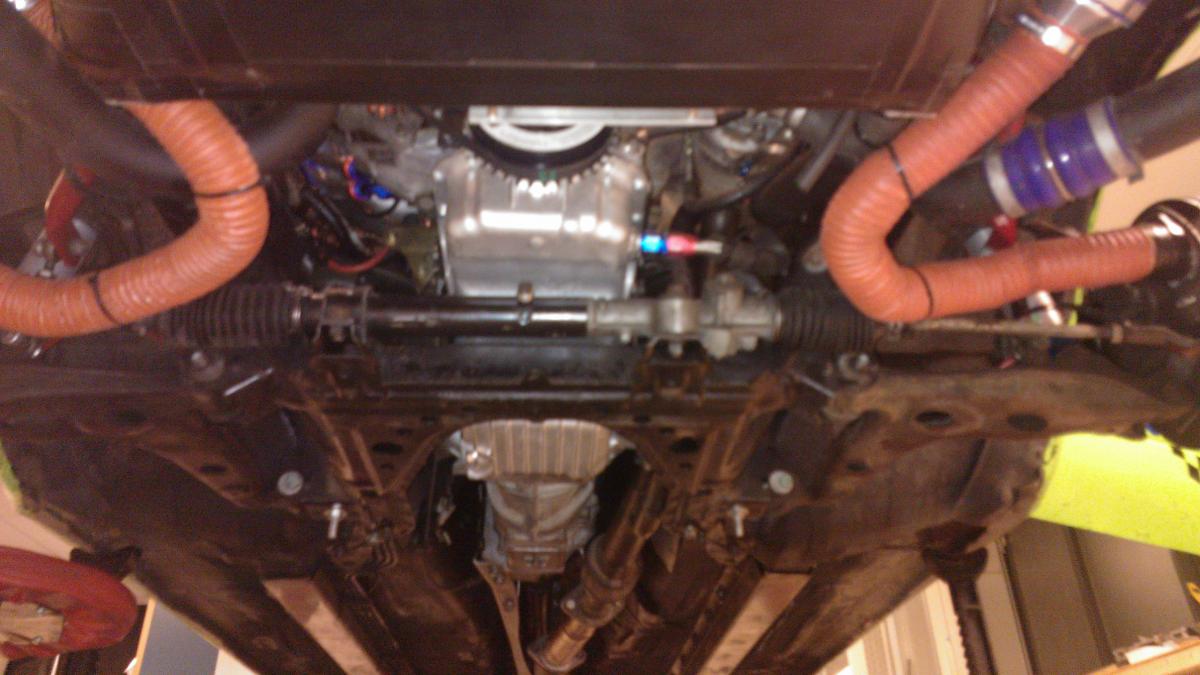

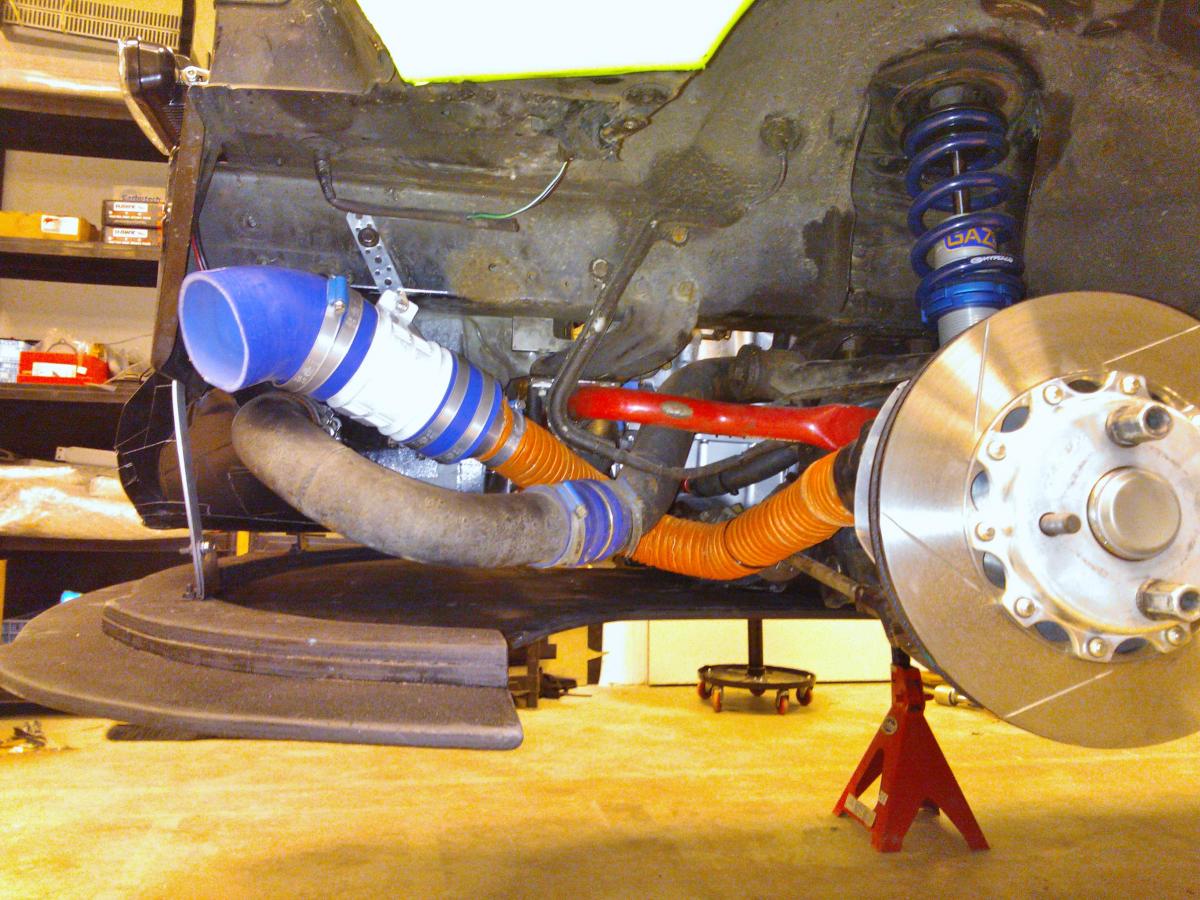

Brake cooling/ducting with forced air also completed:
- http://www.attwoodmarine.com/store/product/Turbo-3000
- TSE spindle plates
Attached Thumbnails
Heat exchangers ducting pics+vid-wp_000134.jpg   Heat exchangers ducting pics+vid-wp_000139.jpg   Heat exchangers ducting pics+vid-wp_000142.jpg   Heat exchangers ducting pics+vid-wp_000143.jpg   Heat exchangers ducting pics+vid-wp_000144.jpg

Heat exchangers ducting pics+vid-wp_000145.jpg   Heat exchangers ducting pics+vid-wp_000146.jpg
Laur3ns is offline   Reply With Quote
Old 06-14-2012, 11:03 AM   #6
Elite Member
iTrader: (2)

Join Date: Sep 2008
Location: Central Florida
Posts: 3,284
Total Cats: 178
Default

Nice; I always appreciate detailed pics of ducting ideas.
Scrappy Jack is offline   Reply With Quote
Old 06-14-2012, 12:03 PM   #7
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

My sheet of paper gets sucked in flat with 8 quarters weighing it down.
2 x 12" thick hi flow spal fans with built in shroud, and tdr i/c.
With my old i/c, the paper was flaccid.

JasonC SBB is offline   Reply With Quote
Old 06-14-2012, 05:16 PM   #8
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by JasonC SBB View Post
My sheet of paper gets sucked in flat with 8 quarters weighing it down.
2 x 12" thick hi flow spal fans with built in shroud, and tdr i/c.
With my old i/c, the paper was flaccid.

I have just one china 12" fan, no shroud. I think the ducting is fine, but I'll find out tomorrow on the track
Laur3ns is offline   Reply With Quote
Old 06-15-2012, 01:33 AM   #9
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

Your brake duct hose routing is superior to mine. I have discovered that fastening it in place so that it is horizontally parallel with the sway bar is fail, and gets rubbed and crunched in interesting ways. I shall be replicating yours.
Mobius is offline   Reply With Quote
Old 06-16-2012, 03:37 AM   #10
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

I can report that it works very well too! I now run Hawk DTC-60 on all corners and with the ducting and cooling in place I have solid pedal throughout the day. Pit in, the brakes no longer overheat which is a big plus!
Laur3ns is offline   Reply With Quote
Old 06-16-2012, 03:55 AM   #11
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

The radiator/intercooler ducting works well too. I see temps < 205F for water and < 90F for air.
Laur3ns is offline   Reply With Quote
Old 06-19-2012, 08:28 AM   #12
Senior Member

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 783
Total Cats: 23
Default

Spooky can we see a picture of the front of the car with the front end on, I am interested to see how your brake duct inlets sit with the front bumper/spoiler...

GREAT pictures of the ducting, I think i would have installed mine in a way that wouldn't have lasted and this just shows the right way to do it (or one right way perhaps).

My TSE brake ducts are coming from Flyin Miata in the next week or so hopefully.
mx5-kiwi is offline   Reply With Quote
Old 06-20-2012, 06:04 PM   #13
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by mx5-kiwi View Post
Spooky can we see a picture of the front of the car with the front end on, I am interested to see how your brake duct inlets sit with the front bumper/spoiler...



Actually, I had to redo part of the ducting. Just waterproof duct tape is not enough. So I used high adhesive tape that is good to 266F for attaching the ducting to the head exchangers and filled the space between the top of the splitter and the bottom of the radiator/ducting so it cannot droop. I used styrofoam-like material.
Laur3ns is offline   Reply With Quote
Old 06-22-2012, 12:40 PM   #14
Junior Member

Join Date: Apr 2011
Location: Oregon
Posts: 278
Total Cats: 7
Default

I've used some of your ideas as inspiration for my own radiator ducting project:


built a shroud to duct in the nose

sealed it around the intercooler piping at the sides, making it continuous with the OEM plastic tray

bedded in the radiator bottom with spray foam. spray it on and then set the radiator into it.

taped up the radiator top and used a tray from BEIG to finish off the top.

used a small splitter to help encourage air to flow up into the radiator and brake ducting

thx for the inspiration!

Last edited by gtred; 06-22-2012 at 01:04 PM.
gtred is offline   Reply With Quote
Old 06-22-2012, 08:38 PM   #15
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

Ok, tiny pics sukk. Those look like I would be interested if them, if they were large enough to see.
Mobius is offline   Reply With Quote
Old 06-22-2012, 09:29 PM   #16
Junior Member

Join Date: Apr 2011
Location: Oregon
Posts: 278
Total Cats: 7
Default

Quote:
Originally Posted by Mobius View Post
Ok, tiny pics sukk. Those look like I would be interested if them, if they were large enough to see.
fair enough. here's a link to the gallery pics: https://www.miataturbo.net/members/gtred-20323-albums-04-msm-track-day-car-463/
gtred is offline   Reply With Quote
Old 06-26-2012, 02:48 AM   #17
Senior Member
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

.
Quote:
Originally Posted by gtred View Post
I've used some of your ideas as inspiration for my own radiator ducting project:


built a shroud to duct in the nose

sealed it around the intercooler piping at the sides, making it continuous with the OEM plastic tray

bedded in the radiator bottom with spray foam. spray it on and then set the radiator into it.

taped up the radiator top and used a tray from BEIG to finish off the top.

used a small splitter to help encourage air to flow up into the radiator and brake ducting

thx for the inspiration!
midpack is offline   Reply With Quote
Old 06-26-2012, 03:47 AM   #18
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default



Very Cool Cold air intake!!
elesjuan is offline   Reply With Quote
Old 08-04-2012, 10:23 AM   #19
Newb

Join Date: Aug 2012
Posts: 1
Total Cats: 0
Default

Hey Spooky what kind of headlights are those?
