Old 02-26-2015, 11:31 AM   #41
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

I think your the only person to have this problem bro. with the stock brace there should be no reason that they are shearing off besides installer error.
shlammed is offline   Reply With Quote
Old 02-26-2015, 11:42 AM   #42
Elite Member
Thread Starter
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,092
Total Cats: 90
Default

I did run the car with these studs and no brace so the damage might have already been done. But I'm leaning on blaming the 8500 rpms.
Leafy is offline   Reply With Quote
Old 02-26-2015, 01:08 PM   #43
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Im using a 94-97 manifold. heavily modified and made to fit a 99 head its a few pounds lighter than stock and might be 8 or 9 pounds lighter than a Vics. No EGR features no bracing no casting flash and with extra cast material and webs etc ground out removed and smoothed over. And no intake manifold issues with 8600 rpm rev limit.
bbundy is offline   Reply With Quote
Old 02-26-2015, 01:28 PM   #44
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

Is there enough clearance to drill/tap larger and use exhaust manifold studs on the intake side?

--Ian
codrus is online now   Reply With Quote
Old 02-26-2015, 02:16 PM   #45
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

We had this issue on Laz, only when I used my shitty torque wrench and over torqued all of them to probably 30ft/lbs instead of 14-19.

We replaced all of them with new OEM studs, and used locktite on both sides. We'll try to report back at the end of the season with results.

Something no one's discussed, but the stock brace is molded to give easier access to the oil filter. Add in a oil/water cooler, oil cooler sandwich plate, and/or sensor plate, and/or an oversized filter, and there's no way it'll clear.
curly is offline   Reply With Quote
Old 02-26-2015, 05:59 PM   #46
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,363
Total Cats: 1,325
Default

I've snapped a couple here or there, but it never seemed to be a chronic problem. 30lb of supercharger would probably change that. Eric, I'm surprised you haven't considered a brace - trying to keep the weight off?
Savington is offline   Reply With Quote
Old 02-26-2015, 10:49 PM   #47
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 1,038
Total Cats: 157
Default

I made a brace for the manifold. I think my issues went as follows. Blower manifold flange was too think to use stock length studs. I (like an idiot) went to the local hardware store and found the proper length "automotive studs" which I later found out to be class 5 hardware. So this off season rather than only half fixing the problem, I did what I do and went overboard with the ARP hardware. Like all ARP stuff I was impressed with the quality and would recommend those studs to anyone. (but they are a bit spendy)
TNTUBA is offline   Reply With Quote
Old 03-02-2015, 10:40 PM   #48
Junior Member

guttedmiata's Avatar

Join Date: Sep 2012
Posts: 438
Total Cats: -3
Default

Running factory studs in mine with the same charger hanging off the side that TNTUBA has. Zero issues.
guttedmiata is offline   Reply With Quote
Old 03-02-2015, 10:45 PM   #49
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Quote:
Originally Posted by guttedmiata View Post
Running factory studs in mine with the same charger hanging off the side that TNTUBA has. Zero issues.
Drive harder.
hornetball is offline   Reply With Quote
Old 03-02-2015, 11:09 PM   #50
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 1,038
Total Cats: 157
Default

Your setup isn't exactly like mine. :/ The catalyst for my issues was the thickness of the manifold flange requiring longer studs.
TNTUBA is offline   Reply With Quote
Old 03-03-2015, 08:42 AM   #51
Junior Member

guttedmiata's Avatar

Join Date: Sep 2012
Posts: 438
Total Cats: -3
Default

Quote:
Originally Posted by TNTUBA View Post
Your setup isn't exactly like mine. :/ The catalyst for my issues was the thickness of the manifold flange requiring longer studs.
I know. That wasn't a poke at you. We fabbed our own intake with a flange thickness to utilize the factory studs. The point was to everyone else that I have substantially more weight than a factory intake hanging off the side of the engine on the factory studs.
guttedmiata is offline   Reply With Quote
Old 05-26-2015, 04:42 PM   #52
Junior Member
iTrader: (1)

Join Date: Sep 2009
Location: Colorado
Posts: 166
Total Cats: 5
Default

I just found the 3 studs surrounding the #1 cylinder broken. They all broke within the nut. two of them still had the nut on by a thread, but the end of the stud was gone.

I was not running a brace. I did have a fabricated brace on it, but the lower attachment point had failed, so I just took it off. looks like I need to improve the lower mount.
GraemeD is offline   Reply With Quote
Old 05-30-2015, 03:35 PM   #53
Junior Member

Join Date: Oct 2012
Posts: 138
Total Cats: 4
Default

Those of you breaking intake manifold studs, is 8000+rpm the common denominator? If so, are you running an aftermarket balancer? How about fully balanced rotating assembly? (Wondering if the SuperMiata balancer and the like would reduce high rpm vibration enough to combat vibration related failures?)
noname4me is offline   Reply With Quote
Old 05-30-2015, 06:36 PM   #54
Elite Member
Thread Starter
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,092
Total Cats: 90
Default

Mine was balanced by trackspeed when they built it and has a 949 damper on it.
Leafy is offline   Reply With Quote
Old 06-02-2015, 08:53 PM   #55
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 1,038
Total Cats: 157
Default

Rotating assembly was static and spin balanced and runs a ATI damper. Still broke several.

Jury is still out on the ARPs....but so far so good.
TNTUBA is offline   Reply With Quote
Old 06-02-2015, 08:54 PM   #56
Junior Member
iTrader: (1)

Join Date: Sep 2009
Location: Colorado
Posts: 166
Total Cats: 5
Default

Stock, stock, stock

Never seen a stud break like this, doesn't make sense. It's like the threads within the nuts crumbled and failed.
GraemeD is offline   Reply With Quote
Old 06-03-2015, 12:20 AM   #57
Elite Member
Thread Starter
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,092
Total Cats: 90
Default

Quote:
Originally Posted by GraemeD View Post
Stock, stock, stock

Never seen a stud break like this, doesn't make sense. It's like the threads within the nuts crumbled and failed.
Yup, thats how all mine have done it. Between old OEM, new OEM, and Doorman grade 8.
Leafy is offline   Reply With Quote
Old 06-03-2015, 11:14 AM   #58
Junior Member
iTrader: (1)

Join Date: Sep 2009
Location: Colorado
Posts: 166
Total Cats: 5
Default

I used a grade 10.9 stud (Rockford) and used Locktite blue on the nuts. Maybe the thread locker can support the threads better?
GraemeD is offline   Reply With Quote
Old 06-13-2015, 04:50 PM   #59
Junior Member
iTrader: (1)

Join Date: Sep 2009
Location: Colorado
Posts: 166
Total Cats: 5
Default One track day!

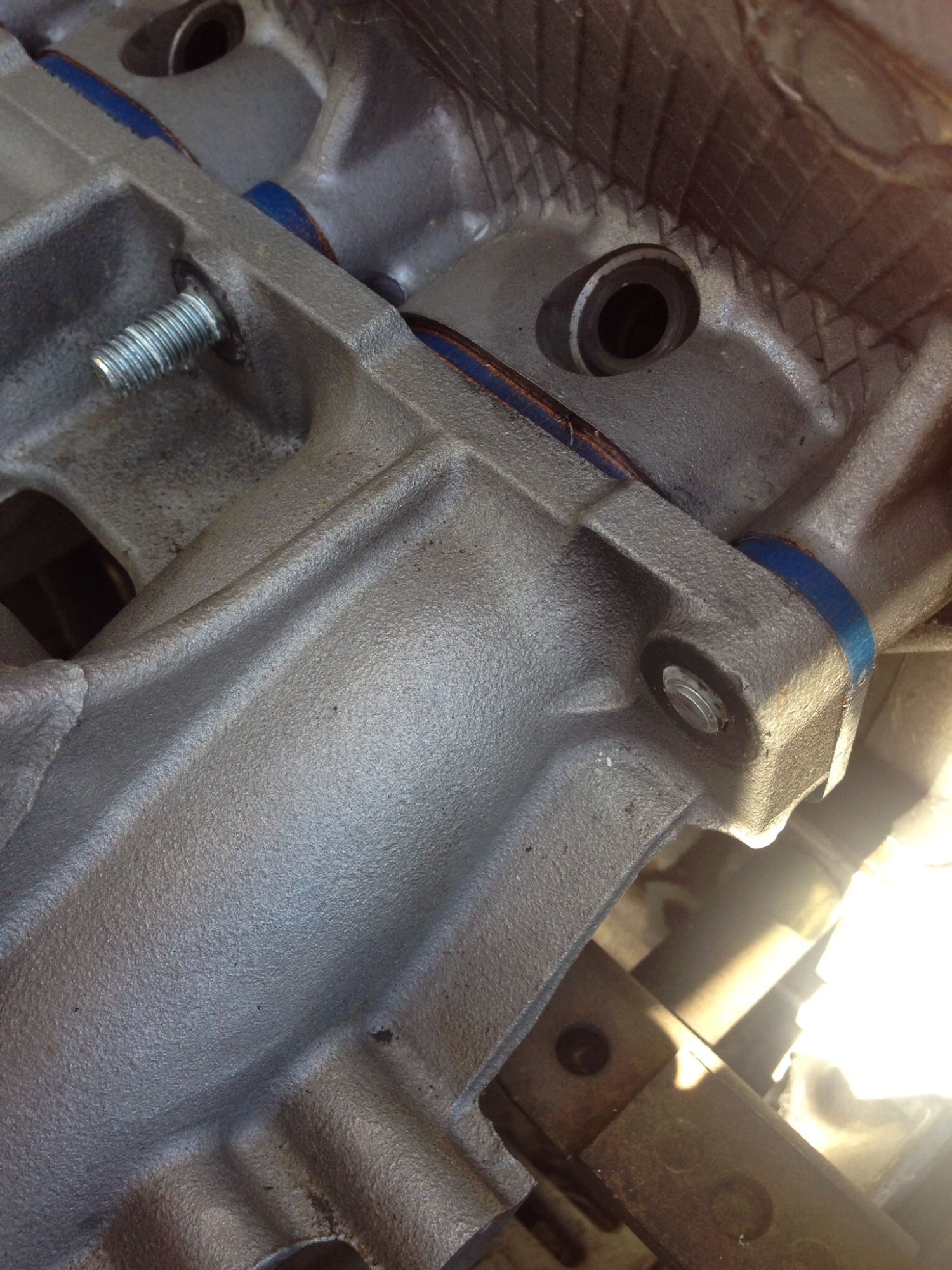

One failed stud, (I removed the other one in the photo)
Never saw above 7400, brace was installed and did not fail this time.
Looks like I will drop some coin on the ARP studs, since the heads coming off for valve seals.
Attached Thumbnails
Intake Manifold Studs-80-image_62c12e18f8623c54ddc38df9d101fe3929bb365f.jpg
GraemeD is offline   Reply With Quote
Old 06-14-2015, 01:44 AM   #60
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by TNTUBA View Post
Rotating assembly was static and spin balanced and runs a ATI damper. Still broke several.

Jury is still out on the ARPs....but so far so good.
Was your crank knife edged, or any weight taken off for the purposes of "lightweighting"?
patsmx5 is offline   Reply With Quote
