Old 02-23-2014, 11:38 PM   #21
Newb
Thread Starter

Join Date: Dec 2011
Posts: 19
Total Cats: 2
Default

Here is what I got done today








Factory hole is 4.25:1 (75mm)
Middle hole is 5.4:1 (60mm)
Top hole is 6.4:1 (50mm)

The top hole is to high for the clevis to fit. Looks like 58mm is the most u can do.

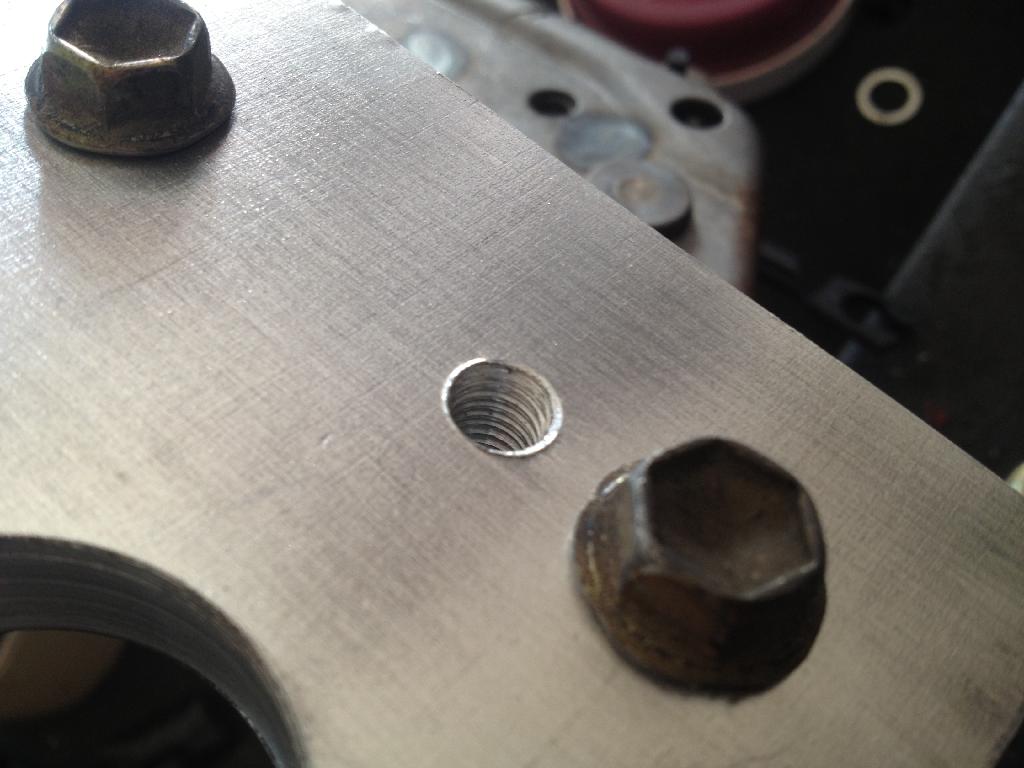

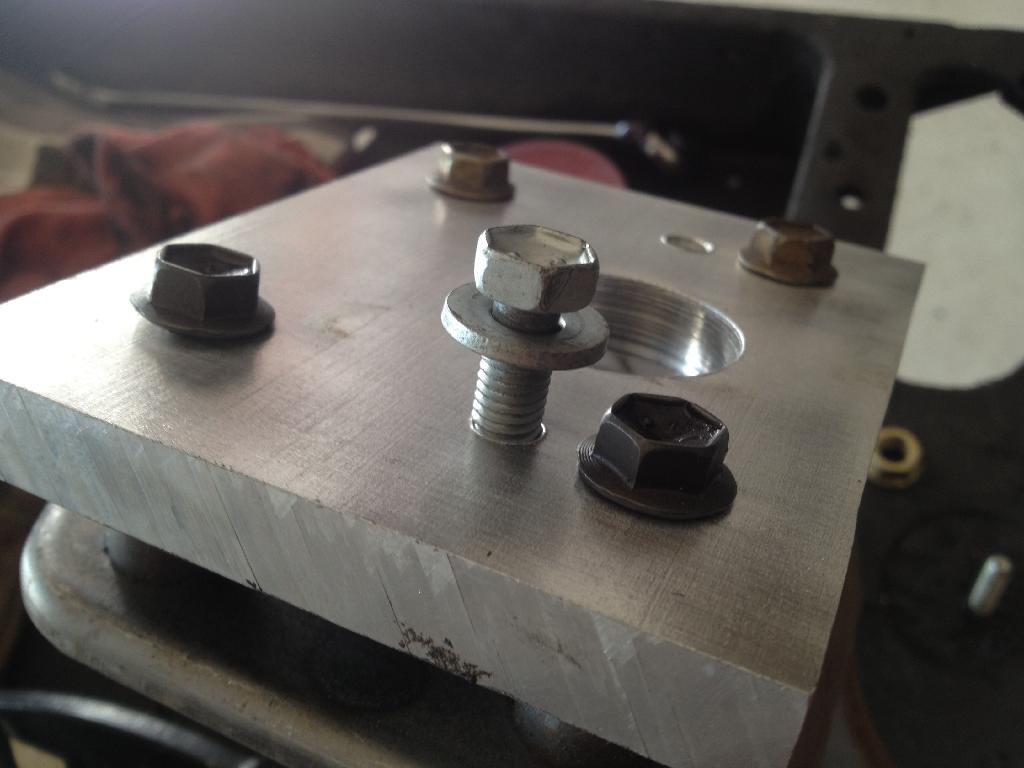

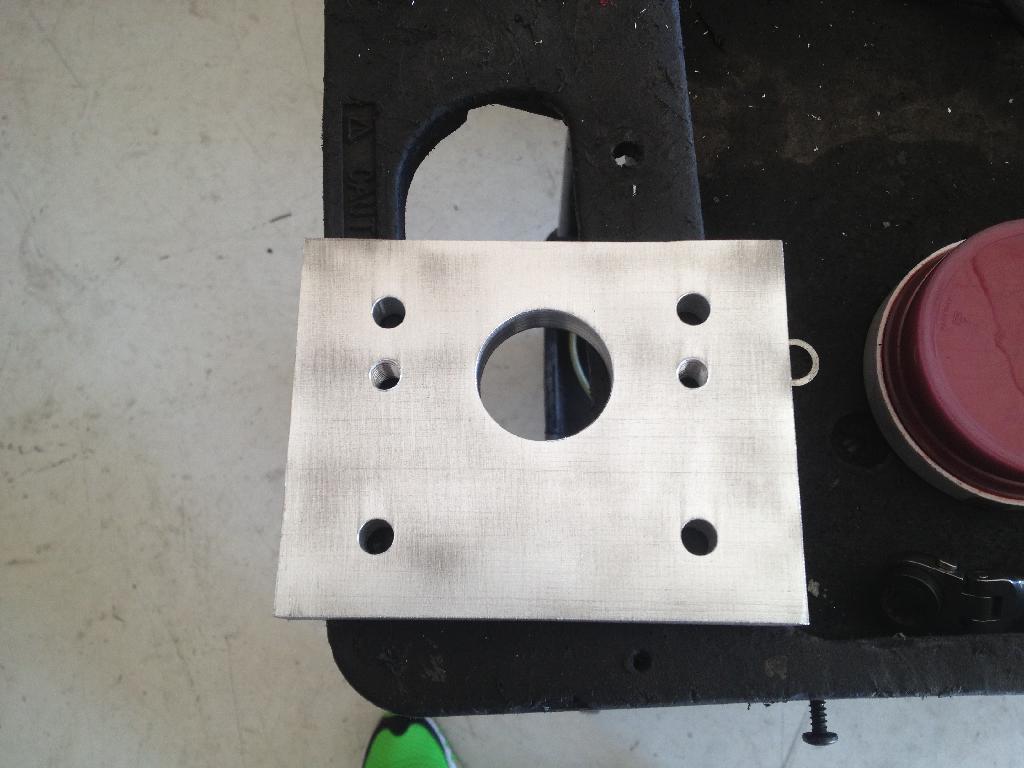

Tapped the holes for the master so it can bolt in.

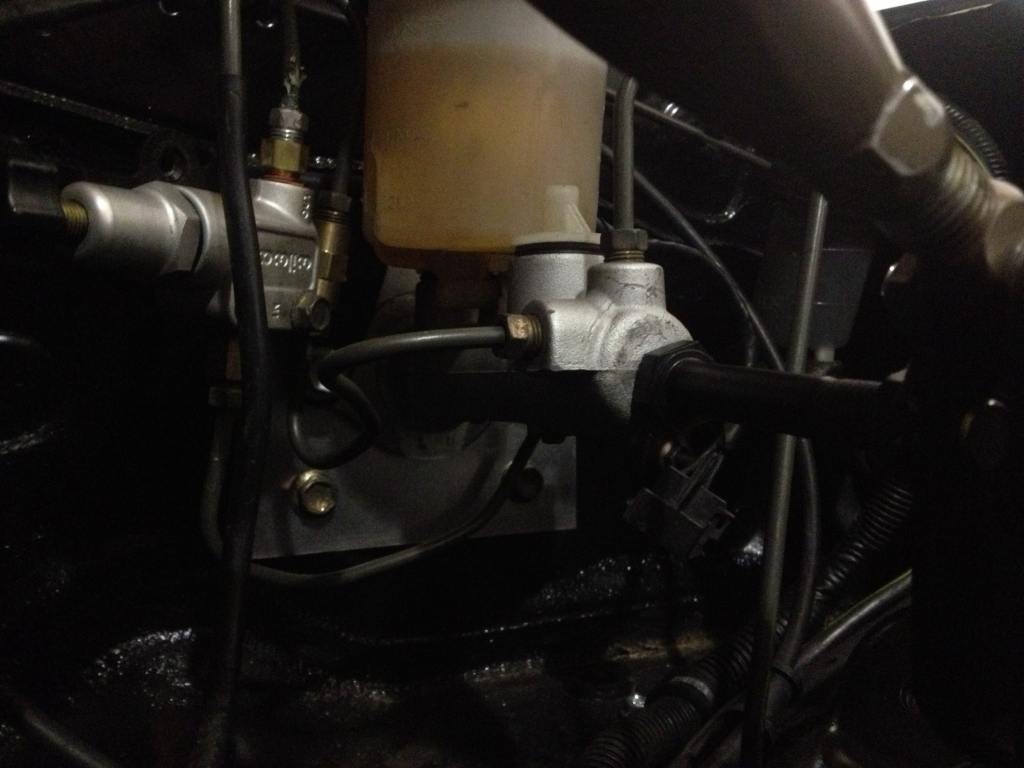

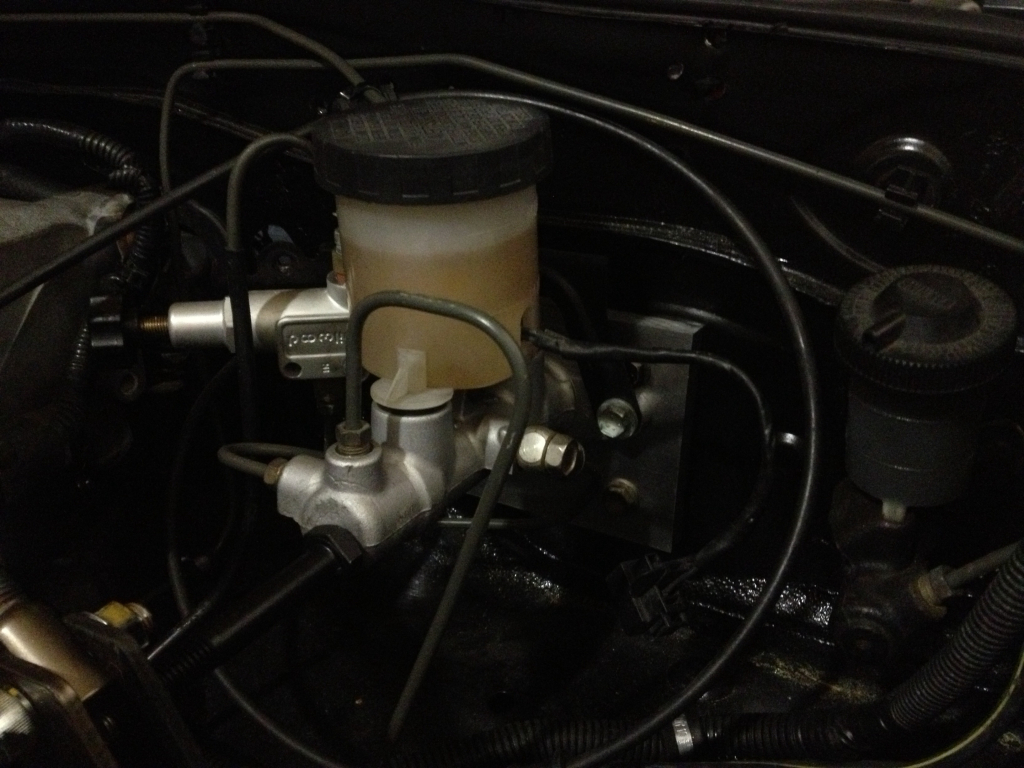

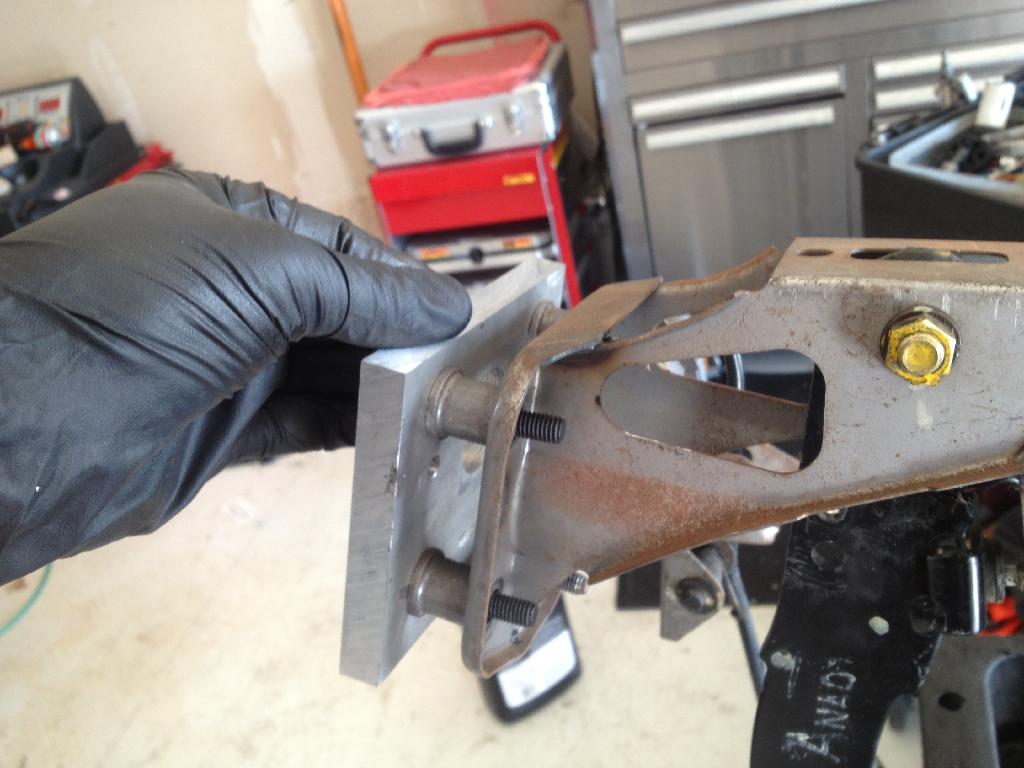

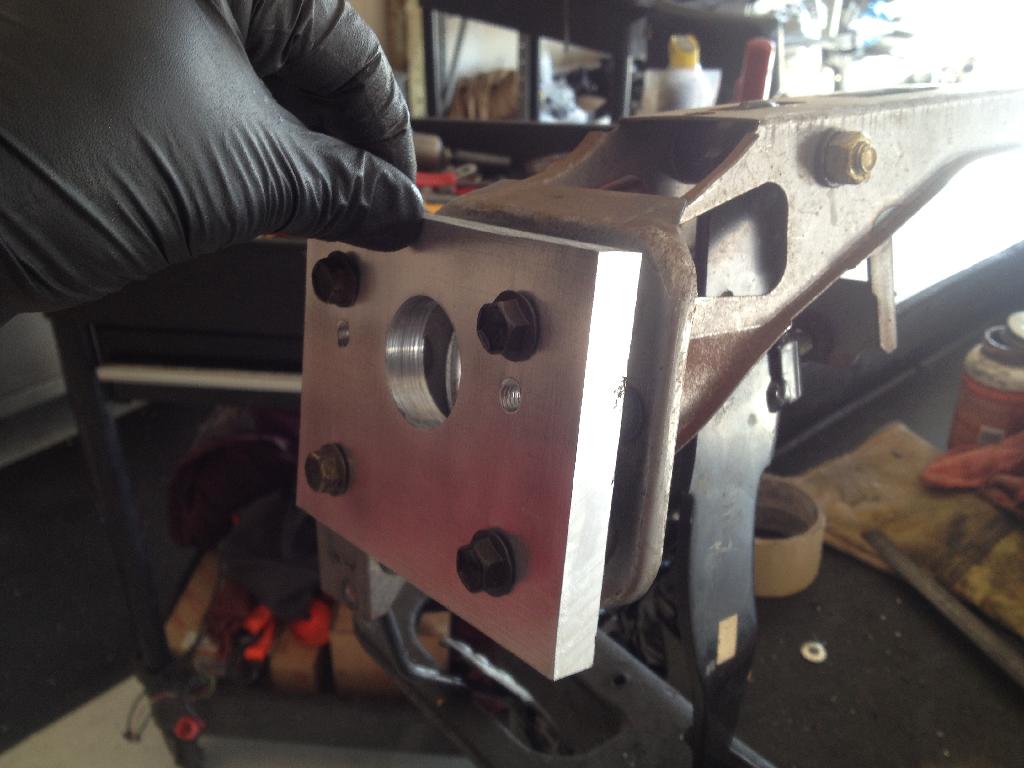

Installed w/homemade MC brace





Attached Thumbnails
Manual brakes-fa6a8e42-8f15-4565-9faf-4b7f45150ed2_zps2yi0j6tl.jpg   Manual brakes-8387759e-1337-4ba2-b2f4-d0561dea497f_zps2z88rbyw.jpg   Manual brakes-440fb399-6a36-4cad-9368-2a74a242ec98_zpssvonx8sp.jpg   Manual brakes-d7bd4e06-9235-4af2-a0b4-13ae7b438f51_zpswz55ylye.jpg   Manual brakes-0403dd88-61ec-4332-8c4b-43ba5ba40236_zpsjsns3xgr.jpg

Manual brakes-ad8599b75e1d0f44b8cc35da504cced4_zps067c688e.jpg   Manual brakes-862baaf5f17d595f11c318488bfe7ae5_zps4f3f327a.jpg   Manual brakes-d96a11054b6b0889697a908b8c99d7b7_zps170c8035.jpg
00MugenS2 is offline   Reply With Quote
Old 02-27-2014, 12:59 AM   #22
Newb
Thread Starter

Join Date: Dec 2011
Posts: 19
Total Cats: 2
Default

The pedal is still more firm than I would like. It would be better if I had gotten the rear 4 pot Wilwoods as well.

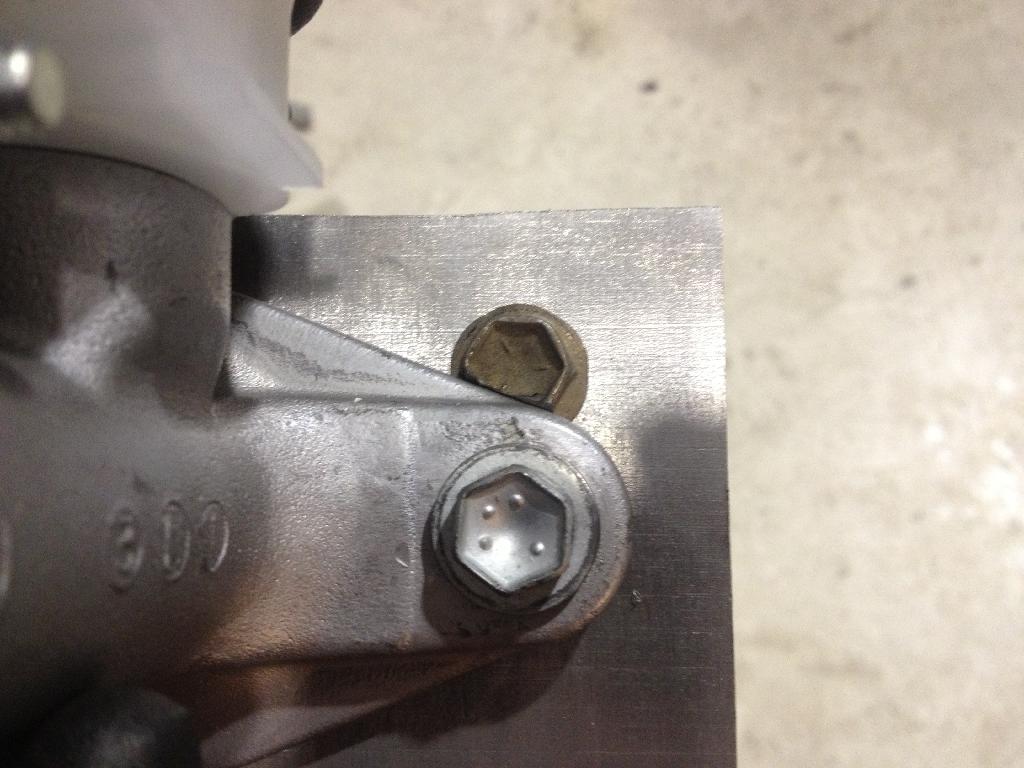

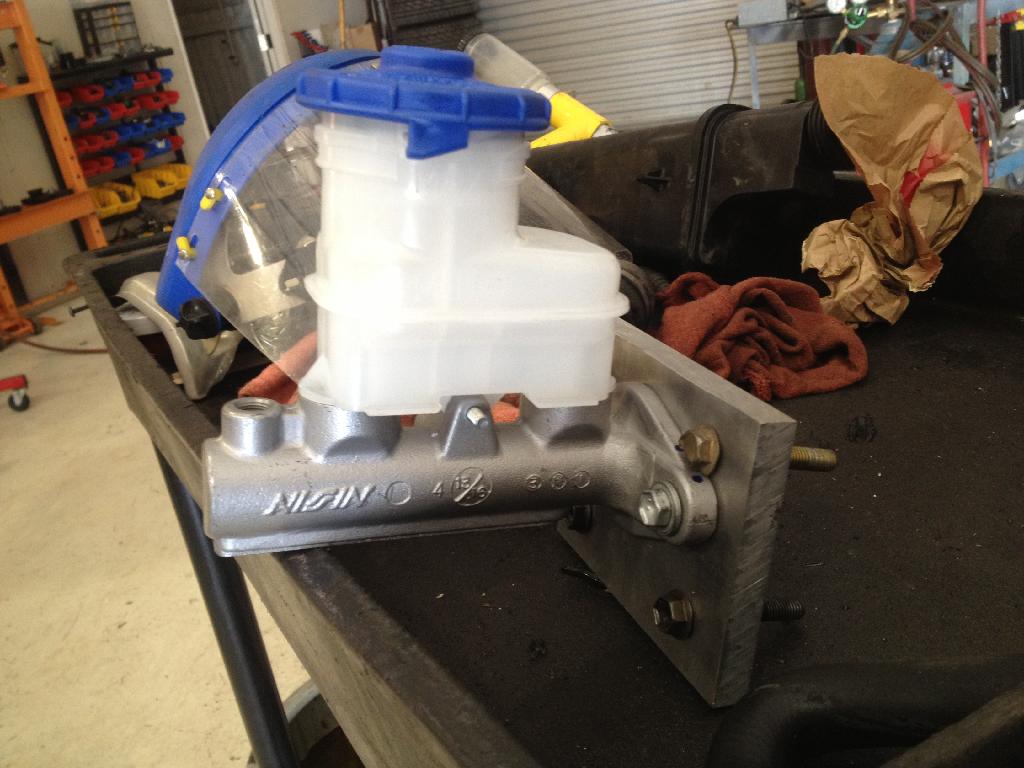

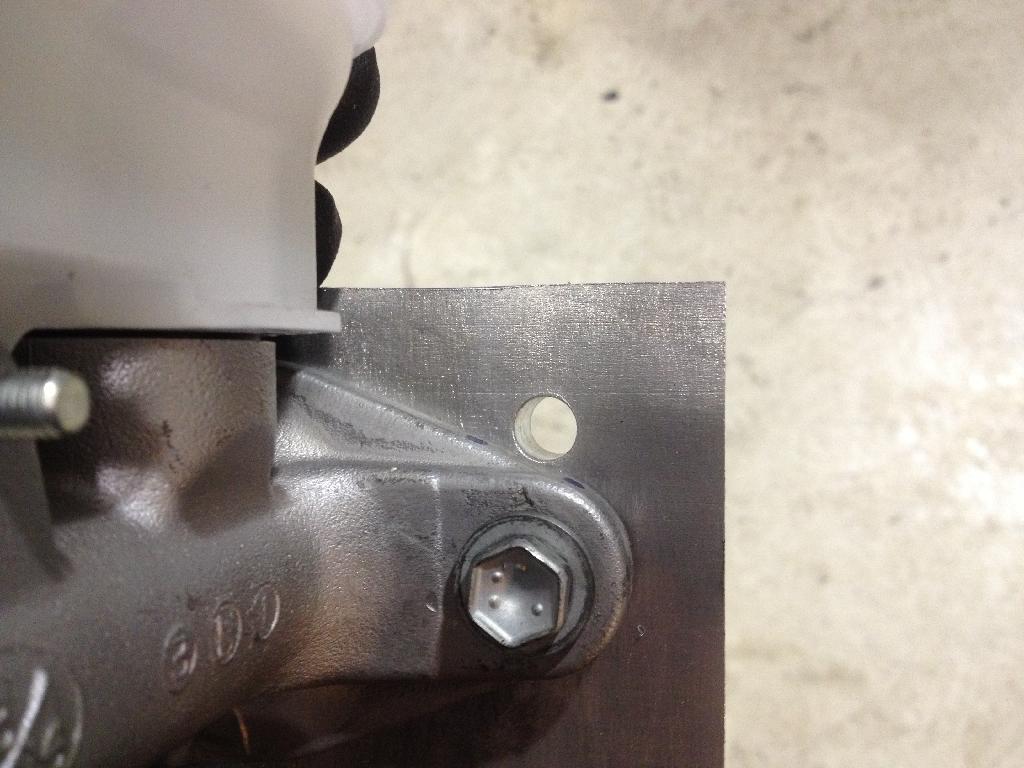

I am currently working on replacing the master with a 13/16" bore over the current 7/8". What I was able to find was a 97-99 Honda Civic CX HB master. Has the same 80mm bolt width as the miata, only the hole on the center of the plate needs to be bigger.

It has 2 equal sizes outlets, so I will need to run a "T" fitting to split the fronts and already have a bias adjuster for the proportioning valve. On the plus side though, it has an inch shorter pushrod depth into the master, so I can now get the angle I need to run the 6.4:1 pedal ratio.
00MugenS2 is offline   Reply With Quote
Old 02-27-2014, 01:30 AM   #23
Newb
Thread Starter

Join Date: Dec 2011
Posts: 19
Total Cats: 2
Default





Attached Thumbnails
Manual brakes-d2a6a167-f347-45c2-a59d-e4485cb59e18_zpsghlv8ihh.jpg   Manual brakes-c7cd598b-c1d1-4231-bd9b-c198dc65f218_zpswa99fa53.jpg   Manual brakes-a0534dd1-a3aa-4682-8df2-0c6f09928b9c_zpsltjuhlji.jpg
00MugenS2 is offline   Reply With Quote
Old 02-27-2014, 01:41 PM   #24
Newb
Thread Starter

Join Date: Dec 2011
Posts: 19
Total Cats: 2
Default

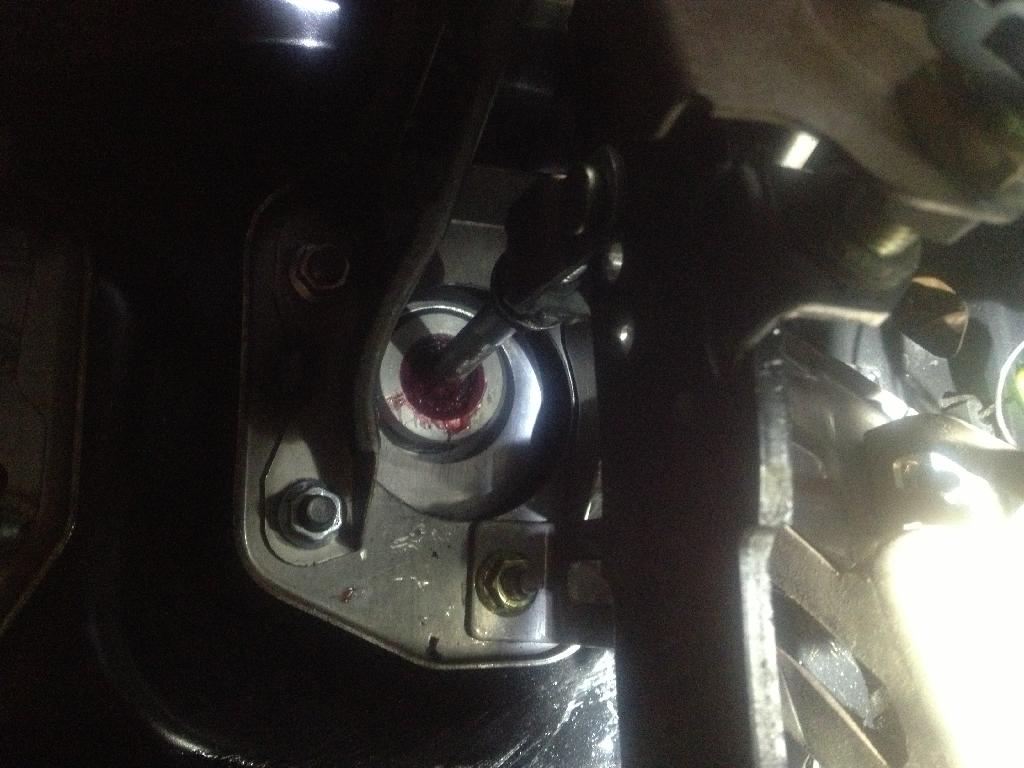

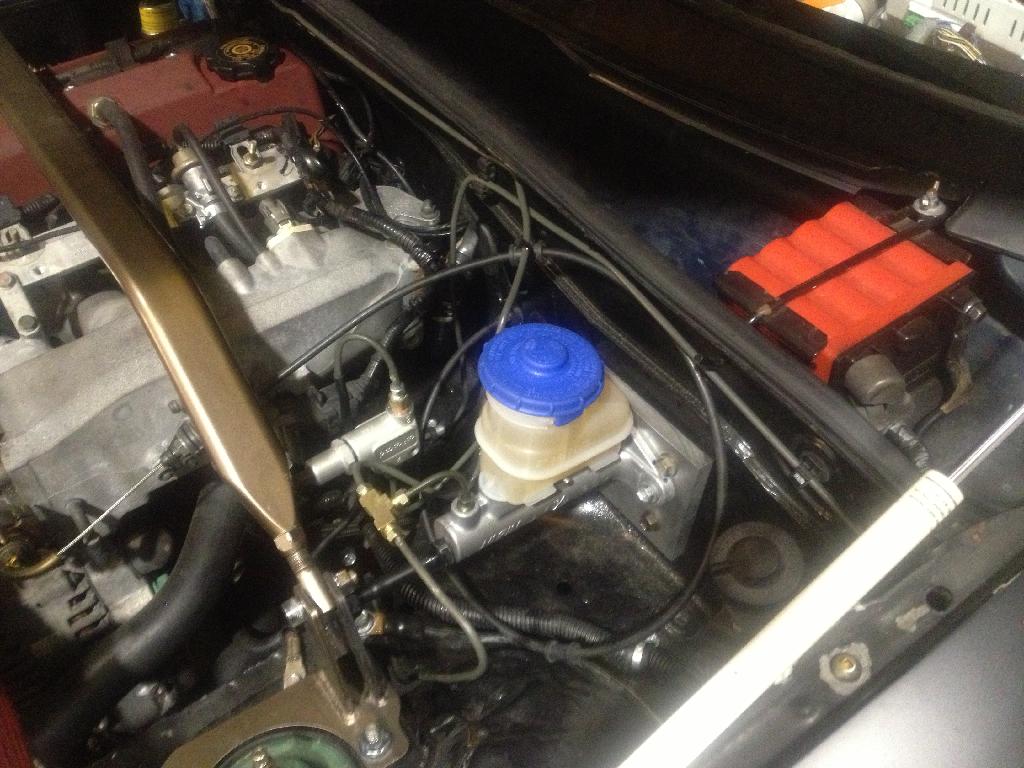

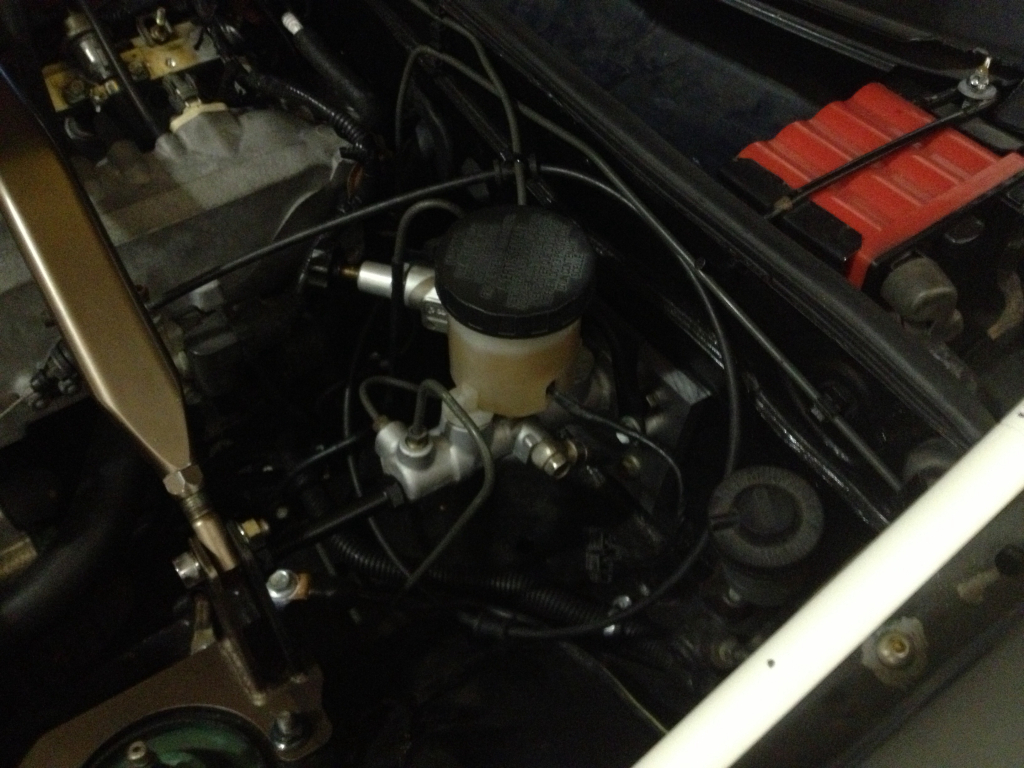

Got a change to install the new master cylinder and make the new lines. Still need to bleed it but the pushrod is able to fit nicely into the 6.4:1 ratio hole.
Attached Thumbnails
Manual brakes-66ca07df-bc69-4a86-9df9-317137131d69_zpsonnsfnxt.jpg   Manual brakes-b504e8fb-80a2-4741-81ba-01bed69390e7_zpsz7cnlzrs.jpg

Last edited by 00MugenS2; 02-27-2014 at 11:46 PM.
00MugenS2 is offline   Reply With Quote
Old 03-10-2014, 07:05 AM   #25
Junior Member
iTrader: (4)

Join Date: Sep 2010
Location: Australia
Posts: 168
Total Cats: 10
Default

Quote:
Originally Posted by Leafy View Post
You dont get very much there either, better than nothing. Since the balance bar will put all the stroke to the empty circuit until that master bottoms then it pushes on the master with pressure still. If the balance bar is driver adjustable you can crank it over and be "fine" though. One other problem is if you dont have enough range of motion on the yolks that connect to the balance bar you can bend the **** out of the master rods. But you'd hopefully discover that issue when bleeding the brakes... like last year's WPI fsae team, that was an interesting call to get at 1am, "we broke the master cylinders do you know where the spares are..."
I'm running twin Tilton 74 Series masters matched to my calipers with a custom pedal box and Tilton balance bar. I love them but they have some drawbacks.

Firstly, the balance bars require constant lubrication in order to remain smooth enough to adjust via the cable. Secondly, they are a pain to work on, as generally the pedal box must come out to get to the masters and that is a job that can take hours, especially if you have a roll cage with side intrusion bars in the way. Also can make a mess in the cabin with brake fluid, etc, and you will probably have to run remote reservoirs as there is no space in the cabin under the steering column for them.

Bleeding is difficult too. You either have to do fronts and rears at the same time (three person job), or use a vacuum or pressure bleeder to get it done.

But... if you end up with a well-matched system (you have to size the masters properly for your calipers), they work great. Dual masters saved my *** recently at a track day when I lost the front circuit. The rears didn't pull me up before the turn, but they washed off enough speed to keep me out of a wall.
