Old 01-25-2013, 03:25 PM   #81
Senior Member
iTrader: (4)

Join Date: Aug 2010
Location: Farmington Hills, MI
Posts: 510
Total Cats: 15
Default

Quote:
Originally Posted by cordycord View Post
Brian Goodwin swears by it (yellow car) and says he's had to re-program his brain post-flat bottom and diffuser, as the new cornering speeds he's using would spin him off the track pre-ground effects.
I should clarify some. I'm sure it provides some benefit, but it doesn't look like anything I've seen in racing and I wonder if it could be better if it followed conventional logic.
njn63 is offline   Reply With Quote
Old 01-25-2013, 04:25 PM   #82
Elite Member
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default It can always be made better...

Quote:
Originally Posted by njn63 View Post
I should clarify some. I'm sure it provides some benefit, but it doesn't look like anything I've seen in racing and I wonder if it could be better if it followed conventional logic.

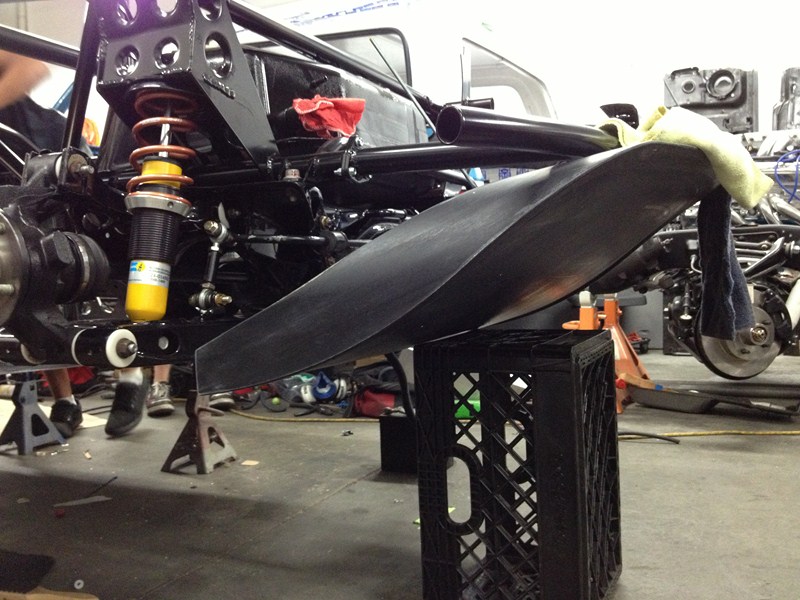

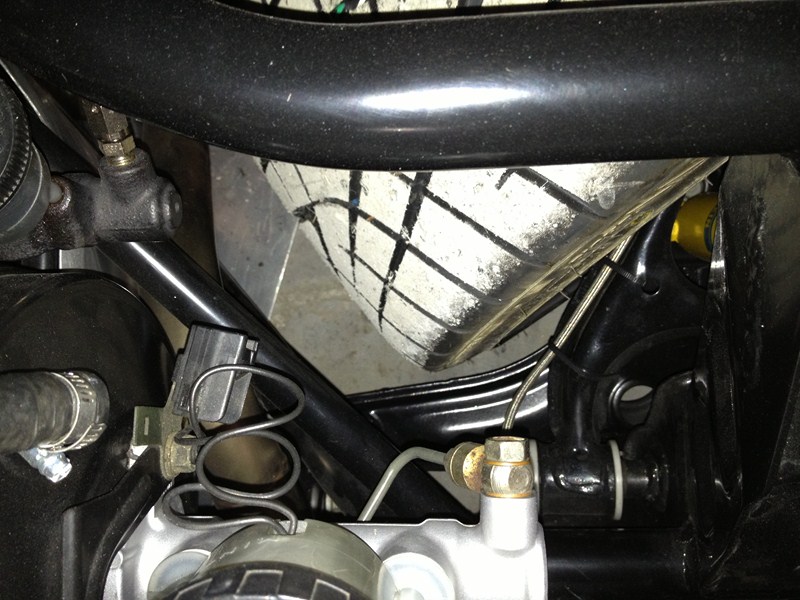

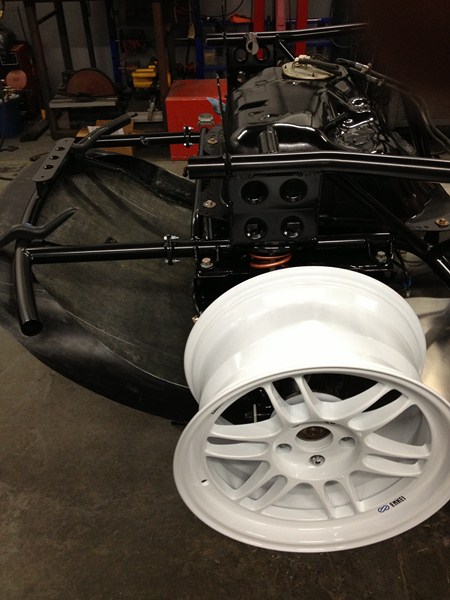

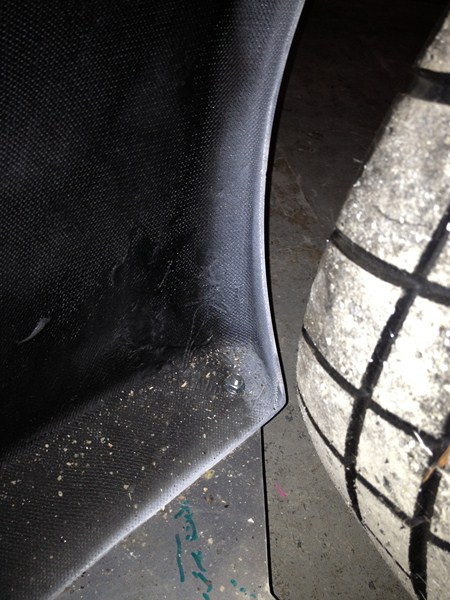

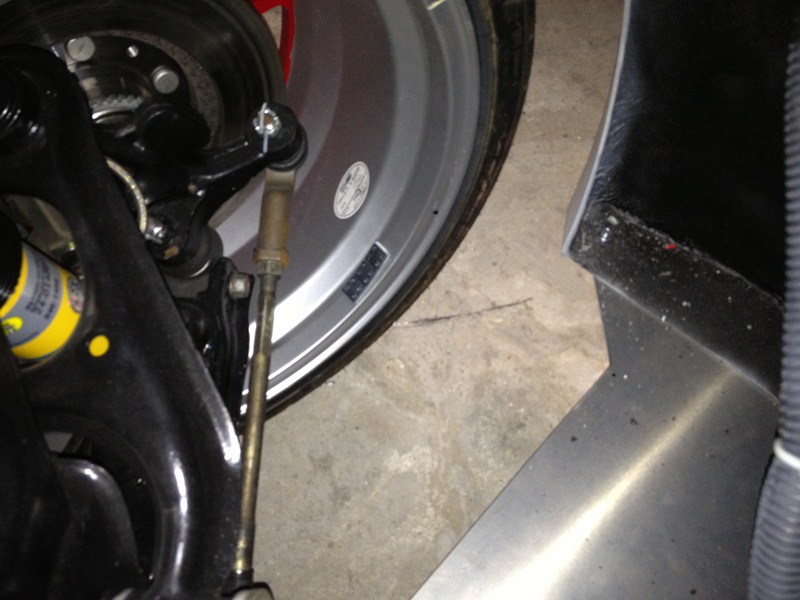

It can always be made better! The ideal degree I've heard (more than once) is 11, but that doesn't mean you won't gain downforce from any number of designs.

I've already hi-jacked this thread enough, but long story short is that the diffuser has more than one job, and needed to be blended into the whole design. For reference, the other pictures showed that we tried to keep the area around the wheels as tight as possible for best possible air flow. The diffuser has not been placed, and is actually lower than the pictures indicate.
Attached Thumbnails
Miata Flat Underbody-img_5113-small-.jpg   Miata Flat Underbody-img_4255-small-.jpg   Miata Flat Underbody-img_5108-small-.jpg   Miata Flat Underbody-img_5109-small-.jpg   Miata Flat Underbody-img_4216-small-.jpg


Last edited by cordycord; 01-25-2013 at 09:50 PM.
cordycord is offline   Reply With Quote
Old 01-25-2013, 06:03 PM   #83
Senior Member
Thread Starter

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 587
Total Cats: 47
Default

Quote:
Originally Posted by njn63 View Post
I've already hi-jacked this thread enough
I don't care as long as it stays on topic
1993ka24det is offline   Reply With Quote
Old 01-27-2013, 02:09 AM   #84
Junior Member

Join Date: Oct 2009
Location: Anaheim hills, CA
Posts: 76
Total Cats: 4
Default

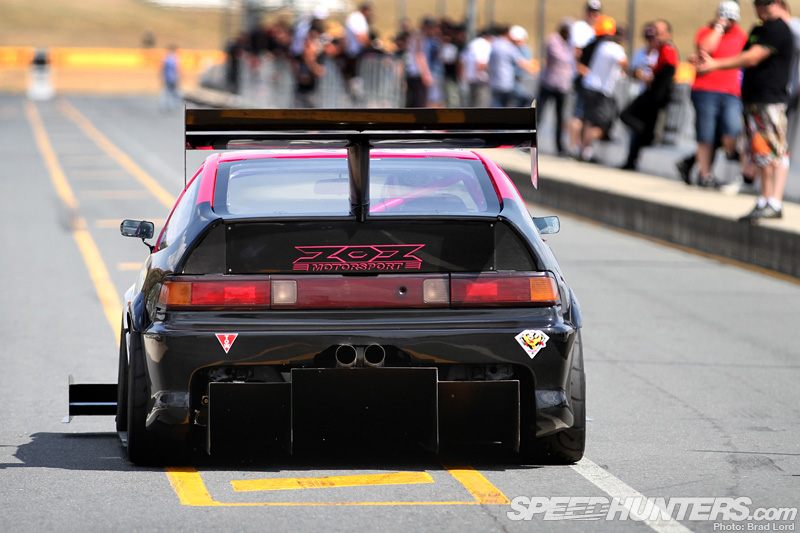

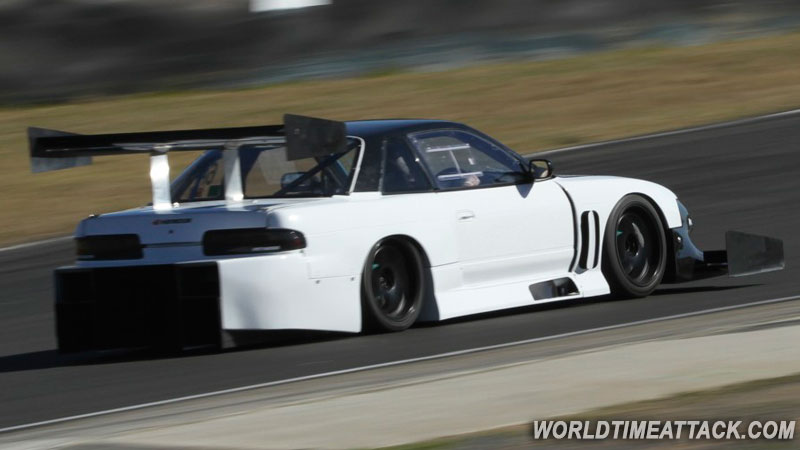

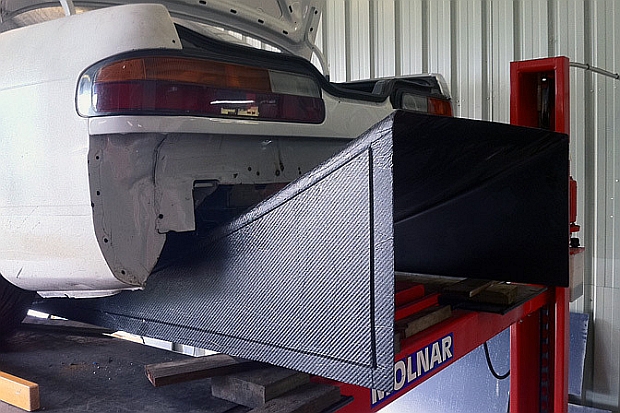

I by no means have any idea about how or why diffusers with very steep AOAs work, but they are all over the place in pro class time attack. As far as I know, the better the underbody aero the more AOA the diffuser can run.









Would seem a lot of the fastest guys are starting to do some pretty wild things. Seems something this aggressive would require a lot of track time and revisions, some sort of CFD analysis, or wind tunnel time though.
Attached Thumbnails
Miata Flat Underbody-mca.jpg   Miata Flat Underbody-mca%2520suspensions%2520s13%2520028.jpg   Miata Flat Underbody-img_2346.jpg   Miata Flat Underbody-k24-crx-5233.jpg
1vicissitude is offline   Reply With Quote
Old 01-27-2013, 02:18 AM   #85
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

Quote:
Originally Posted by 1vicissitude View Post
I by no means have any idea about how or why diffusers with very steep AOAs work, but they are all over the place in pro class time attack. As far as I know, the better the underbody aero the more AOA the diffuser can run.
Seems something this aggressive would require a lot of track time and revisions, some sort of CFD analysis, or wind tunnel time though.
I don't think there's any doubt those cars have much more downforce than they did before those mods. I'd really like to see what's happening with the airflow in those diffusers, though. Everything I can find indicates those are too steep and that airflow should be separating from them. But are they better than a non-flat underbody with no diffuser? Definitely.
Mobius is offline   Reply With Quote
Old 01-27-2013, 02:35 AM   #86
Senior Member

Join Date: Oct 2011
Location: Northridge, CA
Posts: 655
Total Cats: 281
Default

Some of those time attack cars were designed by people that worked at the highest levels of motorsports like F1, ALMS etc...
The aero on that S13 was designed by some ex McLaren F1 aerodynamicist, there's a big article about this car in Moto IQ.
Blackbird is offline   Reply With Quote
Old 01-27-2013, 03:10 AM   #87
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

Good article. They have obviously spent a lot of time and effort on this car. I found it very interesting all of the aero work was done old school, with no CFD done at all.
Mobius is offline   Reply With Quote
Old 01-27-2013, 02:13 PM   #88
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,864
Total Cats: 491
Default

I think those diffusers in particular are so long (like 6 ft!) that although their end angle is much steeper than conventional thinking says should work, the angle change is such a gradual curve that air may be able to stay attached...? Same thing but scaled down, I don't think there's any way it would work.
-Ryan
ThePass is offline   Reply With Quote
Old 01-27-2013, 03:12 PM   #89
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Quote:
Originally Posted by Blackbird View Post
Some of those time attack cars were designed by people that worked at the highest levels of motorsports like F1, ALMS etc...
The aero on that S13 was designed by some ex McLaren F1 aerodynamicist, there's a big article about this car in Moto IQ.
MOST of those time attack cars were built by people in sheds who want to be featured in speedhunters...
Full_Tilt_Boogie is offline   Reply With Quote
Old 01-27-2013, 03:23 PM   #90
Junior Member

Join Date: Dec 2012
Location: Indianapolis
Posts: 65
Total Cats: 35
Default

Quote:
Originally Posted by 1vicissitude View Post
I by no means have any idea about how or why diffusers with very steep AOAs work, but they are all over the place in pro class time attack. As far as I know, the better the underbody aero the more AOA the diffuser can run.

Would seem a lot of the fastest guys are starting to do some pretty wild things. Seems something this aggressive would require a lot of track time and revisions, some sort of CFD analysis, or wind tunnel time though.
A lot of aero in time attack is done because they think it works, but really have no idea. It is still amateur racing without a team of engineers.

Quote:
Originally Posted by Blackbird View Post
Some of those time attack cars were designed by people that worked at the highest levels of motorsports like F1, ALMS etc...
The aero on that S13 was designed by some ex McLaren F1 aerodynamicist, there's a big article about this car in Moto IQ.
Some yes, most are not.

Quote:
Originally Posted by ThePass View Post
I think those diffusers in particular are so long (like 6 ft!) that although their end angle is much steeper than conventional thinking says should work, the angle change is such a gradual curve that air may be able to stay attached...? Same thing but scaled down, I don't think there's any way it would work.
-Ryan
This. Some of the diffusers still have a ~10 degree angle that ramps as it continues down the car. This does allow a much steeper angle than conventional thought. Also some of the cars who were designed by aerodynamicist have other things going on to keep flow attached.

Quote:
Originally Posted by Full_Tilt_Boogie View Post
MOST of those time attack cars were built by people in sheds who want to be featured in speedhunters...
This. Most are not designed by aerodynamicist from high end racing.
plucas is offline   Reply With Quote
Old 01-27-2013, 03:24 PM   #91
Senior Member
Thread Starter

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 587
Total Cats: 47
Default

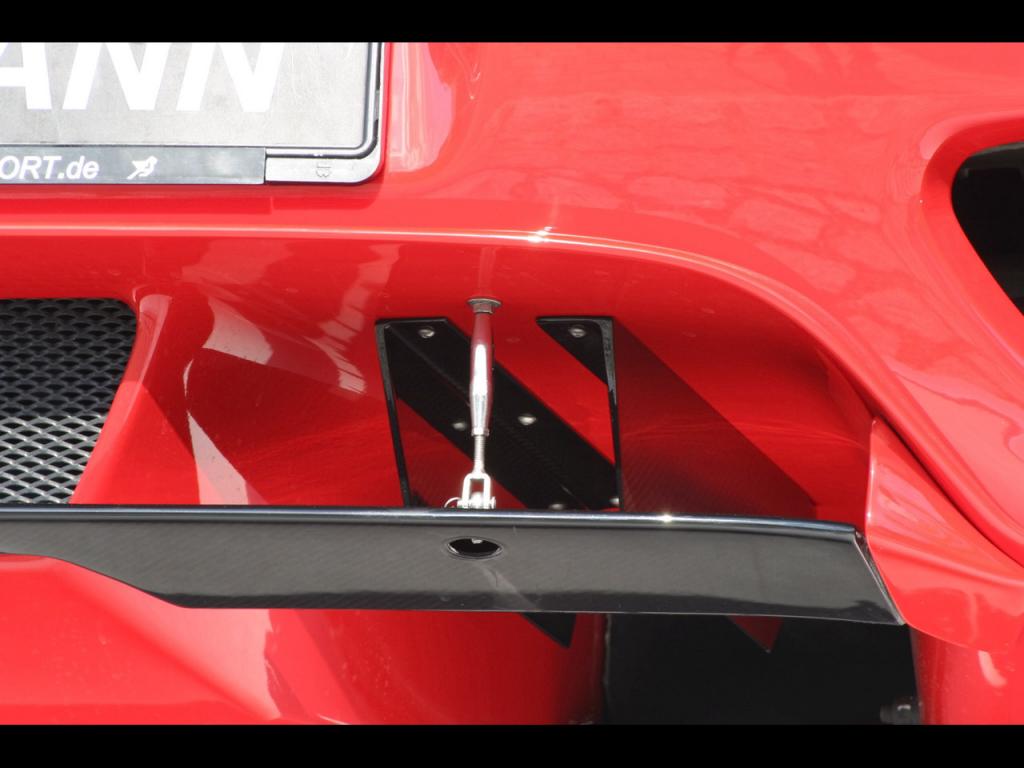

I'm surprised they do not use a horizontal stabilizer to keep the air flow attached to the diffuser like on the Ferrari 360

Attached Thumbnails
Miata Flat Underbody-hamann-ferrari-360-spider-rear-diffuser-1280x960_zps7aebbacb.jpg
1993ka24det is offline   Reply With Quote
Old 01-27-2013, 04:52 PM   #92
Junior Member
iTrader: (1)

Join Date: Apr 2012
Posts: 187
Total Cats: 3
Default

Quote:
Originally Posted by 1vicissitude View Post
I by no means have any idea about how or why diffusers with very steep AOAs work, but they are all over the place in pro class time attack. As far as I know, the better the underbody aero the more AOA the diffuser can run.









Would seem a lot of the fastest guys are starting to do some pretty wild things. Seems something this aggressive would require a lot of track time and revisions, some sort of CFD analysis, or wind tunnel time though.

The better the WHOLE aerodynamic package, the larger the diffuser's AOA can be. Well designed wing profiles can 'drive' the air exiting a diffuser.
motormechanic is offline   Reply With Quote
Old 01-27-2013, 05:08 PM   #93
Senior Member

Join Date: Oct 2011
Location: Northridge, CA
Posts: 655
Total Cats: 281
Default

Plucas, I agree with almost everything you said, only this specific S13 that was given as the example is actually the exception.

Blackbird is offline   Reply With Quote
Old 01-27-2013, 05:27 PM   #94
Junior Member

Join Date: Dec 2012
Location: Indianapolis
Posts: 65
Total Cats: 35
Default

Quote:
Originally Posted by Blackbird View Post
Plucas, I agree with almost everything you said, only this specific S13 that was given as the example is actually the exception.

Agreed
plucas is offline   Reply With Quote
Old 01-27-2013, 08:23 PM   #95
Elite Member
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default even old skook knew about flat bottoms

All things considered a flat bottom will benefit any build, as long as cooling, maintenance and the like are considered. Even the Mercedes 300SL had a flat bottom back in the mid-fifties. It's expensive and not expected, but the aero pays off.

As for diffusers and Time Attack, I think that you need to look at whatever the intent is for your car. If the lowest single lap time irrespective of all else if your goal, then your car is built for max downforce and max short-fuse horsepower. Endurance cars need downforce, but also need to balance it against fuel efficiency. It's all a balancing act, and some benefits will be sacrificed for others.

That's the beauty of building car your car your way...the end result should show the benefits of the decisions you made along the way, and your attention to detail getting there.
cordycord is offline   Reply With Quote
Old 01-28-2013, 01:30 AM   #96
Junior Member

Join Date: Dec 2012
Location: Rockford
Posts: 86
Total Cats: 1
Default

Quote:
Originally Posted by 1vicissitude View Post
I by no means have any idea about how or why diffusers with very steep AOAs work, but they are all over the place in pro class time attack. As far as I know, the better the underbody aero the more AOA the diffuser can run.



Would seem a lot of the fastest guys are starting to do some pretty wild things. Seems something this aggressive would require a lot of track time and revisions, some sort of CFD analysis, or wind tunnel time though.
I had a skateboard ramp just like that as a kid. only mine was made out of plastic not fancy carbon fiber
98mystique2 is offline   Reply With Quote
Old 01-28-2013, 01:39 AM   #97
Junior Member

Join Date: May 2010
Location: Tampa, FL
Posts: 85
Total Cats: 0
Default

Let me take a stab at describing the "tunnel" on the S13.
Many of the top time attack cars (NEMO, and the MCA S13 pictured above) are beginning to utilize tunnels. With tunnels, you have to stop thinking about the rear portion of the diffuser as a single component, and think of the shape that it creates on the underbody of the car, as a whole. If you take a look at the underside of the S13, it is completely flat at the front and begins to taper up in the tunnel at the back. If you think of the car in profile, from the front of the car, to the back of the tunnel, it looks like the underside profile of a wing. A wing with a decent angle of attack. So, in profile, you've essentially turned the entire center of the car into a wing, with a narrow span, but a very long chord. And that is why I don't think they worry about their AOA at the rear, or at least, the MCA S13. The tunnel sticks so far out, that it makes the wing profile nice and gradual.

Of course, I'm no aerodynamicist or engineer. So, take all of this with a grain of salt. It's just a different approach to thinking about it.
vintagerust is offline   Reply With Quote
Old 01-28-2013, 11:44 PM   #98
Junior Member
iTrader: (1)

Join Date: Apr 2012
Posts: 187
Total Cats: 3
Default

Vintagerust, I believe you are right. The tunnel the created here behaves like a venturi tube, with an inlet, throat, and outlet. Simon McBeath did state that the longer the throat and the steeper the inlet/outlet you can get away with while maintaining attached flow would benefit you most.
motormechanic is offline   Reply With Quote
Old 02-02-2013, 07:09 PM   #99
Elite Member
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default Flat bottom kit

It dawned on me that it would be fairly easy to turn my flat bottom drawings I have now into a flat bottom kit for Miatas; the wheelbase is the same, the width can be adjusted easily to the pinch seam, we're mounting the Catfish diffuser to a Miata now (90-05), and it wouldn't be difficult to change the front splitter shape to the Miata outline.

Would a pre-made flat bottom kit be interesting at all, or is this a purely DIY crowd?
cordycord is offline   Reply With Quote
Old 02-02-2013, 07:13 PM   #100
Junior Member
iTrader: (1)

Join Date: Oct 2011
Location: Albuquerque, NM
Posts: 381
Total Cats: -13
Default

If it was cheap as ****.
Dot3 is offline   Reply With Quote
